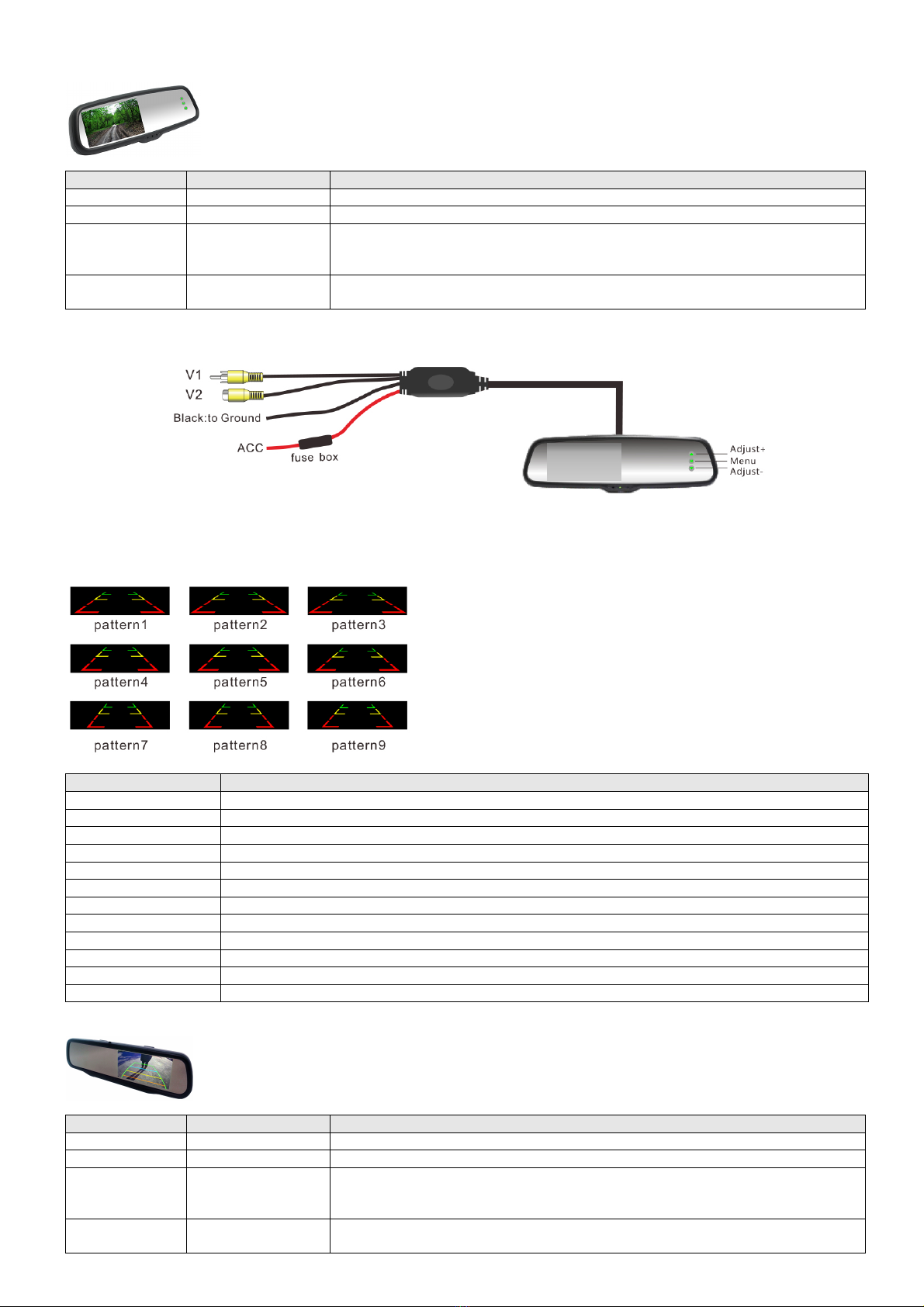

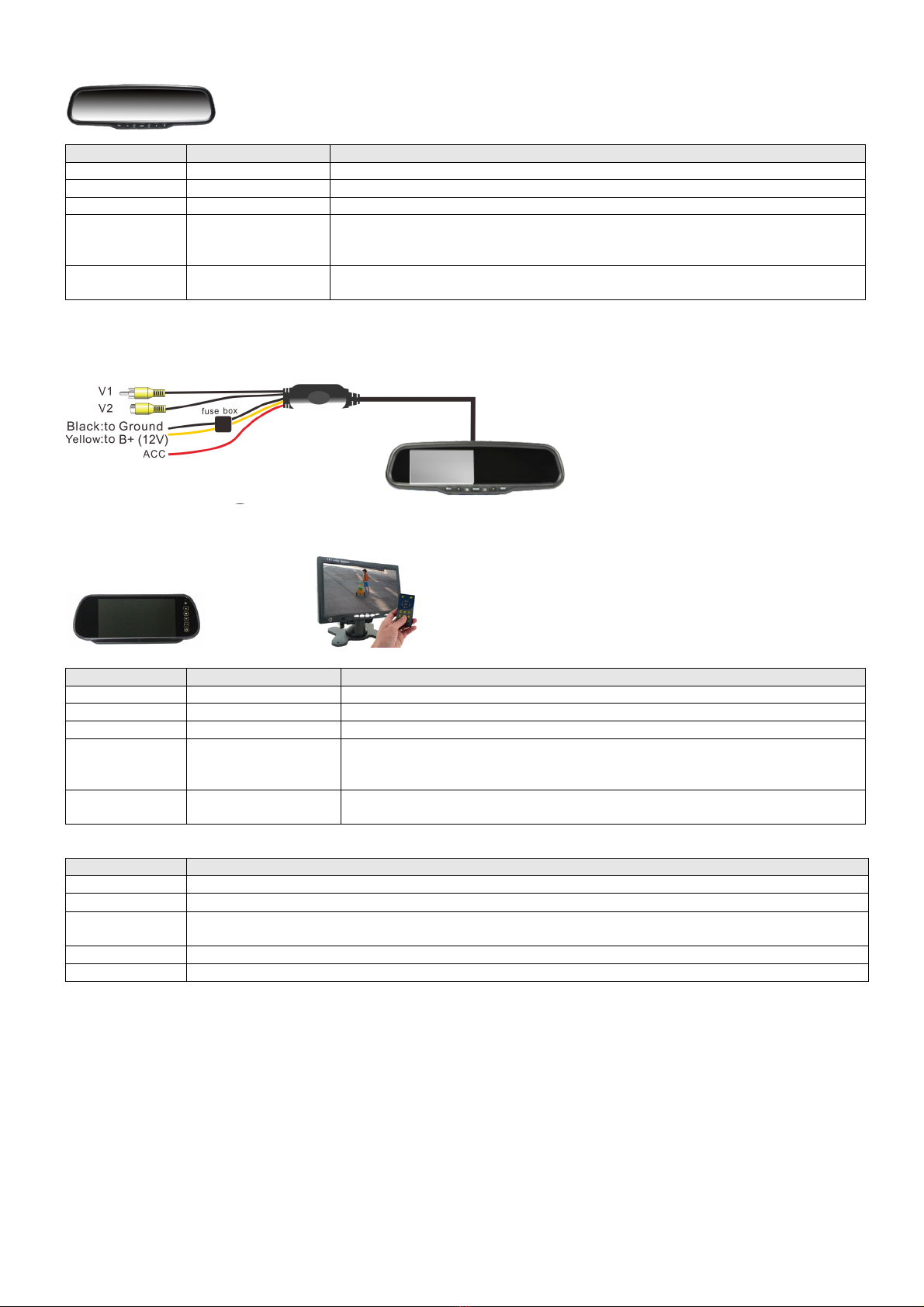

Appropriately fused +12/24v switched ignition on supply
Good earth source e.g. vehicle body/chassis
Reverse signal/vehicle reverse light wire (+12/24v)
4 pin camera cable. Monitor will switch to display this input when a signal is
detected on green wire e.g. when the car goes into reverse. Display will switch back
to C2 or turn off if there is no signal on C1.
4 pin camera cable. Monitor will display C1 until a signal is detected on green wire.
Adjust display brightness/contrast up
MENU – push to enter menu and scroll through functions
Adjust display brightness/contrast down
Manually switch between camera inputs
AVS RM90C
The AVS RM90C can display up to 4 cameras in a split screen, either any channel full screen, 2 way or 4 way split.
The channels can be switched manually using the buttons on the front panel or remote or can be controlled by each channels input wire
e.g. connect the blue wire to the left turn indicator and mount camera 3 on the left side of the vehicle. When the left indicator turns on
the monitor will display the left side camera. Do not connect any input control wire to permanent power as this will lock the display to
that channel and may damage the monitor.
Appropriately fused +12/24v switched ignition on supply
Good earth source e.g. vehicle body/chassis
Switches display to CH2 REVERSE
Reverse signal/vehicle reverse light wire (+12/24v)
Switches display to CH1 FORWARD
Forward camera switch (+12/24v)
Switches display to CH3 LEFT
Left turn indicator or switch (+12/24v)
Switches display to CH4 RIGHT
Right turn indicator or switch (+12/24v)
CH2 (REV) 4 pin
connector
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on GREEN wire. Holds for 3 sec (adjustable in SYSTEM
menu) after signal removed.
CH1 (FWD) 4 pin
connector
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on BROWN wire. Holds for 3 sec (adjustable in SYSTEM
menu) after signal removed.
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on BLUE wire. Holds for 3 sec (adjustable in SYSTEM
menu) after signal removed.
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on GREY wire. Holds for 3 sec (adjustable in SYSTEM
menu) after signal removed
Switch between 1/2/3/4 camera display. See options below
MENU –push to enter menu and scroll through functions. See options below
Manually switch to CH1 camera or adjust left
Manually switch to CH2 camera or adjust right
Manually switch to CH3 camera or adjust down
Manually switch to CH4 camera or adjust up
