Thank you for purchasing our product. Please read this manual

carefully before connection and operation. Please keep this manual

for future reference.

This DVD player is a new generation home player which can produce

high quality video and audio for your continued enjoyment.

Built in Dolby Digital, LPCM, MPEG etc. digital audio decoder

HiFi, 96kHz/24bit audio digital processor

COAXIAL digital audio output

Compatible with DVD/VCD/CD/MP3/JPEG/ PICTURE

CD/MPEG4 etc.

AM/FM stereo tuning system

High quality amplifier

Features

-2-

DA641-P2.CDR

To reduce the risk of electric shock or fire, do not open the

cover. Refer service to qualified service personnel.

This mark indicates this unit belongs to class 1 laser product.

The laser beam may produce radiation harm to the directly

touching human body.

IMPORTANT NOTES

Please read through the manual carefully before connection and

operation.

Do not open the cover or touch any internal components.

Turnoff the power when the unit is not being used. (Unplug the

power cord if the unit is not used for a long time)

Plug,as the disconnected device entirely with power source ,should

keep in easy-to-operation in daily life.

Don't expose this unit to direct sunlight. Keep away from any

heating sources.

Don't expose this unit to rain or moisture.

Place the unit on a horizontal level. Keep the unit ventilated. Don't

block the heat hole. Overheating may cause malfunction.

Clean the cabinet with soft cloth. Detergent or alcohol is not

recommended as it may damage the unit.

This book is only a guide for user’s operation.

The apparatus shall not be exposed to dripping or splashing and

that no object filled with liquids, such as vases, shall be placed on

the apparatus.

For Your Attention

The lightning flash is intended to alert the user to the presence

of dangerous voltage within the product's enclosure, and

touching the internal components may result in a risk of electric

shock to persons.

The exclamatory mark is intended to alert the user to the

presence of important operating instructions.

CLASS 1

LASER PRODUCT

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTIONCAUTION

-3-

M1389E21B-P3.CDR

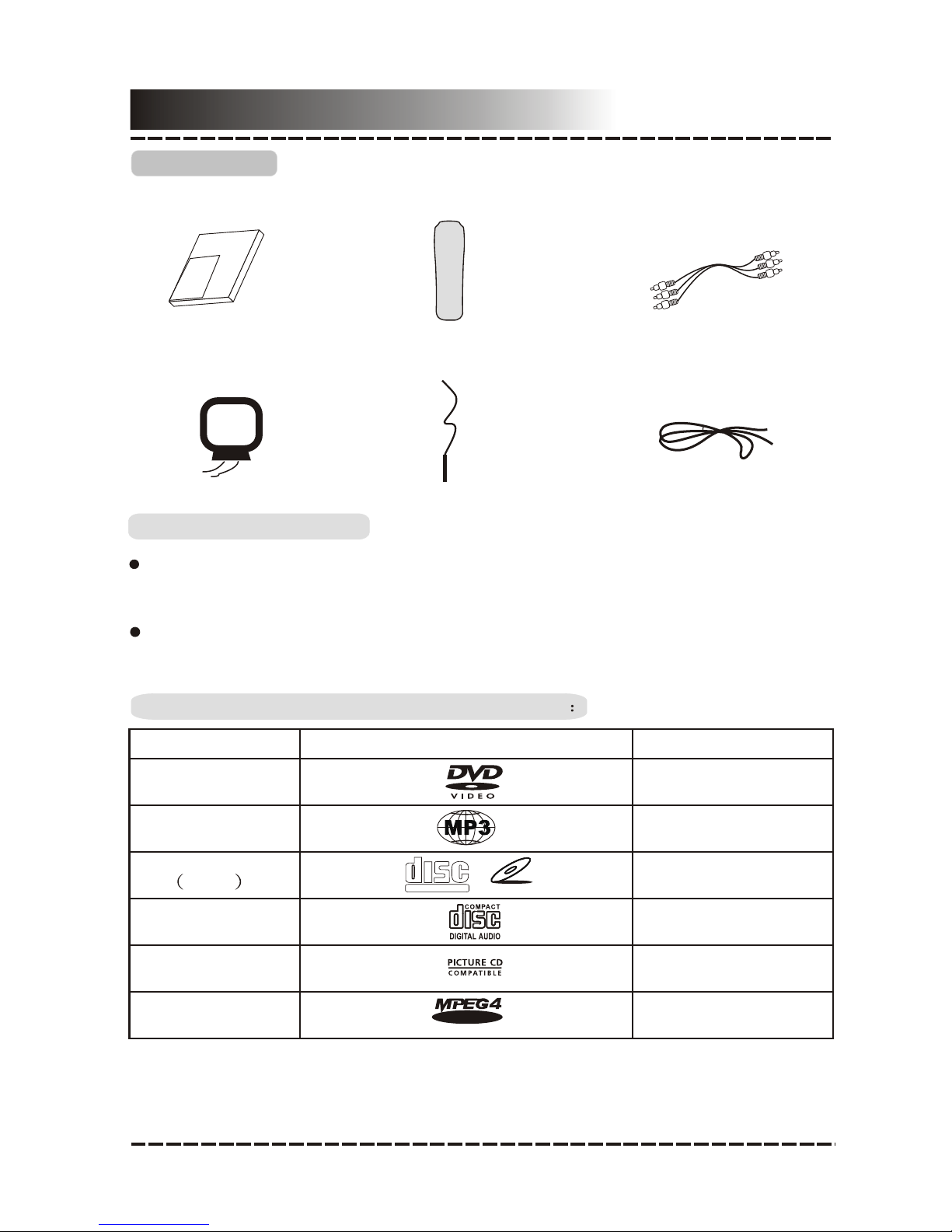

Accessories

AM Antenna Speaker Connect Cable

FM Antenna

Remote Controller Operation

Insert the batteries into the cell box. Points the remote controller at

the remote sensor within 8 meters and with 30-degree of its left or

right side.

Take the batteries out of the controller when it is not being used for

a long time.

A/V Cable

Remote Controller

User Manual

User manual

Remote control

This unit can play the following types of discs

-4-

Symbol Contents

Audio + Video

DVD

Disc types

Audio + Video

Audio

MP3

Video-CD

VCD

CD-DA

COMPACT

DIGITAL VIDEO

VIDEO CD

JPEG Photo CD

Picture CD

Audio + Video

MPEG-4

V I D E O

M1389E21B-P4.CDR

Panel

-5-

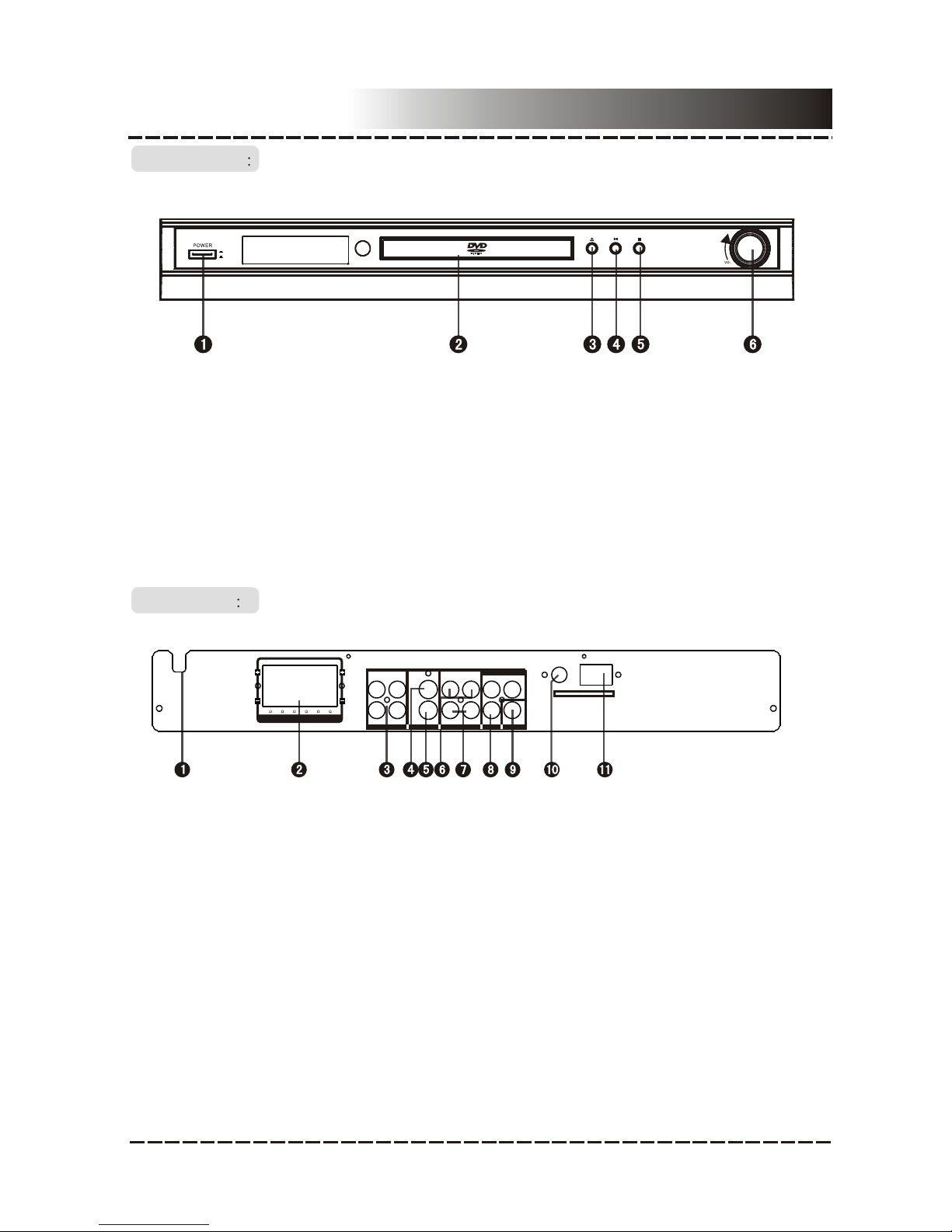

FRONT PANEL

DA641-P5.CDR

REAR PANEL

2. SPEAKER OUTPUT TERMINALS

1. POWER CORD

3. 2CHAUDIO INPUT

4. VIDEO OUTPUT

8. COMPONENT Y,Cb/Pb,Cr/Pr

7. R AUDIO OUTPUT

6. L AUDIO OUTPUT

5. S-VIDEO OUTPUT 9 . COAXIAL

3. OPEN/CLOSE BUTTON

4. PLAY/PAUSE BUTTON

1. POWER

2. DVD DOOR

OFF

S-VIDEO R1 R2

L1 L2

R1 R2 Cr/Pr

VIDEO L1 L2 YCb/Pb

FM 75ohm -ANTENNA-AM LOOP

SWSW CENCEN SRSR SLSL

FRFR FLFL

844444

SPEAKERS OUT

2CH AUDIO IN 2CH AUDIO OUTVIDEO

COMPONENT VIDEO OUT

COAXIAL

DIGITAL AUDIO

11. AM ANTENNA

10 . FM ANTENNA

5. STOP BUTTON

6. VOLUME KNOB

Connection

-6-

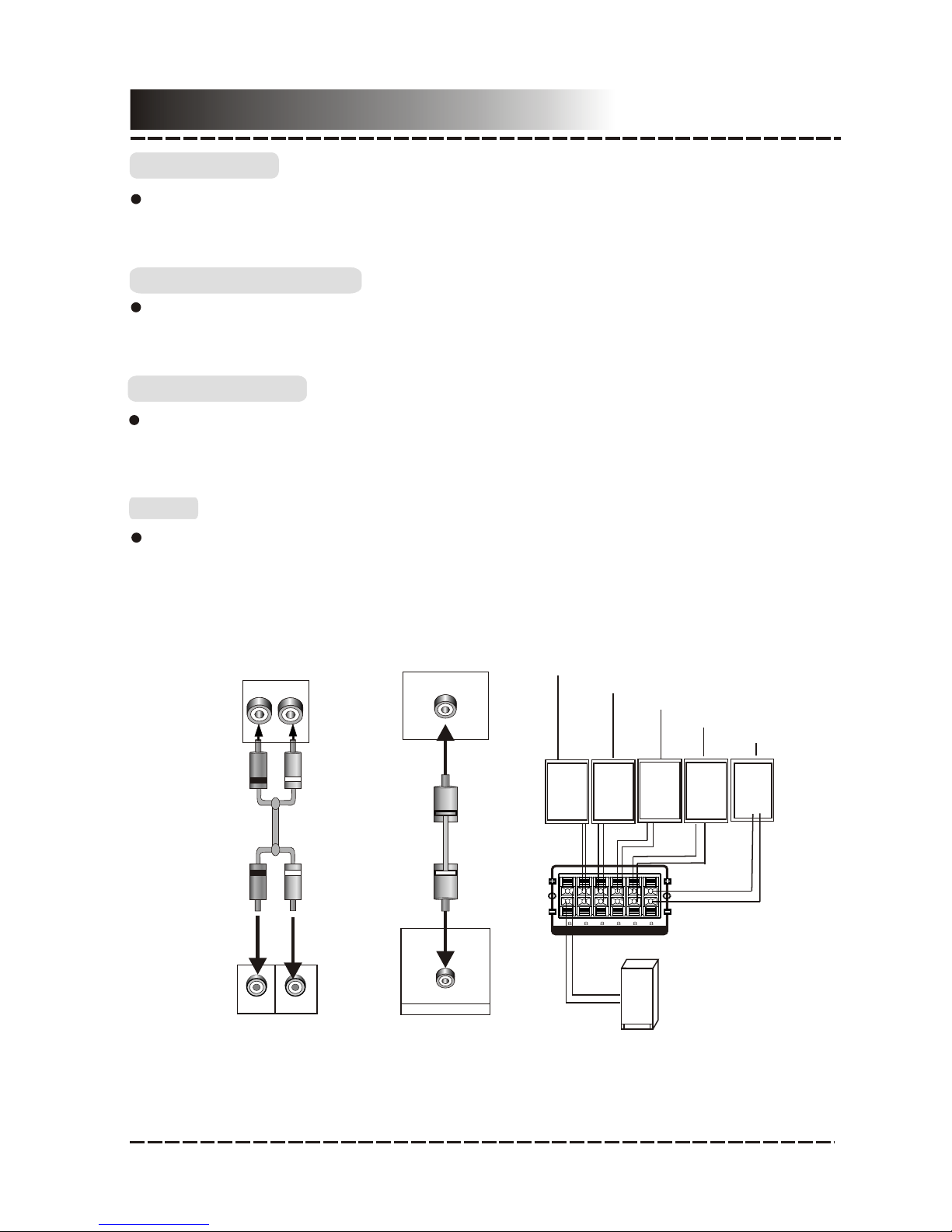

audioUse a pair of cable (red for right /white for left) to connect the stereo

audio output terminal of this unit to the other stereo audio input terminal.

Note:

The physical connection should come with audio output setup of this unit.

Please refer toAudio Setup in System Setup.

Coaxial Digital Audio

specifiedUse the coaxial cable to connect the coaxial output terminal of this

unit to the coaxial input terminal of power amplifier.

Stereo Audio

Speaker Output

Use the speaker cable (white+,black-)to connect the speaker output

of this unit to the s .terminals peakers' corresponding terminals

DIGITAL AUDIO

COAXIAL

Analog Audio Output

Connection

-6-

audioUse a pair of cable (red for right /white for left) to connect the stereo

audio output terminal of this unit to the other stereo audio input terminal.

Note:

The physical connection should come with audio output setup of this unit.

Please refer toAudio Setup in System Setup.

Coaxial Digital Audio

specifiedUse the coaxial cable to connect the coaxial output terminal of this

unit to the coaxial input terminal of power amplifier.

Stereo Audio

Speaker Output

Use the speaker cable (white+,black-)to connect the speaker output

of this unit to the s .terminals peakers' corresponding terminals

DIGITAL AUDIO

COAXIAL

Analog Audio Output

Connection

-6-

audioUse a pair of cable (red for right /white for left) to connect the stereo

audio output terminal of this unit to the other stereo audio input terminal.

Note:

The physical connection should come with audio output setup of this unit.

Please refer toAudio Setup in System Setup.

Coaxial Digital Audio

specifiedUse the coaxial cable to connect the coaxial output terminal of this

unit to the coaxial input terminal of power amplifier.

Stereo Audio

Speaker Output

Use the speaker cable (white+,black-)to connect the speaker output

of this unit to the s .terminals peakers' corresponding terminals

DIGITAL AUDIO

COAXIAL

Analog Audio Output

Digital Audio Output

Other Audio Input

Digital Audio Input

COAXIAL

DA641-P6.CDR

SWSW CENCEN SRSR SLSL

FRFR FLFL

844444

SPEAKERS OUT

FLSPEAKER

SUBWOOFER

FR SPEAKER

SL SPEAKER

SR SPEAKER

CENTER SPEAKER

Speaker Output

Connection

S-Video

Note:

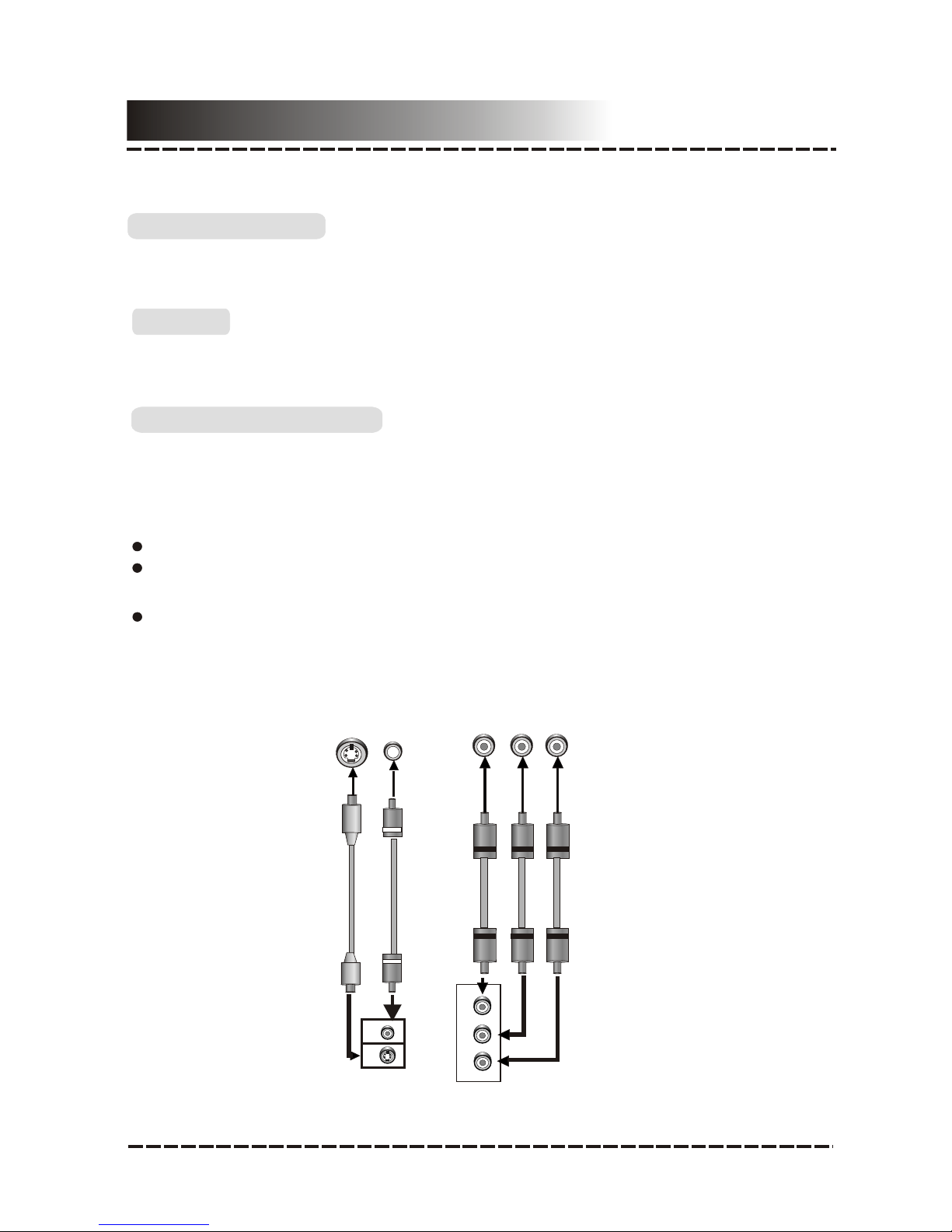

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Cb/Pb

Cr/Pr

Component Input

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Cb/Pb

Cr/Pr

Component Input

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Cb/Pb

Cr/Pr

Component Input

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Cb/Pb

Cr/Pr

Component Input

YCr/PrCb/Pb

Component Video

Output

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Cb/Pb

Cr/Pr

Component Input

YCr/PrCb/Pb

Component Video

Output

VIDEO

S-VIDEO

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Cb/Pb

Cr/Pr

Component Input

YCr/PrCb/Pb

Component Video

Output

VIDEO

S-VIDEO

Connection

S-Video

Note:

The following availablevideo output for this unit .

Usethe AVcable (yellow terminal)to connect composite video output terminal

of this unit to the TV/monitor video input terminal.

Usethe S-videocable to connect the s-video output terminal of this unit to the

TV/monitor S-video input terminal.

Use -core AVcable to connect the component output terminals of this unit to

the corresponding TV/monitor input terminals.

Component Video (YUV)

Composite Video

Cb/Pb

Cr/Pr

Component Input

YCr/PrCb/Pb

Component Video

Output

VIDEO

S-VIDEO

VIDEO

S-VIDEO

Video and

S-Video Output

Real connection depends on the TV/monitor input terminal.

Don't use the all connections at the same time, otherwise the picture will be

affected.

Only the physical connection conforms to the video setting can it produce

the normal picture (please refer to the Video Setup in System Setup).

-7-

DA641-P7.CDR

Press [SETUP] key for the screen to show the setup page. In setup mode,

press [SETUP] key again to quit the setup page. Press direction key to the

desired item, andpress [ENTER] to confirm.

(1) Some setup items are concerning the present modes. The items in gray

can't be set up.

(2) The setup is memorizedand will be kept after thepower has been turned off.

MENU OPERATION:

System Setup

TV Display:

4:3 PANSCAN: When the unit connects to the normal TV set, the wide-

screen image showson the full screen, but somepart is cut off.

4:3 LETTERBOX: When the unit connects to the normal TV set, the wide-

screen image shows and black bars appear on the top and bottom of screen.

16:9: Use this itemwhen the unit is connected withthe wide screen TV set.

Wide-Squeeze: Use this item when the unit is connected to the wide-screen

TV set.

ANGLE MARK:

It will show the ANGLE mark when playing DVD disc with multi-angle view if

selection is ON.

OSD LANG:

Select on-screen display language.

CLOSED CAPTIONS:

This function doesn't work when the disc is without captions. If the caption is

OFF, press [SUBTITLE] key on the remote controller to turn the captions on.

SCREEN SAVER:

If the SCREEN SAVER is set ON and the unit is switched on without a disc

playing for several minutes, a moving picture appears on the screen and the

unit will go to standby modeafter 20 minutes. You can press the [STANDBY]

key on the remote controller to activate.

LAST MEMORY:

When this function is ON, the unit can memorize the time elapsed from the

last time you played the disc. When playing next time, it will resume playing

from the memorized time.

GENERAL SETUP PAGE

-8-

AUDIO SETUP PAGE

ANALOG AUDIO SETUP:

DOWNMIX:

LT/RT: The audio out is Left and Right channel formatting even if the original

sound is 5.1CH format.

M1389E21B-P8.CDR

System Setup

-9-

STEREO: The audio out format is stereo even if the original sound is 5.1CH

format.

3D SURROUND: The audio out is virtual surround sounds (only for 5.1CH

player)

5.1CH: Turn off DOWNMIX function. If playing 5.1CH discs or the unit is

connected with 5.1 channel amplifier, this item should be selected.(only for

5.1CH player)

DIGITAL AUDIO SETUP PAGE

DIGITAL OUTPUT:

SPDIF OFF: No digital output(coaxial off), only analog audio output.

ALL: If this item is selected, you can set up RAW.

PCM ONLY: In SPDIF/PCM mode, setup PCM channel according to your

preference.

LPCM OUT :

Select PCM frequencyat 48kHz or 96kHz.

Note: Some amplifiers don't support 96kHz sampling which will effect the

coaxial output.

FRONT, CENTER, REAR and SUB-WOOFER SPEAKER: (No this item in

2CH player)

If your speaker system includes the above speakers, you can set these

items according thereal speaker status.

DIALOG: The DIALOG mode is available, and you can press up and down

direction key to adjust it. (In the DOWNMIX mode, LT/RT or STEREO is

selected.)

D.R.C:The D.R.C can control data record. You can chose AUTO, ON and

OFF in this mode.

DUAL MONO:

Stereo: Set audiooutput to the stereo output.

L-mono: Set audio output to the mono-left channel.

R-mono: Set audio output to the mono-right channel.

Mix-mono: Set audio output to the mix-mono channel.

DYNAMIC:

Select this to reduce the overall volume and still keep defined audio sound.

You can press upand down directionkey to adjust it.

DOLBY DIGITAL SETUP

DA641-P9.CDR

Indice

Altri manuali AWA Sistema Home Theater

AWA

AWA DA646PA Manuale utente

Manuali Sistema Home Theater popolari di altre marche

Samsung

Samsung HT-ES4200K Manuale utente

Harman Kardon

Harman Kardon HS 100 Manuale utente

Samsung

Samsung HT-P10 Manuale utente

Philips

Philips HTS5131 Istruzioni operative

Goodmans

Goodmans GDVD19SWS Manuale utente

Moxi

Moxi media center Manuale utente

Samsung

Samsung HT-EM35 Manuale utente

LG HE903PAW Manuale utente

Bose

Bose SoundTouch 520 Manuale utente

Sony

Sony BDV-N990W Manuale utente

Manta

Manta GK-500 Manuale utente

Sharp

Sharp SBW800 Manuale utente

Philips

Philips HTS3541 Manuale utente

LG LHT799 Manuale utente

Samsung

Samsung HT-TWZ415 Manuale utente

Loewe

Loewe REFERENCE 52 SL FHD+ 200 NMP Manuale utente

Samsung

Samsung AH68-02166R Manuale utente

RCA

RCA 600-Watt Manuale utente
