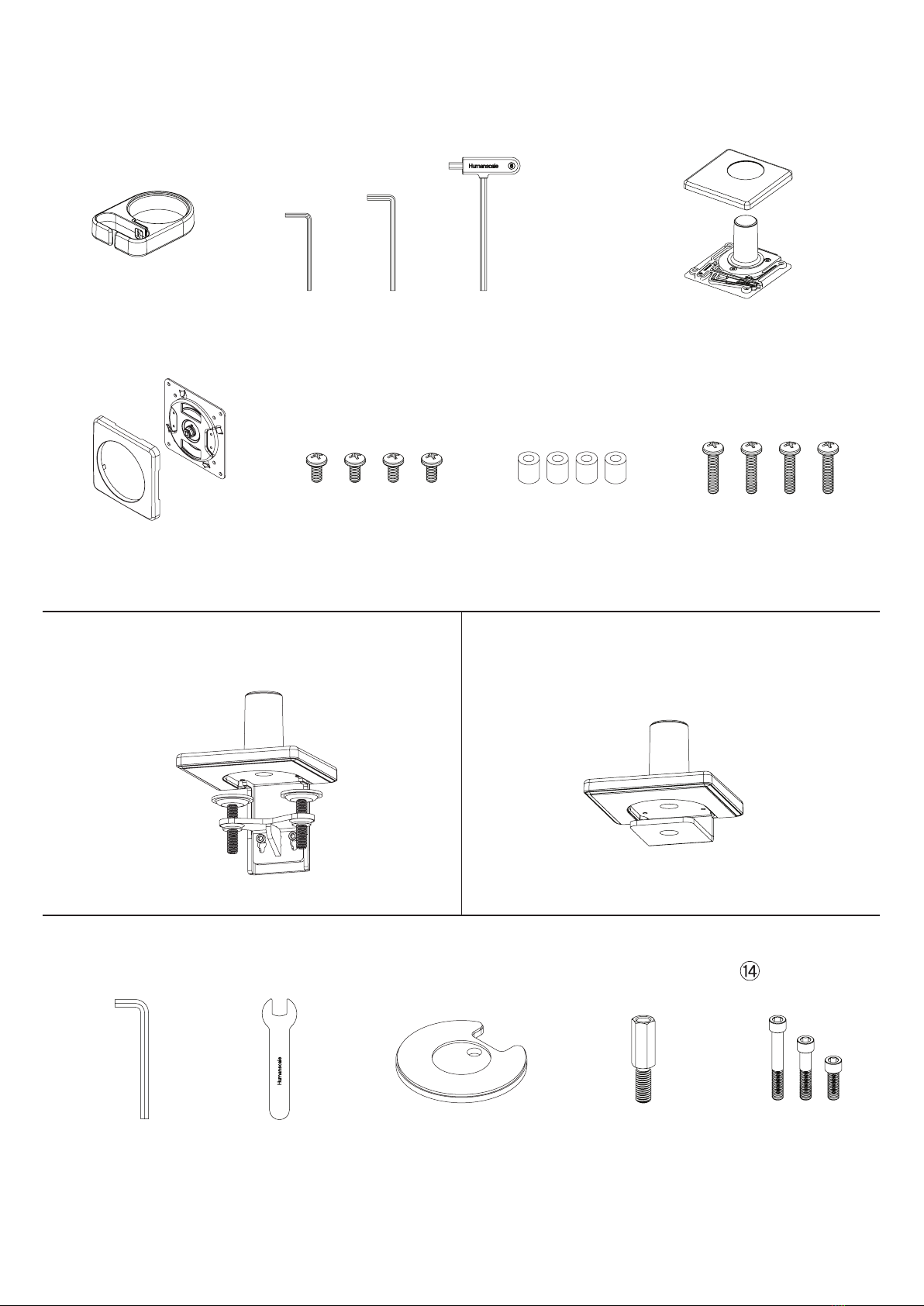

INSTALLATION HARDWARE
Ρ
Bolt-Through Plate10mm
Hex Key
16mm
Wrench
Bolt-Through
Bolts
Bolt-Through
Adapter
Sliding Desk MountClamp Mount
Clamp Mount
Bolt-Through Mount
NOTE: 3 mm, 4 mm and 5 mm Hex Key
can be found under the plastic base cover.
3 mm
Hex Key
4 mm
Hex Key
5 mm
Hex Key
Cable Routing
Hook
4 Standard VESA
Bracket Screws
4 Extended VESA
Bracket Screws
4 Plastic Spacers
With Each VESA Plate:
VESA Plate and Cover
1300 475 217
awm.net.au
3
Ζ
Η
Assembly Instructions

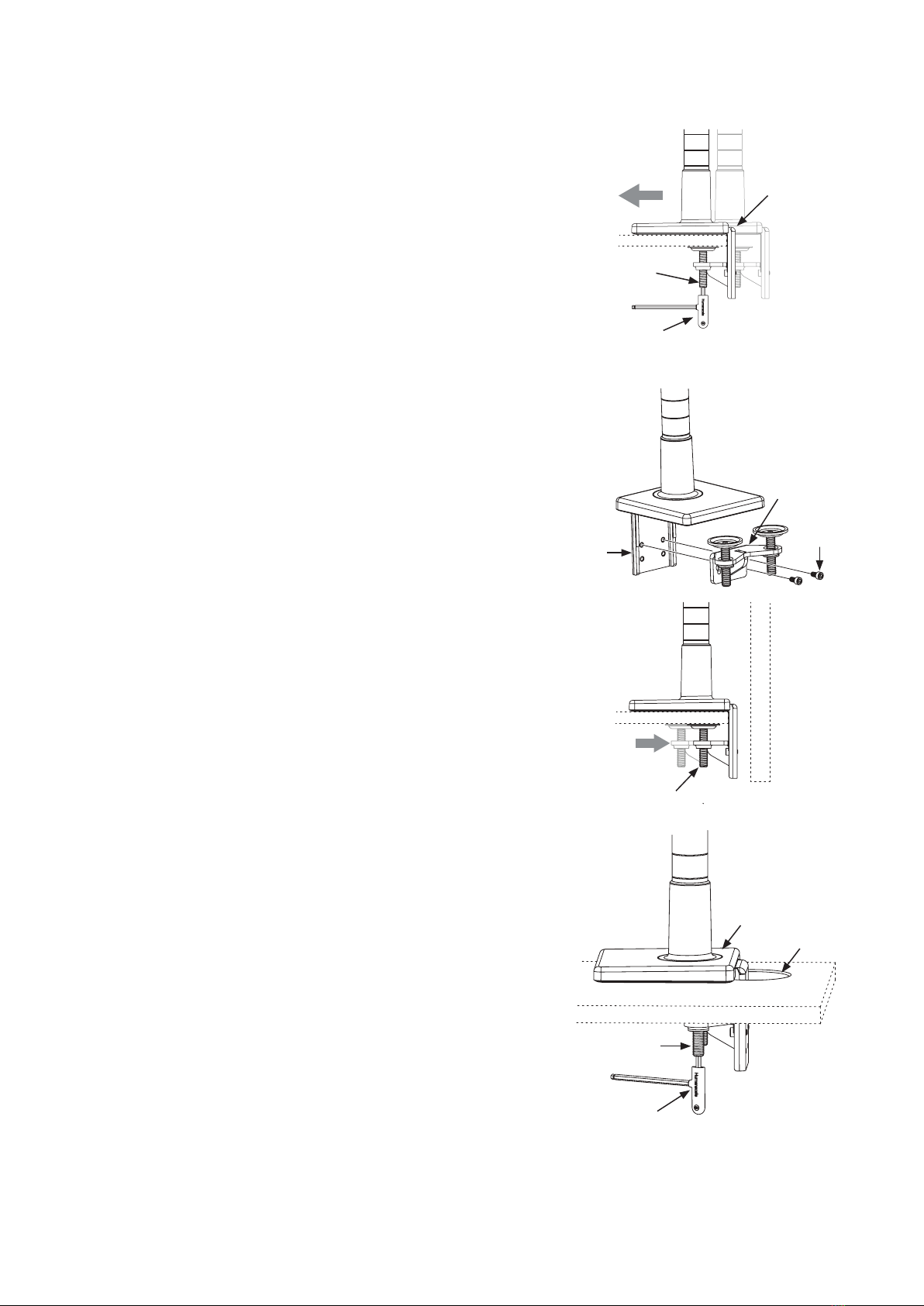

Attach Mount To Work Surface
CAUTION: The following Desk Mounts cannot be used
to mount M/Flex to any wall or vertical surface.
Clamp Mount
A - For installation on an open edge of a work surface:
1Slide the Clamp Mount (A) all the way against the edge of
the work surface.
2Using the 5 mm hex key (C), tighten the Clamp Screws (B)
B - For installation on a work surface against a wall or
panel:
1Detach the Clamp Bracket (E) from the Frame (F) by
loosening Bracket Screws (D) with the 5 mm hex
key (C).
2Position the Frame all the way against the edge of
the work surface.
3Underneath the work surface, reattach the Clamp
Bracket to the Frame and tighten the Bracket
Screws.
4Using the 5 mm hex key, tighten the Clamp Screws (B).
C - For installation through a 3” (75 mm) grommet
hole:*
1 See step 1B – 1 to remove Clamp Bracket.
2 Position the Base (A) in grommet hole (G) up against
the inside edge. Ensure the Base is facing the user.
3 See steps 1B – 3, 4 to reattach Clamp Bracket.
* If the diameter of the grommet hole is less
than 3” (75 mm), a Bolt-Through Mount is required.
Ι
Θ
F
A
B
C
E
D
B
A
G
B
C
1300 475 217
awm.net.au
4
Sliding Desk Mount
D - For installation with minimal clamp space:
Skip to step 3, if the Clamp Mount is not attached.
1 Remove Base Cover (H) by lifting it up and o.
2 Loosely attach Sliding Clamp (L) to the Base
Plate (M) with the Base Screws (J). Do not
tighten these screws yet.
3 Slide the Clamp all the way against the back
edge of the work surface.
4 Finish tightening the three Base Screws.
Bolt-Through Mount
E - For installation on a work surface with no
space for a clamp system:
Skip to step 3, if the Clamp Mount is not attached.
1 See steps 1D – 1, 2 to remove Clamp Mount.
2 Remove the Post Bolt (N) from under the base using the
10 mm hex key (P)
3 Pass the Bolt-Through Adapter (R) through the base and
into the Post. Use the 16 mm wrench (S) to tighten the
adapter.
4 Drill a hole (1/2” – 4“) through the work surface in the
desired location.**
5 Position the Base over the hole (T).
6 Align Bolt-Through Plate (U) under the work surface.
Pass the Bolt (V) through the hole in the plate and screw
into the Bolt-Through Adapter using the 10 mm hex key.
** The Bolt-Through Mount will accommodate holes and
grommets up to 4” (102 mm) in diameter. Holes 2” or larger
will allow cables to be routed through before installation of
the mount.
Ζ
Ι
Η Θ
L
H
J
PR
S
U
V
N
1300 475 217
awm.net.au
5
A
C
B
D
Ζ
Ι
Κ
Θ
Single And Dual Monitor Applications
1 With the Lever (A) open, position the Dual Bracket (B)
at the desired height on the Post (C).
2Close the Lever entirely.
3 If you are adding a second monitor, lift and remove the Cover (D).
1 Remove the two set screws (E) that retain the Bracket
Cap (F). Lift Bracket Cap upwards to remove it.
2 Install the Extension Bracket (G) on top of the Dual
Bracket. Insert Tabs (H) into the Pockets (J). Replace the
Set Screws. Tighten screws until the Extension Bracket is
secure and the screws are flush with the surface.
3 Insert the Bracket Cap into the top of the Extension
Bracket. Press down until it clicks into place.
1 Spread the hooks around the post in the desired location.
2 Squeeze the two sides until the Lock (K) snaps together.
3 To release, use fingernail to disengage the Lock.
Bracket Assembly And Cable Clip
Triple Monitor Applications
Cable Routing Hook
Η
FE
F
H
G
J
K
Λ
1300 475 217
awm.net.au
6
Arm can rotate
without stopping
Arm can rotate 180˚
Arm can rotate 90˚
Smart Stop Adjustment
A Smart Stop Ring is included at every Quick Attach joint.
Position the Smart Stop Ring to limit the arm’s range of motion.
The marked angle will be in the center of the range of motion.
NOTE: The stop rings must be configured in such a way that does
not allow the monitor to pass behind the rear edge of the unit.
A
Before adding each link, adjust the Smart Stop according to
Step 3. In a triple link configuration, one must be a 4” link.
1 Insert the first link into the mount until the release
button (A) locks in place.
2 Insert the next link into the first link.
3 To remove a link, press the release button and lift
upward near the joint.
NOTE: The installation order of the links must not allow the
monitor to pass behind the rear edge of the unit.
Attach Arms To Bracket
Ζ
Ι
Κ
Θ
Η
1300 475 217
awm.net.au
7

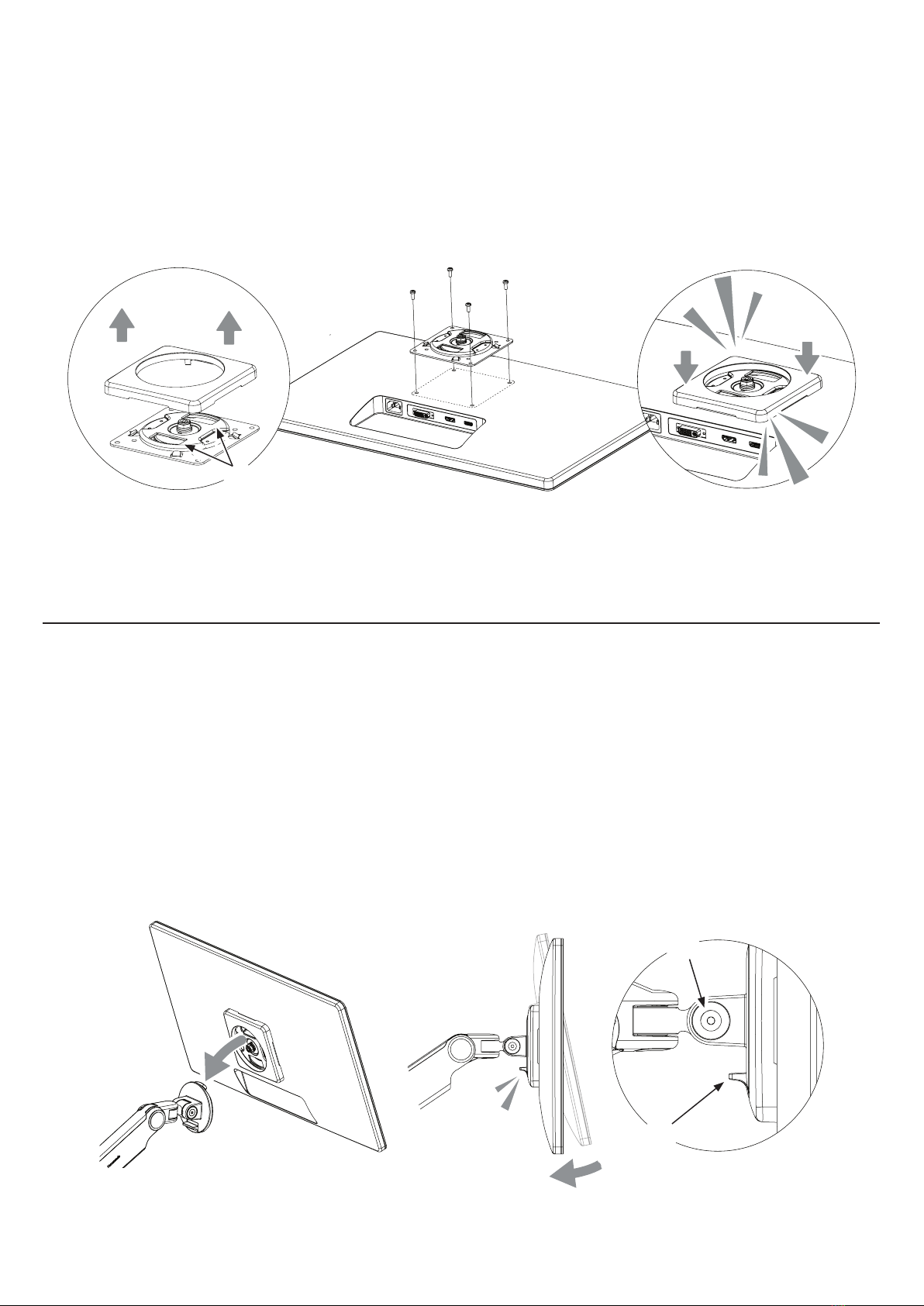

1 Separate the VESA cover from the VESA plate.
2 Position the VESA plate over the mounting holes on the back of monitor with the
D-shaped cutouts (A) in a vertical orientation. Attach using provided VESA screws.
3 Snap the VESA cover back in place.
1 Hold the monitor at an angle and lower it onto the arm. Fit the hook at the top of the arm into the
D-shaped cutout in the VESA plate.
2 Push the bottom of the monitor back until the Quick Release Tab (B) on the arm snaps into position.
3 To remove the monitor, lift the Quick Release Tab and pull the bottom of the monitor away from
the arm, then lift free of the hook.
NOTE: If needed, adjust the Tension Screw (A) to hold the monitor in position.
Ζ
Η
The VESA plate features 75 mm and 100 mm hole patterns.
You may use the screws that came with your monitor to attach the VESA plate.
If you must oset the plate from the monitor, use the plastic spacers and extended screws.
Attach Vesa Plate To Monitor
Attach Monitor To Arm
A
A
B
1300 475 217
awm.net.au
8
Cable Management
Adding A Second Row Of Monitors
M/Flex Clamp Adjustments
A
B
C
A
A
BB
C
1 Route power and monitor cables through the
flexible Cable Clips (A) on the Upper Link.
2 Slide the Cover (B) o of the Straight Link.
3 Route cables into the Straight Link and replace
the Cover, sliding until it clicks into place.
4 Route cables through Cable Routing Hook (C).
CAUTION: Don’t insert extension cords. Don’t insert
any cord connecting one workstation to another.
1 Remove Cap from the top of the first Post.
2 Install the Coupling Screw (A) into the top of
the Post. Leave half of the Screw sticking out.
3 Screw second Post onto the Coupling Scew.
Posts must be tightly seated against each other.
4 Push Cap on top of second Post.
Your M/Flex arrives ready for use, however it may
become necessary to adjust the clamp.
1 Remove monitors and links from the Bracket.
2 Open the Lever (A) all the way.
3 Turn the Adjustment Screw (B) clockwise ¼ of a
turn using the 3 mm hex key (C).
4 Test your adjustments by closing the Lever.
CAUTION: If the lever is difcult to close, or will not close fully,
it is over-tightened. Turn the adjustment screw counter-clockwise
slightly. Forcing it closed will damage the M/Flex.
Ζ
Ι
Κ
ΘΗ
Λ
1300 475 217
awm.net.au
9
Ζ
Η
Your monitor should move up and down easily and stay in position.
If the monitor moves down from the desired position, or is hard to
lift, you should increase the counterbalance force. If the monitor
moves up from the desired position you should decrease the
counterbalance force.
M2.1 And M8.1 Adjustment
1 Push the Upper Link (A) down until the Adjustment Screw (B)
is visible.
2 Using the appropriate hex key (4 mm for M2.1, 5 mm for
M8.1) turn the Adjustment Screw clockwise (towards + ) to
increase force, or counter-clockwise (towards – ) to decrease
force. Turn the Adjustment Screw (B) until the monitor is
balanced.
3 Move the monitor around to ensure that the motion is smooth
and the arm holds the monitor in place.
NOTE: When installing several of the same monitors, note the
position of the needle in the Indicator (C) on top of the arm.
Adjust the other arms to match.
M10 Adjustment
1 To access the Adjustment Screw (F), use your finger to pry
open the Cover (E) on the Upper Link (D).
2 Using the 5 mm hex key, turn the Adjustment Screw (F)
clockwise to increase force, or counter-clockwise to
decrease force. Turn the Adjustment Screw until the
monitor is properly balanced.
3 Move the monitor around to ensure that the motion is
smooth and the arm holds the monitor in place.
4 Reposition the Cover (E) and press until it snaps in place.
CAUTION: Do not over-tighten the Adjustment Screw
as it can damage the arm.
Monitors Should Not Exceed:
15.5 lbs (7 kg) for M2.1
28 lbs (12.7 kg) for M8.1
48 lbs (21.8 kg) for M10
Total Weight Not To Exceed 95 lbs (43 kg)
Weight Adjustments
A
B
D
E
F
1300 475 217
awm.net.au
