AWS-3000 Torque Display

USER'S GUIDE

February, 2008

AWS-5000 Shown with External Input Connector

ADVANCED WITNESS SERIES, INC.

910 BERN COURT #100

SAN JOSE, CA 95112

(408) 453-5070

www.awitness.com

CONTENTS

CONTENTS .................................................... 1

INTRODUCTION.............................................2

Description ......................................................... 2

System Specifications......................................... 2

OPERATION ..................................................3

Display Operation ............................................... 3

Button Function .................................................. 4

Rear Panel Inputs................................................ 4

Charging the Batteries......................................... 4

RS-232............................................................... 5

RS232 Transfer Protocol.................................. 5

RS232 Datastream Format.............................. 5

RS232 Cable Pinouts ...................................... 5

Programming & NAVIGATION .........................6

Menu Tree ....................................................... 7

Description of functions .............................. 10

Operating Mode................................................ 10

Peak ............................................................. 10

1st Peak ....................................................... 10

Track............................................................. 10

Selecting a TransducerError! Bookmark not defined.

Engineering Units.............................................. 10

Auto-Clear ........................................................ 10

Low Limit .......................................................... 11

High Limit ......................................................... 12

Sleep Mode ...................................................... 12

SERVICE AND warranty ................................13

AWS-3000 Guide

INTRODUCTION

DESCRIPTIONESCRIPTION

The AWS-3000 Torque Display is designed to provide for a wide range of

torque testing applications in the smallest foot print at a very reasonable price.

Features include an LCD graphics display, built-in battery pack for remote

testing and an Intellect External port for easy expansion with our entire line of

torque and load transducers. A new menu based user interface allows for a

wide range of software configurations while keeping the tester easy to use.

The AWS-3000 Torque Display is designed to provide for a wide range of

torque testing applications in the smallest foot print at a very reasonable price.

Features include an LCD graphics display, built-in battery pack for remote

testing and an Intellect External port for easy expansion with our entire line of

torque and load transducers. A new menu based user interface allows for a

wide range of software configurations while keeping the tester easy to use.

SYSTEM SPECIFICATIONSSYSTEM SPECIFICATIONS

DimensionsDimensions Width: 8.0", Height: *3.1", Depth: 3.5", Weight: 3.25 Lbs.Width: 8.0", Height: *3.1", Depth: 3.5", Weight: 3.25 Lbs.

*not including angled pedestal base*not including angled pedestal base

Power RequirementsPower Requirements 9V DC, 150 mA (120V mains adapter standard, 240v

mains adapter avaliable) or internal NiMH batteries.

9V DC, 150 mA (120V mains adapter standard, 240v

mains adapter avaliable) or internal NiMH batteries.

Operating Temperature RangeOperating Temperature Range 0˚C to 50˚C0˚C to 50˚C

Data CommunicationsData Communications RS-232-CRS-232-C

AccuracAccurac

0.5% of Indicated Reading with AWS series transducers.

Optional 0.25% of Indicated.

Range 10% to 100%

Optional 5% to 100%

Lockout Combinations Mode, Auto Clear, Mode & Auto Clear, Engineering Units,

Mode & Engineering Units, Auto Clear & Engineering Units,

Mode & Auto Clear & Engineering Units, None (Off)

Displa

4 active digits

Units 8 Selectable engineering units.

Special units available, please inquire.

Filter Selectable Hz filter: 125, 250, 500, 1000, 1500, & 2000

AWS-3000 Guide

OPERATION

OPERATIONION

DISPLAY OPERATIONDISPLAY OPERATION

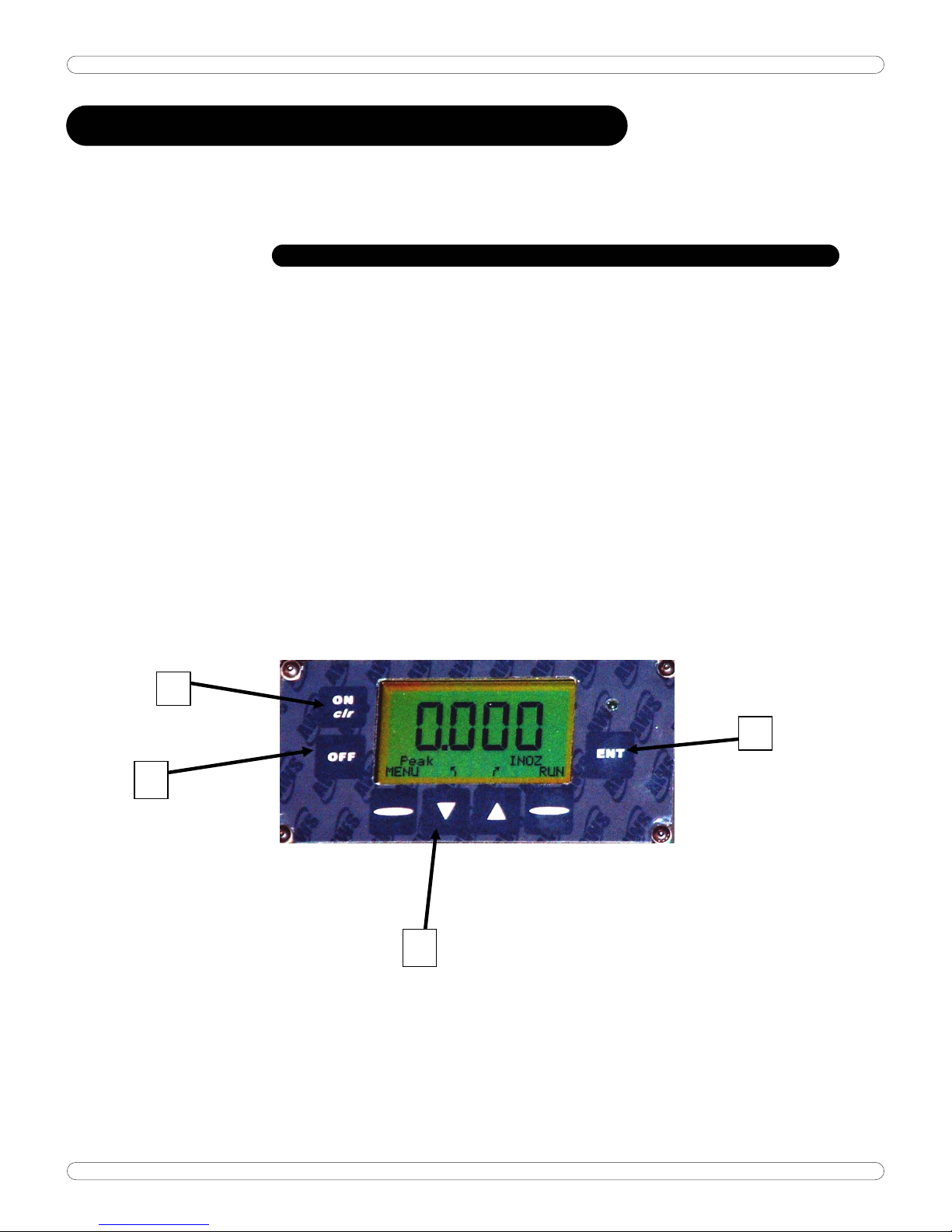

Button Function:Button Function:

1: Turns the display On1: Turns the display On

Zero's the TransducerZero's the Transducer

Clears the reading in Peak and 1st Peak ModeClears the reading in Peak and 1st Peak Mode

2: Turns the display Off2: Turns the display Off

3: Programmable 'Soft Buttons'. The function of these buttons varies with the

current menu set and is shown on the bottom two lines of the display.

3: Programmable 'Soft Buttons'. The function of these buttons varies with the

current menu set and is shown on the bottom two lines of the display.

4: Accepts the reading into memory4: Accepts the reading into memory

Scrolls back one level in the menu systemScrolls back one level in the menu system

AWS-3000 Guide

OPERATION

TTON FUNCTION

SIDE PANEL INPUTS

The sides of the AWS-3000 contains various interface connections:

Transducer Input (12-pin connector Optional).

To install or remove the cable simply push in or pull out. Do this by gripping

the outer metal case of the cable and NEVER from the cord itself. THIS IS NOT

A TWIST LOCK CABLE!

DC In

The interface for the AC Adapter supplied with the unit. Use this if you plan on

working under Mains power. Use only the AC adapter provided with the unit.

Use of another power source will void the warranty and may cause severe

damage to the display.

RS-232

If you are downloading to a printer, data collector, computer, etc., this is the

mini-plug interface for the RS-232 cable. Values are sent via RS-232 every

time the unit auto-clears or the ENT/clr button is pressed

Keylock

The "key", a small black plastic connector inserts into the small hole on the

rear of the unit. When this key is removed, those functions and modes

specified for lockout will become non-functional.

CHARGING THE BATTERIES

1. The batteries in this system should last approximately 12 hours when fully

charged. The Low-Battery indicator on the display will illuminate when the

battery voltage is low. Typically, the user will have between 15-30

minutes before the batteries become too weak to power the unit.

2. The batteries are charged any time the system is plugged-in. In Fast

Charge mode, i.e. the unit is plugged in and the power is OFF, charge time

is between 2 and 4 hours depending on battery charge level. The green

LED on the front panel will flash when the battery is charging and turned

off.

Note: If the tester is to be stored for several months, always ensure the

battery is completely charged prior to storage. It is recommended the

tester be plugged in when not in use. This will not harm the unit and will

increase battery life.

AWS-3000 Guide

OPERATION

RS-232

The AWS-3000 display can be connected to a printer, computer or data

collector via its RS232 interface. Every time a reading is accepted into

memory, a peak is cleared, or data is transmitted via the print data menu(s),

it is transmitted via the RS-232 port. To download the readings, go to the

DATA MENU.

SPECIAL NOTE: Model AWS-3000 PTEST is not equipped with memory, so the

operation of the RS-232 will vary from the standard unit. The protocol,

however, remains the same.

RS232 Transfer Protocol

Protocol Value

Cable 9 pin to mini-plug.

Baud 9600

Parity

Flow

None

Bits 8

S Bit 1

RS232 Datastream Format

mmmbsdddddbuuuuucl,

where:

m Memory Location

s Sign (space or -) c Carriage Return

d Data with Decimal Point l Line Feed

u Units b Blank

RS232 Cable Pinouts

Pin # Description Pin # Description

1 Unused 6 Unused

2 Transmit 7 Unused

3 Receive 8 Unused

4 Unused 9 Unused

5 Ground

AWS-3000 Guide

Pro

rammin

and Navi

ation

PROGRAMMING & NAVIGATIONTION

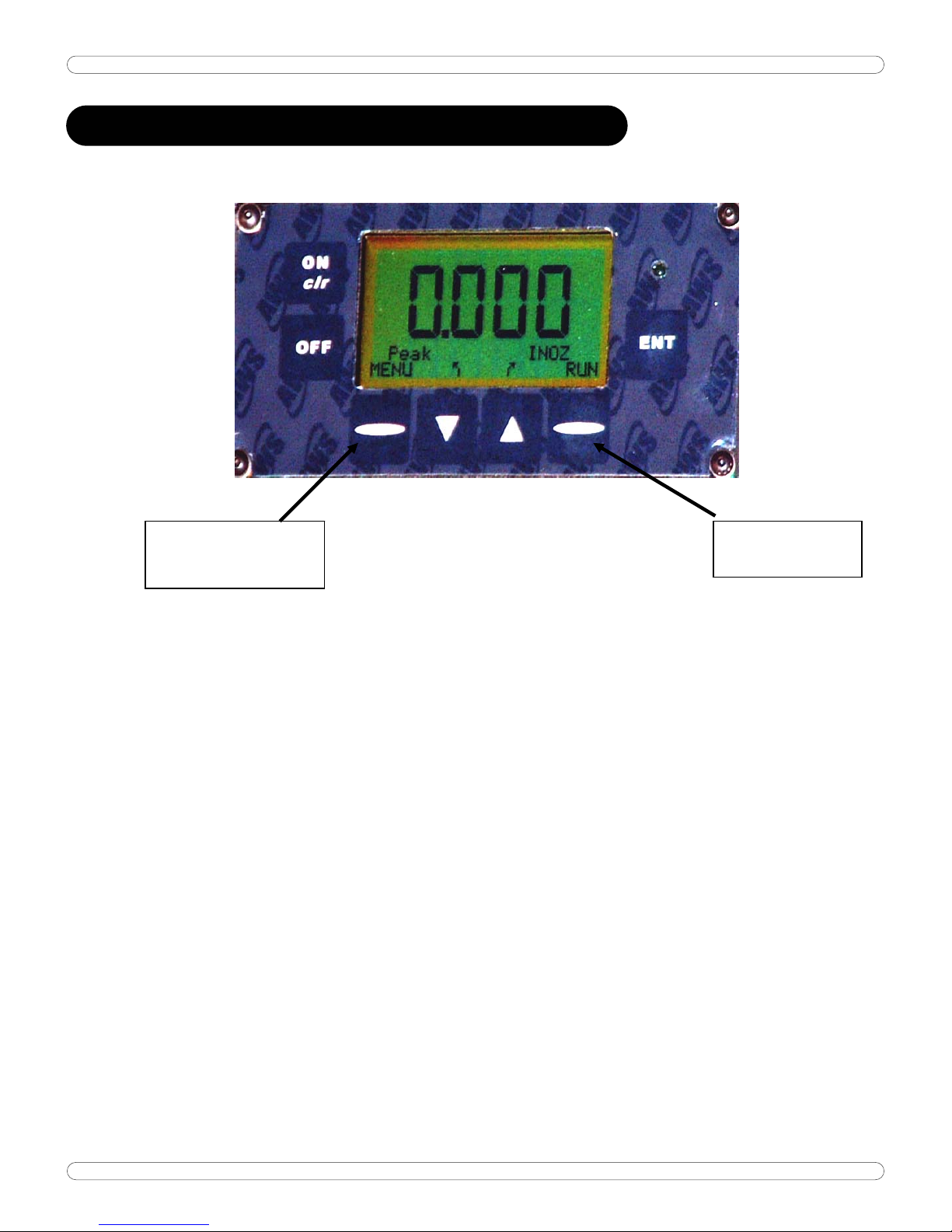

ENTERS THE MENU

SYSTEM

SELECTS MODE

OF OPERATION

The AWS product line has been newly redesigned to provide a consistent

interface throughout the product line. We have made the user interface menu

driven, as opposed to 'hard coded'. This has provided several advantages.

First, once you learn the basics, you can operate any of our products with the

shortest learning curve possible. Secondly, it allows us to offer a greater array

of functionality than was previously possible. Thirdly, it allows the user the

opportunity to economically upgrade and or customize the tester at any point

in the future.

The AWS product line has been newly redesigned to provide a consistent

interface throughout the product line. We have made the user interface menu

driven, as opposed to 'hard coded'. This has provided several advantages.

First, once you learn the basics, you can operate any of our products with the

shortest learning curve possible. Secondly, it allows us to offer a greater array

of functionality than was previously possible. Thirdly, it allows the user the

opportunity to economically upgrade and or customize the tester at any point

in the future.

The four buttons on the bottom row are programmable or "Soft Buttons". The

functionality of the buttons will vary with the current selection. There are two

ways to change settings, or otherwise gain access to the operation of the

tester:

The four buttons on the bottom row are programmable or "Soft Buttons". The

functionality of the buttons will vary with the current selection. There are two

ways to change settings, or otherwise gain access to the operation of the

tester:

1. Live programming: Where the 'soft buttons have text above them,

pressing the button will scroll through the options. In the picture above,

pressing the down arrow will scroll through the Modes of Operation. These

include Peak, 1st Peak and Track. The Up Arrow will scroll through the

engineering units.

1. Live programming: Where the 'soft buttons have text above them,

pressing the button will scroll through the options. In the picture above,

pressing the down arrow will scroll through the Modes of Operation. These

include Peak, 1st Peak and Track. The Up Arrow will scroll through the

engineering units.

2. Menu Driven: There are two sets of menus in the display.2. Menu Driven: There are two sets of menus in the display.

a. Bottom right Oval button will scroll through the Tester Operating

Functions. For basic testers, this includes the RUN MODE and MEMORY

a. Bottom right Oval button will scroll through the Tester Operating

Functions. For basic testers, this includes the RUN MODE and MEMORY

AWS-3000 Guide

Pro

rammin

and Navi

ation

(MEM) MODE. Toggling this button will change the functions of the

other soft buttons appropriately.

b. MENU (bottom left oval) will take you to the main menu system.

Shown below is a sample of one menu screen

LOCATION

MENU SCROLL

BUTTONS

MENU ACTION

BUTTONS

RETURNS TO

PREVIOUS MENU

MENU TREE

Operation Overview: There are 7 buttons on the display face: Off, On/clr, ENT

and four (4) programmable or ‘soft’ buttons. The exact function of the soft

buttons is defined by the bottom two rows of text and will vary depending on the

current mode of operation. Pressing the ENT button will take you back to the

previous screen, until you return to the run mode.

Button Operation:

Run Mode (Current mode displayed):

ON / clr: Clears the peak reading if saved, Zero’s the display and erases the

memory location otherwise.

ENT: Save current reading in memory if on and clears the peak reading.

Memory Mode (MEM displayed instead of mode):

ON / clr: Goes to run mode without erasing memory location.

AWS-3000 Guide

Pro

rammin

and Navi

ation

ENT: Scrolls to next empty location.

Either Mode:

RUN -> MEM: (soft button) changes the mode of the arrow buttons.

Up and Down: (soft buttons) Units and mode respectively for RUN; Memory

location for MEM. Depends on the right programmable button.

MENU: Enter menus.

MENU Operation:

ENT: Previous menu.

Up and Down: Scroll through the current menu.

Programmable keys: Menu actions. The text varies depending of the active menu

selection.

MENU TREE:

1 PEAK OPTIONS MENU

SEL: Enters menu.

1-1 Auto clear

+, - Set time in seconds.

1-2 Filter

+, - Set filter value in Hz.

1-3 Peak Blanking

+, - Set blanking in percent of full scale.

1-4 Sign Lock

+, - Toggle On or Off.

1-5 Edit Limits

High or Low edits that limit.

Limit editing:

•Up and Down: Change the digit specified (5 is decimal point, OFF

turns the limit off)

•DIG: Changes which digit to edit.

•ENT: Accepts changes.

2 SYSTEM MENU

SEL: Enters menu.

2-1 Sleep

+, -: Set time in minutes.

2-2 Lockout Menu

SEL: Enter menu.

AWS-3000 Guide

Pro

rammin

and Navi

ation

2-2-1 Mode Lockout

+, -: Toggle on or off.

2-2-2 Units Lockout

+, -: Toggle on or off.

2-2-3 Scroll Lockout

+, -: Toggle on or off.

2-3 Contrast

+, -: Change the contrast of the display.

2-4 Information

SYS: Gives detailed info about the system.

TD: Gives detailed info about the transducer.

3 DATA MENU

SEL: Enters menu.

3-1 Print Memory

Send: Prints the currently saved readings.

3-2 Clear Memory

CLR: Followed by ENT clears the readings saved in memory.

3-3 Reset All

CLR: Followed by ENT clears all readings and all sets. Should be used

approximately every 5000 readings.

AWS-3000 Guide

Indice

Altri manuali AWS Monitor

AWS

AWS 1010 Series Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
