AXCITY 30W Sound Pack Manuale utente
30W Sound Pack
Installation
AXCITY
ZAC des Hauts de Wissous
« Air Park de Paris »
Bâtiment le Cormoran
3 rue Jeanne Garnerin
91320 Wissous, France
ASBSOP0101-n° 1
2012
Contents
30W Sound Pack Installation
Chapter 1
Pack Description
Box Contents ...................................................... 1-1
30W Amplifier..................................................... 1-2
Chapter 2
Pack Implementation
Step 1
Speakers Connection........................................... 2-3
Step 2
Peripheral Connection......................................... 2-7
Step 3
Amplifier Start-up ............................................... 2-9
Appendix A
Technical Data Sheets
Appendix B
Associated Documents
Pack Description 1-1
Chapter 1
Pack Description
Box Contents
The 30W Sound Pack contains the following items
•1 30-watt amplifier
•1 power cord
•1 FM antenna
•1 replacement fuse
•1 plastic screwdriver to adjust the
recording gain
If any of these are incorrect, missing, or damaged,
contact your Axcity dealer. Keep the original box and
packing materials, in case the product needs to be sent
back for repair.
Pack Description 1-2
30W Amplifier
General Description

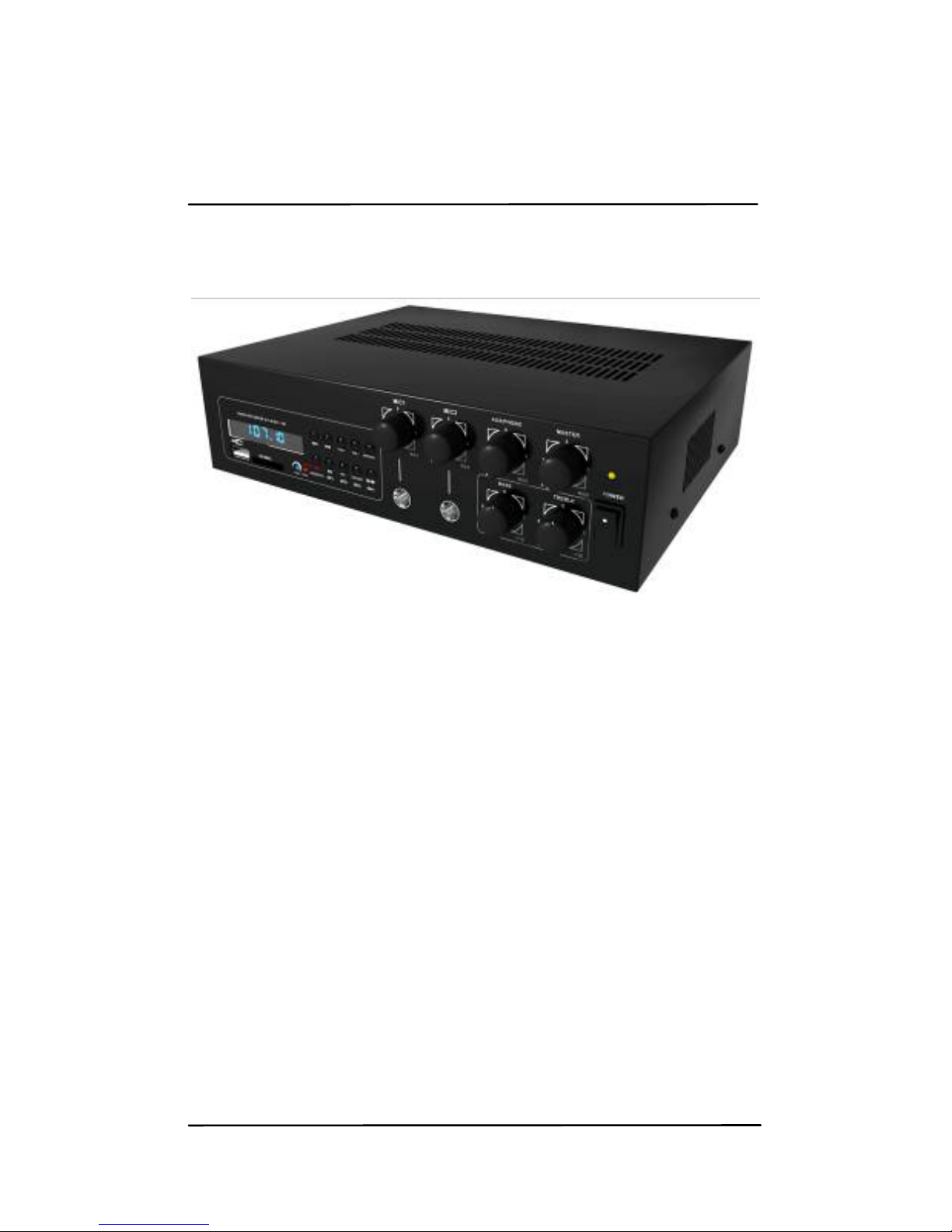

Mixer amplifier to which you may connect two
microphones on the front as well as an auxiliary source
(such as a smartphone, CD player, computer...) or a
phono source (such as a record player). Compact, it has
a USB port and a tuner for radio. It is also able to read
and write files on SD/MMC cards. The green LED on the
front make s sure that the amplifier is powered on. Its
LCD display allows the view of the current play/record
file, displaying the port, number, duration of the
playback track as well as the volume.
Pack Implementation 2-3
Chapter 2
Pack Implementation
Step 1: Connection of the speakers to the
amplifier
Beforehand, you must connect the speakers to speaker cables.
Then connect the speaker cable(s) to the amplifier.

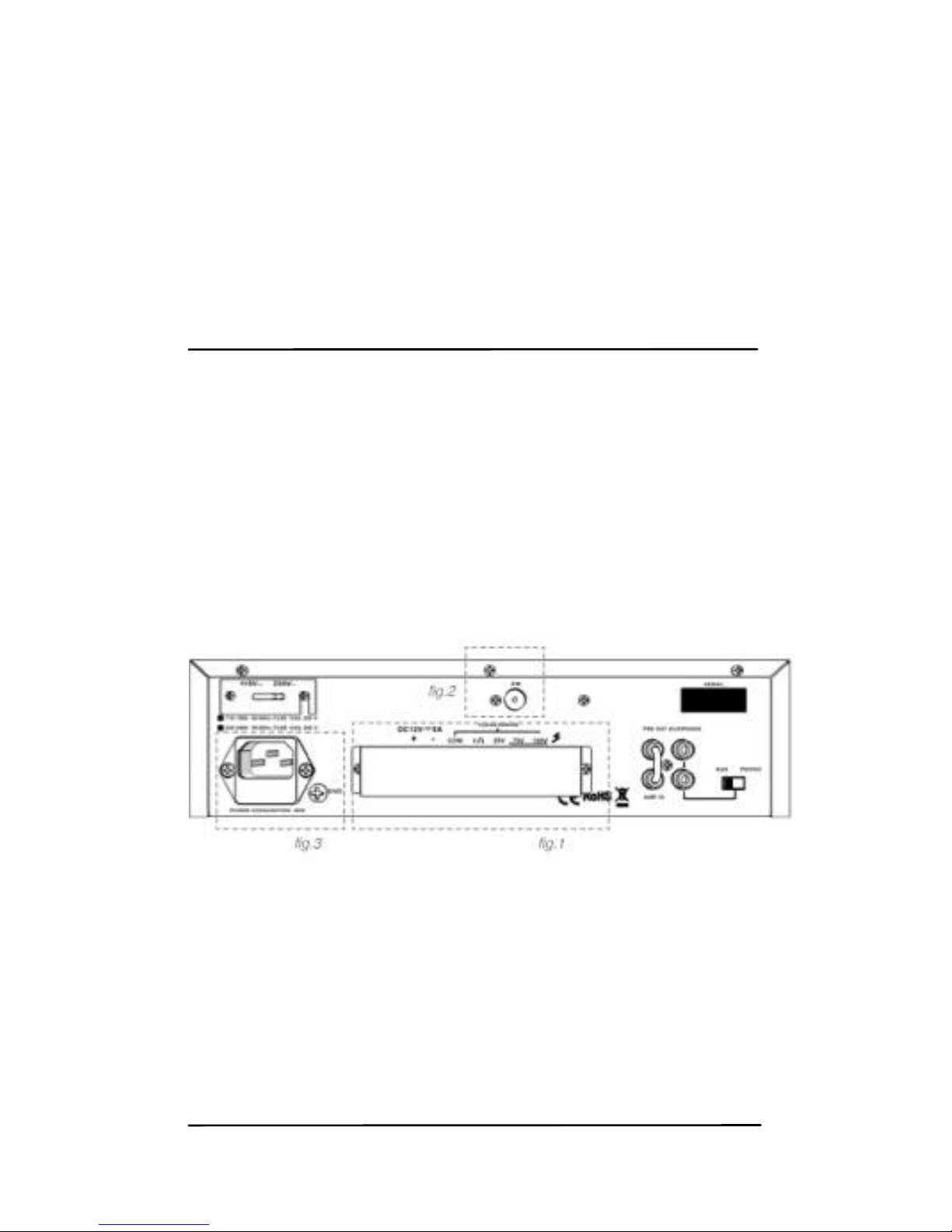

Gen eral vi ew of the r ea r of the ampl i fi er
Pack Implementation 2-4
Fig.1

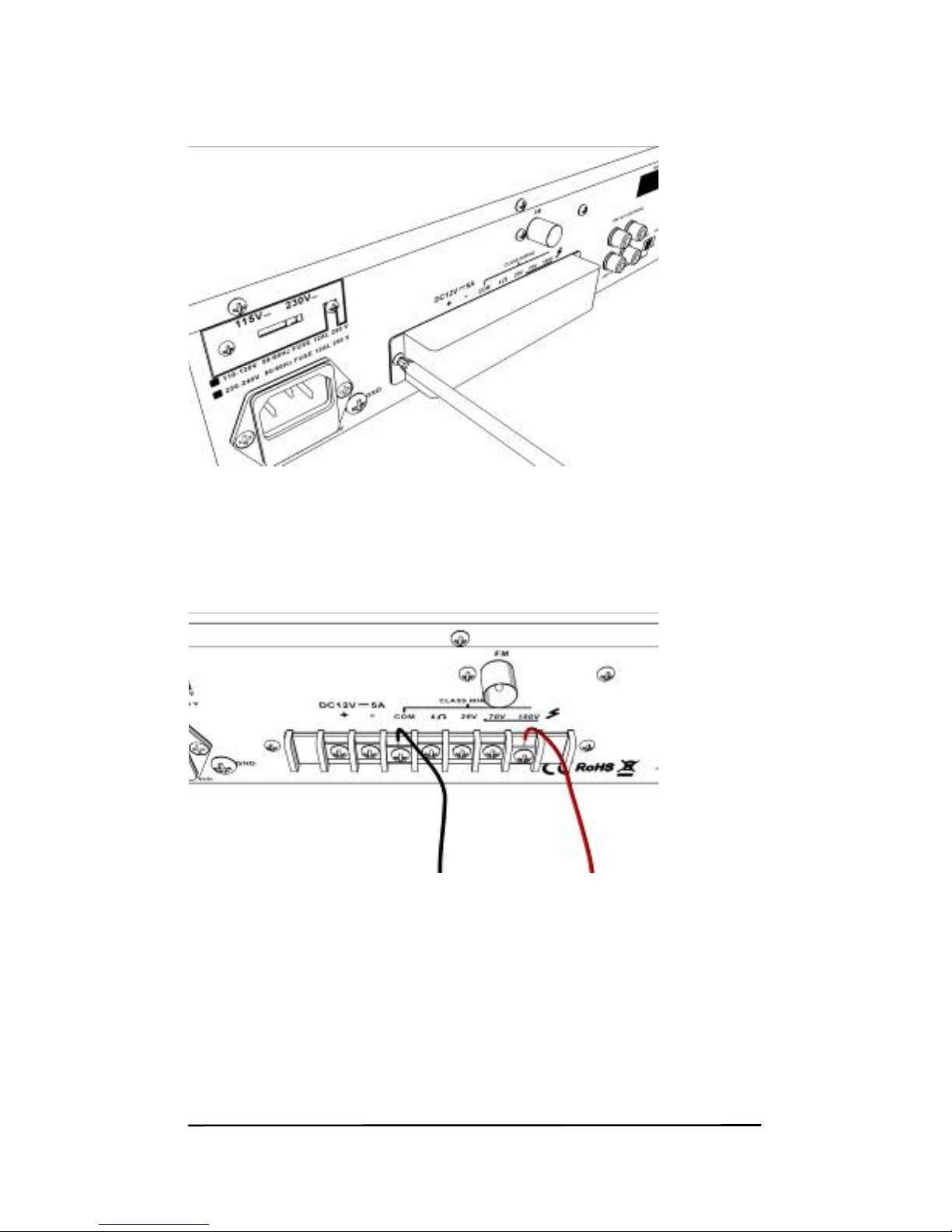

Unscrew the protective cover.

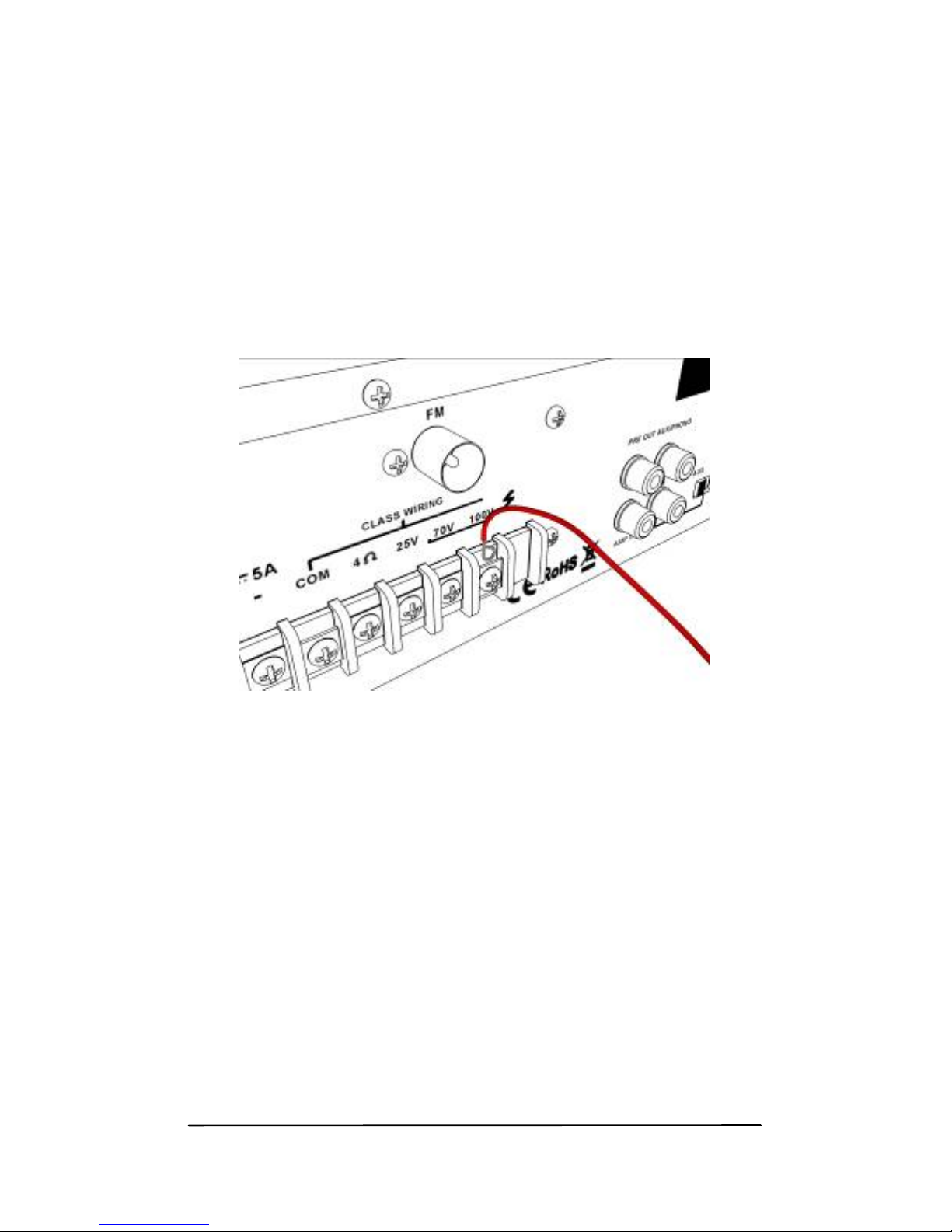

Connect the black conductor to the COM terminal.
Connect the red conductor to the 25V/70V/100V
terminals according the speaker technology.
For low impedance technol ogy speakers, connect the
red conductor to the 4Ω terminal.
Pack Implementation 2-5
In order to connect the conductors to the terminals,
start by stripping each conductors of about 5 mm.
Unscrew the corresponding terminal. Place the
conductors in the space between the connection plate
and the fixed terminal.
Pack Implementation 2-6

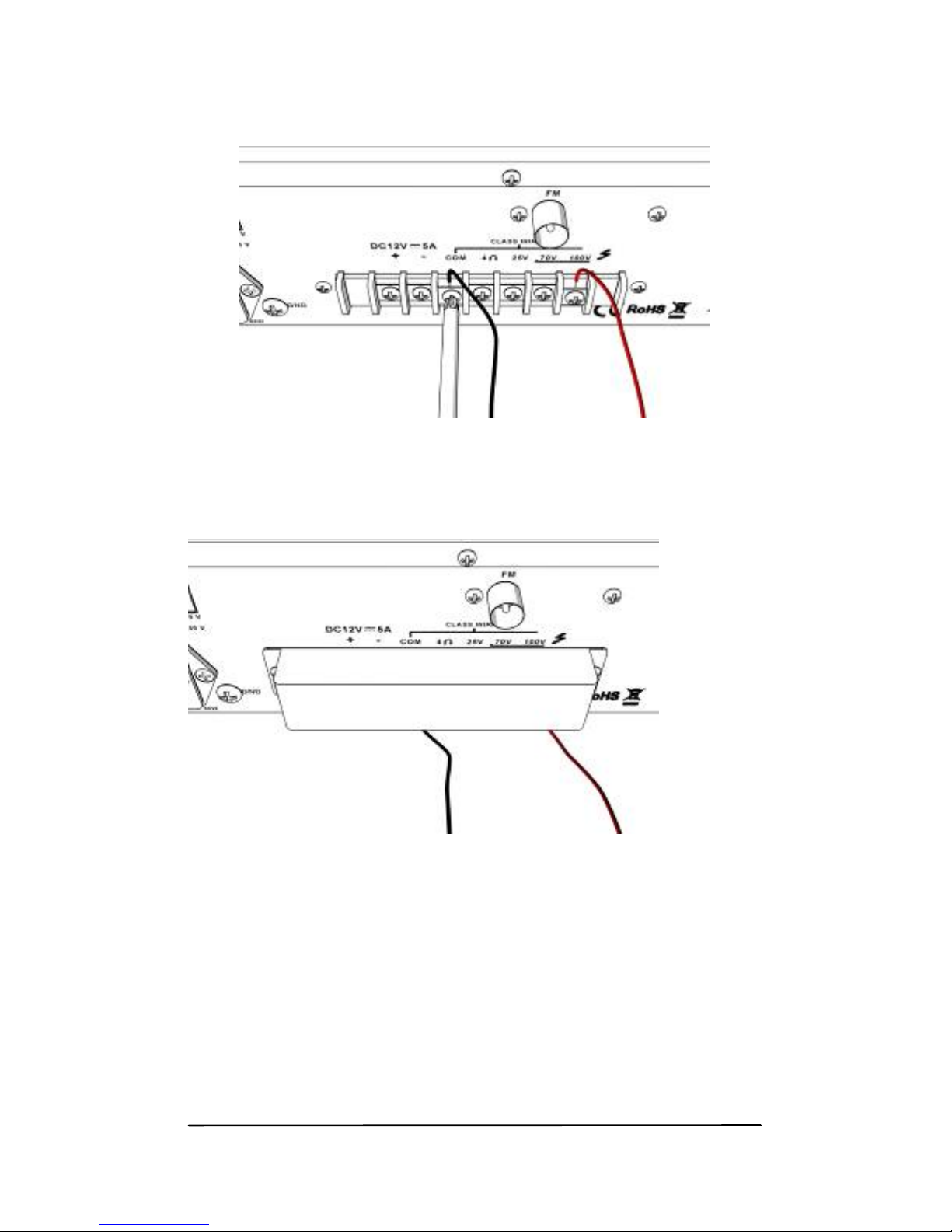

Screw up the terminal.
Screw up the protective cover back on
Step 2: Connection of Devices to the Amplifier
Pack Implementation 2-7
fig.2

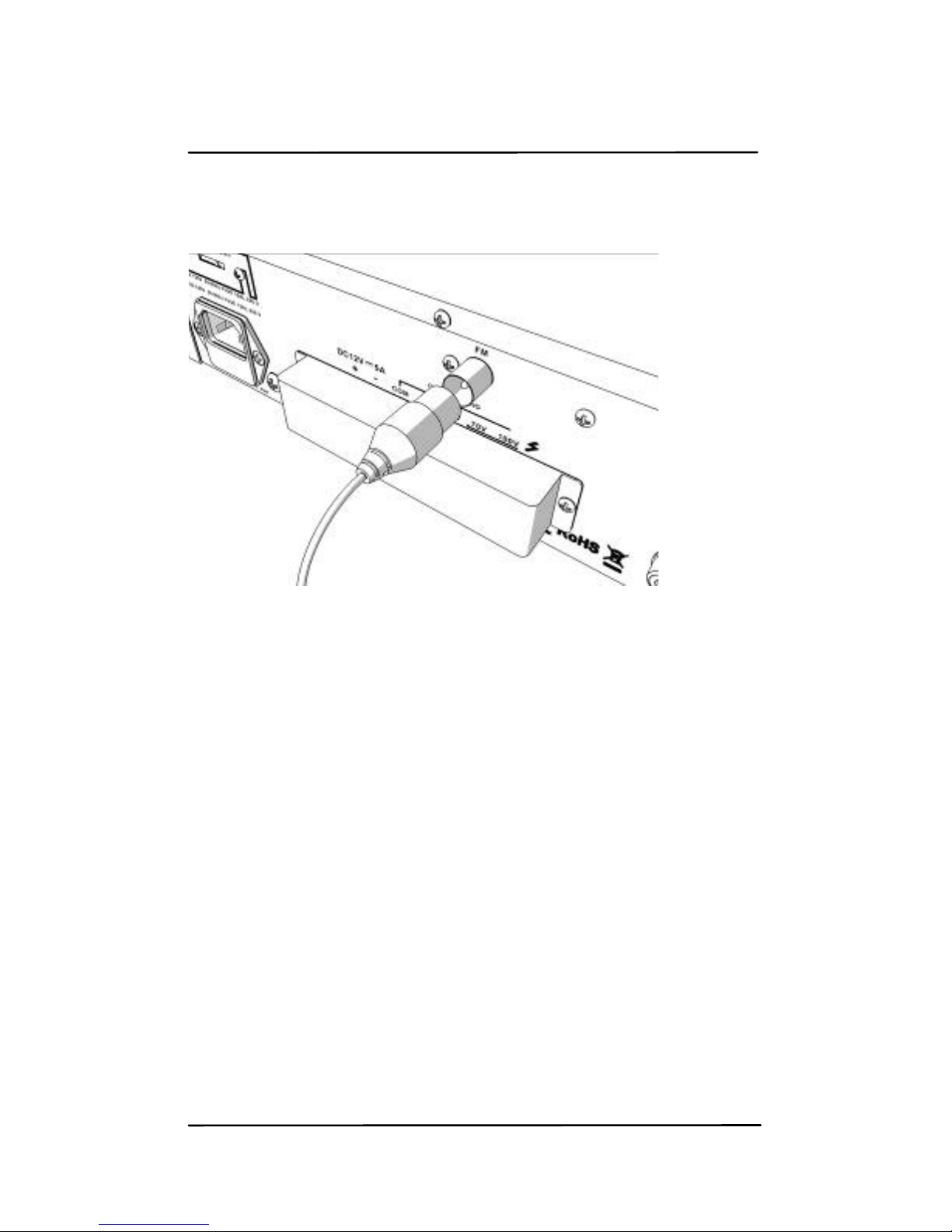

Connect the FM antenna to the coaxial output provided
for this purpose.
Pack Implementation 2-8
fig.3

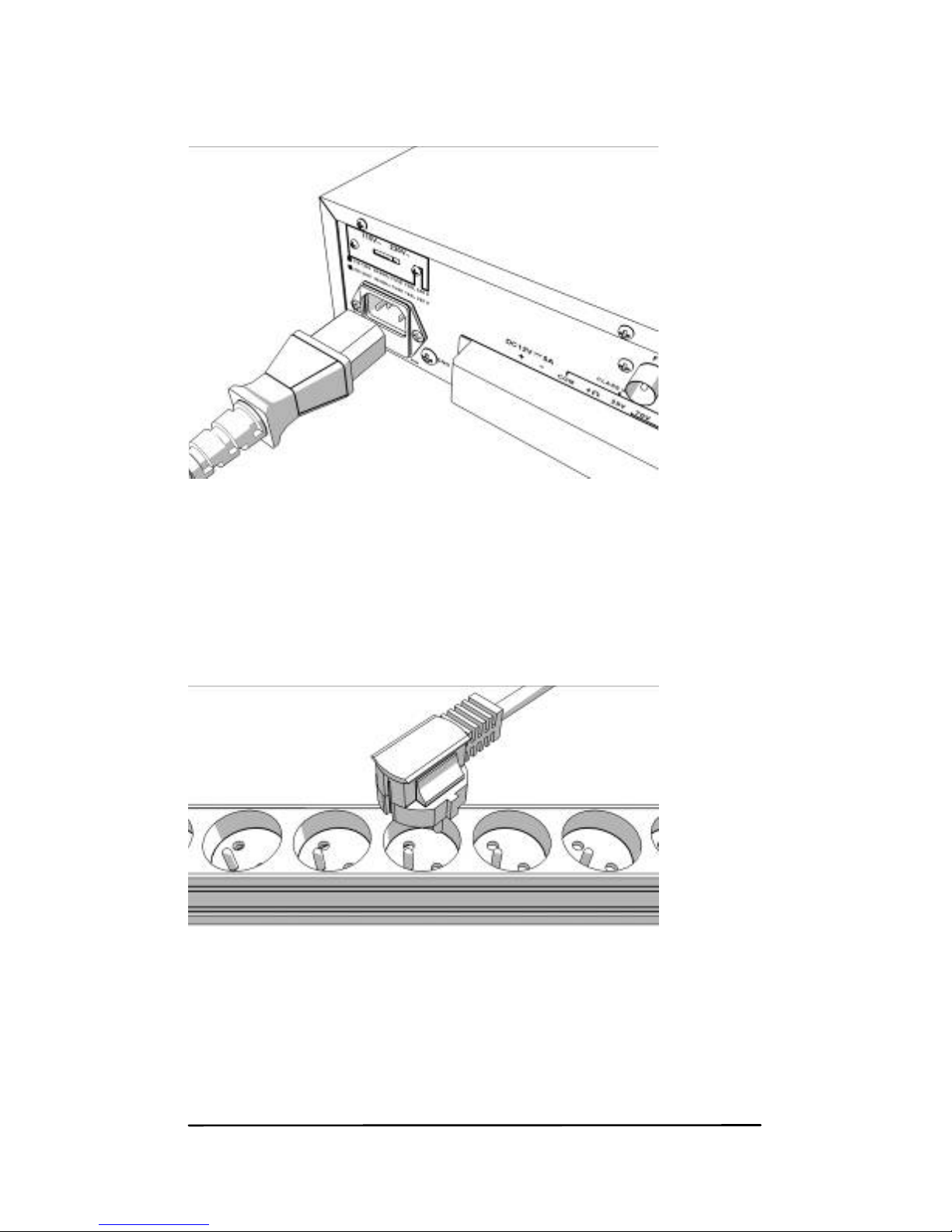

Plug the power cord into the outlet provided for that
purpose.
Turn the amplifier on.
