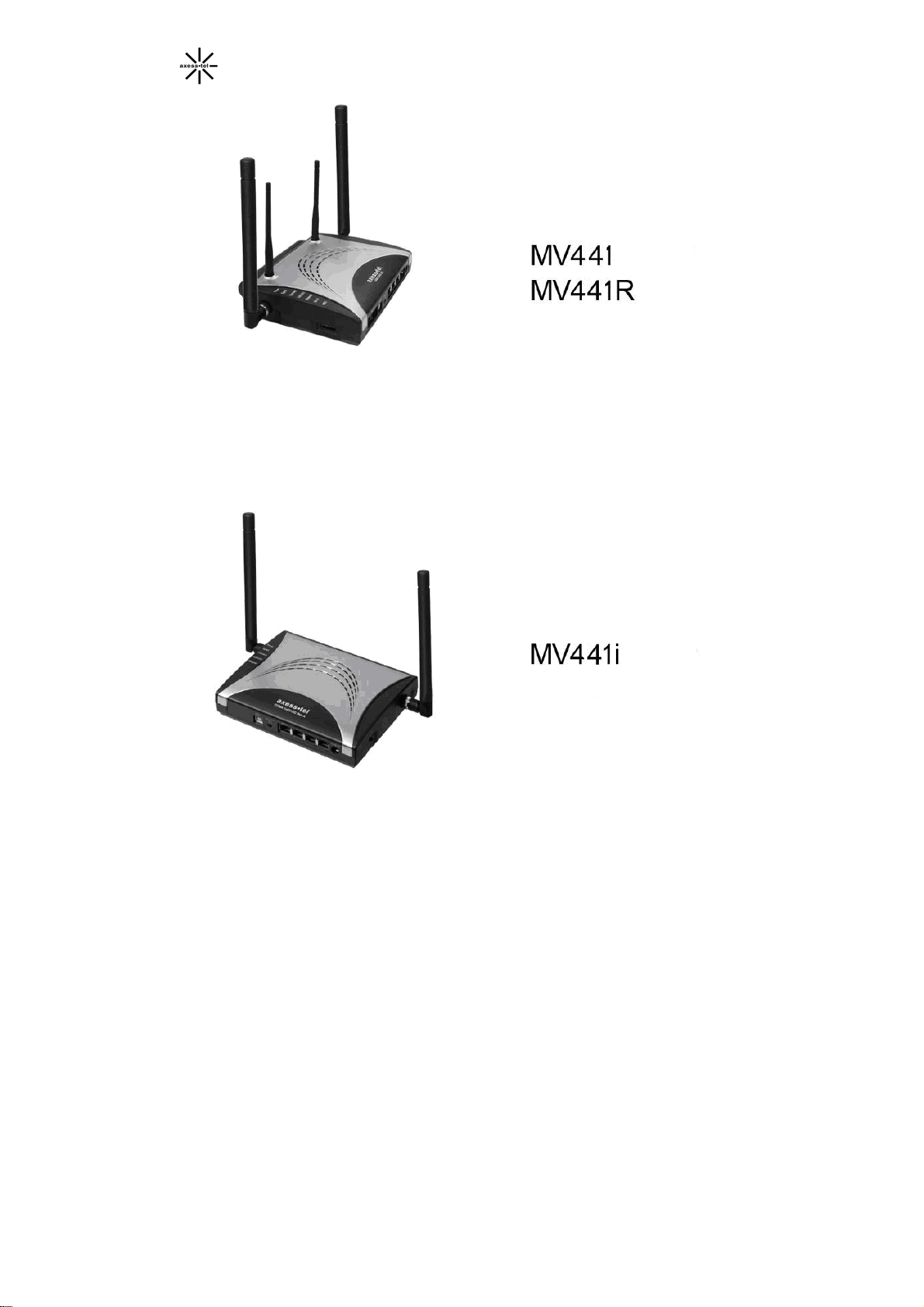

Axesstel MV441 Manuale utente

Important Notice

Due to the nature of wireless communications, transmission and reception of data

can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be

totally lost.Although significant delays or losses of data are rare when wireless

devices such as the Axesstel modem are used in a normal manner with a well-

constructed network, the Axesstel modem should not be used in situations where

failure to transmit or receive data could result in damage of any kind to the user or

any other party, including but not limited to personal injury, death, or loss of

property. Axesstel accepts no responsibility for damages of any kind resulting from

delays or errors in data transmitted or received using theAxesstel modem, or for

failure of the Axesstel modem to transmit or receive such data.

Safety and Hazards

Do not operate the Axesstel modem:

In areas where blasting is in progress

Where explosive atmospheres may be present

Near medical equipment

Near life support equipment, or any equipment that may be susceptible to

any form of radio interference. In such areas, the Axesstel modem MUST

BE POWERED OFF. The Axesstel modem can transmit signals that could

interfere with this equipment.

Do not operate the Axesstel modem in any aircraft, whether the aircraft is on the

ground or in flight. In aircraft, theAxesstel modem MUST BE POWERED OFF.

When operating, the Axesstel modem can transmit signals that could interfere

with various onboard systems.

Note: Some airlines may permit the use of cellular phones while the aircraft is on

the ground and the door is open. TheAxesstel modem may be used at this time.

The driver or operator of any vehicle should not operate the Axesstel modem

while in control of a vehicle. Doing so will detract from the driver or operator’s

control and operation of that vehicle. In some states and provinces, operating

such communications devices while in control of a vehicle is an offence.

Limitation of Liability

The information in this manual is subject to change without notice and does not

represent a commitment on the part ofAxesstel. AXESSTEL SPECIFICALLY

DISCLAIMS LIABILITY FORANYANDALL DIRECT, INDIRECT, SPECIAL,

GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY

DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR

REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE

USE OR INABILITY TO USEANYAXESSTEL PRODUCT, EVEN IF AXESSTEL

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY

ARE FORESEEABLE OR FOR CLAIMS BYANY THIRD PARTY.

Notwithstanding the foregoing, in no event shallAxesstel aggregate liability arising

under or in connection with the Axesstel product, regardless of the number of

events, occurrences, or claims giving rise to liability, be in excess of the price paid

by the purchaser for the Axesstel product.

Table of Contents

1. Introduction ……………………………………….…...…………. 5

2. Product Overview …………………………….………...…...….. 7

3. Knowing your Modem ……………………….……..…………... 10

Package Contents ………………………………………………… 10

Modem Interfaces ………………………………………….……… 10

System Components ……………………………………………… 13

4. Connecting and Configuring your Modem …………………. 15

5. Web Manager User Interface …………….…………………..... 18

Basic Settings ………………………….……….…………………. 22

Configuring the Wireless Network Settings ………..…………... 23

Router Status ……………………………………….…….……….. 27

Password……………………………………………………………. 28

Firmware Information………………………………………………. 29

Configuring Port Forwarding ……………………….…………….. 30

IP Filter………………………………………………………………. 31

MAC Filter…………………………………………………………… 32

Firewall/DMZ Services……………………………………………... 33

Static Routing……………………………………………………….. 34

LAN Setting….………………………………………………………. 35

Dynamic DNS …………………………………………….….…….. 36

6. Troubleshooting …………………………………………………. 37

7. Technical Specification ………………………………………… 40

8. Glossary ………………………………………………………....... 41

Version:V3.4C(110402)

Introduction

Thank you for purchasing the Axesstel MV441EV-DO Modem (the Modem). This

user manual will help you setup, configure and outline best practices for

maximizing your wireless home network performance with the Modem. Please be

sure to read through this User Manual completely, and pay special attention to the

section entitled “Placement of your Modem for Optimal Performance” on page 2.

Placement of your Modem for Optimal Performance

Your wireless connection will be stronger the closer your computer is to your

Modem. Typical indoor operating range for Wi-Fi wireless devices is between 100

and 200 feet. For EV-DO operation, a line-of-sight with the radio base station is

preferred and yields the strongest signal strength.

In the same way, your wireless connection and performance will degrade

somewhat as the distance between your Modem and connected devices

increases, as well as between the Modem and the radio base station. This may or

may not be noticeable to you. As you move farther from your Modem, connection

speed may decrease. Factors that can weaken signals simply by getting in the

way of your network’s radio waves are metal appliances or obstructions, and walls.

Note: While some of the items listed below can affect network performance, they

will not prohibit your wireless network from functioning; if you are concerned that

your network is not operating at its maximum effectiveness, this checklist may

help.

1. Modem Placement

Place your Modem, the central connection point of your network, as close as

possible to windows or in rooms at the outer side of your house. If you also use

the Wi-Fi feature of the Modem, it should be placed near the center of your

wireless network devices.

To achieve the best wireless network coverage:

•Ensure that your Modem’s networking antennas are parallel to each other,

and are positioned vertically (toward the ceiling). If your Modem itself is

positioned vertically, point the antennas as much as possible in an

upward direction.

•In multistory homes, place the Modem on an upper floor.

•Try not to place the Modem near a cordless phone (MV400-series only).

2. Avoid Obstacles and Interference

Avoid placing your Modem near devices that may emit radio “noise,” such as

microwave ovens. Dense objects that can inhibit wireless communication include:

•Refrigerators

•Washers and/or dryers

•Metal cabinets

•Large aquariums

•Metallic-based, UV-tinted windows

If your wireless signal seems weak in some spots, try to move the Modem to

another location while observing the signal strength indicator. Since you may not

know the location of an EV-DO radio base station serving your Modem, try to call

your service provider and ask for the nearest base station of your home. Try

placing the Modem closest and unobstructed to that base station.

Product Overview

In minutes you will be able to connect your computers to the Internet, share your

Internet connection and network your computers. The following is a list of features

that make your new Axesstel EV-DO Modem an ideal solution for your home or

small office network. Implementation of these features depends on the particular

service provider and account features you have chosen.

Some features described in this manual may not be supported by your service

provider or may not be available with your network account. For details of the

services and accounts available, contact your service provider.

CDMA 3G services

The Modem operates over the CDMA 3G technology that provides a variety of

connectivity features, depending on your service provider and account:

1xEVDO Rev. A supports Internet connections with data rates up to 3.1

Mbps (downlink from the network) and 1.8 Mbps (uplink to the network).

Average data rates are roughly 600–1300 Kbps (downlink from the

network) and 300–400 Kbps (uplink to the network).Actual speed

depends on the network conditions.

1xEVDO Rev. 0 supports Internet connections with data rates up to 2.4

Mbps (downlink from the network) and 153 Kbps (uplink to the network).

Average data rates are roughly 400–700 Kbps (downlink from the

network) and 40–80 Kbps (uplink to the network).Actual speed depends

on the network conditions.

1X supports Internet connections with data rates up to 153 Kbps. Actual

speed depends on the network conditions.

Once the connection is established, you can open your browser and connect to

any web site that is accessible through the Internet, or access other Internet

services (such as email).

The connection is “active” when data transmission is occurring. If data

transmission stops for a period of time (determined by the network), the

connection becomes “dormant”; see page 26.

Plug-and-Play

Each Modem has been provisioned at the factory for use with a particular service

provider. This sets the Modem to use particular radio channels and enables

services specific for that provider. Although the Modem comes with drivers and

enabling software, you don’t have to install and use them if you simply want to

connect to the Internet, assuming that your Modem has been activated with the

network (The process of setting up your account is called activation. Activation

involves action by the service provider and configuration of the Modem.)

Once the Modem has been activated, simply connect your computer with the

Modem using the provided Ethernet (RJ-45) cable and you are ready to use the

Internet.

Works with Both PCs and Mac® Computers

The Modem supports a variety of networking environments including Mac OS®

9.x, X v10.x, AppleTalk®, Linux®, Windows® 98, Me, NT®, 2000, and XP, and

others. All that is needed is an Internet browser and a network adapter that

supports TCP/IP (the standard language of the Internet).

Top-View LED Display

Lighted LEDs on the top of the Modem indicate which functions are in operation.

You’ll know at-a-glance whether your Modem is in EV-DO or 1X mode, connected

to the Internet, and in Wi-Fi or Ethernet operation. This feature eliminates the

need for advanced software and status-monitoring procedures.

Web-Based Advanced User Interface

You can set up the Modem’s advanced functions easily through web browser,

without having to install additional software onto the computer. There are no disks

to install or keep track of and, best of all, you can make changes and perform

setup functions from any computer on the network quickly and easily.

NAT IP Address Sharing

Your Modem employs Network Address Translation (NAT) to share the single IP

address assigned to you by your Internet Service Provider while saving the cost of

adding IP addresses to your Internet service account.

Integrated 10/100 4-Port Switch

The Modem has a built-in, 4-port network switch to allow your wired computers to

share printers, data and MP3 files, digital photos, and much more. The switch

features automatic detection so it will adjust to the speed of connected devices.

The switch will transfer data between computers and the Internet simultaneously

without interrupting or consuming resources.

Built-In Dynamic Host Configuration Protocol (DHCP)

Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes for the

easiest possible connection of a network. The DHCP server will assign IP

addresses to each computer automatically so there is no need for a complicated

networking setup.

Integrated 802.11n Wireless Access Point

802.11n is an exciting new wireless technology that achieves data rates up to

600Mbps, nearly twelve times faster than 802.11g.

MAC Address Filtering

For added security, you can set up a list of MAC addresses (unique client

identifiers) that are allowed access to your network. Every computer has its own

MAC address. Simply enter these MAC addresses into a list using the Web-Based

Advanced User Interface and you can control access to your network.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Axesstel Portale

Axesstel

Axesstel MV400 series Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
