AXIOMTEK CAPA880 Series Manuale utente

4 9418E880000E

Version A1 March 2016

Printed in Taiwan

Installing Fan

Note:

Be careful not to over tighten

the screws as it can damage

the processor or the CPU

board.

The processor needs specially designed heatsink and fan assembly to cool

down and ensure sufficient air flow inside your system. After applying

thermal grease on the processor and installing it on the socket, please

place heatsink and fan assembly on top of it. Match the four screws to the

fixing holes on the board. Then screw tightly the heatsink and CPU fan

assembly onto the board. Also make sure the fan cable is plugged to fan

connector (CN1).

Quick Start

The basic procedures required to power on CAPA880:

(1). Require power at minimum 5A. Ensure that power supply is

OFF before connecting to CAPA880 and that all necessary

peripheral devices are plugged properly.

(2). Ensure all of the jumpers are at default settings; especially

JP5 (1-2 close).

(3). Firmly install DDR3 memory modules into connector SODIMM1

until fully seated.

(4). Firmly insert power to ATX1.

(5). Install a momentary on/off button/switch onto CN2, pin 9 and

10.

(6). Turn on the power supply.

(7). Press the on/off button/switch to power on CAPA880

CN2

CAPA880 Series Quick Installation Guide

9418E880000E 1

Version A1 March 2016

Printed in Taiwan

Checklist

CPU board x1 Product information CD x1

USB cable x1 Quick installation guide x1

Audio cable x1 COM cable x1

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Connectors

Connector Description

CN1 Fan Connector

CN2 Front Panel Connector

CN3 LVDS Connector

CN4 SATA Power Connector

CN5 Inverter Connector

CN6 COM1 Wafer Connector

CN7 Audio Connector

CN8 USB 2.0 Wafer Port 5 and 6

CN9 Digital I/O Connector

CN10 (Optional) Power Connector

CN11 SMBus Connector

CN12 Ethernet Port 1 and Port 2

CN14 USB 3.0 Port 0 and 1

CN15 USB 2.0 Port 2 and 3

CN16 HDMI Connector

CN17 VGA Connector

ATX1 ATX Power Connector

BAT1 CMOS Battery Connector

SATA1 Serial ATA Port

SCN1 Full-size PCI-Express Mini Card Connector

SCN2 ZIO Expansion Connector

SODIMM1 DDR3 SO-DIMM Connector

CAPA880 Intel®CoreTM Processor

Famil

3.5”

Board

2 9418E880000E

Version A1 March 2016

Printed in Taiwan

Jumper Settings

Before applying power to the CAPA880, please make sure all of the

jumpers are in factory default positions.

Jumper Description Setting

JP1 LVDS +3.3V/+5V/+12V Voltage Selection

Default: +3.3V 5-6 Close

CN6 Pin 1: DCD 3-5 Close

JP2 COM1 Data/Power Selection

Default: RS-232 Data CN6 Pin 8: RI 4-6 Close

JP3 Restore BIOS Optimal Defaults

Default: Normal Operation 1-2 Close

JP5 Auto Power On

Default: Disable 1-2 Close

Note: Please refer to the CAPA880 series product information CD for the

complete user’s manual, drivers and utilities. User’s manual and related

documents are in Acrobat PDF format.

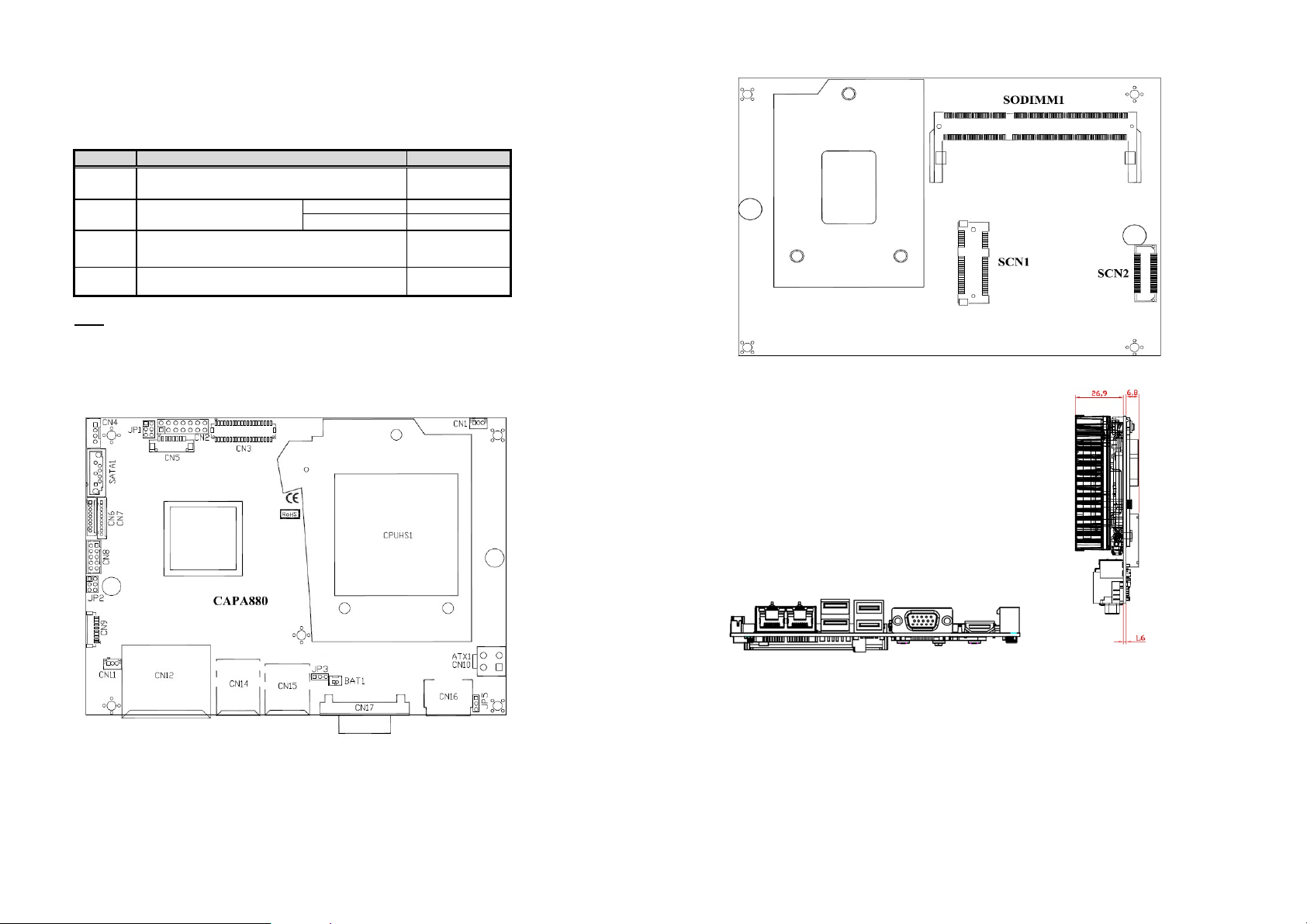

Board Layout

Top View

9418E880000E 3

Version A1 March 2016

Printed in Taiwan

Bottom View

Side View
