AXIS 211M Installation Guide Page 3

ENGLISH

AXIS 211M

Installation Guide

This installation guide provides instructions for installing the AXIS 211M Network Camera

on your network. For all other aspects of using the product, please see the User’s Manual,

available on the CD included in this package, or from www.axis.com/techsup

Installation steps

1. Check the package contents against the list below.

2. Hardware overview. See page 4.

3. Install the hardware. See page 5.

4. Assign an IP address. See page 6.

5. Set the password. See page 9.

6. Adjust the focus. See page 10.

Package contents

Item Models/variants/notes

Network camera AXIS 211M

PS-K indoor power supply

(country specific)

Europe

Australia

USA/Japan

Argentina

Korea

Terminal block connector 4-pin connector block for connecting external devices to the I/O terminal

connector

Camera stand Supplied with mounting screws

CD AXIS Network Video Product CD, including product documentation, installa-

tion tools and other software

Printed Materials AXIS 211M Installation Guide (this document)

Axis Warranty Document

Important!

This product must be used in

compliance with local laws

and regulations.

Page 4 AXIS 211M Installation Guide

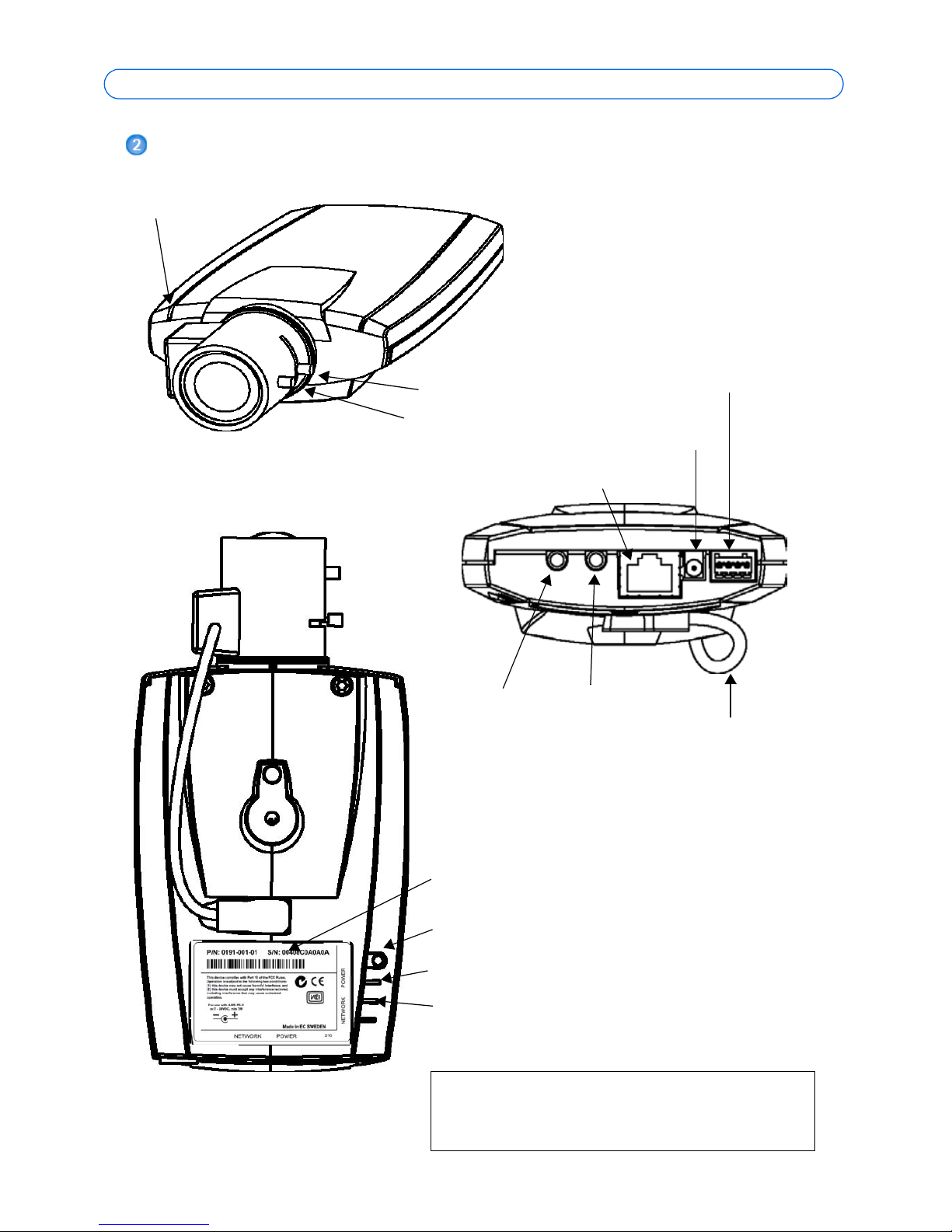

Hardware overview

Dimensions

HxWxD = 44 x 88 x 172mm (1.7" x3.5" x 6.8")

Weight =244g (0.5 lb) (power supply not included)

Power

connector

Network

connector

I/O terminal

connector

DC-Iris control cable

Focus puller

Status indicator &

Internal microphone

Tele/wide puller

Power indicator LED

Network indicator LED

Serial number

Underside

Rear panel

Control button

Audio in Audio out

AXIS 211M Installation Guide Page 5

ENGLISH

Install the hardware

Connect the cables

1. Connect the camera to the network using a shielded network cable.

2. Optionally connect external input/output devices, e.g. alarm devices. See page 12 for

information on the terminal connector pins.

3. Connect power, using one of the methods listed below:

• The supplied power connector.

• PoE (Power over Ethernet). If available, this is automatically detected when the

network cable is connected (see above).

• Connect power via the terminal connector. See page 12 for information on the

terminal connector pins.

4. Check that the indicator LEDs indicate the correct conditions. See the table on page 13

for further details. Note that some LEDs can be disabled and may be unlit.

!IMPORTANT! - The AXIS 211M is designed for indoor and outdoor use. To use

the camera outdoors, it must be installed in an approved outdoor housing.

Please see www.axis.com for more information on outdoor housings.

Page 6 AXIS 211M Installation Guide

Assign an IP address

Most networks today have a DHCP server that automatically assigns IP addresses to

connected devices. If your network does not have a DHCP server the AXIS 211M will use

192.168.0.90 as the default IP address.

If you would like to assign a static IP address the recommended method in Windows is either

AXIS IP Utility or AXIS Camera Management. Depending on the number of cameras you

wish to install, use the method that best suits your purpose.

Both of these free applications are available on the Axis Network Video Product CD supplied

with this product, or they can be downloaded from www.axis.com/techsup

Notes:

• If assigning the IP address fails, check that there is no firewall blocking the operation.

• For other methods of assigning or discovering the IP address of the AXIS 211M, e.g. in other

operating systems, see page 11.

Method Recommended for Operating system

AXIS IP Utility

See page 7

Single camera

Small installations

Windows

AXIS Camera Management

See page 8

Multiple cameras

Large installations

Installation on a different subnet

Windows 2000

Windows XP Pro

Windows 2003 Server

AXIS 211M Installation Guide Page 7

ENGLISH

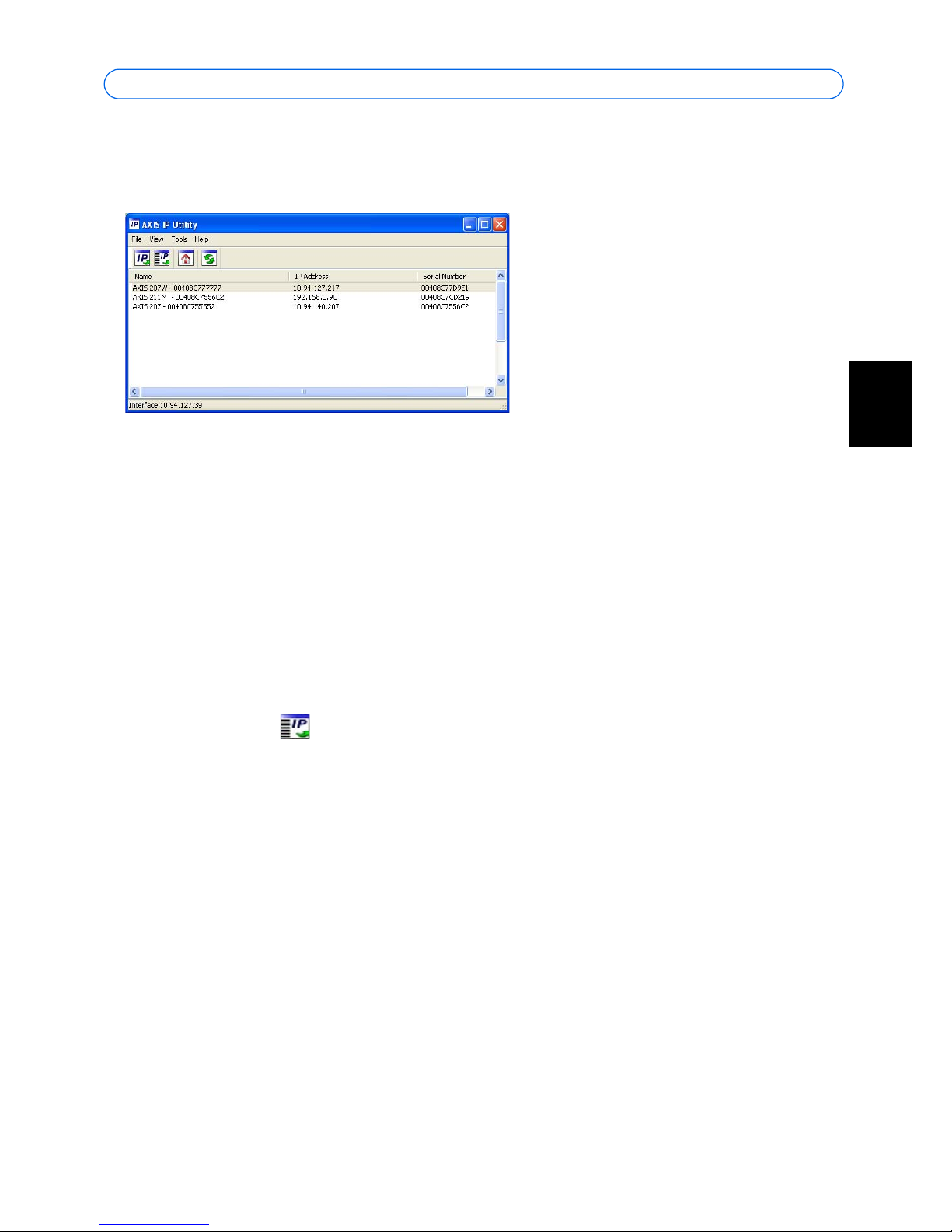

AXIS IP Utility - single camera/small installation

AXIS IP Utility automatically discovers and displays Axis devices on your network. The

application can also be used to manually assign a static IP address.

Note that the computer running AXIS IP Utility must be on the same network segment

(physical subnet) as the AXIS 211M.

Automatic discovery

1. Check that the AXIS 211M is connected to the network and that power has been applied.

2. Start AXIS IP Utility.

3. When the camera appears in the window, double-click it to open its home page.

4. See page 9 for instructions on how to assign the password.

Assign the IP address manually

1. Acquire an unused IP address on the same network segment as your computer.

2. Click the button Assign new IP address using serial number and enter the serial

number and IP address for the AXIS 211M. The serial number is located on the product

label.

3. Click the Assign button and follow the instructions.

4. Click the Home Page button to access the camera’s web pages.

5. See page 9 for instructions on how to set the password.

Page 8 AXIS 211M Installation Guide

AXIS Camera Management - multiple cameras/large installations

AXIS Camera Management can automatically discover multiple Axis devices, show

connection status, manage firmware upgrades and set IP addresses.

Automatic discovery

1. Check that the camera is connected to the network and that power has been applied.

2. Start AXIS Camera Management. When the AXIS 211M appears in the window, double-

click it to open the camera’s home page.

3. See page 9 for instructions on how to set the password.

Assign an IP address in a single device

1. Select AXIS 211M in AXIS Camera Management and click

the Assign IP button.

2. Select Assign the following IP address and enter the IP

the subnet mask and default router the device will use.

3. Click the OK button.

Assign IP addresses in multiple devices

AXIS Camera Management speeds up the process of assigning IP addresses to multiple

devices, by suggesting IP addresses from a specified range.

1. Select the devices you wish to configure (different models

can be selected) and click the Assign IP button.

2. Select Assign the following IP address range and enter

the range of IP addresses, the subnet mask and default

router the devices will use.

3. Click the OK button.

AXIS 211M Installation Guide Page 9

ENGLISH

Set the password

When accessing the AXIS 211M for the first

time, the ‘Configure Root Password’ dialog

will be displayed.

1. Enter a password and then re-enter it, to

confirm the spelling. Click OK.

2. Enter the user name root in the dialog as

requested.

Note: The default administrator user name root cannot be deleted.

3. Enter the password as set above, and click OK. If the password is lost, the AXIS 211M

must be reset to the factory default settings. See page 14.

4. If required, click Yes to install AMC (AXIS Media Control), which allows viewing of the

video stream in Internet Explorer. You will need administrator rights on the computer to

do this.

The Live View page of the AXIS 211M is displayed, with links to the Setup tools, which

allow you to customize the camera.

Setup - Provides all the tools for configuring

the camera to requirements.

Help - Displays

online help on all

aspects of using

the camera.

Page 10 AXIS 211M Installation Guide

Adjust the image and focus

To focus the AXIS 211M follow the instructions below.

1. From the Basic Configuration page

in the setup tools, open the Focus

adjustment page.

2. Set the DC-Iris to Disabled and click

Save.

3. Unscrew the zoom puller on the lens

by turning it anti-clockwise. Adjust

the zoom setting as required. Re-

tighten the zoom puller.

4. Unscrew the focus puller on the lens.

Adjust the focus as required. Re-

tighten the focus puller.

5. From the Focus adjustment page, set the DC-Iris to Enabled and click Save.

Note: The DC-Iris should always be disabled while focusing the camera. This opens the

iris to its maximum, which gives the smallest depth of field and thus the best

conditions for correct focusing. When the focus is set with this method it will

then be maintained in any light conditions.

Accessing the AXIS 211M from the Internet

Once installed, your AXIS 211M is accessible on your local network (LAN). To access the

camera from the Internet, network routers must be configured to allow incoming traffic,

which is usually done on a specific port. Please refer to the documentation for your router

for further instructions. For more information on this and other topics, visit the Axis Support

Web at www.axis.com/techsup

Focus puller

Zoom puller

(Tele/wide)
