AXIS 207W Network Camera
Technical Information
Version 1.0 page 1 of 5
A few things that should help you get the AXIS 207W
connected to your network.
It’s not always easy to install new products on your network and this document describes some of
the things you may need to configure to get your AXIS 207W connected to your Wireless network.
Access Point/ Routers
The AXIS 207W has been tested with a lot of different Access Points and Routers from different
manufacturers. If you’re having problems with connecting your camera to the network first make
sure that the Access Point/ Router you are using is upgraded with the latest Firmware. Also make
sure that there are no settings in the Access Point/Router preventing the camera to connect. The
best thing is to use the default settings and then add more security features when you know that
the connection is working. A few things to control in the Access Point/Router:
1. ESSID
2. MAC address filtering (don’t forget to add the camera if used)
3. IP address filtering (don’t forget to add the camera if used)
4. Encryption (use the same encryption setting as in the camera)
Picture is taken from the web interface in Netgear WGR 614.
AXIS 207W Network Camera
Technical Information
Version 1.0 page 2 of 5
Signal strength
It’s important to have good signal strength. In the AXIS 207W web interface you can find info
about the signal strength between the Axis 207W and the Access Point/Router:
http://IP-address/admin/wlan.shtml?id=9
You can see the signal strength to Access Point/Router both if you’re connected to the camera
Wirelessly or through a network cable. The recommendation is to have signal strength at 70% or
above and the minimum should be 50%.
If you would like to get better signal strength there are a few options of what you can do to
improve these figures:
1. Move the AXIS 207W closer to the Access Point/Router.
2. Rotate the antennas.
3. Change position of the camera or the Access Point/Router if they are placed behind any
obstacle.
4. Change Wireless channel that are used in the Access Points/Router.
5. Turn off other equipment that might interfere the signal
If many Access Points/Routers are placed in the same environment they will interfere with each
other if they are using the same or nearby channels. By using channel 1, 6 and 11 you can place
the devices in the same area without any interference.
AXIS 207W Network Camera
Technical Information
Version 1.0 page 3 of 5
Managed mode/Ad-Hoc mode
The AXIS 207Ws station mode is default configured to Auto, which means that it will connect to
both Access Points/Router in managed mode and other devices in Ad-Hoc mode. This means that if
you have more wireless equipment such as other wireless cameras or Laptops with the same ESSID
as the AXIS 207W, the camera might connect to them instead of the Access Point/Router.
Note: If the camera is connected to the Access Point/Router and then looses the connection
for a short second it might connect to another device on the network in Ad-Hoc mode
and the other network devices will then loose the connection to it!
Changing the station mode in the AXIS 207W from Auto to Managed mode can prevent this. Go to
Plain Configuration in the web interface and set the correct value and press the save button.
http://IP-address/admin/config.shtml?group=Network
AXIS 207W Network Camera
Technical Information
Version 1.0 page 4 of 5

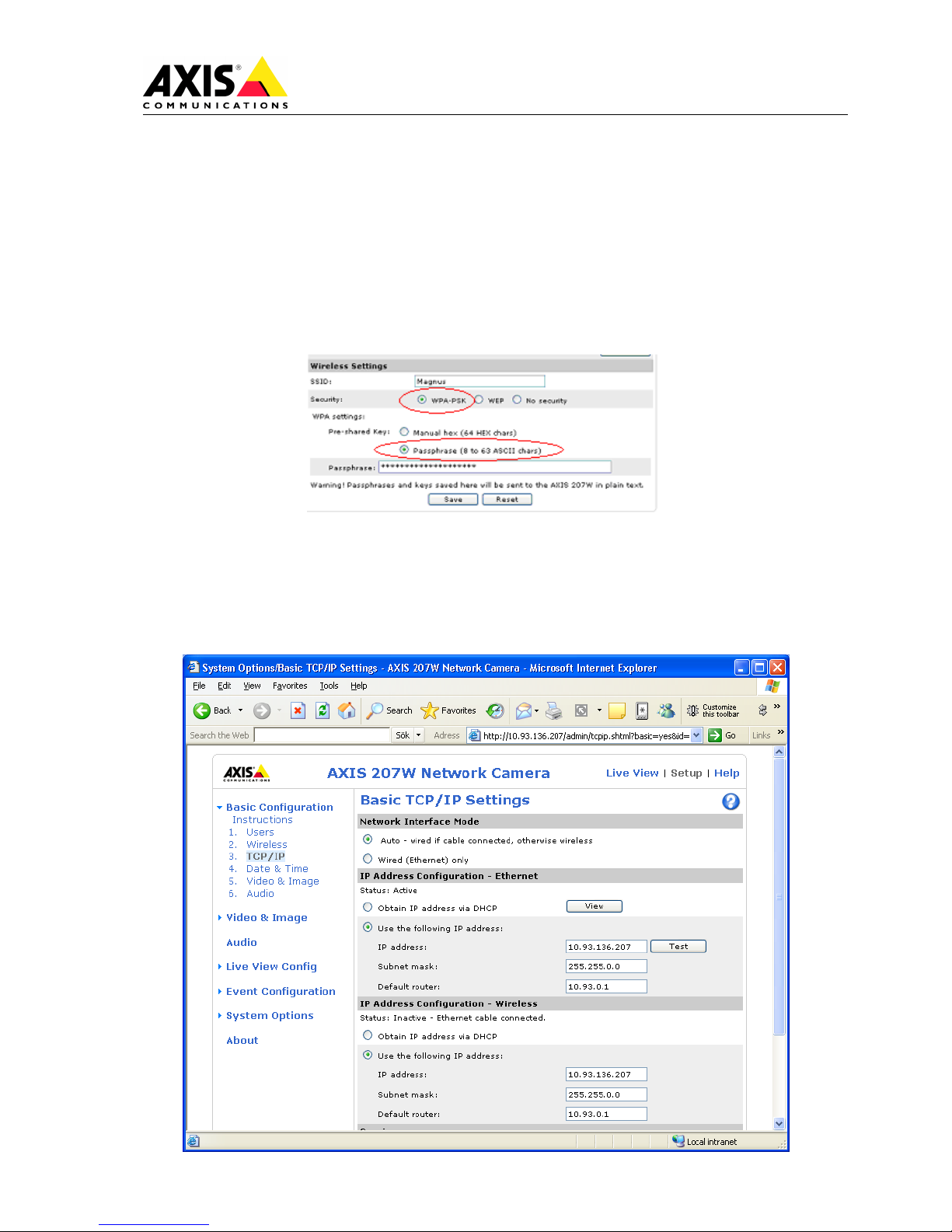

Encryption
It’s of course extremely important to set up the same configuration in the AXIS 207W as in the
Access Point/Router. If they are not using the same encryption type and key there will be no
communication. First select if you would like to use WEP or WPA/WPA2. If WEP is used it’s
recommended to use open mode since shared key is not secure to use. The best choice would be to
use WPA/WPA2 with a Passphrase though since this method is more secure. Use a Passphrase that
can’t be guessed by anyone and double check that you use the same key in all devices that you
would like to connect.
Network settings
If you’re switching between wired and wireless connection it’s easier if the IP address configuration
is set up with the same IP address in both cases.
AXIS 207W Network Camera
Technical Information
Version 1.0 page 5 of 5

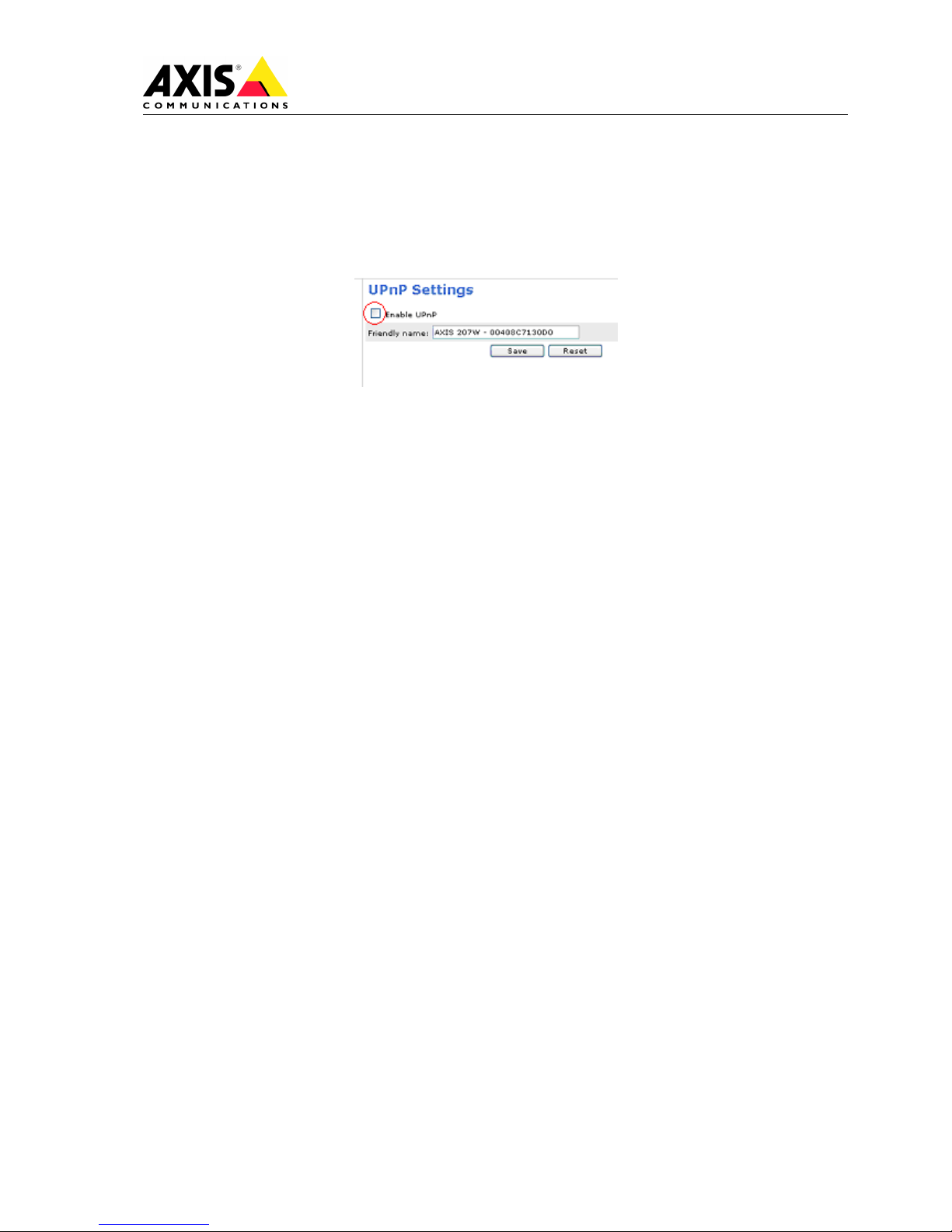

UPnP
In some cases UPnP affects the Wireless connection and in these cases it’s recommended to switch
this feature off. This is done from this page:
http://IP-address/admin/UPnP.shtml
