Assembly
Step 1 Locate the two leg supports (B,C), M6 coach
bolts (d) and shake proof nuts (e), M5 locking star
bolt knobs (a) and flat washers (b).

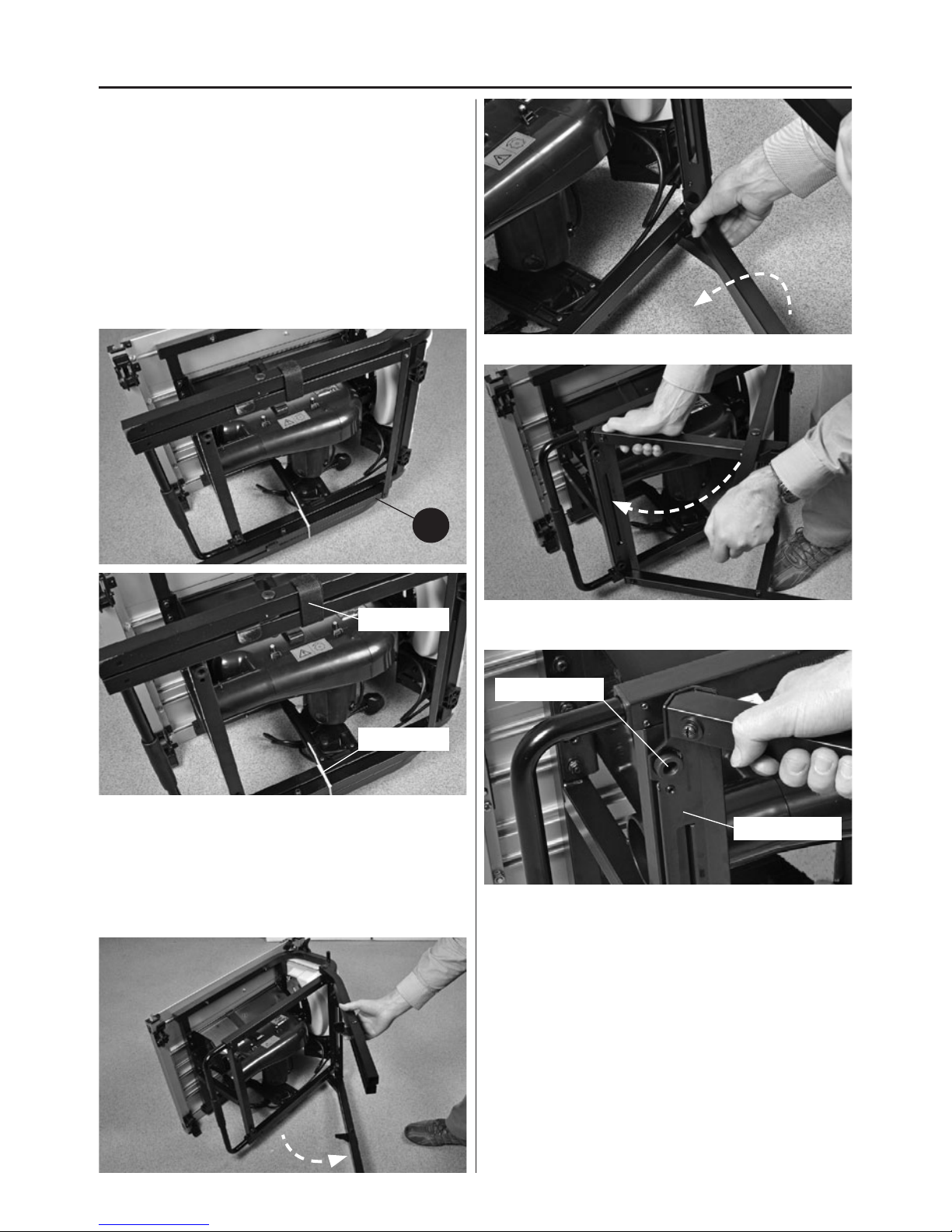

Place the table saw (A) on it’s side, remove the Velcro
band and cable tie around the stand frame and place
aside, see figs 01-02.
Stand Assembly
Fig 01-02
A
Velcro band
Cable tie
Step 2 Open out the stand frame, see figs 03-04-05.
Slot the holes in the“linking plate”over the“rubber
stops”until the linking plate is against the saw frame
(A), see fig 06.
Fig 03-04-05
Fig 06
Step 3 Locate the two M5 star bolt knobs (a) and
washers (b) introduce a washer over the threaded
star bolts and screw the star bolts through the two
pre-drilled holes in the saws chassis into the tapped
holes in the linking plate and tighten, see fig 07.
Linking plate
Rubber stops
Continues Over...
