Axminster AWFS16 Manuale utente

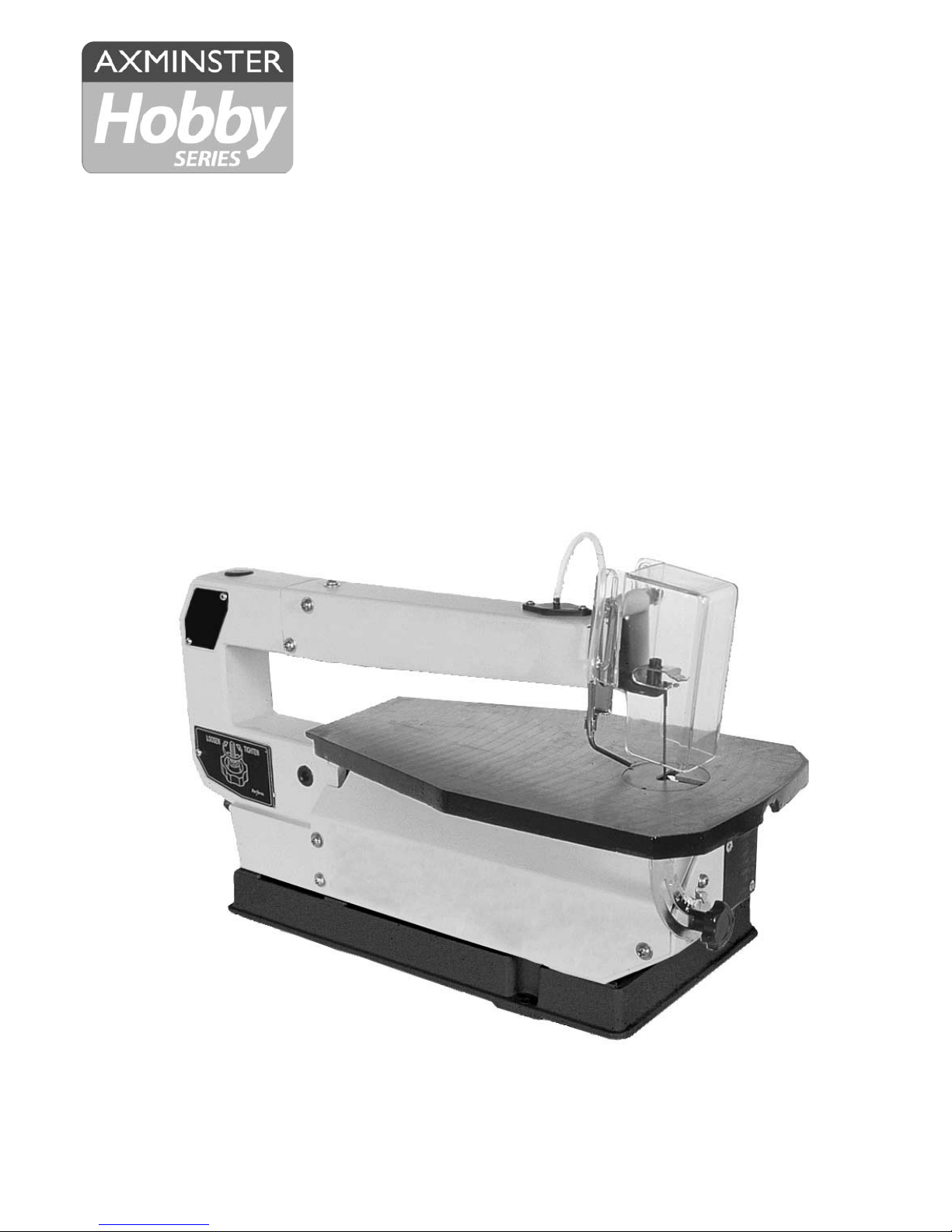

AWFS16

Scroll Saw

Axminster Tool Centre,

Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH

axminster.co.uk

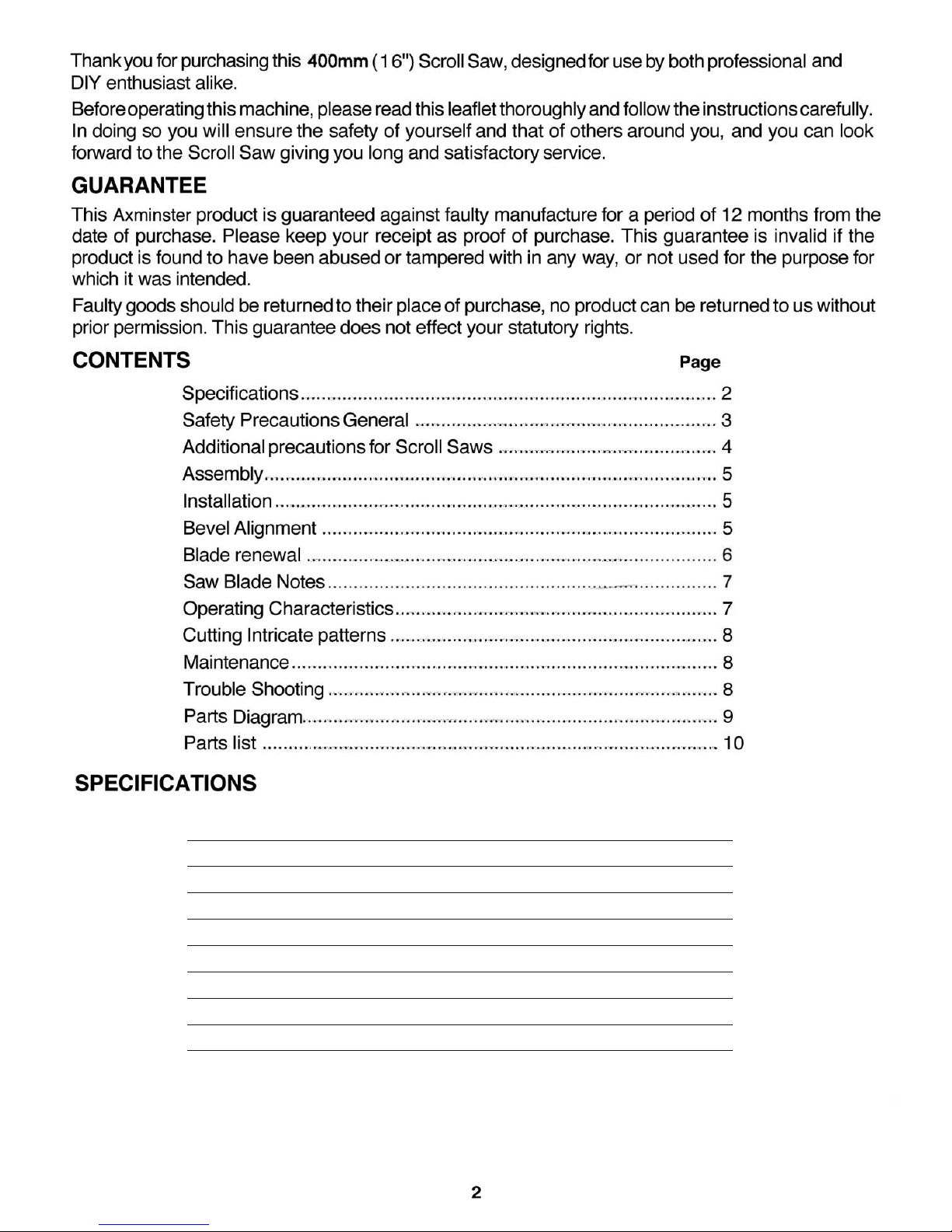

Code 501247

Model AWFS16

Rating Hobby

Power 90W

Throat 400mm(16”)

Cuts per Minute 1,400

Max Depth of Cut 50mm, (20mm recommended)

Table Size 368 x 220mm

Table Tilt 0-45°

Overall L x W x H 540 x 250 x 330mm

Weight 20kg

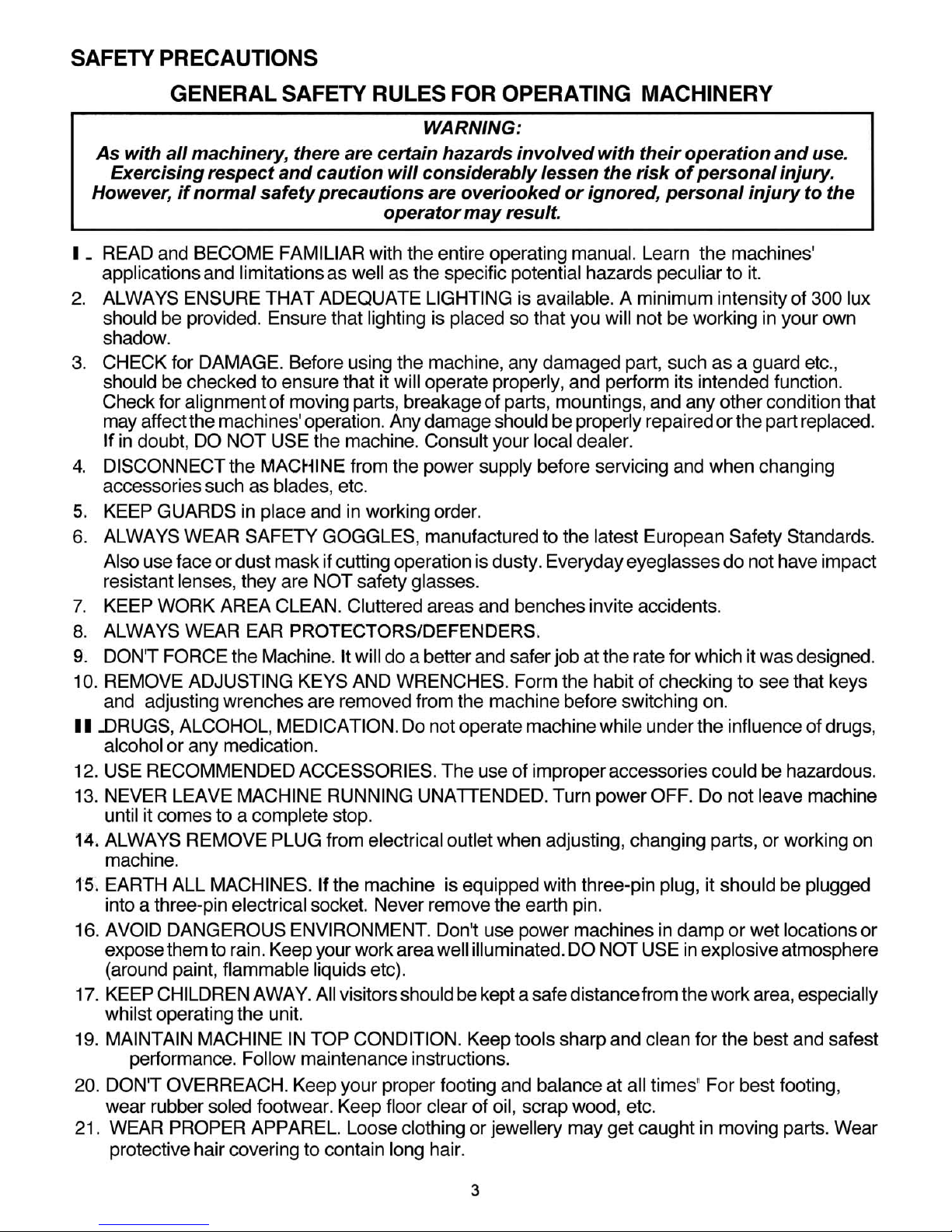

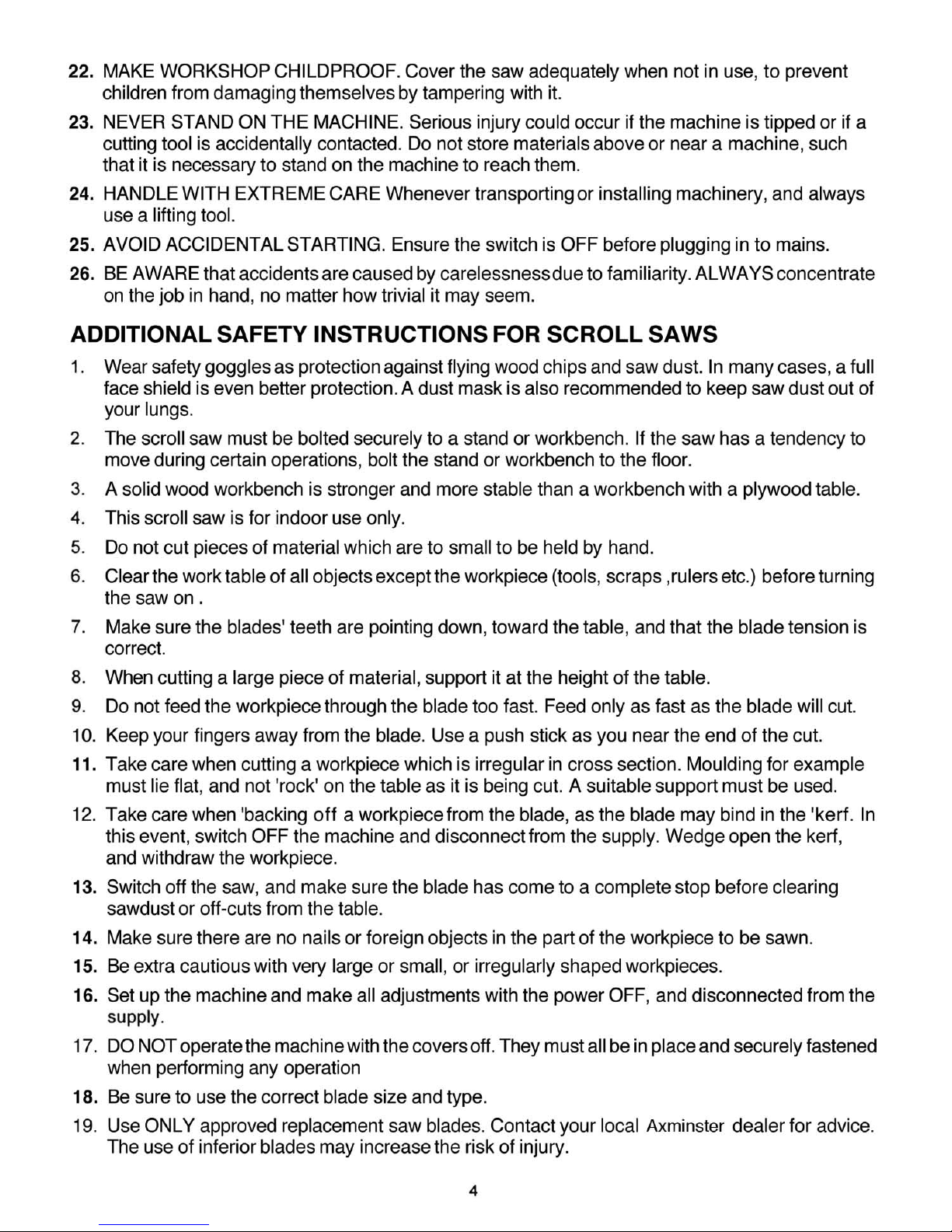

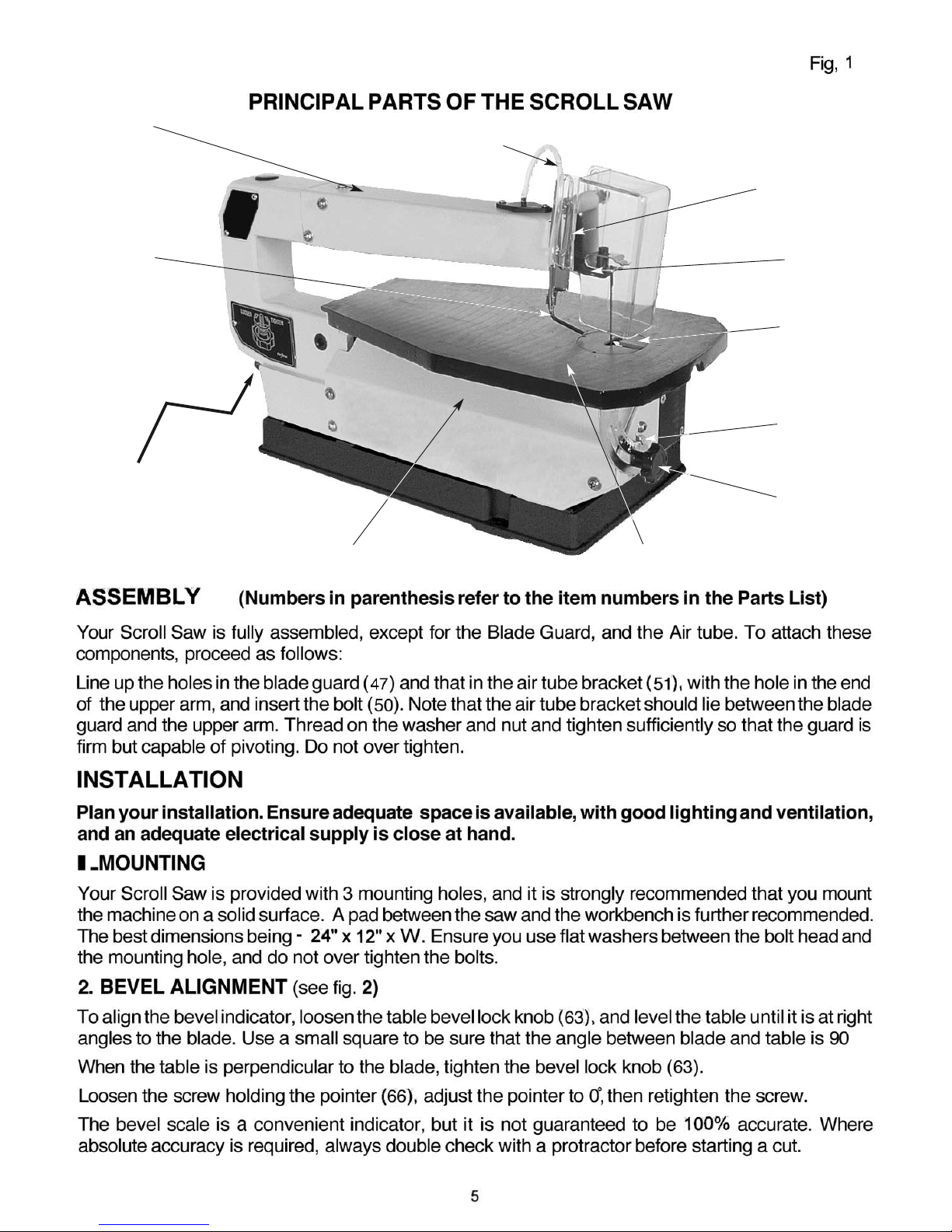

Blade Guard & Air

Tube Mounting Bolt

Air Tube & Bracket

Air Nozzle

Upper Arm

Work Table

Side Cover

Blade Tension Knob

Table Insert

Upper Arm

Bevel Pointer

Table Bevel

Locking Knob

A pair of blade holders allowing the use of

plain blades (see fig 4)

A. Remove the standard blade as described above, Note:

Easy access to the lower housing is provided, when the

side cover is removed.

B. Loosen the two hex screws either side of the holder &

slide the blade up into the centre hole & carefully

re-tighten both hex screws. Note: DO NOT

OVERTIGHTEN, as the blade will break. (see fig 5) Repeat

for the other holder.

C. Lower one end of the blade assembly through the

access hole in the table, ensure the blade teeth are

pointing DOWNWARDS & FORWARDS. Slot the lower

blade holder into the lower housing, making sure the

holders ridge engages into the housing recess. (see fig 6)

Fig. 4

Hex screw Hex screw

Blade

Blade holder

Centre hole

Housing recess

4mm

hex key

Ridge

Fig. 5 Fig. 6

Clamping the blade

into the holder

Lower housing beneath

the work table

D. Appying DOWNWARD pressure on the upper arm, slot the upper blade holder onto

the housing as described before in step“C”. (see fig 7)

E. Replace the table insert and the side cover & re-tighten the blade by

turning the blade tensioning knob two full turns clockwise.

(NO MORE THAN TWO TURNS OTHERWISE THE BLADE WILL BREAK UNDER LOAD)

F. Lower the blade guard, if not already done so & continue with operation.

Fig. 7

Housing recess

Upper arm

Upper housing

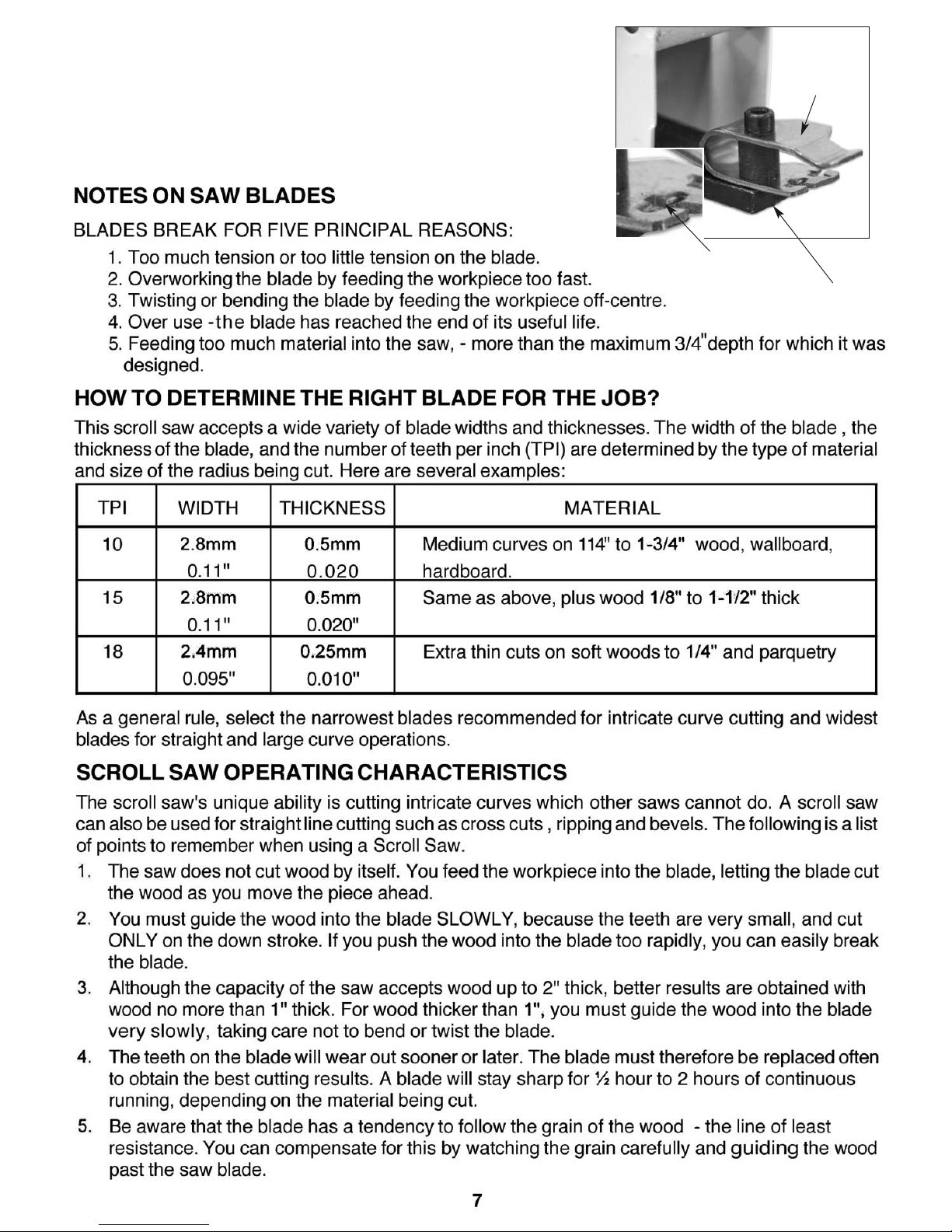

9

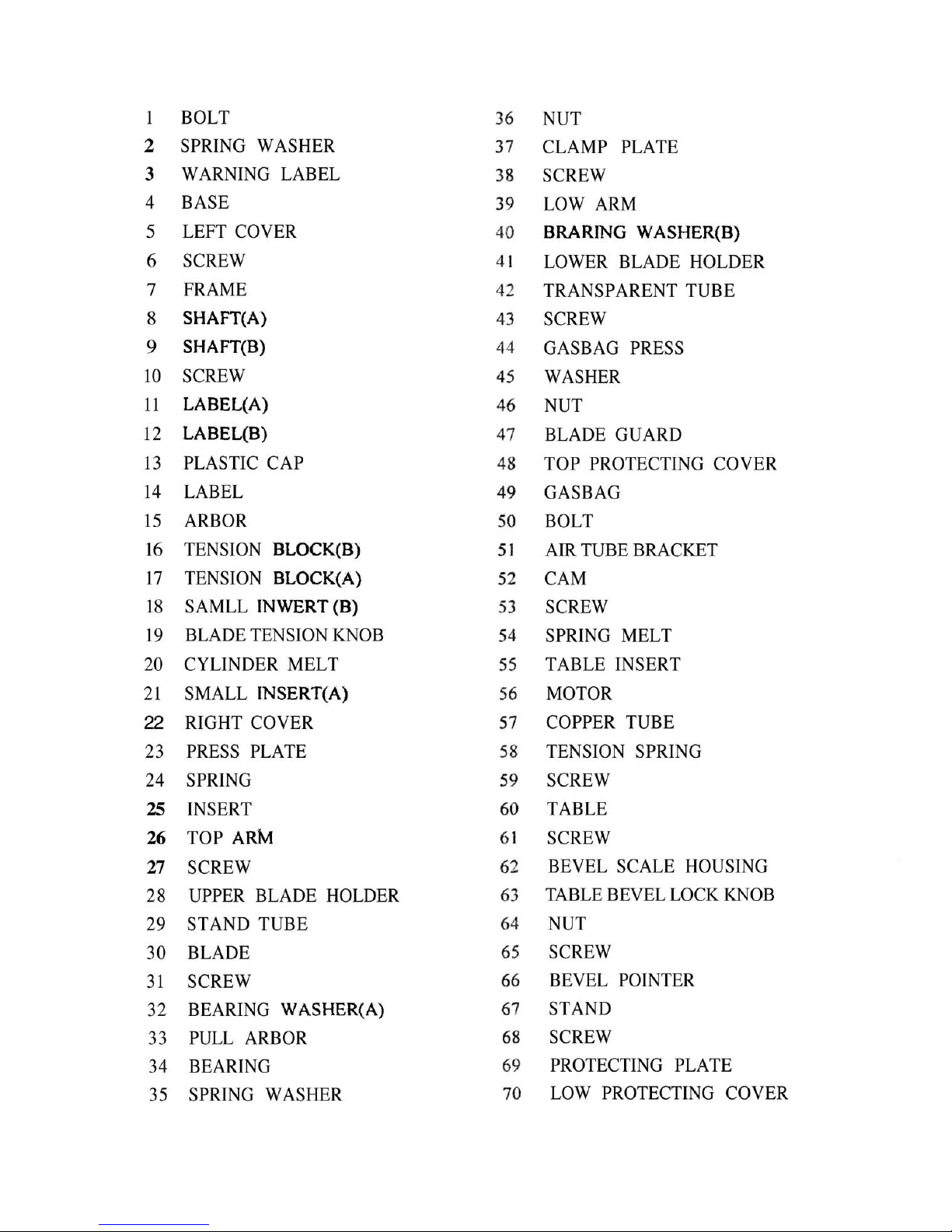

10
