Axon POS System POS 5000 Manuale utente

INDEX

POS 5000

-2-

CONTENTS

Chapter 1. Introduction

Chapter 3. BIOS Setup Utility

Chapter 5. Motherboard

1-1. Warranty ………………………………………………….

3-1. BIOS Setup Program …………………………………..

5-1. Motherboard Layout ………..……...…………………….………

1-2. Copyright ………………………………….……………..

3-2. BIOS Menu Screen …...……………………………...…

5-2. Motherboard DIP Switch & Interface ……………………

1-3. Safety Information ...…….………………………….

3-3. Standard CMOS Features ...………………………...

5-3. Serial Port Power Jumper Settings …..….………………...

1-4. Liability Limitation …………….…………………….

3-4. Advanced BIOS Features ……………………………

5-4. Clearing CMOS …………………………………………..…..………

1-5. Installation Recommendations ……………….

3-5. Advanced Chipset Features ……………..………...

3-6. Integrated Peripherals ………………………………..

Chapter 6. Maintenance

Chapter 2. Product Overview

3-7. Power Management Setup ……………………......

6-1. Safety Warning ……………………………………………….………

2-1. Inside Your Package ………………………………..

3-8. PnP/PCI Configurations …………………………..….

- Removing Interface Panel ………..………………………………..

2-2. Pre-installation Preparation ...………………….

3-9. PC Health Status ……………...…………………………

- Motherboard Replacement ……………………………………….

2-3. Product Outline .……………………………………...

3-10. Load Setup Defaults …...…….……………………...

- Fan/Heatsink Replacement …………..…………………..……….

2-4. Installation of Optional Devices ……………..

3-11. Save Password …...…………………………..…………

- HDD Replacement …..………………………………...………………

- CDP Installation ……………………………………………

3-12. Save & Exit Setup …...………..………………………

- Power Supply Unit (PSU) Replacement …………………....

- 2nd Display Installation ……………………………….

3-13. Exit Without Saving ………………………………….

- MSR Replacement .…………………………………….………………

- Keyboard & Mouse Connection ….…..………….

- CPU Replacement .……………………………………..………………

- Connection via USB Port ……………………….........

Chapter 4. Troubleshooting

-Memory (RAM) Replacement ……………………………………

- Connection via Ethernet Port (LAN) ……….…..

4-1. Network Issues …………………………..……………….

- Display Unit Replacement …….…….……………………………

- Speaker & Microphone Connection …..…..…...

4-2. MSR Issues ……………………….…………………………

- Installing New Paper Roll ……...…………………………………..

- Cash Drawer Connection ……………………..……...

4-3. USB Issues …….…………………………………………….

- Paper Jam Correction …….………………………………………….

- Power Cable Connection ..…..…………………........

4-4. LCD Issues ……………..……………………………………

- Printer Roller & Bracket Replacement ……………………..

2-5. Basic Operations ……………………………………….

4-5. Touch-screen Issues ………………………..…………

- Printer Mechanism & Circuit Board Replacement ……

- Integrated Printer: Control Panel ..……..………..

4-6. Power Issues ……………………………………..………..

6-2. Upgrade and Power Supply Specifications …………...

- Integrated Printer: Self-test ………...……..………..

4-7. PS/2 Keyboard Issues …………………………..........

6-3. Technical Specifications (IMPREX_M) …………………….

- Integrated Printer: DIP Switch ……………....…….

4-8. Booting Issues ………………………………….....……..

2-6. System Drivers ………………….……………………….

4-9. Printer Issues ……………………………………...……....

-3-

POS 5000 SYSTEM

Chapter 1. Introduction

1-1. Warranty

We guarantee our POS terminal product and its parts against defects in materials and workmanship, under proper use, for a standard period of

2 years from the original date of purchase.

During this period, we will repair or replace defective and/or faulty products or parts without charge to the customer for parts and labor.

The 1st year includes servicing and new or refurbished replacement parts free of charge, with one-way shipping costs borne by the seller. The

customer shall, however, be responsible for the return delivery costs.

The 2nd year also includes free of charge servicing and parts, but a limited warranty requires the entire shipping cost to be borne by the

customer.

Products out of the warranty period or scope shall be diagnosed at the customer's expense.

In the case of product damage due to error on part of the consumer, incorrect usage, carelessness or natural phenomenon, the customer shall

bear the full cost for both repair and delivery.

-4-

1-2. Copyright

manufacturer. Neither this manual, nor any of the material contained herein, may be reproduced without express written consent of the author.

1-3. Safety Information

1. Always ensure that the correct power voltage is used as a precaution against fire and electrical shock.

2. Avoid exposing product to direct sunlight. Do not use product in areas of high humidity.

Doing so may cause low reliability and/or operational malfunction.

3. Be careful of static electricity on PCB of system with anti-static appliances. Doing so may cause inferior reliability and shorted product life.

4. Keep product away from highly static areas. This may lead to inferior performance and reduced life cycle.

5. Do not interfere with, or obstruct metal components inside product. Doing so may cause the risk of fire or electric shock.

6. Do not pull on power cable or peripheral devices‟connector cable. Doing so may cause fire, electric shock or electronic system malfunction.

7. Use caution when around other electronic devices with possible high frequency or electro-magnetic effects e.g. Audio, Electronic-range etc.

Doing so will lead to the serious risk of product malfunctioning or a system error occurring.

8. Ensure that batteries are replaced correctly. Failure to do this may result in sudden explosions.

9. Dispose of used batteries properly according to the instructions.

-5-

1-4. Liability Limitation

●Installation and maintenance

We recommend that you inquire about product installation, maintenance and repair service from the official service center and agent office.

POSBANK takes no responsibility for malfunctions or system errors occurring after service and/or system check carried out by unofficial service providers.

●High frequency appliances

This product is qualified by FCC, CE, EMI and MIC compliances, and is thus governed by these qualifications‟ safety regulations.

However, the product can affect and be affected by other high frequencies generated around it. As such, POSBANK does not consider liability for any system

error or disorder due to this issue.

●Electronic noise emitting equipment

We recommend using the product away from electronic noise emitting equipment such as heaters, motors, fluorescent lights, TVs etc. as it may cause

interruption or interference with normal operation.

●Installation location

For optimal performance, the product should be kept in an environment of lower than 65% humidity and in a temperature of 10 ~ 30℃. Please also keep

away from direct sun-light.

-6-

●Cleaning procedure

Cleaning with chemical based products (in particular those containing benzyl or chemical thinning agents) can damage the exterior surfaces of the product.

We recommend using a soft damp cloth and wiping gently, taking particular care when dealing with the LCD display screen.

●Product limitations

1. The use of this product for anything other than POS tasks is strictly prohibited.

The product is not supported for regular PC and interface operation.

2. This product is for business use only, and not for usage in the home.

3. Both hardware and software are both fully configured.

4. Normal operating is guaranteed on a steady power connection.

-7-

1-5. Installation Recommendations

1. Avoid installing during thunderstorms. (Possibility of dangerous exposure to electricity.)

2. Install away from damp spaces or water-leaks.

3. Beware of static occurrence during installation.

4. Use only ground connected and quality certified power cords and cables.

5. Keep out of direct sun-light, extremely high or low temperatures, or high humidity areas.

6. Install product away from areas prone to shocks or vibration.

7. Install product away from sewing machines, welding equipment, electric stoves, audio equipment and other high frequency generating

equipment.

8. Installation and use in close proximity to an air-conditioning unit is not recommended.

9. Do not connect cables underneath carpets or floorboards.

10. Only use power cables supplied by pre-approved and certified venders.

11. Never use power cords from high power source appliances.

e.g. Electronic heaters, Electric stoves, Audio equipment, Air-conditioners, Refrigerators etc.

12. The use of multiple connections in a shared power outlet/socket is not recommended.

-8-

POS 5000

Chapter 2. Product overview

2-1. Inside Your Package

1. Please check your package and confirm its contents.

2. The POS terminal main unit, power cable, user manual and driver CD are included in the package. If any items are missing or damaged,

please contact your dealer for assistance.

»All user manuals and drivers are available for download on our website: www.posbank.com.

-9-

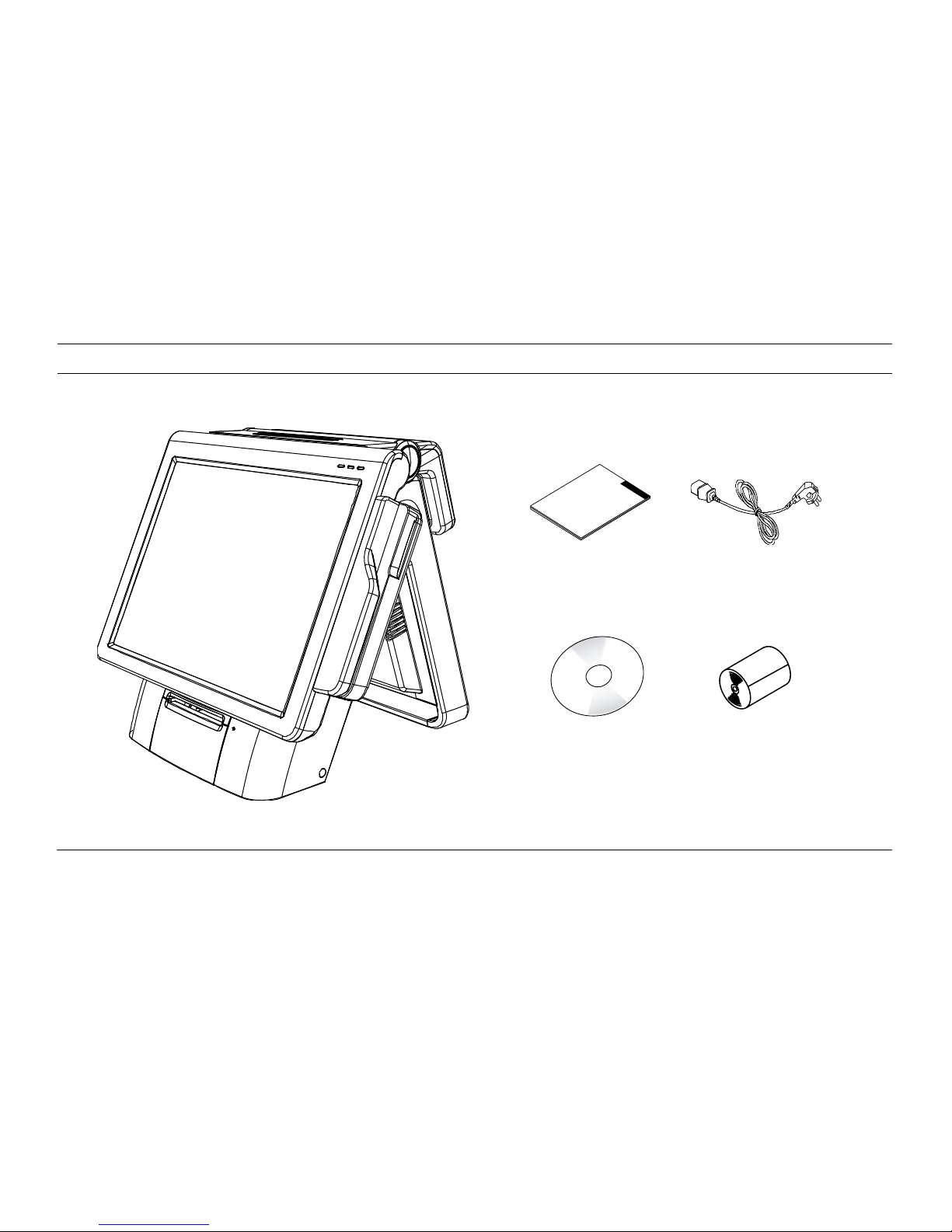

[Package Contents]

User manual Power cable

Driver CD Roll paper

IMPREX_P main unit

-10-

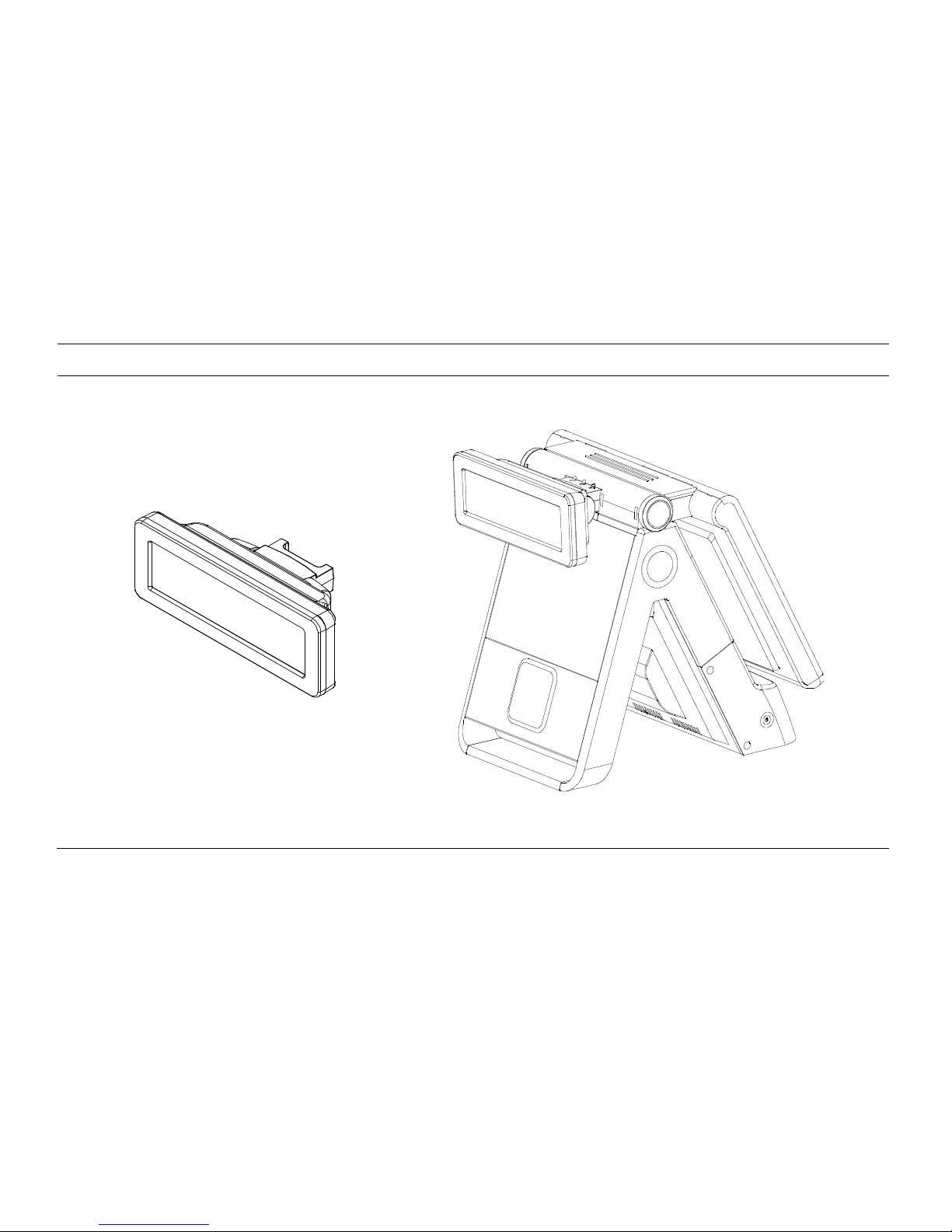

[Optional: Customer Display (CDP)]
