Axxera AXV3D Manuale utente

The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety

feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in

park and the parking brake is engaged. It is illegal in most states for the driver to view video while the

vehicle is in motion.

Safety Notes:

This Quick Start Guide gives you the basics to start using your AXV3D.

Please visit www.axxeraaudio.com/downloads/manuals/axv3d.pdf to download

a complete owner's manual or call customer service at 1-866-382-5476.

AXV3D

Quick Start Guide

Multimedia DVD Receiver

with UltraMotion™ Display

AXV3D

Installation

•Remove trim ring from unit.

•Remove 2 transit screws located on top of the unit.

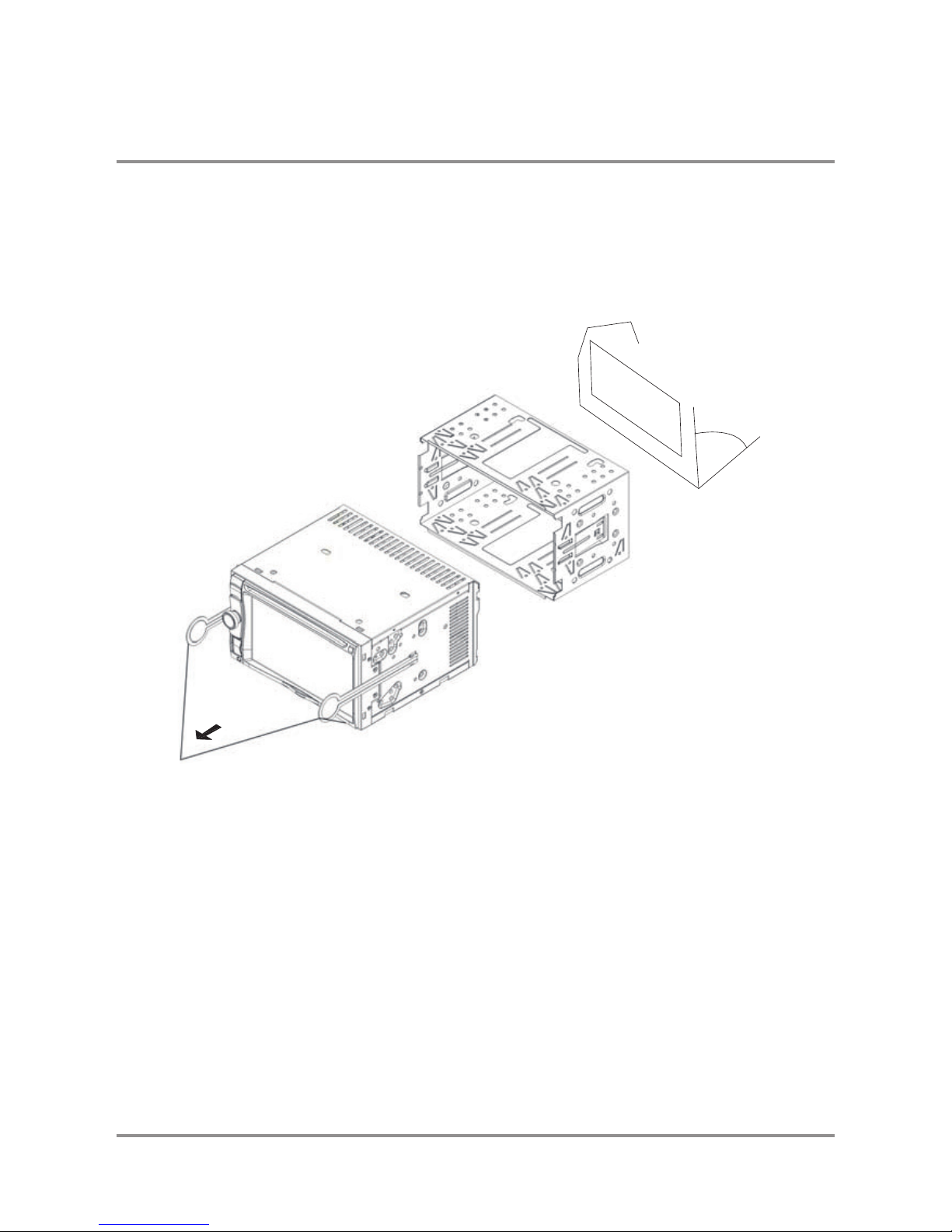

•Insert the supplied keys into the slots as shown, and slide

the unit out of the mounting sleeve.

•Install mounting sleeve into opening, bending tabs to secure.

• Connect wiring harness and antenna. Consult a qualied

technician if you are unsure.

• Certain vehicles may require an installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide into mounting sleeve to secure.

•Snaptrim ring intoplace.

Dash Board

Head Unit

KEYS

Mounting Sleeve

AXV3D

Wiring Diagram - Inputs/Outputs

ORANGE/BLACK

PINK

ILLUMINATION

POWER ANTENNA

ORANGE

BLUE

Bluetooth Module

(sold separately)

SiriusXM Vehicle Tuner Kit

(sold separately)

Red

White

Yellow

Black

Yellow Back-up

Camera Input

Subwoofer Out

Video Output

AUX Video Input

AUX Line Input (L)

AUX Line Input (R)

Steering Wheel Interface Input

Antenna Input

Dual Zone Out (L)

Dual Zone Out (R)

Line Out (FL)

Line Out (RL)

Line Out (FR)

Line Out (RR)

Red

White

AXV3D

Control Locations

AS/PS

Eject

FF/LOC

CH+

CH-

Audio

Title

Track Up

SUB-T

Volume Down

Volume UP

Mode

Home

Mute

Power

Back

Play / Pause / Band

Enter

Track Down

Repeat

RDM

Down

Home

iPod

Radio

SD Card

Open

Mute

Disc Slot

Eject

Trim Ring

DVD

Pandora

Main Menu

Set up

Music

USB

Reset

AV IN 1

Volume / Select (Push)

Back

Remote Control

AXV3D

Operation

UltraMotion™ Menu

Main Menu

Tuner Mode

The UltraMotion™ display allows you to customize the layout of the Main

Menu by re-arranging the mode icons on the left and right sides of the

screen. Simply choose a mode from the scrolling menu in the middle of

the screen, press and hold it for 2-3 seconds, then drag it to where you

want the mode icon to be positioned and release.

Band

Press BAND to toggle between FM1, FM2, FM3, AM1, and AM2. Each band

allows the user to store 6 preset radio stations for quick access.

Manual Tuning

Press TUNE or TUNE momentarily to change the radio frequency up

or down, one step at a time.

Seek Tuning

Press SEEK or SEEK for more than 2 seconds to seek to the next

strong station.

Automatically Store

Press AST to scan and preset 6 radio stations with the strongest signal.

Preset Scan

Press P.SCAN to play each of your preset station for a short amount of time.

Press the button again to stay on the station that is currently playing.

The UltraMotion™ Menu displays availabe modes of operation. Press

a mode icon to select and begin playback of the corresponding mode.

Press the Main Menu icon at the top of the screen to access the Main Menu.

AXV3D

Operation

Music Mode

Operation of iPod / iPhone

(Same as USB/SD Card and iPod mode)

Playing MP3/ WMA Files

To play MP3/WMA les, insert a CD, USB drive or an SD card with MP3/WMA

les.

Track Select

Press TRACK to skip to the beginning of the next song.

Press TRACK to return to the beginning of the current song.

Pressing TRACK again skips to the beginning of the previous song.

Fast Forward and Reverse

Press and hold TRACK or TRACK to fast forward or reverse a track.

Each touch changes speed from 2x to 4x to 8x to 20x then back to

regular playback.

Play/Pause

Press / to stop playback.

Press / again to resume playback.

Random

Press to play all tracks or les in random order.

Press again to end random playback.

Connect an iPod/ iPhone Device (sold separately)

- To play video from an iPod/iPhone device, connect the USB/Video cable

(sold separately) to the USB port & AV IN 1 port of unit.

- To play music from an iPod/iPhone device, connect the USB cable

(included with your iPod/iPhone device) to the unit’s USB port.

Playback will begin automatically.

Song Select

Press to skip to the next song. Press to return to the beginning

of the current song. Pressing again skips to the beginning of the

previous song.

Fast Forward and Reverse

Press and hold or to fast forward or reverse a song.

Repeat

Press to repeat the current song.

Press again to turn o the repeat function.

Random

Press once to play all songs within the list in random order.

Press again to cancel the random function.

Play/Pause

Press / to stop playback.

Press / again to resume playback.

AXV3D

Pandora Operation

iPod Operation

USB Connection

Connect an iPod touch or iPhone device (sold separately) to the USB port using

the USB sync cable included with your iPod/iPhone device.

Changing Stations

Press to display the stations menu. Turn the volume knob to cycle through

the list of stations, then press when the desired station is highlighted.

Note: Stations must be created on your account prior to connecting your

iPod/iPhone device to the head unit.

Shuffle

Press to display the stations menu.

Choose “Quick Mix” from the stations menu to shue songs from all of your

stations.

Skipping Tracks

Press to skip the current song.

Play/Pause

Press / to stop playback.

Press / again to resume playback.

Thumbs Up

Press to customize the station to play more songs like the song that is

currently playing.

Thumbs Down

Press to customize the station to play songs that are dierent from the

song that is currently playing.

Note: Pandora may use large amounts of data and carrier data charges may

apply. For best results, we recommend that you connect your device to

trusted WiFi networks when available.

iPod Music Search

Press MENU, and the main search menu will appear. To select a

category, choose from the following options: Playlists, Artists,

Albums, Genre, Songs, Composer, Audiobook and Podcasts.

Press MENU to cancel the Menu function.

Control for Pandora requires:

is connected to wireless internet.

iPod Menu Mode

Press to enter the menu mode and toggle between Music,

Video and Photo les. Navigate using the up and down arrow buttons.

Operation

AXV3D

Auxiliary Inputs &

Rear Camera OperationAuxiliary Inputs & Rear Camera Operation

Connect an optional audio/video source into the 3.5mm input on the

front panel (AV1) or to the red/white/yellow RCA connectors on the

back of the unit (AV2). Select AV1 or AV2 from the Main Menu to

access audio or video.

Rear Camera

Connect an optional rear camera to the Camera Input (yellow RCA

connector labeled ‘CAM IN’). Connect the reverse lamp wire to the

REVERSE line of unit. The unit will automatically select camera mode

when connected to the reverse lamp circuitry.

Preparation

To connect a Bluetooth device, install and connect the BTM100 (sold

separately). When connected to the AXV3D, the BTM100 supports HFP

(hands-free prole), A2DP (advanced audio distribution prole), AVRCP

(audio video remote control prole) and PBAP (phone book access prole).

Before you can use a Bluetooth device, it must be paired and connected.

Make sure that Bluetooth is activated on your device before you begin

the pairing process.

Pairing a New Device

The BTM100 Bluetooth interface module (sold separately) broadcasts

the pairing signal constantly when no devices are currently connected

Complete the pairing sequence from your Bluetooth device. Refer to the

owner's manual for your device for more details.

Once pairing is complete, the TALK button on the BTM100 will be

illuminated in blue.

The device name is "BTM100"

*Please note that no password is required for pairing.

Note: The AXV3D can be in any mode of operation when pairing is

performed.

Press , then press “Disconnect” to disconnect the currently-paired

device.

If you press when no device is connected, the unit will show the list of

previously-paired devices. Press any device name to repair that device.

Disconnecting a Device

Bluetooth Operation

(Optional)

Note: The unit must be disconnected from the current device before

beginning the pairing sequence for a new device.

Operation

AXV3D

The BTM100 supports the PBAP Bluetooth prole to temporarily download

the phonebook of the cell phone.

Note: The contents of the phonebook are deleted each time a cell phone

is disconnected and are not permamently saved.

Ending a Phone Call

During an active phone call, press to end a phone call. If the phone

call was received when listening to music in another mode, the AXV3D

will resume the previous mode.

Making a Phone Call

Press and the keypad will show up. Enter the phone number using the

0-9 buttons on the keypad.

Streaming Audio Operation

The AXV3D supports A2DP (advanced audio distribution prole) wireless

streaming audio from your Bluetooth mobile device directly to your head

unit. You can also control your music from the front panel of the head unit

using AVRCP (audio video remote control prole).

Note: Placing a phone call from your cell phone will also use the Bluetooth

function of the BTM100.

• Press from Bluetooth mode with a compatible cell phone connected.

Press at the bottom of the screen to display downloaded phone book

names.

• Press the desired name on the phone book, then select between cell, home,

work and other phone number types to make a phone call.

After pairing, connecting and enabling streaming audio from a compatible

mobile device, begin playing music using the music player on your mobile

device. Once the music is playing, the following functions can be used to

control the music.

Receiving a Phone Call

Incoming phone calls will automatically appear on the display, and a ring

tone will be heard.

If you press, the AXV3D will change to Bluetooth music mode.

Bluetooth Operation

(Optional)

Operation

AXV3D

Bluetooth Music

Setting Mode

The AXV3D supports A2DP wireless streaming audio from your Bluetooth

mobile device directly to the head unit. You can also control music from

the front panel of the head unit using AVRCP (audio video remote control

prole).

To stream music to your head unit, your mobile device must support

the following criteria:

or manufacturer of your device for compatibility.

This option will vary depending on the device. Example: "wireless stereo."

After enabling streaming audio from a compatible mobile device,

to control music:

• The button will skip to the next available audio track.

• The button will skip to the previous audio track.

• The / button will toggle between play and pause during playback.

• The button will stop the audio playback

it may be necessary to control the music from the device.

Brightness Control

Source Level Control

The source level menu allows you to adjust the volume level of each source.

Select AUTOMATIC to enable adjustment of the time and brightness settings

for both day and night.

Select DIMMER to set the unit to control brightness automatically.

Select MANUAL to x brightness at the currently-selected setting.

Music Field

The music eld allows you to set balance, fader and other sound controls.

SUB X-over allows you to choose from three low pass X-over settings.

This control will only aect devices connected to the subwoofer output.

Operation

Altri manuali per AXV3D

Indice

Altri manuali Axxera Ricevitore per auto

Axxera

Axxera AC536Bi Istruzioni operative

Axxera

Axxera AVM1409W Istruzioni operative

Axxera

Axxera AXV3D Istruzioni operative

Axxera

Axxera AV615BHM Istruzioni operative

Axxera

Axxera AXD130 Istruzioni operative

Axxera

Axxera X2DMA500 Manuale utente

Axxera

Axxera AC328BT Istruzioni operative

Axxera

Axxera XDCPA10BT Istruzioni operative

Axxera

Axxera AXM140BT Manuale utente

Axxera

Axxera XDMA7200 Istruzioni operative

Axxera

Axxera Axxera CD Receiver Manuale utente

Axxera

Axxera AVM1209S Istruzioni operative

Axxera

Axxera X2DMA500 Istruzioni per l'installazione

Axxera

Axxera AXD430 Istruzioni operative

Axxera

Axxera Axxera Car Audio Manuale utente

Axxera

Axxera XDVD176BT Istruzioni operative

Axxera

Axxera XDMA7200 Istruzioni per l'installazione

Axxera

Axxera AXD530 Istruzioni per l'installazione

Axxera

Axxera AV7118Bi Istruzioni operative

Axxera

Axxera Axxera Car Audio Manuale utente

Axxera

Axxera XDMA7100 Istruzioni per l'installazione

Axxera

Axxera Axxera Car Audio Manuale utente

Axxera

Axxera AXD130 Istruzioni operative

Axxera

Axxera XDMA7100 Istruzioni operative

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente

Medion

Medion Car Audio Manuale utente
