INSTALLATION/OWNER'S MANUAL
AS SERIES
Car Audio
AS40
AS54
AS60
AS65
AS68
AS69
2
Safety Guidelines
Thank you for purchasing the AS Series car speakers. Although we have attempted to
make sure all of the information contained within this manual is accurate, please be aware
that any part of it is subject to change without notice.
The following instructions should be used a general guideline only. If
you are unsure about performing any of the procedures listed below,
please consult a professional car audio installation center.
Before installation, please follow these guidelines:
1. Be sure to carefully read and understand the instructions before attempting to install
this product.
2. For safety, disconnect the negative terminal from the battery prior to beginning the
installation.
3. Use the highest quality connectors for a reliable installation and to minimize signal or
power loss.
4. Use caution before you drill or cut! Be careful not to cut or drill into gas tanks, fuel lines,
brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
5. Never run speaker wires underneath your vehicle. Running speaker wires inside the
vehicle provides the best protection from exhaust heat and environmental elements.
6. Avoid running wires over, near, or through sharp edged surfaces. Use rubber grommets
to protect any wires routed through metal.
7. When running the speaker cable from the amplifier, avoid running it near sources of
high current (i.e. wiring harnesses, battery cables).
PREPARATION
3
INSTALLATION
Wiring

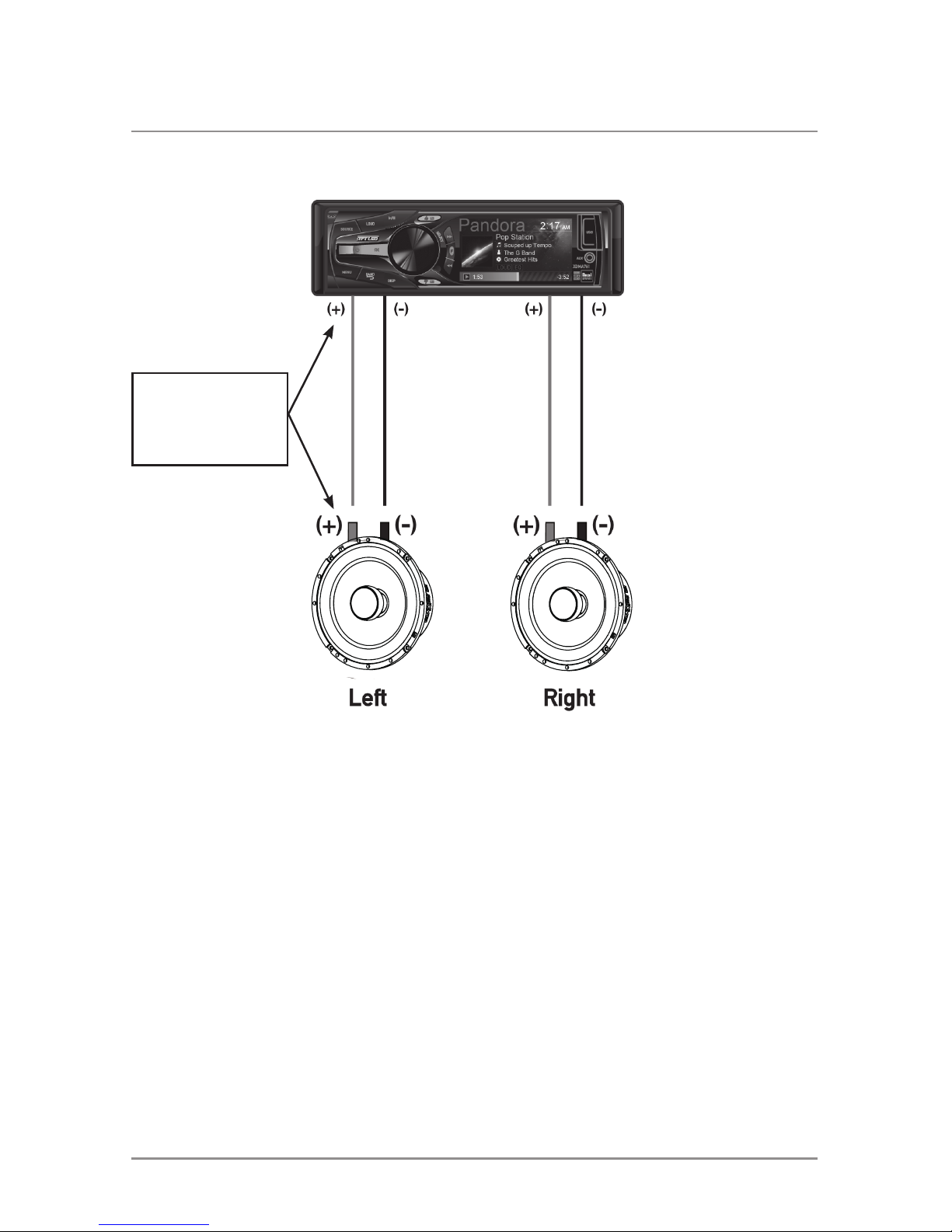

•Connect the speaker outputs from the head unit to the speakers.
•In some vehicles, it may be possible to utilize the existing speaker wiring. When doing
this, be cautious of the polarity (+/-) of the speaker wires, as these wire colors vary for
each vehicle.
Tip: Using factory wiring harness adapters for the head unit and speakers can help
eliminate wiring issues.
•In some vehicles, it may be necessary to run new speaker wire throughout the vehicle.
Observe caution when routing wires.
•Always use quality connectors that fit tightly, or solder each connection. It may be
necessary to waterproof connections made inside door panels.
•Wiring speakers out-of-phase (the polarity of one speaker is wrong) will cause the
speakers to sound poor, and have very little bass response.
Important:
Pay attention to the
positive and negative
polarity
4
INSTALLATION
Mounting

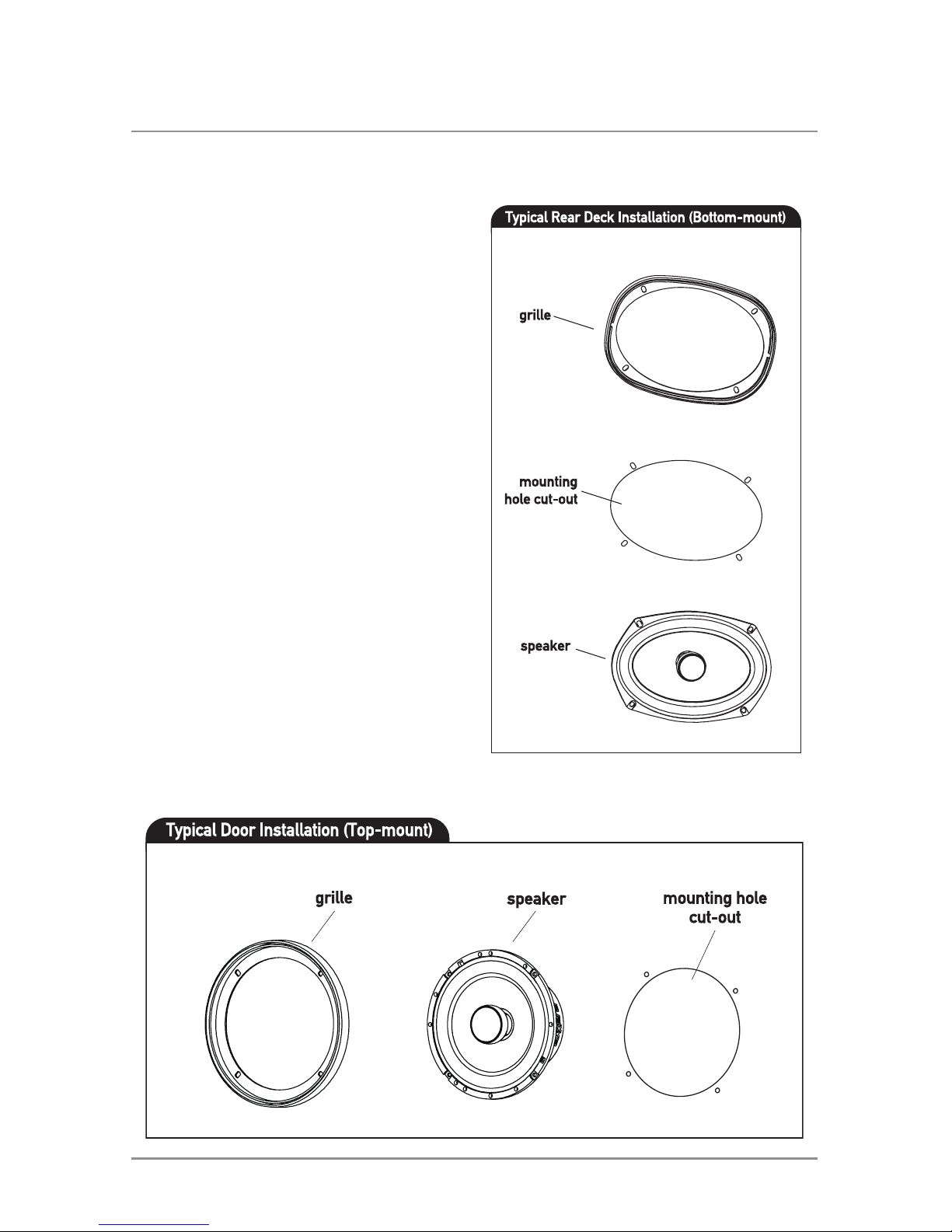

1. Determine where the speakers will
be mounted. Make sure the area
is large enough for the speaker
to mount evenly. Also ensure the
mounting location is deep enough for
the speaker to fit.
2. Refer to the specification chart to
determine the proper diameter hole
to cut for your speaker model.
3. If needed, use the grille as a template
to mark the locations for the
mounting screws. Drill the holes with
a 3/32" bit.
4. Fit the speaker to the hole cut-out.
Mount the speaker using the
supplied screws. If the speaker grill
is to be used, insert 4 screws into
the grill holes and then mount the
speaker.
5

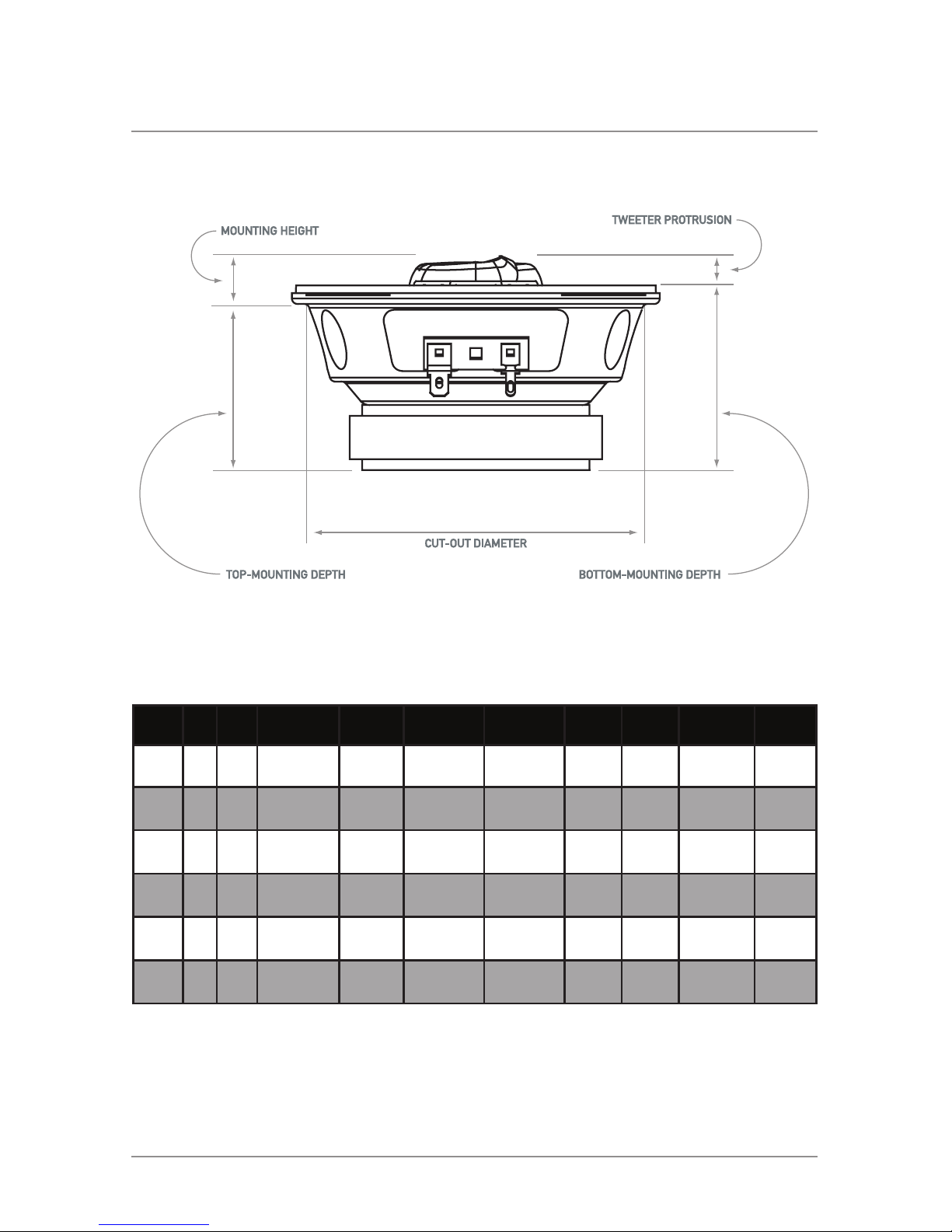

The above diagram is to be used with the specifications matrix guide below.
Design and specifications subject to change without notice.
Specifications
OPERATION
Model Size Type Power Rating
(RMS/Peak) Sensitivity Frequency
Response Mounting Hole
Diameter
Top
Mounting
Depth
Bottom
Mounting
Depth
Mounting
Height Tweeter
Protrusion
AS40 4" 2-Way 45W/120W 84dB 100Hz-20kHz 3.68"
(93.5mm) 1.85"
(47mm) 2.01"
(51mm) .59"
(15mm) .43"
(11mm)
AS54 5.25" 2-Way 50W/150W 87dB 80Hz-20kHz 4.84"
(123mm) 2.13"
(54mm) 2.32"
(59mm) .67"
(17mm) .47"
(12mm)
AS60 6" 2-Way 50W/150W 87dB 75Hz-20kHz 5.24"
(133mm) 2.22"
(56.5mm) 2.54"
(64.5mm) .77"
(19.5mm) .45"
(11.5mm)
AS65 6.5" 2-Way 60W/180W 89dB 75Hz-20kHz 5.71"
(145mm) 2.36"
(60mm) 2.71"
(69mm) .59"
(15mm) .43"
(11mm)
AS68 6"x8" 2-Way 60W/160W 88dB 75Hz-20kHz 4.96x7.17"
(126x182mm) 2.46"
(62.5mm) 2.62"
(66.5mm) .59"
(15mm) .43"
(11mm)
AS69 6"x9" 2-Way 80W/220W 90dB 65Hz-20kHz 6.10x8.86"
(155x225mm) 2.95"
(75mm) 3.38"
(86mm) .39"
(10mm) .51"
(13mm)
6
OPERATION
This warranty gives you specific legal
rights. You may also have other rights
which vary from state to state. Dual
Electronics Corp. warrants this product
to the original purchaser to be free from
defects in material and workmanship for
a period of one year from the date of the
original purchase.
Dual Electronics Corp. agrees, at our
option, during the warranty period,
to repair any defect in material or
workmanship or to furnish an equal
new, renewed or comparable product
(whichever is deemed necessary) in
exchange without charges, subject to
verification of the defect or malfunction
and proof of the date of purchase.
Subsequent replacement products are
warranted for the balance of the original
warranty period.
Who is covered?
This warranty is extended to the original
retail purchaser for products purchased
from an authorized Dual dealer and used
in the U.S.A.
What is covered?
This warranty covers all defects in
material and workmanship in this product.
The following are not covered: software,
installation/removal costs, damage
resulting from accident, misuse, abuse,
neglect, product modification, improper
installation, incorrect line voltage,
unauthorized repair or failure to follow
instructions supplied with the product, or
damage occurring during return shipment
of the product. Specific license conditions
and copyright notices for the software can
be found via www.dualav.com.
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner’s
manual. A slight adjustment of any custom
controls may save you a service call.
2. If you require service during the
warranty period, you must carefully
pack the product (preferably in the
original package) and ship it by prepaid
transportation with a copy of the original
receipt from the retailer to an
authorized service center.
3. Please describe your problem in writing
and include your name, a return UPS
shipping address (P.O. Box not acceptable),
and a daytime phone number with your
shipment.
4. For more information and for the
location of the nearest authorized service
center please contact us by one of the
following methods:
•Callustoll-freeat1-866-382-5476
•E-mailusatcs@dualav.com
Exclusion of Certain Damages: This
warranty is exclusive and in lieu of any
and all other warranties, expressed or
implied, including without limitation the
implied warranties of merchantability and
fitness for a particular purpose and any
obligation, liability, right, claim or remedy
in contract or tort, whether or not arising
from the company’s negligence, actual or
imputed. No person or representative is
authorized to assume for the company
any other liability in connection with the
sale of this product. In no event shall the
company be liable for indirect, incidental or
consequential damages.
consequential damages.
Limited One-Year Warranty
7
Please keep your original sales receipt and be prepared
to provide it in the event you require service. Your original
receipt is considered the best proof of purchase and
indicates the date you purchased your Axxera product.
Dealer Name
Dealer Phone
Purchase Date
Register your product online at www.axxeraaudio.com
For Your Records
Register Your Product
Registration
OPERATION
Dual Electronics Corp.
TollFree:1-866-382-5476
Monday-Friday, 9AM-5PM EST
www.axxeraaudio.com
©2014 Dual Electronics Corp.
NSA0314-V01
