Axxess AXAC-FD1 Manuale utente

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

AXAC-FD1

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

TOOLS REQUIRED

INTERFACE COMPONENTS

REQUIRED ITEMS (sold separately)

TABLE OF CONTENTS

Introduction............................................................2

Conﬁguration .....................................................2-4

Connections ............................................................5

Installation .............................................................6

Programming .........................................................6

• (4) Camera inputs *

• Reverse signal trigger generated via CAN bus communication of the vehicle

•

Turn signal trigger generated via CAN bus communication of the vehicle

• (4) Programmable camera control wires

• Micro-B USB updatable

* Models equipped with NAV can only use front and rear camera inputs

Note: AXAC-FDSTK (sold separately) required for 2014-Up models

with a 4.2-inch display screen.

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

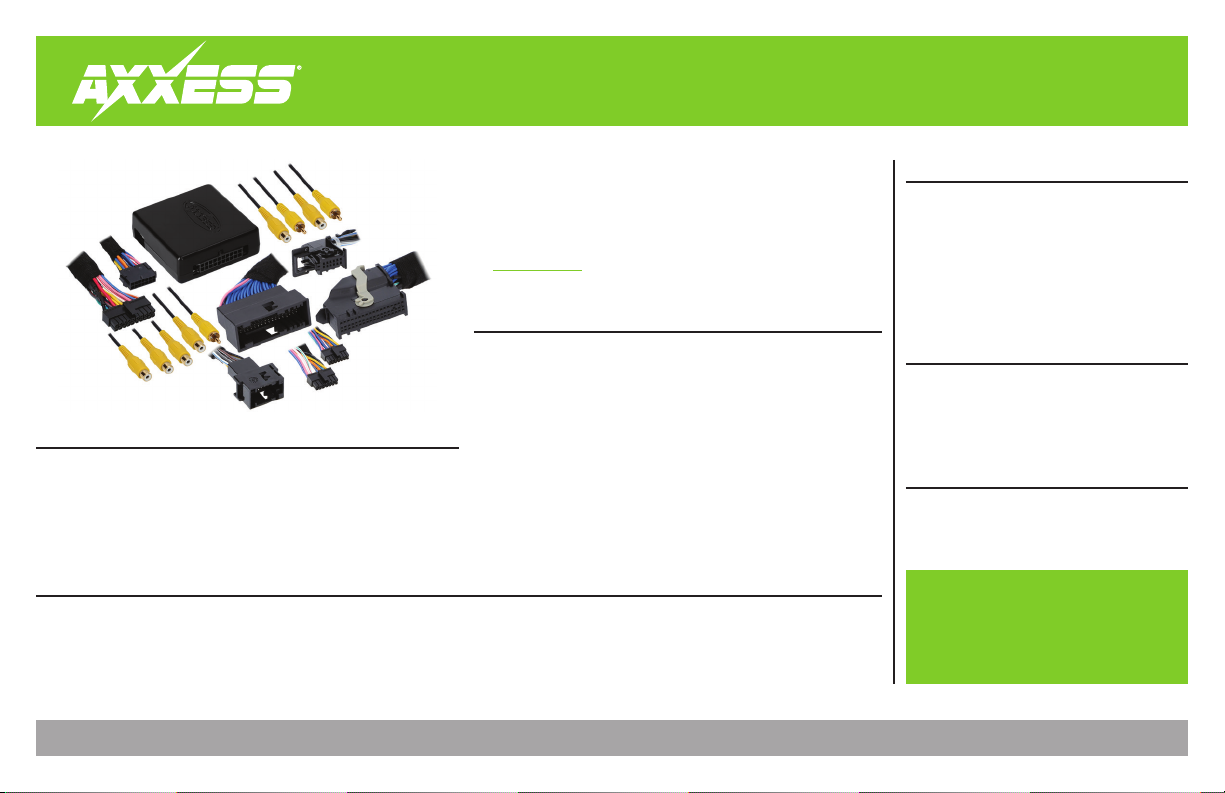

• AXAC-FD1 interface

• AXAC-FD1 interface harness

• AXAC-FD1 vehicle harness (qty. 2)

• 12-pin T-harness

• 54-pin T-harness

Update Cable: AXUSB-MCBL

Supplemental Harness ‡: AX-ADDCAM-FDSTK

‡ 2014-Up models with 4.2-inch display screen only

† With either a 4.2-inch, 6.5-inch, or 8-inch display screen

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications

Ford† Camera Interface With Pre-Wired Harness

2011-Up

APPLICATIONS

Ford

Edge 2011-Up

F-150 2013-Up

F-250/350/450/550 2017-Up

Focus 2012-2019

Fusion 2013-Up

Mustang 2015-Up

Transit 2014-2019

Transit Connect 2015-2018

Ranger 2019-Up

CONFIGURATION

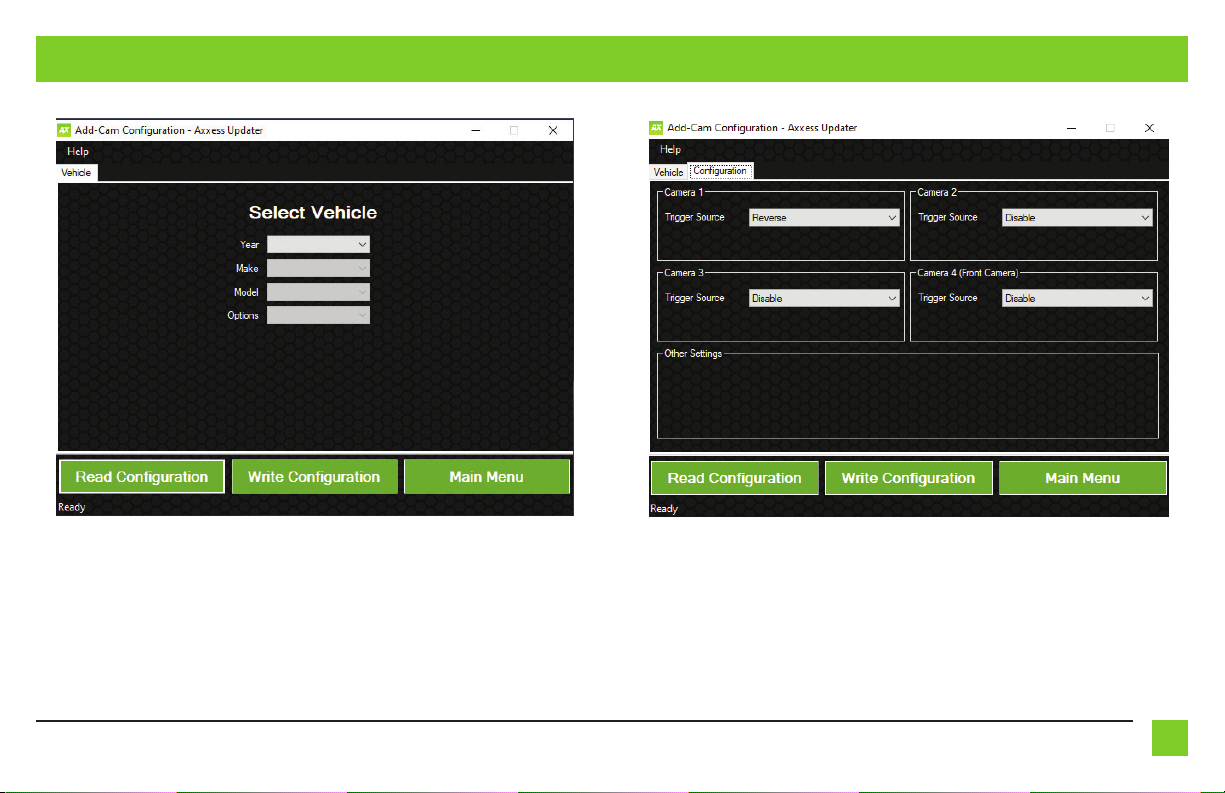

• Download and install the Axxess Updater available at: AxxessInterfaces.com

• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.

The cable will connect into the micro-B USB port in the interface.

• Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen.

• Select Add-Cam Conﬁguration.

Continued on the next page

INTRODUCTION

The AXAC-FD1 is a camera switching interface that provides up to (3) additional camera inputs

to the factory radio, while still retaining the factory camera. With this interface a front camera,

and/or side cameras, can be added to the factory radio. The cameras function automatically, no

human interaction required, unless desired to do so. The interface can also be used if the vehicle

doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess

recommends cameras from the iBEAM product line for best results.

REV. 3/31/2020 INSTAXAC-FD1

• Under Conﬁguration, conﬁgure the (4) video trigger inputs to the desired settings. †

• Once all selections have been conﬁgured, press Write Conﬁguration to save the settings.

• Unplug the update cable from the interface and computer.

† Refer to the following page for more information.

CONFIGURATION (CONT.)

Continued on the next page

• Select the vehicle in the drop down list. A tab labeled Conﬁguration will appear after the

vehicle has been selected.

CONFIGURATION (CONT.)

Video trigger legend

• Disable (will turn off the input)

• Backup Camera (dedicated backup camera)

• Left Blinker (will be used for activation)

• Right Blinker (will be used for activation)

• Control 1 (positive trigger activation)

• Control 1 (negative trigger activation)

• Control 2 (positive trigger activation)

• Control 2 (negative trigger activation)

• Control 3 (positive trigger activation)

• Control 3 (negative trigger activation)

• Control 4 (positive trigger activation)

• Control 4 (negative trigger activation)

• Auto (Reverse -> Drive) will activate once

that sequence is seen (only available for

video trigger 4)

Video trigger description

• Reverse camera: Dedicated by default to Video Trigger 1. Will activate the backup camera

while the vehicle is in reverse.

• Left blinker: Activation of the left turn signal will activate the left camera.

• Right blinker: Activation of the right turn signal will activate the right camera.

•

Auto (reverse -> drive): Available only for Video Trigger 4, when installing a front camera. With

this feature selected, the camera will activate automatically once a reverse-then-drive sequence

is seen from the vehicle. Example of this scenario would be while parallel parking the vehicle. As

an alternative, a control wire can be used instead to manually activate the camera

Note:

Auto (Reverse -> Drive) will disable the camera once 15 MPH is reached. A control wire

activated will also disable the camera.

Note:

If the control wire is activated while driving, the camera will activate and deactivate

during stop-and-go trafﬁc.

• Control 1-4 (positive or negative) trigger activation wires: Can be used as a positive or

negative trigger to manually activate a camera via a toggle switch, or similar device.

REV. 3/31/2020 INSTAXAC-FD1

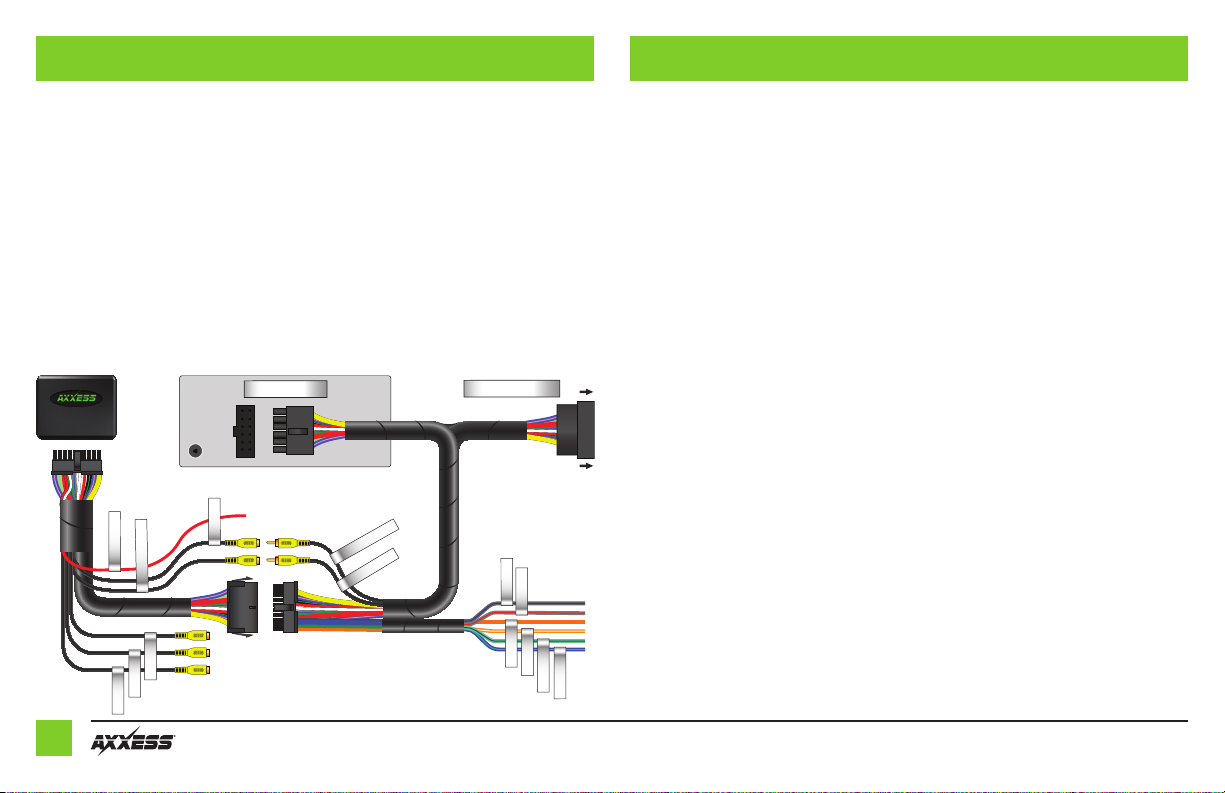

CONNECTIONS

Attention! Two different harnesses are provided, one for models with a 4.2-inch display screen radio

(12-pin T-harness), the other for models with an 8-inch display screen radio (54-pin T- harness).

Use the appropriate harness and discard the other. The harness will connect at the display screen.

For models with a factory backup camera:

The camera signal will need to be interrupted and connected to the corresponding input/output

RCA jacks from the interface.

• Connect the RCA jack from the AXAC-FD1 vehicle harness labeled “Camera input”, to the RCA

jack from the AXAC-FD1 interface harness labeled “Camera output”.

• Connect the RCA jack from the AXAC-FD1 vehicle harness labeled “Camera output”, to the

RCA jack from the AXAC-FD1 interface harness labeled “Camera 1”.

• Disregard the following (3) wires: Blue/Green, Green/Blue, Red

For models without a factory backup camera:

• Connect the RCA jack from the AXAC-FD1 vehicle harness labeled “Camera input”, to the RCA

jack from the AXAC-FD1 interface harness labeled “Camera output”.

• Connect the RCA jack from the AXAC-FD1 interface harness labeled “Camera 1”, to the

aftermarket backup camera.

• Disregard the RCA jack labeled “Camera output” from the AXAC-FD1 vehicle harness.

• Connect the Red wire from the AXAC-FD1 interface harness labeled “Camera 12V”, to the

power wire from the aftermarket backup camera.

• Disregard the following (2) wires: Blue/Green, Green/Blue

Camera Input:

Camera 1 Backup camera input

Camera 2 Left or right camera, user assignable

Camera 3 Left or right camera, user assignable

Camera 4 Front camera

Analaog control trigger wires:

The (optional) analog control wires can be used with either a negative or positive trigger, depending

on how they are conﬁgured in the Axxess Updater. These wires will only be used for manual control of

the camera(s). Otherwise disregard them.

Control Wire Wire Color

Control 1 Gray/Blue

Control 2 Gray/Red

Control 3 Orange

Control 4 Orange/White

Blue/Black and Blue/Red input wires (12-pin T-harness):

These wires are only for use with the AXAC-FDSTK (sold separately) for 2014-Up models.

Refer to the AXAC-FDSTK instructions for wiring.

I N S TAL L ATI O N PROGRAMMING

With the ignition cycled off:

Remove the harness from the factory radio display, then install the AXAC-FD1 vehicle harness

in between.

2. Connect the AXAC-FD1 vehicle harness to the AXAC-FD1 interface harness.

3. Connect the AXAC-FD1 interface harness to the AXAC-FD1 interface.

4. Make sure the camera(s) is connected to the appropriate input.

5. Make sure the interface has been conﬁgured beforehand as shown in the Conﬁguration

section. Failure to conﬁgure the interface will result in the interface not functioning properly.

AUX-IN

Camera Input

Camera Output

Camera 1

FACTORY RADIO TO VEHICLE HARNESS

Camera 4

Camera 2

Control 1

Control 2

Control 3

Control 4

Camera 3

Camera 12V

VSS output

VSS input

1. Cycle the ignition on and wait until the LED in the interface comes on.

Note: If the LED doesn’t come on within a few seconds, yet blinks instead, turn the key to the

off position, disconnect the interface, check all connections, reconnect the interface, and then

try again.

2. Test all functions of the installation for proper operation.

REV. 3/31/2020 INSTAXAC-FD1

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

IMPORTANT

If you are having difﬁculties with the installation of this product,

please call our Tech Support line at 386-257-1187. Before doing

so, look over the instructions a second time, and make sure the

installation was performed exactly as the instructions are stated.

Please have the vehicle apart and ready to perform troubleshooting

steps before calling.

INSTALLATION INSTRUCTIONS

AXAC-FD1
