Axxion ASB-210 BT Manuale utente

ASB-210 BT

BLUETOOTH®SOUNDBAR WITH USB

& SD CARDREADER

User manual

20121121 v1.0

Table of content

What’s in the box? ...................................................................................................... 3

Exploring the device ................................................................................................... 4

Getting started............................................................................................................ 5

Where to install.................................................................................................................. 5

First use of the remote control ........................................................................................... 6

Replacing the battery of the remote control........................................................................ 6

POWER SUPPLY....................................................................................................... 6

SLEEP TIMER SETTING ........................................................................................... 6

HOW TO SET TIME ................................................................................................... 6

TIMER SETTING........................................................................................................ 7

USB & SD/MMC CARD PLAYBACK .......................................................................... 7

BLUETOOTH® OPERATING..................................................................................... 7

RE-CONNECT TO THE BLUETOOTH® AUDIO SOURCE DEVICE ......................... 8

EQ EFFECTS............................................................................................................. 8

FM RADIO.................................................................................................................. 8

TUNING THE FM RADIO........................................................................................... 8

STORING YOUR FAVORITE RADIO STATION........................................................ 8

MUTE THE UNIT........................................................................................................ 9

VOLUME LEVEL/TREBLE/BASS ADJUSTMENT...................................................... 9

PROFESSIONAL AUDIO MODES............................................................................. 9

CONNECTING WITH OTHER DEVICES................................................................... 9

AUDIO IN.................................................................................................................... 9

LINE IN....................................................................................................................... 9

Maintenance of the device.......................................................................................... 9

Troubleshooting........................................................................................................ 10

Specifications ........................................................................................................... 10

Safety instructions .................................................................................................... 11

Declaration of Conformity......................................................................................... 12

Do not distribute copyrighted material...................................................................... 13

Disclaimer................................................................................................................. 13

End of life.................................................................................................................. 14

Service and support.................................................................................................. 15

Dear customer,

Thank you for choosing for Axxion. At Axxion, we are convinced that everyone should

enjoy life as much as possible. Our products are meant to support, improve and

create joyful moments for everyone. For this reason, we offer user-friendly, high-

quality and well-designed consumer electronics for an excellent price. This user

manual is designed to help you with the features of this device.

Note:

This user manual was written during the development of the product, based on the

factory settings. If the product would need improvement, priority is given to the

product and therefore, in these cases, the quick start guide, user manual, illustrations

in the user manual and/or packaging may differ from the actual product.

Axxion is not liable for any printing errors in this user manual.

What’s in the box?

The content of the box is assembled with the utmost care. In the unfortunate case

that anything is missing, please contact your dealer.

Content of the box:

1 Soundbar

1 Remote control

1 User Manual

1 RCA Cable

1 Audio Cable

2 Wall mount brackets

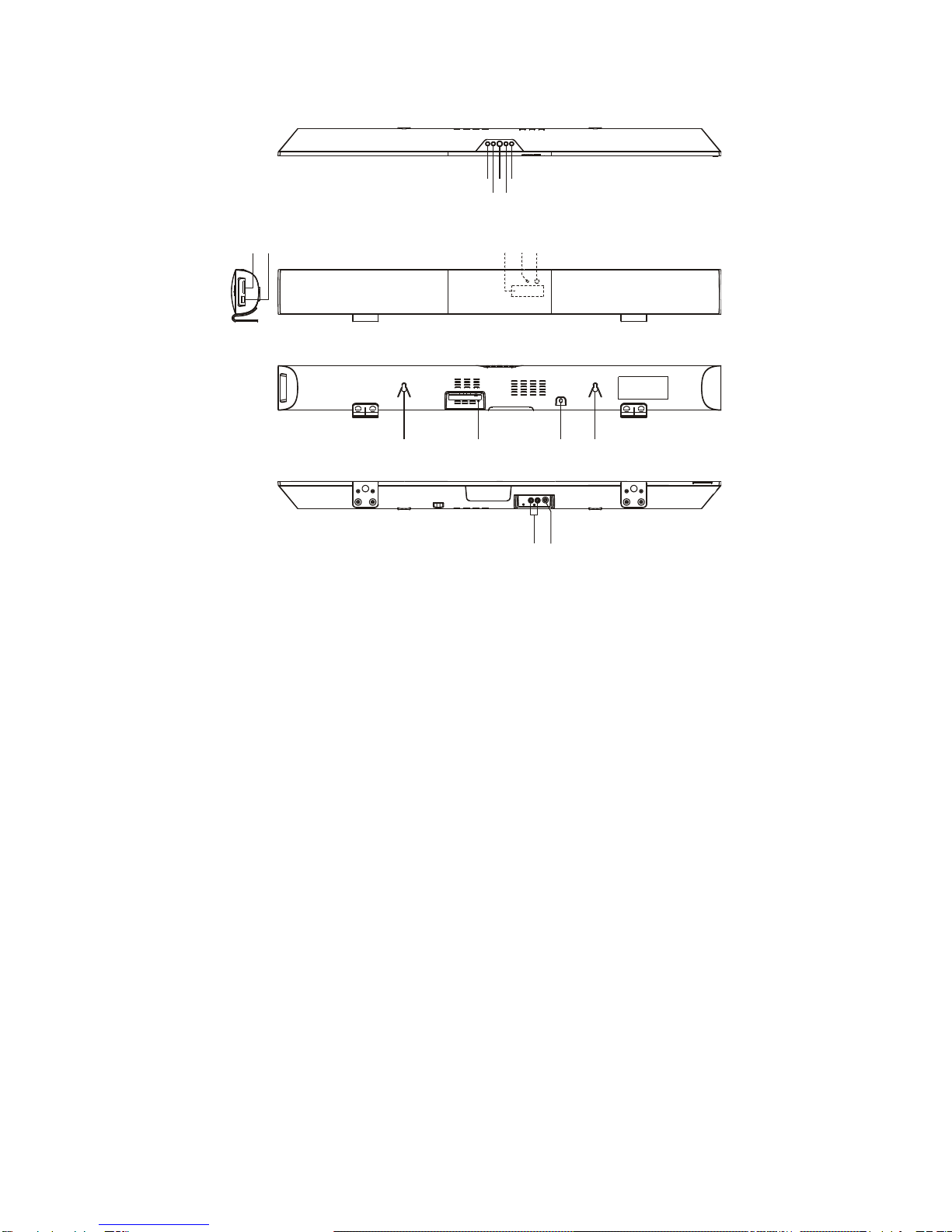

Exploring the device

1. Volume - button

2. Volume + button

3. Standby button

4. Source button

5. PAIR/PLAY/PAUSE Button

6. SD/MMC Card slot

7. USB Port

8. LCD Display

9. Bluetooth® indicator

10.Remote control sensor

11.Hanging holes

12.FM antenna

13.AC Cord

14.AUX in Jack

15.Line in Jack

12345

6 7 8 9 10

11 12 13 11

14 15

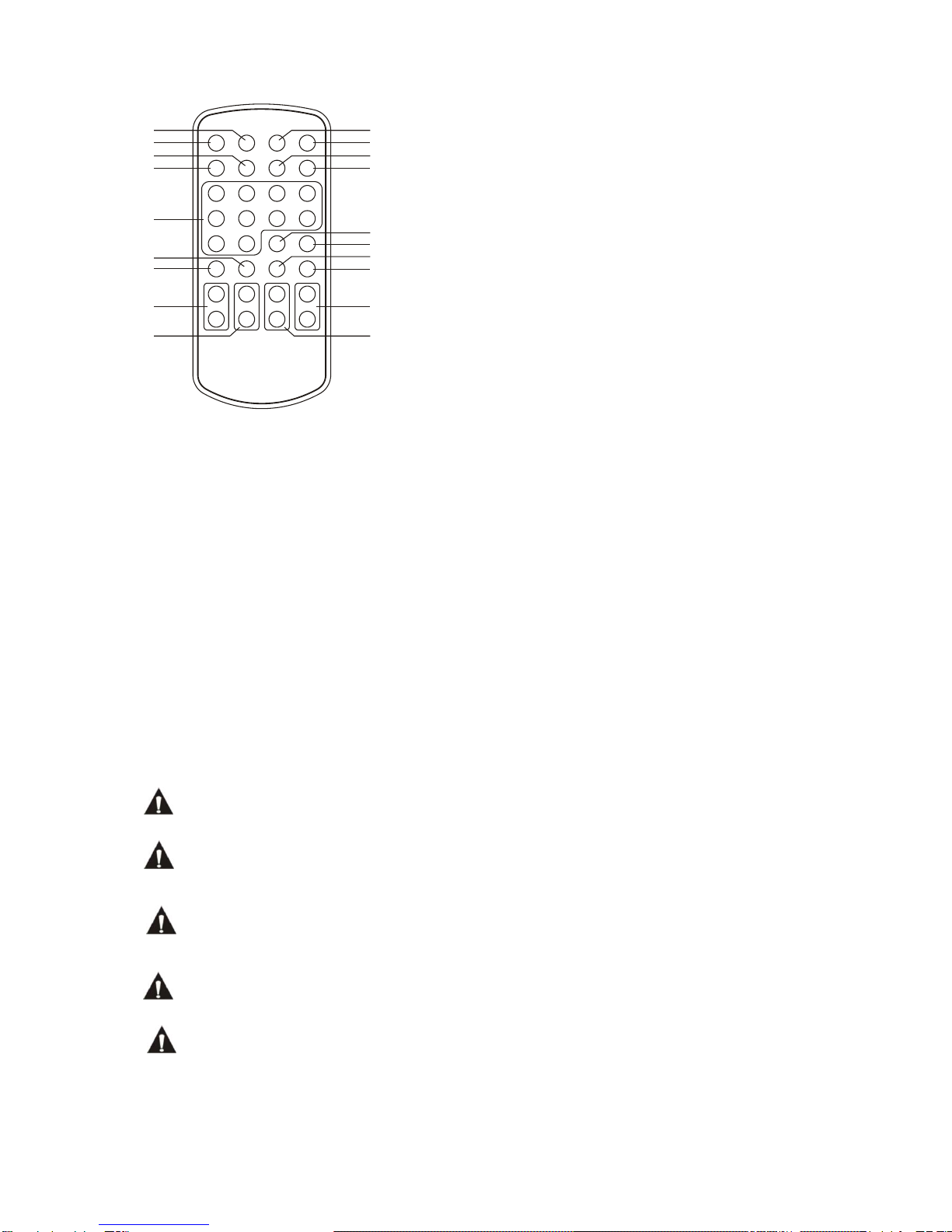

1. Sleep button

2. Source button

3. Clock button

4. Timer button

5. Numeric buttons

6. Voice button

7. EQ button

8. Bass+/- buttons

9. Treble +/- buttons

10.Mute button

11.Standby button

12.TUNING/SKIP/SEARCH BACKWARD Button

13.TUNING/SKIP/SEARCH FORWARD Button

14.MEM Button

15.PAIR/PLAY/PAUSE Button

16.MUSIC Button

17.MOVIE Button

18.VOL +/- Buttons

19.CH+/- Buttons

Getting started

Where to install

Never place the device in direct sunlight. Place it on a sturdy platform of which the

surface should be flat and steady, so the product can’t fall or hit by any objects. Make

sure the product is placed in such a manner that nothing can fall on top of it, as

pressure will damage or break the product. Prevent insertion of objects into the

ventilation slots, or openings in the cabinet at all time.

Always read the safety instructions carefully before use.

Axxion is not responsible for damages and/or consequential damage caused by

improper use or malfunction of the device.

Axxion is not responsible for the loss of data during data transfer or or the loss

of data.

Do not use a USB extension cable to connect a USB device. The use of a USB

extension cable can cause malfunction or loss of data.

Axxion recommends using A-brand batteries.

First use of the remote control

Before the first use of the remote control, the plastic tab should be pulled out of the

remote.

Axxion recommends using A-brand batteries.

Bright ambient light may interfere with operation of the remote control.

Remove the batteries from the remote control when it is not being used for a

long time.

Replacing the battery of the remote control

When the remote control stops working or stops working

properly, the battery should be replaced. Replace the battery as

follows:

1. Press the catch at arrow 1 in the direction of arrow 2 and

hold it.

2. Pull the battery tray out by pulling it in the direction of arrow

3. Replace the battery with a new one and slide the battery tray

back in the remote control. Note that the + side of the battery

is facing up. The model number of the battery is CR2025.

POWER SUPPLY

Plug AC plug into the outlet socket for connecting the main power.

NOTE: If not any audio signal inputs to the unit in about 10 minutes, the unit will enter

to standby mode automatically (except at FM mode).

SLEEP TIMER SETTING

You can set the sleep timer at power on modes as following instructions:

During playback, press the SLEEP button on the remote control repeatedly to cycle

through the sleep time options, Release the SLEEP button when your desired sleep

time shows on the screen. Once the sleep time is expired, the unit will be switched

off.

During playback, press SLEEP button once to check the remaining sleep time.

HOW TO SET TIME

At the standby mode, press and hold the CLOCK button on the remote until Hour

flashes on the screen; use the TUNING/SKIP/SEARCH buttons on the remote to

adjust the hour and confirm your adjustment by pressing the CLOCK button on the

remote; Minute starts blinking on the screen, press the TUNING/SKIP/SEARCH

buttons on the remote to set the minute accordingly, press the CLOCK button on the

remote again to confirm your setting.

During playback, press and hold the CLOCK button on the remote to check the

current time.

Note: The time only could be set at standby mode.

TIMER SETTING

1. At standby mode, press and hold the TIMER button on the remote. The hour on

the display will begin blinking on the screen with the flashing timer icon “T”.

2. Press the TUNING/SKIP/SEARCH buttons on the remote to adjust the hour.

3. Press the TIMER button to confirm. The minute on the display will begin blinking.

4. Press the TUNING/SKIP/SEARCH buttons on the remote to adjust the minute.

5. Press the TIMER button on the remote to confirm your setting.

6. After the set time is reached, the unit will power on to the radio automatically.

7. The timer function can be deactivated or activated by short pressing the TIMER

button on the remote.

USB & SD/MMC CARD PLAYBACK

1. Power on the unit, insert an USB or a SD/MMC card into the unit.

2. Press SOURCE button repeatedly to switch to USB or card mode. The playback

will start automatically.

3. Press the TUNING SKIP/SEARCH FORWARD button on the remote to skip to the

next track; press and hold to search through the track forward.

4. Press the TUNING SKIP/SEARCH BACKWARD button on the remote to skip to

the previous track; press and hold to search through the track backward.

5. Use the numeric buttons to enter the track number to select your desired track for

playback.

BLUETOOTH® OPERATING

This unit can receive stereo audio signal from a BLUETOOTH® stereo audio source

device.

1. Power on the unit, switch to BLUETOOTH® mode by pressing SOURCE button

repeatedly.

2. LED indicator rapid blinking while it is pairing.

3. Enable the Bluetooth® of the Bluetooth® audio source device.

4. Pair and connect to ASB-210 BT(the unit) on the audio source device. If prompted

for passcode, enter “0000”.

5. Pairing successful (LED indicator blue), ready to stream music.

6. During playback, press PLAY/PAUSE button to cease or resume the playback.

7. During playback, press TUNING/SKIP/SEARCH FORWARD button to skip to the

next track; press TUNING/SKIP/SEARCH BACKWARD button twice to skip to the

previous track.

8. During playback, press and hold TUNING/SKIP/SEARCH buttons to search

through the current track forward or backward.

Note:

Pairing mode is canceled about 1.5 minutes.

The above are generic steps to pair a BLUETOOTH® device, for more specific

instructions on BLUETOOTH® connectivity for your device, please consult your

manufacturer’s manual.

RE-CONNECT TO THE BLUETOOTH® AUDIO SOURCE DEVICE

If the device is already paired with the ASB-210 BT, but became unconnected even

with both Bluetooth® devices turned on. You can re-connect them by following steps:

1. Press and hold the PAIR button on the unit or on the remote to re-link the audio

source device. The Bluetooth® indicator will blink for about 1.5 minutes for

connecting.

2. Select ASB-210 BT on the audio source device for connecting. Bluetooth®

indicator will turn to solid blue if the ASB-210 BT and the device have been re-

connected successfully.

EQ EFFECTS

During playback, press EQ button on the remote repeatedly to cycle through the EQ

options; when your desired EQ effect shows on the screen, release the button.

FM RADIO

TUNING THE FM RADIO

1. Power on the unit, switch to FM (RADIO) mode by pressing SOURCE button

repeatedly.

2. Press the TUNING/SKIP/SEARCH buttons on the remote to fine tune radio station.

Press and hold the TUNING/SKIP/SEARCH buttons on the remote to auto search

radio station forward or backward respectively (When an available station will be

found, the unit will broadcast it immediately and the searching will be stopped).

During auto searching, press the TUNING/SKIP/SEARCH buttons on the remote to

stop the searching.

3. At radio mode, it is possible to access the frequency via numeric buttons on the

remote control. For example, press buttons 8, 9 and 8 to get to 89.8 MHz.

STORING YOUR FAVORITE RADIO STATION

1. During playback, press the MEM button on the remote for storing the current

station until a memory cell number flashes on the screen.

2. Use the CH+ or CH- buttons on the remote to select the corresponding memory

cell for storing the station.

3. Confirm your selection by pressing the MEM button on the remote.

4. During radio playback, press the CH+ or CH- buttons on the remote repeatedly to

recall the stored stations.

MUTE THE UNIT

During playback, press the MUTE button on the remote to switch off the audio. Press

the button again to resume the audio.

VOLUME LEVEL/TREBLE/BASS ADJUSTMENT

Press the VOLUME +/- buttons or TREBLE +/- buttons or BASS +/- buttons on the

remote to adjust the volume output level or treble effect or bass effect.

PROFESSIONAL AUDIO MODES

During playback, press the VOICE, MUSIC or MOVIE buttons on the remote to

switch among voice, music and movie audio modes for getting high sound quality.

The audio modes can reveal the characters and details of the sound of the voice,

music and movie and make you liked being there.

CONNECTING WITH OTHER DEVICES

AUDIO IN

1. Connect the Aux in jacks on the unit to audio source, for example, DVD player with

an RCA cable.

2. Power on the unit and the audio device.

3. Press the SOURCE button repeatedly to switch to AUX mode.

4. Use the native controls on the connected audio device to begin playing music

through the connected unit.

LINE IN

Follow steps to connect the unit to another audio device:

1. Connect the device into the unit’s LINE IN jack with the LINE OUT cable.

2. Press STANDBY button to turn the unit on.

3. Press SOURCE button repeatedly to switch the unit to Line mode.

4. Power on the device and begin play.

Maintenance of the device

Clean the device only with a soft damp cloth.

Do not use detergents

Troubleshooting

Symptom

Possible Cause

Solution

Radio sound

distorted.

1. The station is not tuned in.

2. There is a poor signal in

the area.

1. Fine tune the station.

2. Unwind the wire antenna for

best reception

No radio sound.

1. The unit is not at tuner

mode.

2. The volume has been

muted or is on the

minimum setting.

1. Press SOURCE button

repeatedly until switching to

tuner.

2. Adjust the volume level or

press the MUTE button to

resume audio.

No Sound at

Bluetooth®

mode.

1. The unit is not connected

with the audio source

device.

2. The unit is placed out of the

range

3. The volume has been

muted or is on the

minimum setting.

1. Follow the manual to connect

the audio source device to

the unit.

2. Relocate the unit within

Bluetooth® operating range.

3. Adjust the volume level or

press the MUTE button to

resume audio.

Sound is

distorted at

Bluetooth®/AUX

/Line in modes.

Sound source is distorted.

If the original sound source of

the external device is poor

quality or with distortion and

noise, it will be easily noticed

with high-power speakers. Try a

different audio source.

No sound at

AUX/Line in

modes.

1. The unit is not connected

the external appliance

properly.

2. The volume has been

muted or is on the

minimum setting.

1. Follow the manual to

reconnect the audio

appliance to the unit.

2. Adjust the volume level or

press MUTE button to

resume audio.

Specifications

Power source: AC 100~240V 50Hz/60Hz

Power consumption: 50W

Battery of remote control: CR2025 x 1

Receiving bands: FM 87.5 -108 MHz

Bluetooth® compatible: support A2DP

Dimensions: 941.8(L) x 60.5(W) x 110.5(H) mm

Operating Humidity Range: 10 % to 75 %

Indice

Altri manuali Axxion Sistema di altoparlanti

Axxion

Axxion FSP-010 Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
