Azden 200R Manuale utente

VHF PERFORMANCE SERIES

WIRELESS MICROPHONE SYSTEMS

AZDEN CORPORATION

P.O. Box 10 - 147 New Hyde Park Road

Franklin Square, NY 11010

516.328.7500 vox • 516.328.7506 fax

[email protected] • www.azdencorp.com

OWNER’S MANUAL

311DRH • 311DR • 221R • 211R • 200R

31LT • 31IT • 32BT • 32IT • 31HT • 31XT

Thank you for purchasing AZDEN’S “PERFORMANCE SERIES” wireless system. This manual covers the

311DRH, 311DR, 221R, 211R and 200R receivers and the 32BT (Lavaliere), 31XT (Plug-in XLR), 31HT

(Handheld), 31LT (Lavaliere) and 31IT (Instrument) transmitters.

Receiver Descriptions

The 311DRH True Diversity VHF Half-Rack Receiver:

The 311DRH contains two separate receivers, each operating on the same frequency. The incoming signal is

constantly monitored by a diversity circuit, which switches automatically to the receiver with the stronger RF

signal. This allows wireless performance that is virtually drop-out free, even under the most adverse condi-

tions. The receiver features 1/4-inch as well as XLR output jacks with volume and squelch adjustment.

(1) Power LED and On/Off switch.

After plugging in the 311DRH depress the On/Off switch to turn unit on and illuminate the Power LED. See

#5 for more details.

(2) Antenna A-B LEDs.

When the transmitter is turned on and is in reception range of the receiver, either the A or B LED will light up

GREEN, depending on which receiver circuit is getting the strongest signal from the transmitter. Flickering

from the A to B LED is a normal function of the system.

(3) Radio Frequency level and Audio level LEDs.

The 311DRH has two 5-segment LED displays to show the strength of both the incoming FM carrier and the

audio signal level. The receiver will perform best if the RF level is kept between the fourth and fifth LED.

Dips to the third LED may happen occasionally and are tolerable. The audio level LEDs will show the incom-

ing audio signal from –26dB to +5dB. The fifth LED is red and will come on if the audio component of the

incoming signal is approaching distortion.

(1)

(4) Antenna connections.

On the 311DRH the antennas are connector mounted (BNC) so that the supplied antennas can be disconnected

and/or remoted using coax cable if needed.

(5) 12-Volt Input.

Plug the supplied AC adaptor into the 12-volt input on the receiver and then into a 110-120 VAC electrical

outlet. Use only the adaptor supplied (BC-26U) as other adaptors may damage the receiver.

(6) Output Adjustment.

Rotate this knob clockwise to increase, or counter-clockwise to decrease volume level.

(7) Output (unbalanced).

Using a suitable audio cable (not supplied), connect the 1/4-inch phone jack end to the audio output on the

receiver and connect the other end of the cable to the suitable mic/line input of an audio mixer or amplifier.

(8) Output (balanced).

Using a suitable audio cable (not supplied) connect the XLR connector to the audio output on the receiver, and

connect the other end of the cable to the suitable mic/line input of an audio mixer or amplifier.

(9) Rack ears.

If you wish to use the 311DRH in a standard 19" rack by itself you can use the HR-1 rack kit and attach the

rack ears using the four supplied machine screws (two per side near front) as shown. If you wish to use the

311DRH in a standard 19" rack with another 311DRH or a 411DRH you can use the HR-2 rack kit and attach

the rack ears using the four supplied machine screws (on the outer sides of each unit) as shown. Also attach

the joining plate (supplied) underneath the two units by screwing in the supplied machine screws We also

suggest that you remove the “feet” from the bottom of the receivers for the proper clearance required in a

standard rack. (see diagram.)

(10) Squelch adjust.

This adjusts the point at which the receiver will shut off or “squelch” the incoming RF signal when it be-

comes too weak. Turning the control counter-clockwise raises the threshold, allowing more signal to enter

while turning the control clockwise lowers the threshold, letting in less signal.

(11) Frequency label

Indicates what frequency (in MHz ) the receiver operates on. The AZDEN transmitter in use must also be on

the same frequency.

(2)

The 311DR True Diversity VHF Receiver:

The 311DR contains two separate receivers, each operating on the same frequency. The incoming signal is

constantly monitored by a diversity circuit, which switches automatically to the receiver with the stronger RF

signal. This allows wireless performance that is virtually drop-out free, even under the most adverse condi-

tions. The receiver features a 1/4-inch as well as an XLR output jack and volume adjustment.

(1) Power LED

When the receiver is plugged in, the Power LED will turn RED. See #4 for more details.

(2) Antenna A-B LEDs

When the transmitter is turned on and is in reception range of the receiver, either the A or B LED will light up

GREEN, depending on which receiver circuit is getting the strongest signal from the transmitter. Flickering

from the A to B LED is a normal operation of the system.

(3) Antennas

Extend the antennas fully vertical for best reception. When not in use, lower the antennas and put them in their

holder to avoid damage.

(4) 12 Volt Input

Plug the supplied AC adaptor into the 12-volt input on the receiver first, then into a 110-120 VAC electrical

outlet. Use only the adaptor supplied (BC-26U) as other adaptors may damage the receiver.

(5) Output Adjustment

Rotate this knob clockwise to increase, or counter-clockwise to decrease volume level.

(6) Output (unbalanced)

Using a suitable audio cable (not supplied), connect the 1/4-inch phone jack end to the audio output on the

receiver, and connect the other end of the cable to the mic/line input of an audio mixer or amplifier.

(3)

(7) Frequency label

Indicates what frequency (in MHz) the receiver operates on. The AZDEN transmitter in use must also be on

the same frequency.

(8) Output (balanced)

Using a suitable audio cable (not supplied) connect the XLR connector to the audio output on the receiver, and

connect the other end of the cable to the suitable mic/line input of an audio mixer or amplifier.

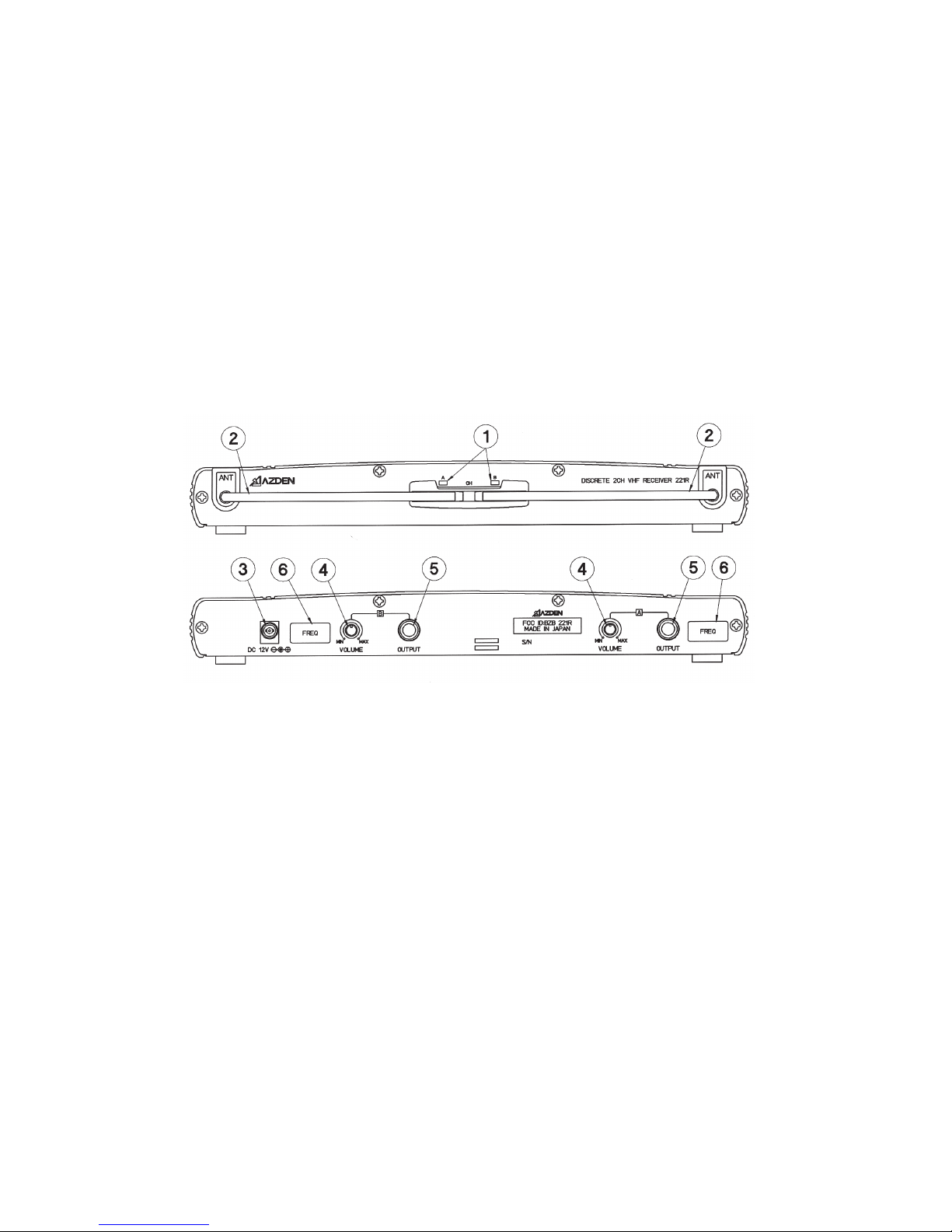

221R Two-channel VHF receiver:

The 221R contains two VHF receivers operating on different frequencies. This allows single or simultaneous

use of two transmitters. The receiver features two 1/4-inch output jacks and two volume adjustments - one for

each channel.

(1) Power/Receiving LED

When the receiver is plugged in, both the A and B Power/Receiving LEDs will turn RED. When one or both

of the transmitters is turned on and are within reception range of the receiver the A and/or B Power/Receiving

LEDs will turn from RED to GREEN indicating that the transmitter(s) signal is being received.

(2) Antennas

Extend the antennas fully vertical for best reception. When not in use, lower the antennas and put them in their

holders to avoid damage.

(3) 12 Volt Input

Plug the supplied AC adaptor into the 12-volt input on the receiver then into a 110-120 VAC electrical outlet.

Use only the adaptor supplied (BC-26U) as other adaptors may damage the receiver.

(4) Output Adjustment

Rotate this knob clockwise to increase, or counter-clockwise to decrease the volume level. Please note that

the 221R has two output adjustments, one for Ch.A and one for Ch.B

(4)

(5) Output (unbalanced)

Using a suitable audio cable (not supplied), connect the 1/4-inch phone jack end of the audio output on the

receiver, and connect the other end of the cable to the mic/line input of an audio mixer or amplifier. Please

note that the 221R has two outputs, one for Ch.A and one for Ch.B.

(6) Frequency label

Indicates what frequencies (in MHz) the receiver operates on. The AZDEN transmitters in use must also be

on the same frequency. Please note that the 221R has two frequency labels, one for Ch.A and one for Ch.B.

211R Single channel VHF receiver:

The 211R features a 1/4-inch output jack and volume adjustment.

(1) Power/Receiving LED

When the receiver is plugged in, the Power/Receiving LED will turn RED. When the transmitter is turned on

and is in reception range of the receiver the Power/Receiving LED will turn from RED to GREEN indicating

that the transmitter signal is being received.

(2) Antenna

Extend the antenna fully vertical for the best reception. When not in use, lower the antenna and place it into

its’ holder to avoid damage.

(3) 12-Volt Input

Plug the supplied AC adaptor into the 12-volt input on the receiver and then into a 110-120 VAC electrical

outlet. Use only the adaptor supplied (BC-26U) as other adaptors may damage the receiver.

(4) Output Adjustment

Rotate this knob clockwise to increase, or counter-clockwise to decrease volume level.

(5) Output (unbalanced)

Using a suitable audio cable (not supplied) connect a 1/4-inch phone jack end to the audio output on the

receiver and connect the other end of the cable to the mic/line input of an audio mixer or amplifier.

(5)

(6) Frequency label

Indicates what frequency (in MHz) the receiver operates on. The AZDEN transmitter in use must also be on

the same frequency.

200R Single channel VHF receiver:

The 200R features a 1/4-inch output jack and volume adjustment.

(1) Power/Receiving LED

When the receiver is plugged in, and the Power button is press IN, the Receiving LED will turn RED. When

the transmitter is turned on and is in reception range of the receiver the Power/Receiving LED will turn from

RED to GREEN indicating that the transmitter signal is being received. Press the Power button OUT to turn

the 200R off.

(2) Antenna

Extend the antenna fully vertical for the best reception. When not in use, lower the antenna to avoid damage.

(3) 12-Volt Input

Plug the supplied AC adaptor into the 12-volt input on the receiver and then into a 110-120 VAC electrical

outlet. Use only the adaptor supplied (BC-26U) as other adaptors may damage the receiver.

(4) Output Adjustment

Rotate this knob clockwise to increase, or counter-clockwise to decrease volume level.

(5) Output (unbalanced)

Using a suitable audio cable (not supplied) connect a 1/4-inch phone jack end to the audio output on the

receiver and connect the other end of the cable to the mic/line input of an audio mixer or amplifier.

(6) Frequency label

Indicates what frequency (in MHz) the receiver operates on. The AZDEN transmitter in use must also be on

the same frequency.

(6)

TRANSMITTER DESCRIPTIONS

Model 32BT: Lavalier microphone with body-pack transmitter. Ideal for speaking applications such as

Lecturers, Actors, Actresses, etc.

Model 31XT: Plug-in XLR transmitter turns any dynamic metal-bodied microphone with XLR output into a

wireless microphone.

Model 31HT: Handheld microphone with a built-in transmitter. For all vocal applications such as Vocalists,

Karaoke Singers, etc.

Model 31LT: Lavalier microphone with body-pack transmitter. Ideal for speaking applications such as

Lecturers, Actors, Actresses, etc.

Model 31IT: Instrument body-pack transmitter. Designed for electric guitar and bass.

32BT Lavalier Microphone with body-pack transmitter:

(1) Open the battery compartment lid by sliding it in the direction indicated and raising it.

(2) Insert one fresh Alkaline 9-volt battery into the compartment. Make sure battery polarity is correct.

(3) Frequency Label

The Frequency label indicates what frequency (in MHz) the transmitter broadcasts on. The AZDEN receiver

in use must also be on the same frequency.

(7)

(4) Audio Input Level Control

Turn clockwise to increase, or counter-clockwise to decrease the input level. A small screwdriver is supplied

to make adjustments. The level control is factory-preset in the center position.

(5) 3 Position Switch

The left position: OFF

The middle position: STANDBY

The right position: ON

In the “STANDBY” position, the audio is muted.

(6) LED Indicator

Turns red when the switch is in “STANDBY” position and green in “ON” position.

NOTE: Remove the battery if the transmitter will not be used for a long period of time.

(7) Audio Output Connector

This 3.5mm mono connector is where the mic is plugged in. This connector was designed to be used with a

special “screw-down” connecting jack that eliminates the possibility of the jack being accidentally pulled out.

A standard 3.5mm mono jack can also be used but will not afford the extra protection.

(8) Metal Belt Clip

Used to attach the 32BT securely to a belt.

31XT Plug-in transmitter adaptor:

Note: The 31XT is designed to turn any wired dynamic metal-body microphone that has an XLR output into a

wireless microphone.

Connecting the 31XT:

Disconnect the microphone cable from the microphone by pushing down on the release button where the

microphone and cable connect. Connect the 31XT by lining up the pins on the microphone with the holes on

the transmitter, and insert. Push the 31XT into the microphone until it locks into place.

(8)

Removing the 31XT:

Push down on the release button and pull out.

(1) Turn the bottom half of the case counter-clockwise until it is completely off.

(2) Insert one fresh alkaline “AA” battery into the compartment. Make sure battery polarity is correct.

Replace the bottom half of the case and turn clockwise until snug. DO NOT OVERTIGHTEN.

(3) Frequency Label:

The frequency label indicates what frequency (in MHz) the transmitter broadcasts on. The AZDEN receiver

in use must also be on the same frequency.

(4) Power Off/On: Switches the transmitter off or on.

(5) Audio Off/On:

Slide the switch to “On” for normal operation. Slide it to “Off” to mute the audio.

NOTE: When turning the transmitter on, slide the Power “On” first, and then slide the Audio to “On”. When

turning the transmitter off, first slide the Audio to “Off”.

(6) LED:

Turns RED when the Power is “On” and the Audio is “Off”. Turns GREEN when the Power and Audio are

“On”.

(7) Level:

Turn clockwise to increase, or counter-clockwise to decrease the input level. A small screwdriver is supplied

to make adjustments. The level control is factory-preset in the center position.

NOTE: Remove the battery if the transmitter will not be used for a long period of time.

31HT Handheld Microphone Transmitter:

(1) Turn the bottom half of the microphone case counter-clockwise until it is completely off.

(2) Insert one fresh Alkaline “AA” battery into the compartment. Make sure battery polarity is correct. Then,

replace bottom half of microphone case and turn clockwise until snug. DO NOT OVER-TIGHTEN.

(9)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Azden Sistema microfonico

Azden

Azden 1000BT Manuale utente

Azden

Azden Body-pack Transmitter 35BT Manuale utente

Azden

Azden VHF PERFORMANCE Series Manuale utente

Azden

Azden PRO-XR Manuale utente

Azden

Azden 330UPR Manuale utente

Azden

Azden 500UDR Manuale utente

Azden

Azden 105UPR Manuale utente

Azden

Azden 100UPR Manuale utente

Azden

Azden 500UDR Manuale utente

Azden

Azden 411UDR Manuale utente

Azden

Azden UHF Performance Series Manuale utente

Azden

Azden 35HT Manuale utente

Azden

Azden IRB-10 Manuale utente

Azden

Azden Body-pack Transmitter 35BT Manuale utente

Azden

Azden 330UPR Manuale utente

Azden

Azden 1201XT Manuale utente

Azden

Azden 30BT Manuale utente

Azden

Azden WHX-PRO Manuale utente

Azden

Azden EX-503 Manuale utente

Azden

Azden i-Coustics PRO-XD Manuale utente

Azden

Azden 1000URX-Si Manuale utente

Azden

Azden WLX-PRO Manuale utente

Azden

Azden 10BT Manuale utente

Azden

Azden IRR-30 Manuale utente

Manuali Sistema microfonico popolari di altre marche

Paso

Paso R824 Manuale utente

Naxa

Naxa NAM-982 Manuale utente

Motorola

Motorola PMNN4461 Manuale utente

Xvive

Xvive U3 Manuale utente

Tekon

Tekon DUOS Manuale utente

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuale utente

Devine

Devine WMD-IE Manuale utente

LG LF-D7150 Manuale utente

GE S768DAV Manuale utente

LD U305 HBH 2 Manuale utente

Chainway

Chainway URA8 Manuale utente

ORATOR

ORATOR D860TD Manuale utente

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuale utente

Alpha Technologies

Alpha Technologies RBMS Manuale utente

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuale utente

Shure

Shure UA844 Manuale utente

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuale utente

Pyle

Pyle PDWM5000 Manuale utente
