Standard Installation

CO2

INTEGRAL - LED

Proper soil preparation is recommended before installation. See the DIG-IT guide at

www.bklighting.com/collaterals/install/digit.pdf for more information.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION

INSTRUCTIONS

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL

ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2406-00

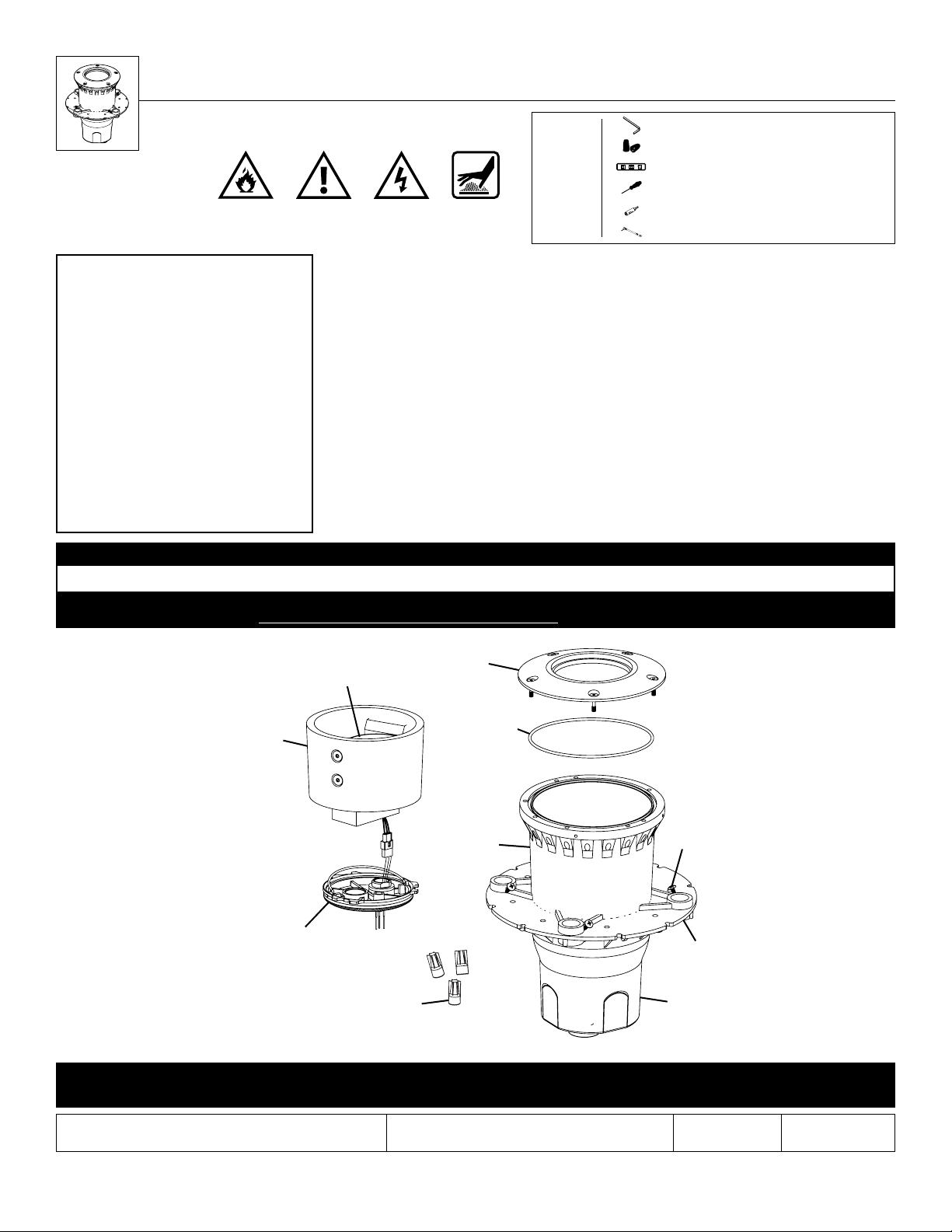

Waterproof Wire

Connectors

Silicone ‘O’ Ring

Patented Stability

Flange

Patented

HydroLock Plate

Heat Sink and

OptiLock Assembly

Junction Box

Housing Set Screws

Optic

Faceplate

Hot SurfaceHigh VoltageWarning

Flammable

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL

SAFETY AND INSTALLATION INSTRUCTIONS

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all Local and

Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel with appropriate personal protective

equipment must perform all servicing of this product.

• Before wiring to power supply and during servicing, turn off and

lock out power at fuse or circuit breaker before service.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause an

unsafe condition. The use of damaged components may cause an

unsafe condition and void product warranty.

• Do not block light emanating from product in whole or part, as

this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot

lens or fixture body.

• Replace LED assembly only with correct wattage and type of

power supply appropriate for LED assembly.

• All gaskets, o-rings and sealing surfaces must be kept clean

during installation and service; failure to do this may cause an

unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY

TO PERSONS IMPORTANT SAFETY

INSTRUCTIONS

Lighted fixture is HOT!

WARNING - To reduce the risk of

FIRE OR INJURY TO PERSONS:

Turn off/unplug and allow to cool before

replacing lamp/LED. Fixture gets HOT quickly!

Contact only switch/plug when turning on.

Do not touch hot lens, guard, or enclosure.

Keep fixture away from materials that may burn.

Do not operate the luminaire fitting with a missing or

damaged shield. Do not touch the source at any time.

Use a soft cloth or gloves. Oil from skin may cause

damage.

SAVE THESE INSTRUCTIONS

· Suitable for wet locations · Suitable for recessed in ground locations

IMPORTANT LISTINGS AND CERTIFICATIONS

1/8” Allen Wrench

Waterproof Wire Connectors

Level

Phillips Screwdriver

7/8” Hole Saw

Torque Wrench

TOOLS

NEEDED:

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2406-00

Standard Installation

CO2

INTEGRAL - LED

Conduit

trench 18”

Dia.

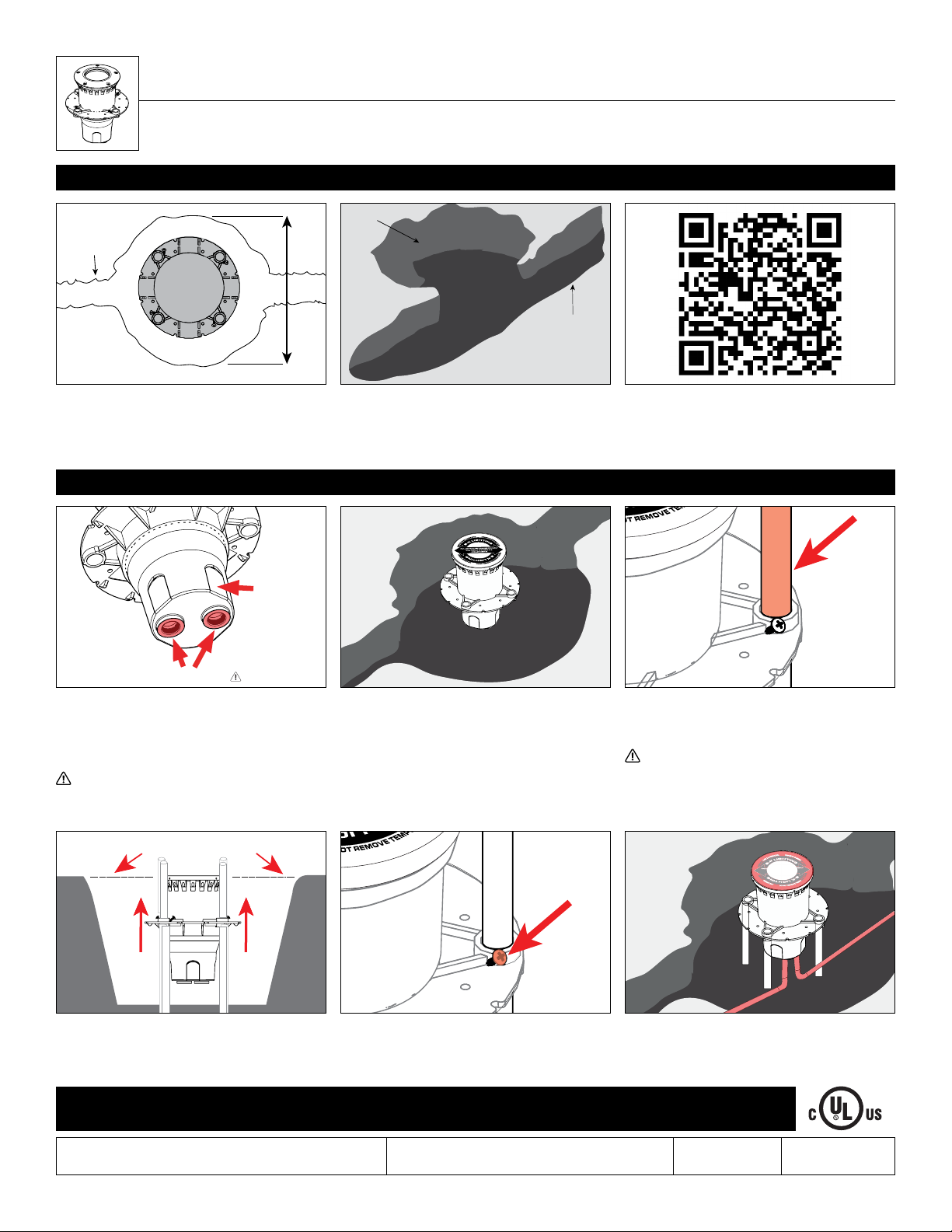

1. Determine Soil Type by referencing DIG-IT Guide.

2. Dig hole 18” wide and 18” deep.

Conduit

Trench

Excavated

for Housing

3. Prep soil according to DIG-IT Guide.

Soil Prep

Housing Installation

2. Place housing in hole. Align junction box in the path

of the conduit trench.

3. Insert four (4) pieces of ½” PVC/EMT conduit

through the Stability Flange. Hammer into substrate

until secure.

Leave sufficient clearance to elevate housing to

finished grade.

4. Raise housing on PVC/EMT so housing is flush

with finished grade. Use a level to aid in housing

installation.

5. When housing is level, tighten screws on Stability

Flange to secure housing to PVC/EMT. Remove

excess PVC/EMT as needed.

Flush with finished grade

6. Pull primary branch circuit wiring into junction

box.

1. Connect branch conduit connectors (not included)

to the junction box using either the threaded

conduit entries on the bottom of the junction box or

through holes drilled into the sides of the junction

box.

Recommend 7/8” hole saw to open threaded entry

hole.

SCAN WITH SMART DEVICE OR CLICK THE BAR

CODE FOR ONLINE DIG-IT GUIDE

Threaded Entry

Side Flats

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2406-00

Standard Installation

CO2

INTEGRAL - LED

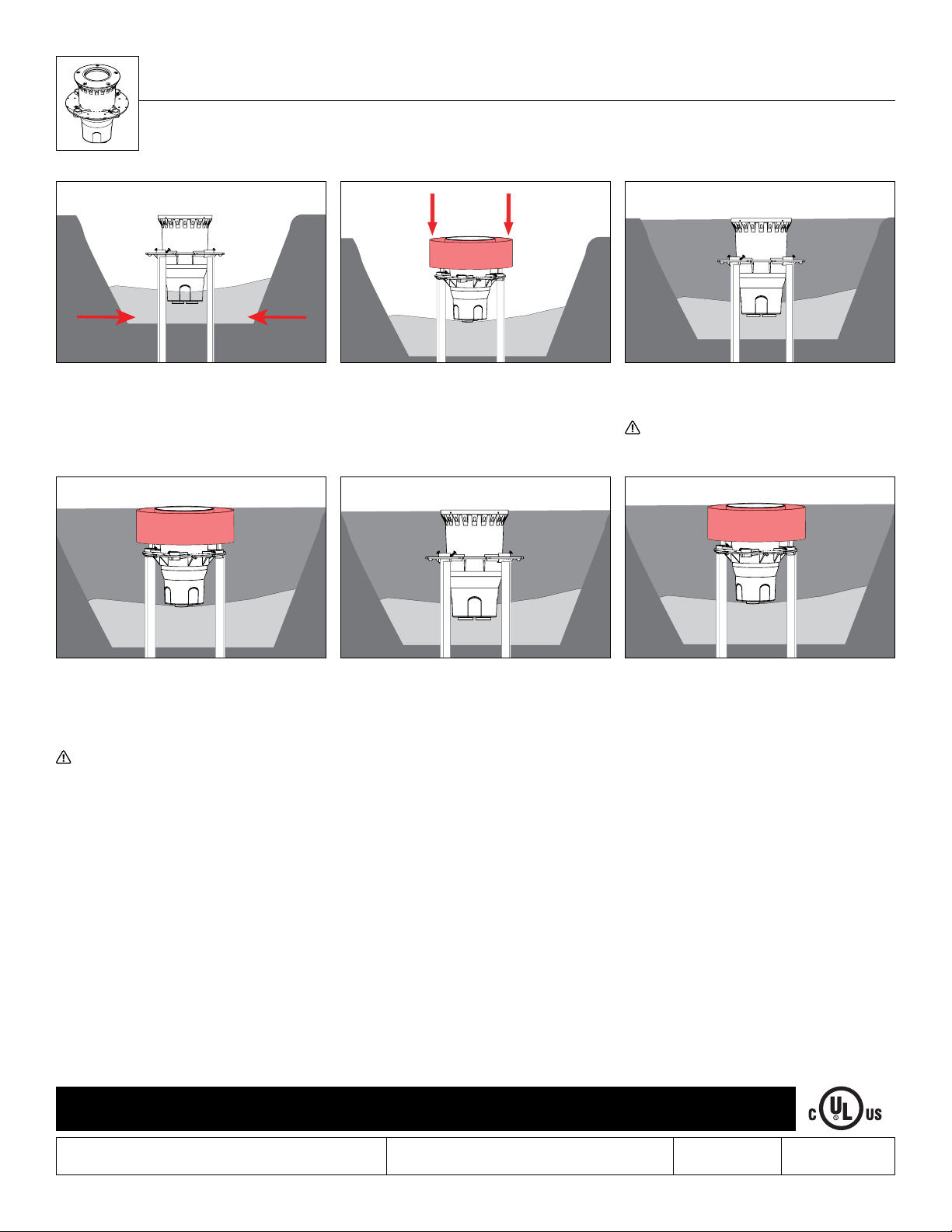

7. Per DIG-IT Guide, backfill hole based off of

determined soil type.

8. For soil installation: Fill and tamp soil to the

appropriate height leaving room for sod, pavers,

etc. to be level with the top of the temporary cover.

Soil installation is not drive-over rated.

OPTIONAL GROUT MASK INSTALLATION

(IF ORDERED)

7. Fill partway, then place grout mask around housing,

centered at faceplate. Insert stakes through stability

flange. Top of grout mask should be flush with

grade.

9. For concrete installation: Fill the hole around the

fixture housing to 12” below the finished grade with

clean fill dirt and tamp carefully to prevent settling

of fixture. Pour concrete and finish as required flush

with the top surface of the temporary cover.

OPTIONAL GROUT MASK INSTALLATION

(IF ORDERED)

8. For soil installation: Fill and tamp soil to the

appropriate height leaving room for sod, pavers,

etc. to be level with the top of the temporary cover.

Soil installation is not drive-over rated.

OPTIONAL GROUT MASK INSTALLATION

(IF ORDERED)

9. For concrete installation: Fill the hole around the

fixture housing to 12” below the finished grade with

clean fill dirt and tamp carefully to prevent settling

of fixture. Pour concrete and finish as required flush

with the top surface of the grout mask.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2406-00

Standard Installation

CO2

INTEGRAL - LED

Installation

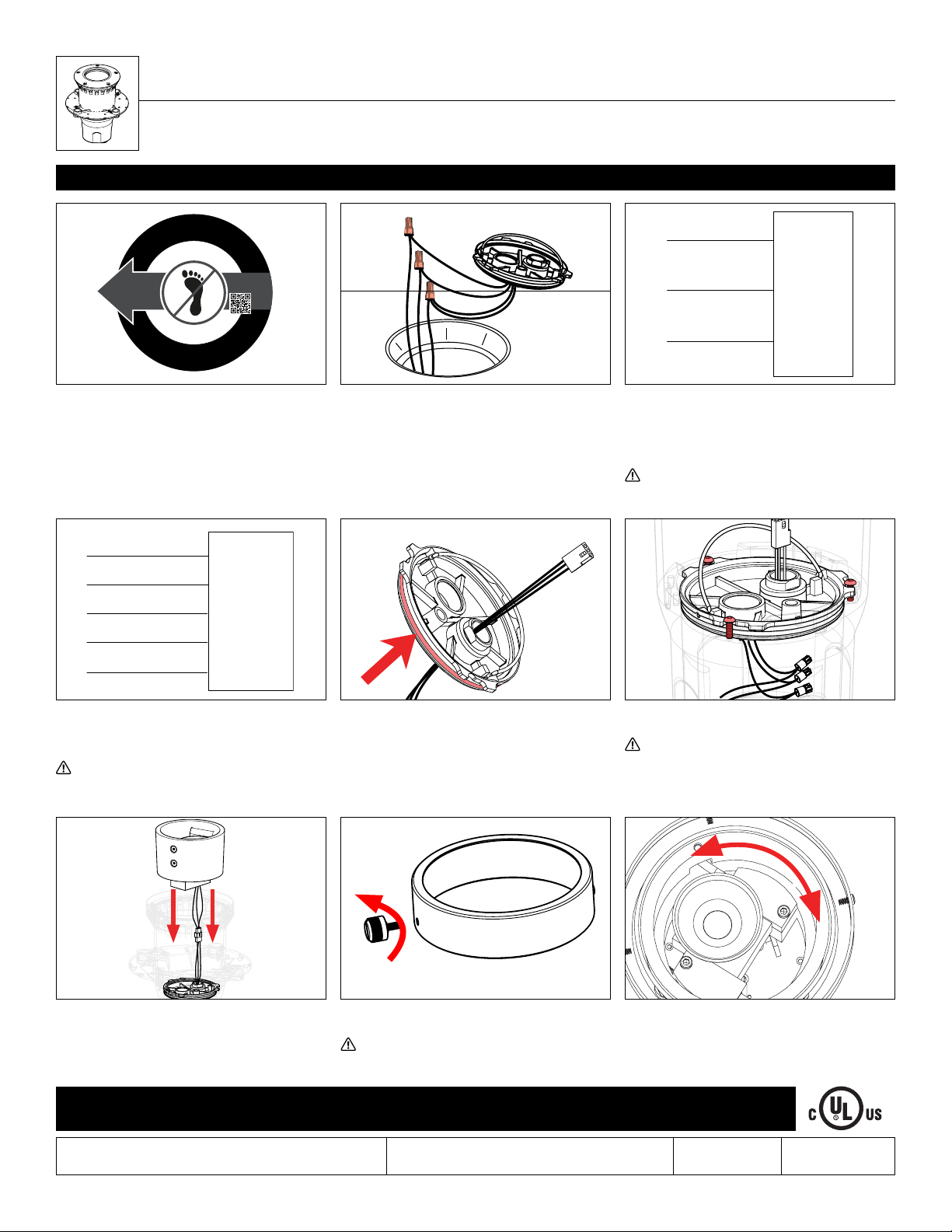

3. Make connections using waterproof wire nuts

(included) to leads on the bottom of Patented

HydroLock Barrier Plate Assembly. See wiring

diagram.

HOT (BLACK)

NEUTRAL (WHITE) HydroLock

Plate

GROUND (GREEN)

WIRING DIAGRAM

- Non-Dimming

- INC Dimming

- ELV Dimming

All line voltage connections must be made in

compliance with the National Electrical Code.

Failure to do so will void warranty.

4. Wipe inside of housing where HydroLock plate

will sit clean of debris before inserting patented

HydroLock plate on to junction box. Align HydroLock

plate with pins in housing and seat it firmly in place.

5. Turn HydroLock

Barrier Plate clockwise ¼” to lock.

Patented HydroLock Barrier Plate must be

completely seated to ensure proper seal or

water may intrude. This step must be done as

stated or you will void your warranty.

HydroLock

Plate

HOT (BLACK)

NEUTRAL (WHITE)

GROUND (GREEN)

0-10V + (VIOLET)

0-10V - (GRAY)

WIRING DIAGRAM

- 0-10V Dimming

All line voltage connections must be made in

compliance with the National Electrical Code.

Failure to do so will void warranty.

6. Attach OptiLock assembly to installed hydrolock

with quick disconnect. Place OptiLock assembly in

housing, resting the OptiLock on the pins provided

inside the housing.

8. To aim OptiLock horizontally: lift OptiLock from

resting position, and rotate to desired angle. Set

down on pins provided in housing.

7. CO2 Accy Holder Installation/Removal

For Optional Accessory Holder: Loosen the

thumbscrew and then tilt the Accessory Holder

up off the reflector so the second screw can clear

the edge of the reflector.

1. Remove temporary cover.

2. Pull primary branch circuit to installed housings.

FAILURE TO

ALIGN HOUSING

PROPERLY WILL

RESULT IN

FACEPLATE

MISALIGNMENT!

IMPORTANT!

Read Product Installation

Instructions Before Install.

Scan for

Soil Prep.

Guide.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2406-00

Standard Installation

CO2

INTEGRAL - LED

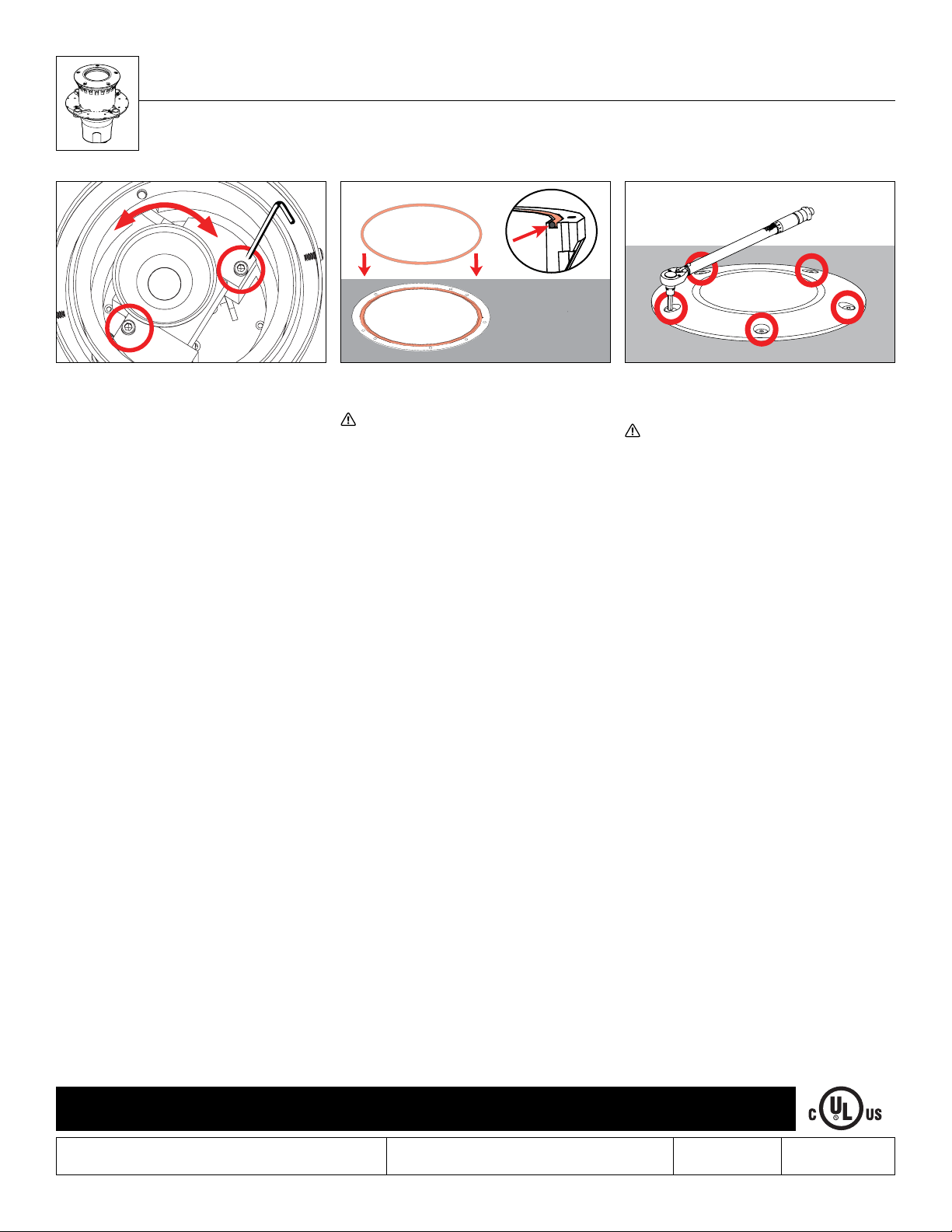

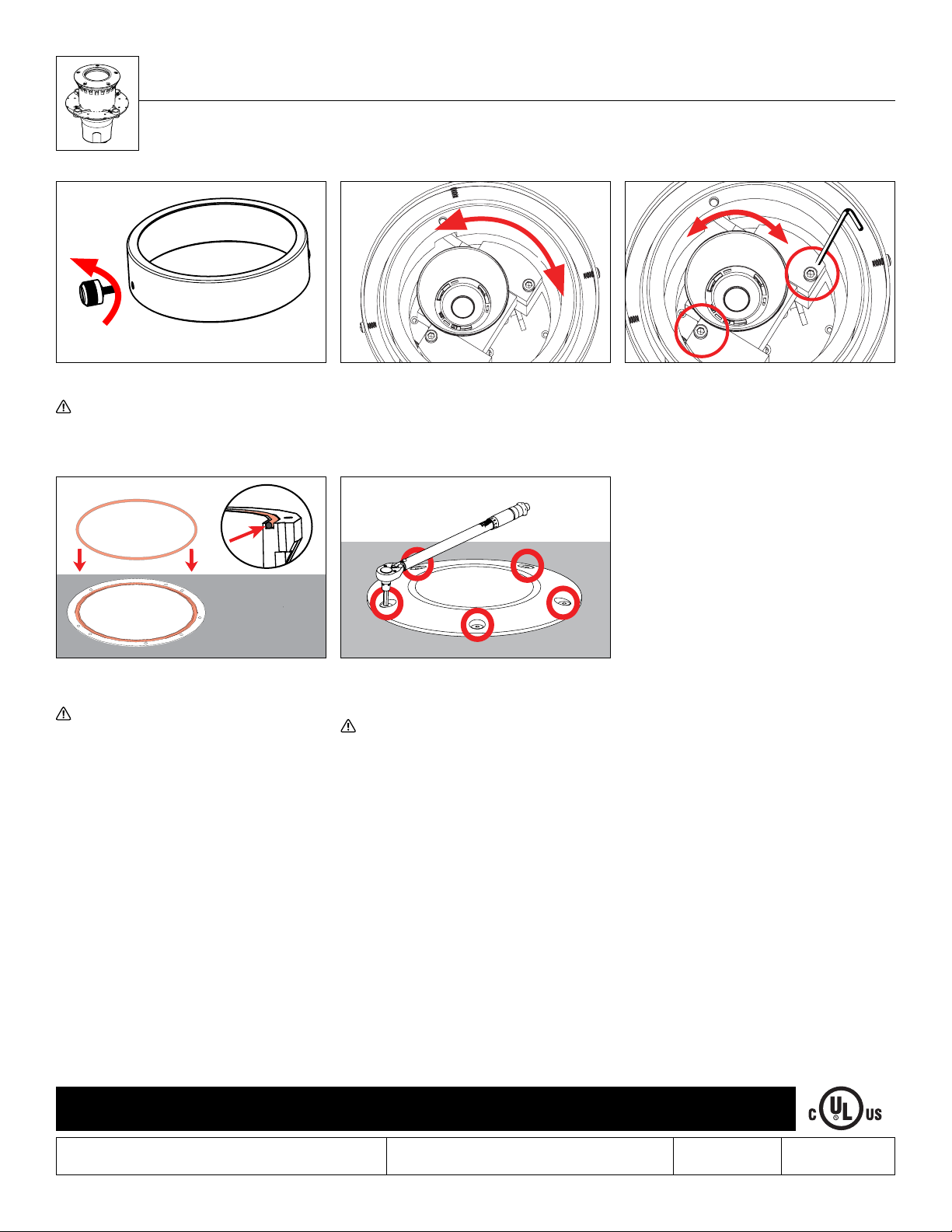

11. Install faceplate using a 1/8” allen wrench and

hand-tighten the faceplate screws in a star pattern

to 30 in-lbs. min.

Do not use a power tool to install screws. Do not

exceed 40 in-lbs.

To aim OptiLock vertically: loosen two (2) 1/4-20

screws using a 3/16” allen wrench. Tilt swivel arm

with LED and optic in desired aiming direction.

Tighten two (2) 1/4-20 screws with a 3/16” allen

wrench to secure position.

10. Remove any dirt or debris in o-ring groove near top

of housing. Place o-ring inside of groove.

Failure to remove debris from groove will cause

fixture to fail and void product warranty.

Hot SurfaceHigh VoltageWarning

Standard Adjustment

HP2/CO2

LED (31W-52W)

1/8”, 3/16” & 0.050” Allen Wrench

Phillips Screwdriver

Small Pick Tool

Torque Wrench

TOOLS

NEEDED:

Flammable

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION

INSTRUCTIONS

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL

ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2405-02

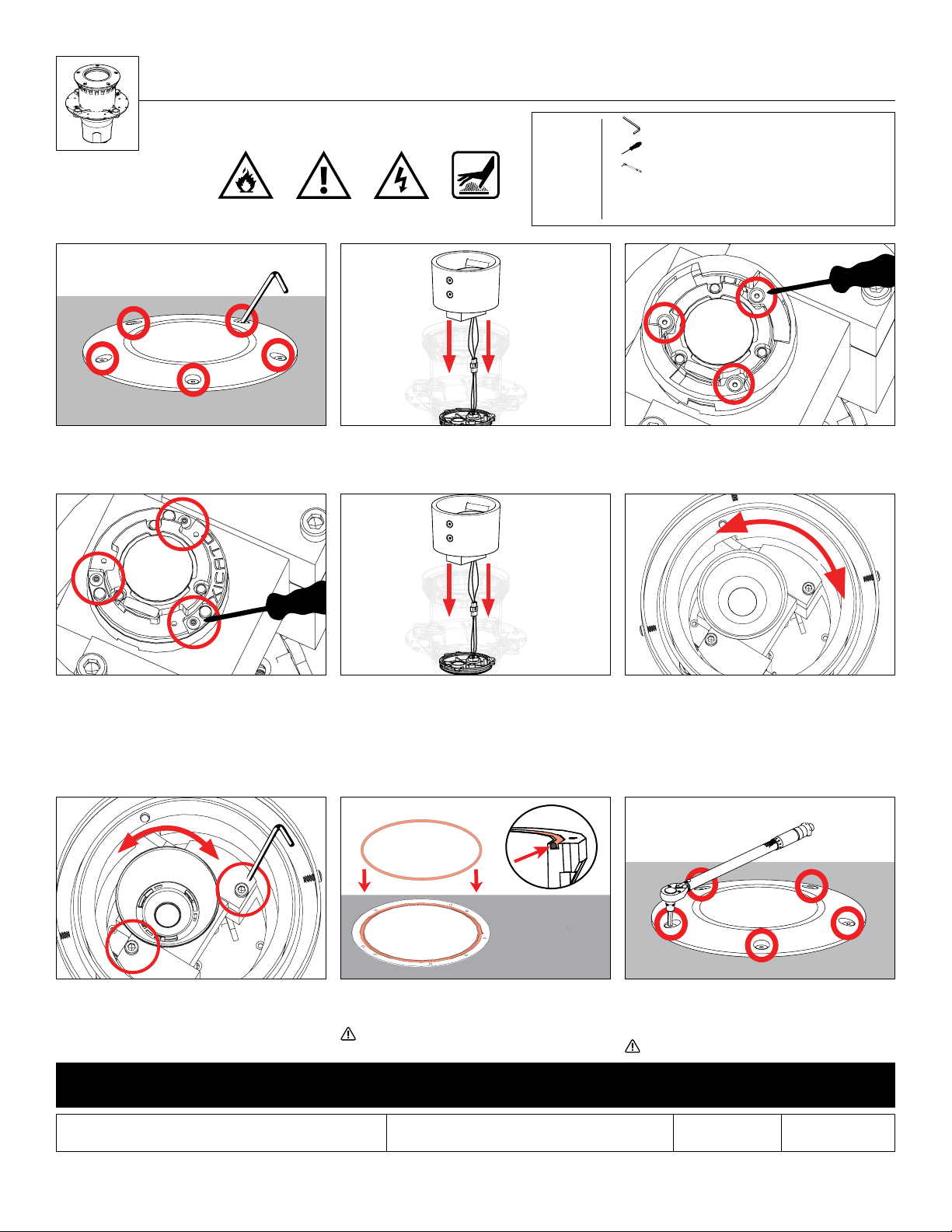

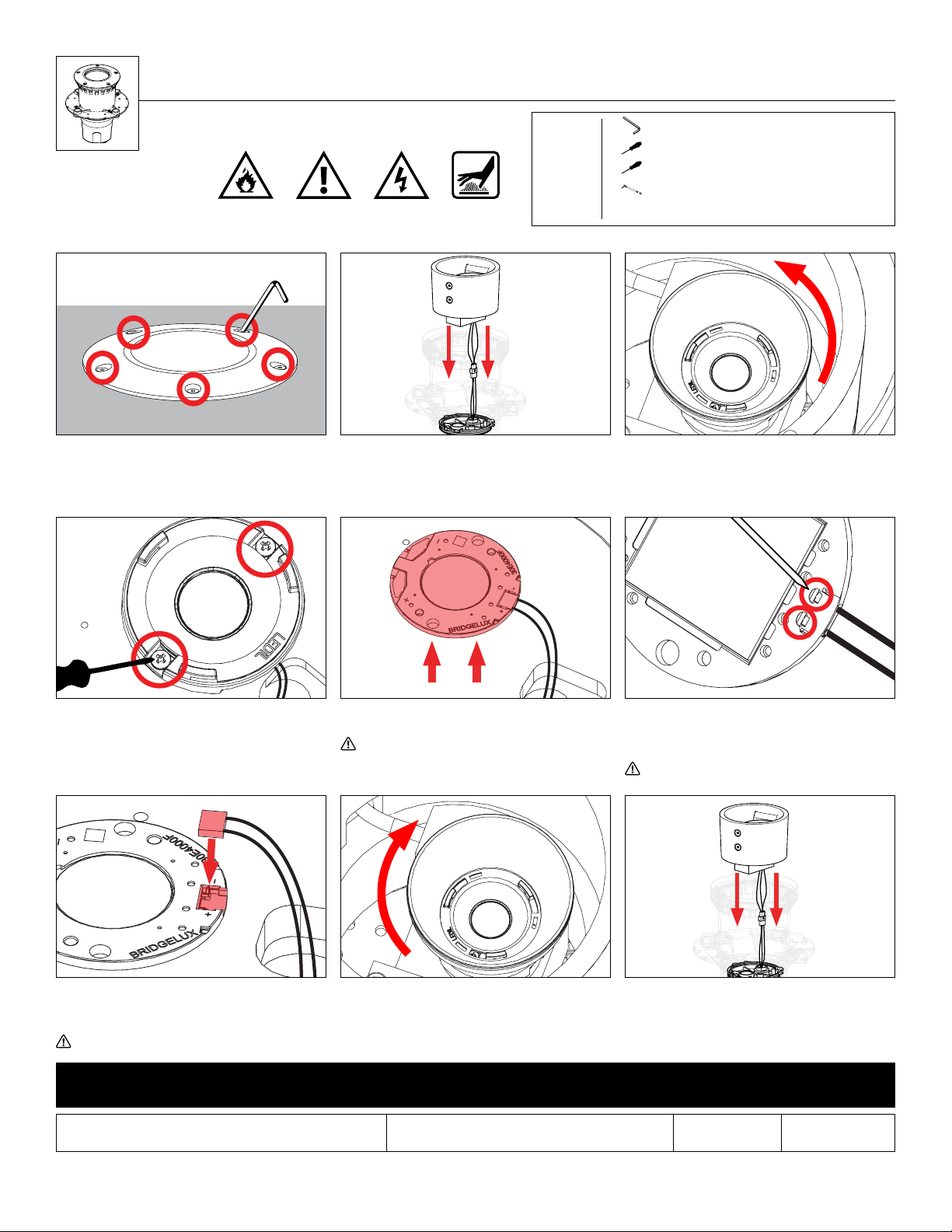

1. Remove faceplate using a 1/8” allen wrench.

Remove optional accessory holder (if applicable).

2. Turn, then lift OptiLock from housing. Disconnect

OptiLock assembly from driver assembly using

quick disconnect.

9. Attach OptiLock assembly to installed driver

assembly with quick disconnect. Place OptiLock

assembly in housing, resting the OptiLock on the

pins provided inside the housing. Gravity will hold

OptiLock in place.

3. Remove optic by turning to the left to unlock optic

from optic holder tabs, and lift up.

4. Use small Phillips screwdriver to remove two (2)

#4-40 fasteners on optic holder, then remove optic

holder to expose LED module.

5. Carefully remove LED module from heatsink.

Do not pull on connector or wiring. Handle with

care.

6. Use small pick tool to push connector off LED

board through two small slots behind connector.

Once loose, lift connector upwards and off board.

Do not pull on connector or wiring. Handle with

care.

8. Reverse install optic holder, and then optic.7. Place new LED module onto heatsink. Press

connector straight downwards into slot on module

to snap into place.

Connector will only fit in one direction.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2405-02

Standard Adjustment

HP2/CO2

LED (31W-52W)

14. Install faceplate using a 1/8” allen wrench and

hand-tighten the faceplate screws in a star pattern

to 30 in-lbs. min.

Do not use a power tool to install screws. Do not

exceed 40 in-lbs.

13. Remove any dirt or debris in o-ring groove near top

of housing. Place o-ring inside of groove.

Failure to clean groove of debris will cause fixture

to fail and void product warranty.

11. To aim OptiLock horizontally: lift OptiLock from

resting position, and rotate to desired angle. Set

down on pins provided in housing. Gravity will hold

OptiLock in place.

12.

To aim OptiLock vertically: loosen two (2) 1/4-20

screws using a 3/16” allen wrench. Tilt swivel arm

with LED and optic in desired aiming direction.

Tighten two (2) 1/4-20 screws with a 3/16” allen

wrench to secure position.

10. HP2 Accy Holder Installation/Removal

For Optional Accessory Holder: Loosen the

thumbscrew and then tilt the Accessory Holder

up off the reflector so the second screw can clear

the edge of the reflector.

Hot SurfaceHigh VoltageWarning

Standard Adjustment

HP2/CO2

LED (18W-29W)

Flammable

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION

INSTRUCTIONS

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL

ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

RELEASE DATE

06/10/2023

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

REFERENCE NUMBER

INS-2405-01

1. Remove faceplate using a 1/8” allen wrench.

Remove optional accessory holder (if applicable).

2. Turn, then lift OptiLock from housing. Disconnect

OptiLock assembly from driver assembly using

quick disconnect.

3. Remove optic by turning to the left and lifting up.

Remove the optic holder from the LED board by

loosening three (3) optic holder fasteners using a

0.050” allen wrench.

6. Attach OptiLock assembly to installed driver

assembly with quick disconnect. Place OptiLock

assembly in housing, resting the OptiLock on the

pins provided inside the housing. Gravity will hold

OptiLock in place.

4. Use a 0.050” allen wrench to loosen three (3) #2-56

screws on LED component. Reverse install new

LED component. Ensure LED component is firmly

seated on heatsink. LED component can only fit

in one direction.

5. Install optic holder with three (3) optic holder

fasteners using a 0.050” allen wrench. Reverse

install optic.

10. Install faceplate using a 1/8” allen wrench and

hand-tighten the faceplate screws in a star pattern

to 30 in-lbs. min.

Do not use a power tool to install screws. Do not

exceed 40 in-lbs.

9. Remove any dirt or debris in o-ring groove near top

of housing. Place o-ring inside of groove.

Failure to clean groove of debris will cause fixture

to fail and void product warranty.

7. To aim OptiLock horizontally: lift OptiLock from

resting position, and rotate to desired angle. Set

down on pins provided in housing. Gravity will hold

OptiLock in place.

To aim OptiLock vertically: loosen two (2) 1/4-20

screws using a 3/16” allen wrench. Tilt swivel arm

with LED and optic in desired aiming direction.

Tighten two (2) 1/4-20 screws with a 3/16” allen

wrench to secure position.

1/8”, 3/16” & 0.050” Allen Wrench

Phillips Screwdriver

Torque Wrench

TOOLS

NEEDED:

Indice

Altri manuali B-K lighting Luce esterna

B-K lighting

B-K lighting HP2 SERIES Manuale utente

B-K lighting

B-K lighting HP2 SERIES Manuale utente

B-K lighting

B-K lighting Precision2 HP2 Series Manuale utente

B-K lighting

B-K lighting Well Star WS Series Manuale utente

B-K lighting

B-K lighting HP2 SERIES Manuale utente

B-K lighting

B-K lighting PS Manuale utente

B-K lighting

B-K lighting TENAYA2 Series Manuale utente

B-K lighting

B-K lighting ARTISTAR UPLIGHT Manuale utente

B-K lighting

B-K lighting GARDEN STAR GR-K Manuale utente

B-K lighting

B-K lighting Precision 2 CO2 Series Manuale utente

B-K lighting

B-K lighting Yukon Bollard Manuale utente

B-K lighting

B-K lighting PM4RM ROUND CAMLOCK Guida all'installazione

B-K lighting

B-K lighting HP2 SERIES Manuale utente

B-K lighting

B-K lighting Tenaya 2 Series Manuale utente

B-K lighting

B-K lighting EC Guida all'installazione

B-K lighting

B-K lighting ARTISTAR UPLIGHT Manuale utente

B-K lighting

B-K lighting HP2RM Manuale utente

B-K lighting

B-K lighting DENALI ST-DE-TR-A Manuale utente

B-K lighting

B-K lighting ALPINE Series Manuale utente

B-K lighting

B-K lighting BKSSL MINI-MICRO iLUME Manuale utente

B-K lighting

B-K lighting CK Manuale utente

B-K lighting

B-K lighting Litestick Manuale utente

B-K lighting

B-K lighting GARDEN STAR Manuale utente

B-K lighting

B-K lighting SARATOGA Series Manuale utente

Manuali Luce esterna popolari di altre marche

Sealey

Sealey LED37 Manuale utente

nordlux

nordlux VEJERS Guida utente

SImx

SImx ELITE LED LHTC637 Manuale utente

GEV

GEV CAROLINE 10833 Manuale utente

NEBO

NEBO NEB-LSP-0020 Manuale utente

WE-EF

WE-EF PFL540 LED Manuale utente

Lindby

Lindby 9949029 Manuale utente

HEPER

HEPER DOGO Side LW6048.585-US Istruzioni per l'installazione e il funzionamento

HEPER

HEPER LW8034.003-US Istruzioni per l'installazione e il funzionamento

Maretti

Maretti VIBE S 14.6080.04.A Manuale utente

BEGA

BEGA 84 253 Manuale

HEPER

HEPER MINIMO Istruzioni per l'installazione e il funzionamento

LIGMAN

LIGMAN BAMBOO 3 Manuale utente

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Manuale utente

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Manuale utente

urban ambiance

urban ambiance UQL1273 Manuale utente

TotalPond

TotalPond 52238 Manuale utente

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Manuale utente
