B-Tech BT33 Manuale di istruzioni

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

CONTENTS

INSTALLATION TOOLS REQUIRED

FEATURES

BT33

HOME CINEMA SPEAKER WALL MOUNT

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Speaker Mount

Installation Safety Instructions............................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions.......................................................................................................................6

Product Dimensions..........................................................................................................................11

B-Tech Contact Details.....................................................................................................................12

Crosshead /

Flathead screwdriver Drill 6mm (1/4") masonry bit

or 3mm (1/8") wood bit Pencil Level

(optional) Stud finder

(optional)

REG DESIGN NO: 3007645

PATENT NO: 1546599

US PATENT NO: 7523906

●Designed for small home cinema speakers weighing

up to 5kg (11lbs)

●Mounts speaker only 72mm (2.8”) from wall

●Suitable for single point, dual point and keyhole fixings

●Distance between dual point fixings:

51 – 67mm (2” – 2.6”)

●Suitable for speakers using M5, M6, UNC ¼” &

Wood Screws

●Simple installation with all mounting hardware included

PLEASE KEEP THIS FOR FUTURE REFERENCE

BT33

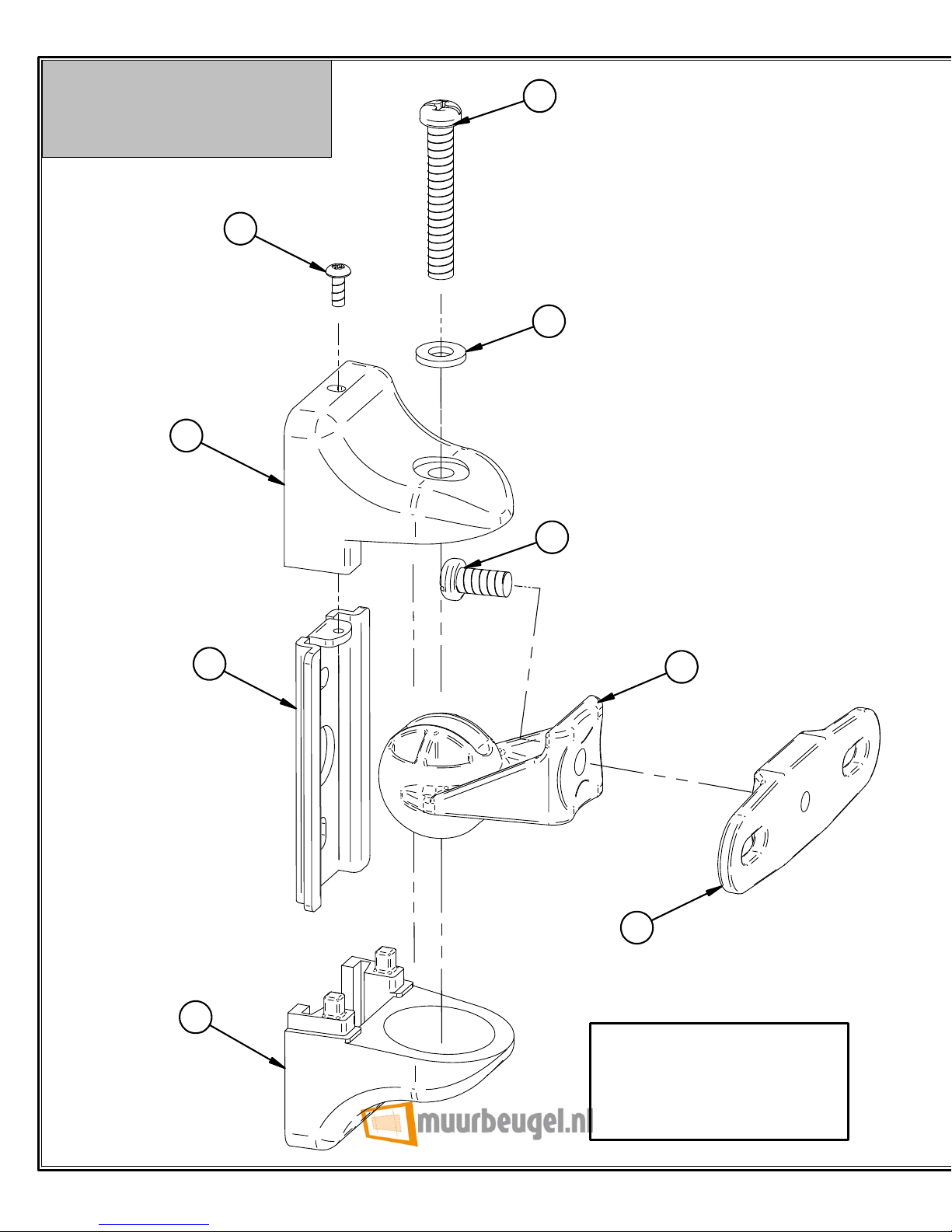

PARTS LIST

Suitable for loads up

to 5Kg (11lbs)

PLEASE KEEP THIS FOR FUTURE REFERENCE

REF PART NAME QTY

1 TOP BALL CLAMP 1

2 WALL PLATE 1

3 BOTTOM BALL CLAMP 1

4 BALL INTERFACE 1

5 ADAPTOR INTERFACE 1

6 M6 x 12mm SCREW (FOR PART 5) 1

7 M6 x 40mm SCREW 1

8 M6 METAL WASHER (FOR PART 7) 1

9 M3 x 8mm SCREW 1

INTERFACE KIT

A M5 x 12mm SCREW 2

B M6 x 12mm SCREW 2

C UNC 1/4” x 5/8” SCREW 2

D M4.2 x 19mm WOOD SCREW (No.8 X 3/4”) 2

E KEYHOLE INSERT 1

FIXING KIT

A1 M4.8 x 32mm WOOD SCREW 2

A2 No 6 WALL PLUG

(FOR PART A1) 2

SPEAKER INTERFACE KIT

(FOR ATTACHING MOUNT TO

BACK OF SPEAKER)

WALL FIXING KIT

(FOR FIXING MOUNT TO WALL)

INSTALLATION INSTRUCTIONS

A/B/C

REAR OF

SPEAKER

Choose one of the four fixing methods shown that suits your speaker

fixings. Attach part 4 to the speaker using screws A, B, C or D, or for

keyhole fixings use screw A and part E.

i. Single threaded insert.

ii. Dual threaded insert.

THIS MOUNT MUST BE DISASSEMBLED PRIOR TO INSTALLATION

iii. Keyhole insert.

iv. No insert.

Attach parts 1 & 3 to part 4 using parts 7 & 8.

ASSEMBLED VIEW

3Fix part 2 to the wall using one of the two methods shown.

i. Brick / concrete walls.

ii. Wood / wood stud walls.

6mm (1/4")

masonry bit

3mm (1/8")

wood bit

STUD FINDER

(Optional)

Hook the mount onto part 2.

To adjust the tilt and swivel, slightly loosen part 7 then adjust the speaker

position. Finally, retighten part 7 to fix the speaker position.

7Tilt &

swivel

WALL

Secure the mount to part 2

using part 9.

BT33

PRODUCT DIMENSIONS

These instructions are intended as a guide only and B-Tech accepts no

liability for the accuracy of the information contained in this document.

46mm

1.8"

72mm

2.8"

79mm

3.1"

72mm

2.8"

88mm

3.5"

41mm

1.6"

67mm

2.6"

51mm

34mm

1.3"

67mm

2.6"

O15mm

0.6"

20mm

0.8"

8mm

0.3"

8mm

0.3"

WALL PLATE

5mm

0.2"

5mm

0.2"

40mm

1.6" 13.5mm

0.5"
