B-Tech BT8371 Manuale utente

B-TECH AV MOUNTS

www.btechavmounts.com

BT8371

UNIVERSAL MOBILE VIDEOWALL STAND

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Stand

PLEASE KEEP THIS FOR FUTURE REFERENCE

• Universal stand suitable for video wall screens

from 32" - 70" (81cm - 177cm)

• Max weight per screen: 50kg (110lbs)

• Designed for screens with VESA® & non-VESA

mounting patterns

• Suitable for landscape or portrait screen mounting

• Includes non-marking 4" locking/braked castors

and alternative levelling feet

• Collar compatible accessories such as shelves

can be fitted directly to the extrusion

• Integrated cable management

• All mounting hardware included

FEATURES

INSTALLATION TOOLS REQUIRED

CONTENTS

Installation Safety Notes......................................................................................................................2

Parts List.............................................................................................................................................6

Installation Instructions........................................................................................................................8

Optional Accessories..............................................................................................................................23

B-Tech Contact Details......................................................................................................................24

This assembly manual covers different installations.

Please note that some parts or procedures shown

may not be required for installation.

Level Knife

Crosshead

screwdriver 10mm Spanner

Per Screen

70"

177cm

50kg

Column height: Up to 3.6m

Max load per screen: 25kg

Max load per vertical column: 150kg

Column height: Up to 2.4m

Max load per screen: 50kg

Max load per vertical column: 200kg

Column height: 3m

Max load per screen: 25kg

Max load per vertical column: 150kg

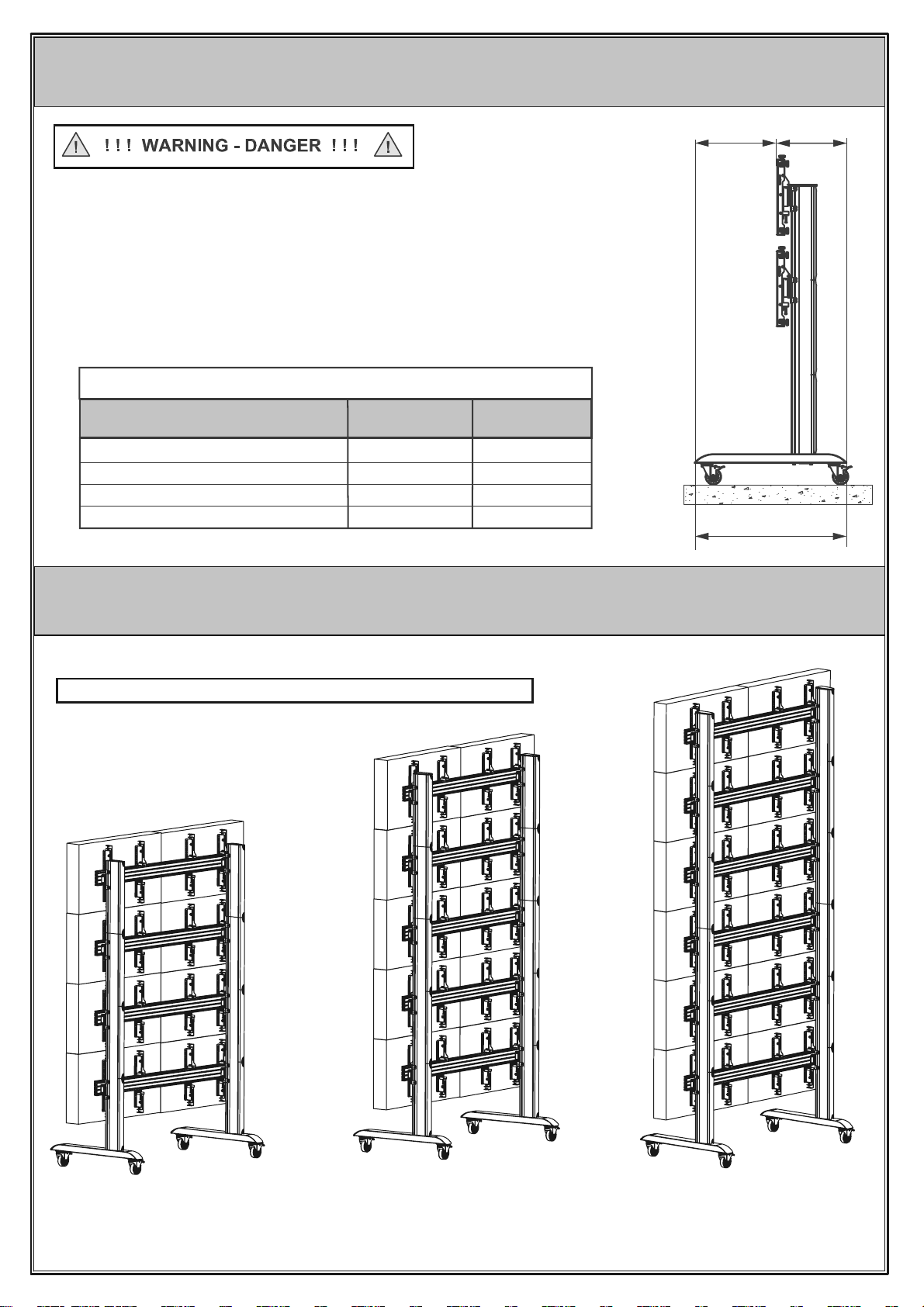

BT8371 MAX LOAD CONFIGURATIONS

MAX COLUMN HEIGHT 3.6M

Note: Screen weight must be evenly spread up the vertical column

BT8390-VESA200F / BT8390-VESA400F

BT8390-VESA200T / BT8390-VESA400T

BT8390-VESA400MAF

BT8390-VESA400MAP (Closed)

INTERFACE ARM

538.6mm 411.4mm

528.6mm 421.4mm

449.1mm*

500.9mm*

481.6mm* 468.4mm*

*+/-10mm Micro-Adjustment

BT8371 DEPTH DIMENSIONS

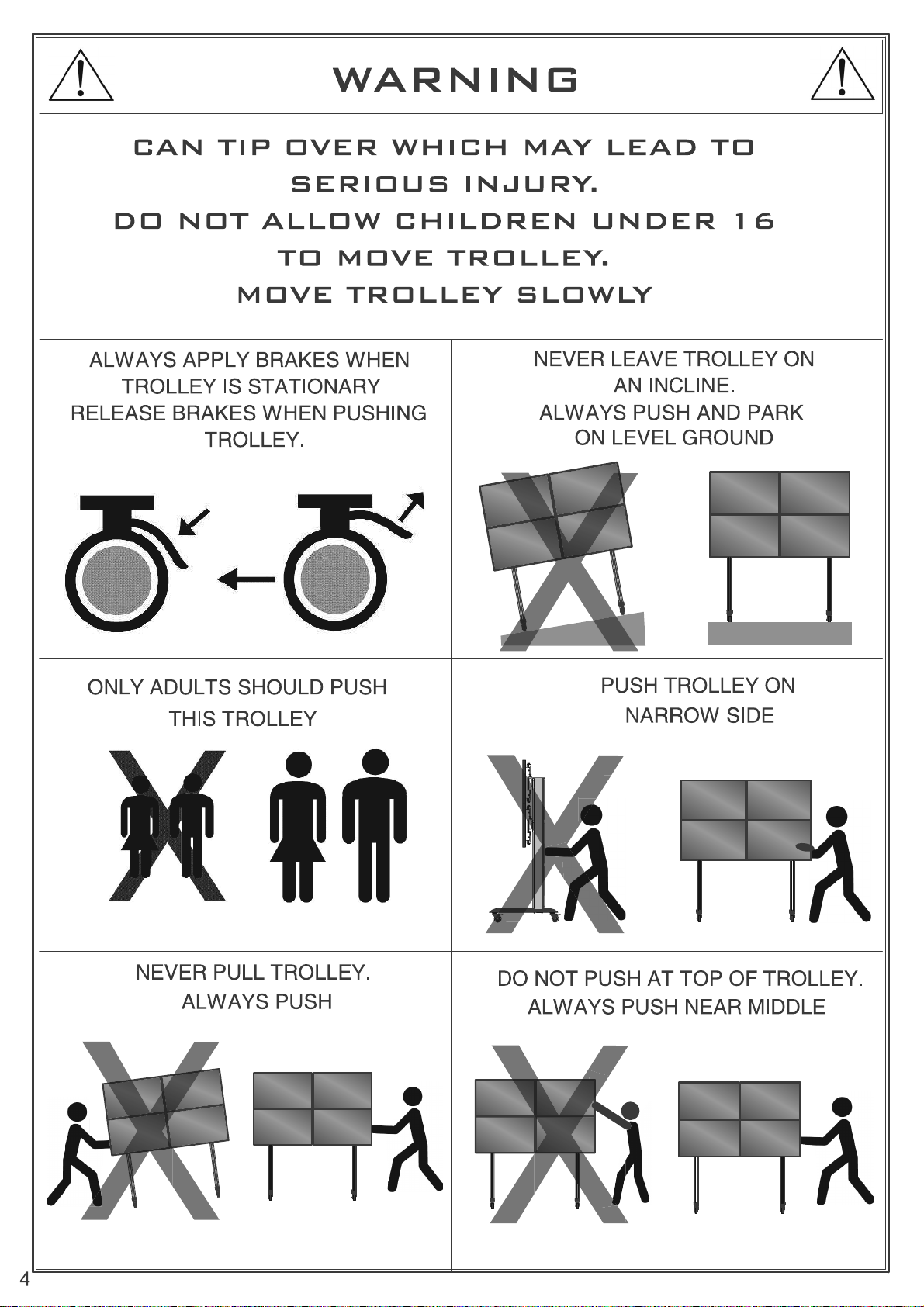

INSTALLATION NOTES

When verifying the stability of the structure, consider the following external factors:

1. The strength of the floor.

2. Exposure to sudden and severe wind.

3. Danger arising from contact with people and / or objects. (eg installations

in passageways, emergency exits).

• Install stand on level ground • Minimum two person assembly

FLOORSTAND STABILITY

950mm

BT8371

PARTS LIST

MOUNTING RAIL

COLUMN

JOINING PLATE

BASE

A3 A6 A7

A2 A4

D2 D4

Optional

*To fix shelves

to a column

C5 C6

PLEASE KEEP THIS FOR FUTURE REFERENCE

Due to the multiple installations available each option below

is dependent on the stand ordered.

BT8380-060

Height: 60cm

BT8380-180

Height: 180cm

BT8390-070

Length: 70cm

BT8390-150

Length: 150cm

BT8390-175

Length: 175cm

BT8390-050

Length: 50cm

BT8390-200

Length: 200cm

BT8380-JPK

BT8380-BASE

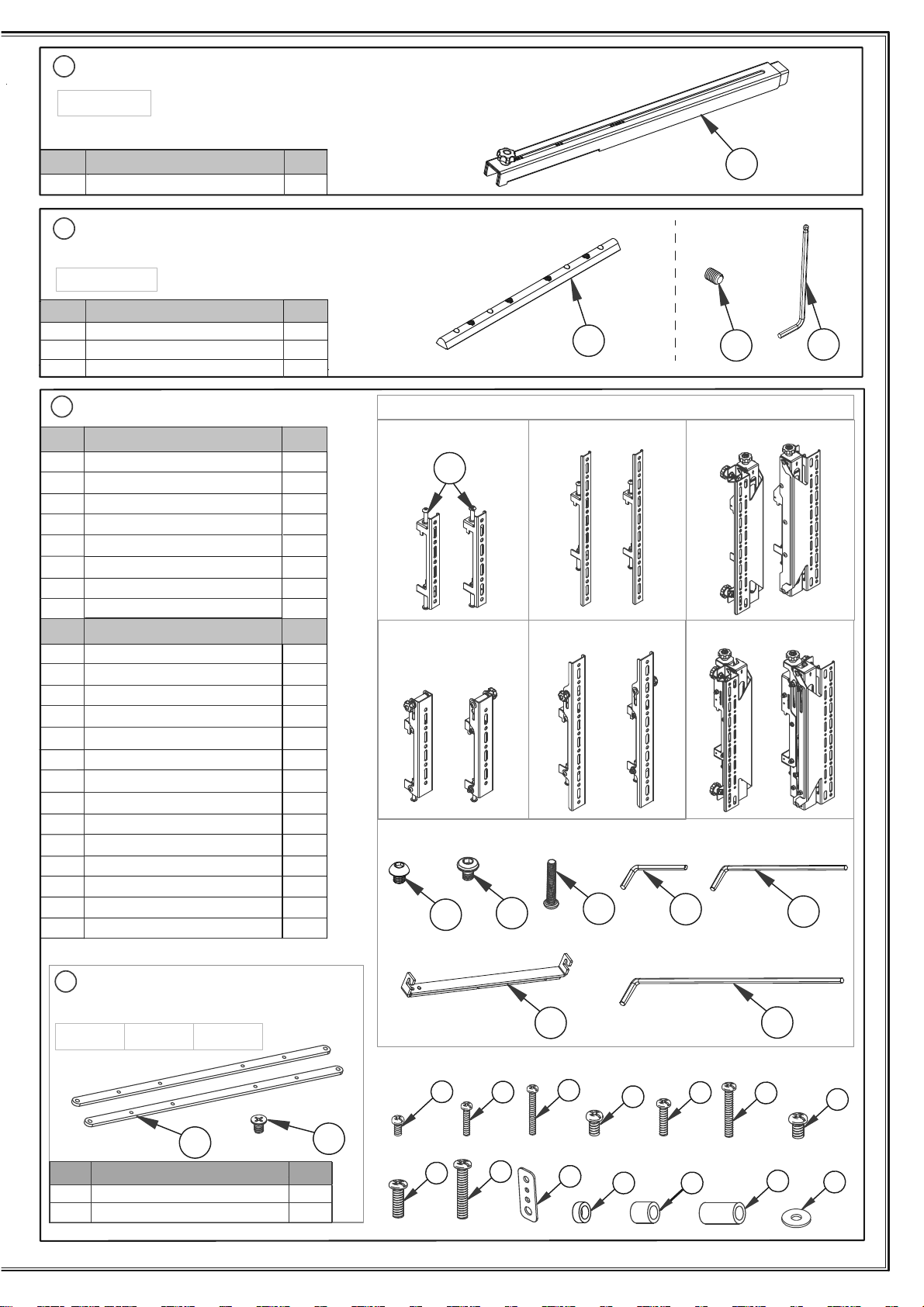

PART NAME

ITEM QTY

PER PACK

BASE

SUPPORT STEM

M8 x 90mm SCREW

M8 WASHER

LEVELLING FOOT

6AF HEX KEY

24mm SPANNER

M8 SLIDING NUT*

M8 x 12mm SCREW*

C2 1

VERTICAL COLUMN

PLASTIC SLOT INSERT

END CAP*

COLUMN JOINER**

GRUB SCREW**

JOINING PLATE

M8 SLIDING NUT

M8 x 12mm SCREW

D4 1

5AF HEX KEY

2E2

MOUNTING RAIL

END CAP

PART NAME

ITEM QTY

PER PACK

PART NAME

ITEM QTY

PER PACK

PART NAME

ITEM QTY

PER PACK

BT8390-300

Length: 300cm

**Supplied with the BT8380-060

*Supplied with the BT8380-180

C3 3

CABLE COVER

E1 E2

A1 A5

C7 C8 C9 C10

M6 x 10mm HEX BOLT**

C10

3AF HEX KEY**

**Column Extension Kit

CASTORS

BT8380-CASTORS

PART NAME

ITEM QTY

PER PACK

CASTOR

PART NAME

ITEM

SPACER

INTERFACE KIT Screen Interface Arms

BT8390-VESA400MAF

BT8390-VESA400MAP

M4 x 25mm SCREW

M4 x 12mm SCREW

M6 x 16mm SCREW

M4 x 40mm SCREW

M6 x 40mm SCREW

M6 x 25mm SCREW

M8 x 25mm SCREW

M8 x 16mm SCREW

MULTIWASHER

M8 x 40mm SCREW

13mm SPACER

5mm SPACER

24mm SPACER

SCREEN FIXING KIT

ITEM QTY

PER PACK

M6 WASHER

PART NAME

ITEM QTY

PER PACK

SCREEN INTERFACE ARM

M6 x 8mm HEX SCREW

ADJUSTABLE BRACE

M5 x 6mm SCREW

Please refer to individual parts list for more information

Check individual parts list for further details

QTY

PER PACK

Screen Fixing Kit

OPTIONAL

INTERFACE ADAPTOR ARMS

BT8390-VESA400TBT8390-VESA200T

BT8390-VESA200F BT8390-VESA400F

ABCF

HIJKLMN

SPACER

BT8390-SP

OPTIONAL

RAIL EXTENSION KIT

BT7564 BT7565 BT7566

BT8390-EXT

TOTAL

PART NAME

ITEM

JOINING BAR

M6 x 8mm GRUB SCREW

3AF HEX KEY

QTY

PER PACK

G1 G2 G3

4I2

PART NAME

ITEM

ADAPTOR ARMS

M8 x 12mm SCREW

QTY

PER PACK

I1 I2

Interface Arm Kit

H2 H4

M6 x 35mm SCREW

3AF HEX KEY

4AF HEX KEY

5AF LONG HEX KEY

i. Insert the joining bars (item C7) halfway into

the non-threaded end of the column (item C1).

The two joining bars with grub screws (item C8)

go in the front of the column and the 2 joining

bars with hex bolts (item C9) go in the back.

IMPORTANT: Joining bars should be

inserted into the non-threaded end of

the 180cm column.

THREADS

THREADED

OPTIONAL: EXTENDING THE COLUMNS

ii. The two joining bars with grub

screws in the front of the column.

The two joining bars with hex

bolts in the rear of the column.

Tighten hex bolts by hand.

Finish tightening using a

10mm spanner.

Back of ColumnFront of Column

Combine Mounting Rails together using the BT8390-EXT

i. On the intended front facing side of the mounting rail (item E1) insert 4 x joining

bars (item G1) half-way into each slot, on the back side insert 1 x joining bar into

the top slot and 1 x joining bar into the third slot (see fig. 1). Loosely fasten the

2 grub screws (item G2) on each joining bar fixing it to the mounting rail.

ii. Slide another mounting rail (item E1) onto the joining bars and tighten all the

grub screws, combining the rails securely.

BACK FRONT

GRUB

SCREW

JOINING

BAR

OPTIONAL: EXTENDING THE MOUNTING RAIL

fig. 1

FRONT

Combined Rails

INSTALLATION INSTRUCTIONS

Attach Joining Plate to Column

i. Connect together the M8 x 12mm (item D3) with M8 Sliding Nut (item D2) onto

the joining plates (item D1).

ii. Lay columns (items C1) on the floor and slide on the joining plates (item D1).

IMPORTANT:

Make sure the end with M8 threads

are at the bottom of the columns.

ii.

D2 D3
