B-Tech BT899XL-FD Manuale di istruzioni

B-TECH AV MOUNTS

www.btechavmounts.com

PLEASE KEEP THIS FOR FUTURE REFERENCE

BT899XL-FD

FIXED DROP PROJECTOR CEILING MOUNT

WITH MICRO-ADJUSTMENT

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Mount

CONTENTS

INSTALLATION TOOLS REQUIRED

FEATURES

Crosshead

screwdriver

Drill 10mm masonry bit

or 6mm wood bit

Pencil

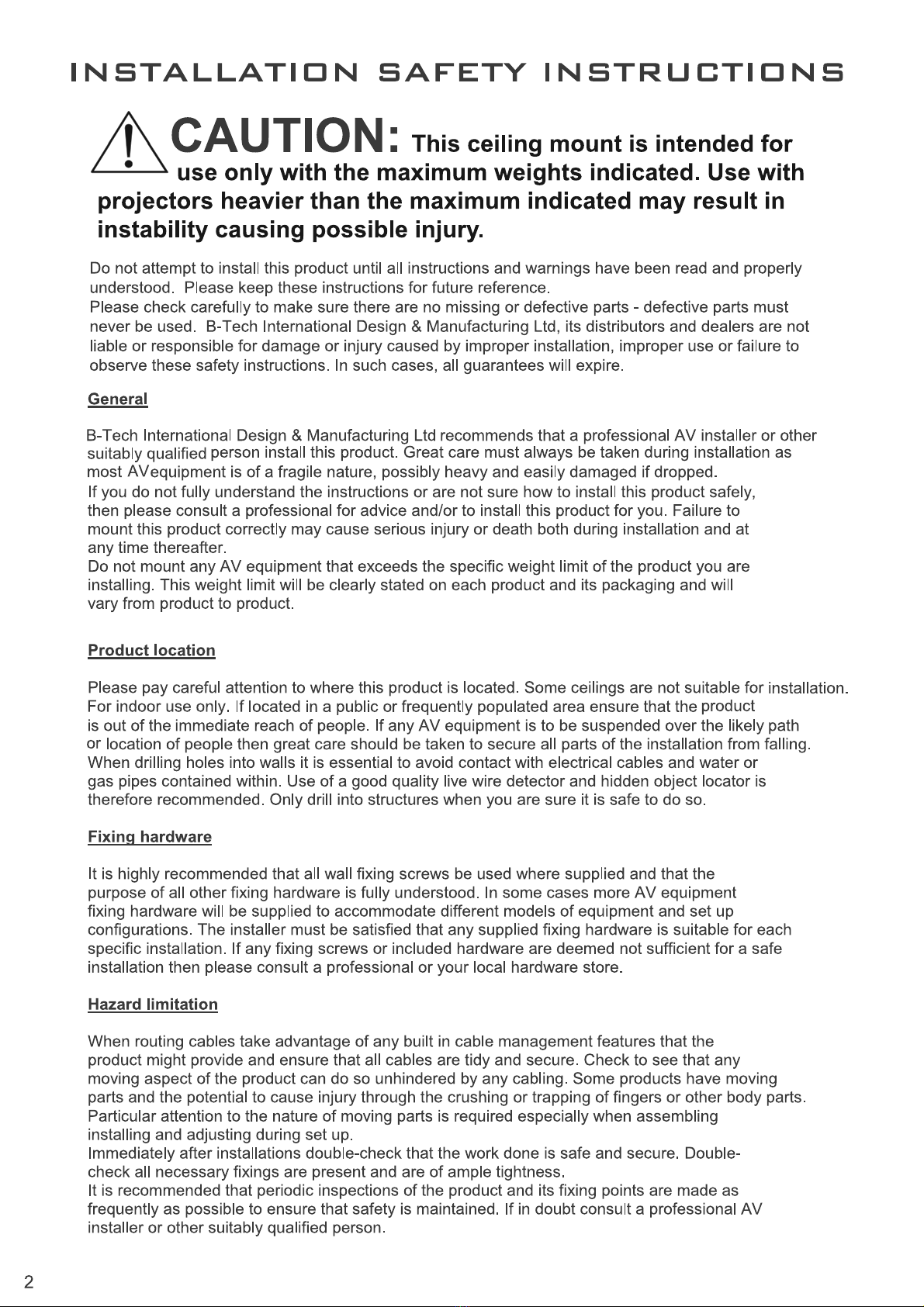

Installation Safety Notes.....................................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions.......................................................................................................................6

Product Dimensions..........................................................................................................................15

B-Tech Contact Details.....................................................................................................................16

13mm

spanner or socket

Ɣ Ceiling mount designed for projectors up to 25kg (55lbs)

Ɣ +/-13° tilt adjustment, +/-6° roll adjustment and 360° swivel

Ɣ Optional micro-adjustment for perfect alignment of projected images

Ɣ Unique ‘Carousel’ mounting plate for universal compatibility

Ɣ Maximum distance between any two fixing points 493mm

Ɣ Suitable for angled/cathedral ceilings

Ɣ Includes Ø50mm extension pole

Ɣ Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings

Ɣ Theft deterrent security screws provided as standard

(excludes M2.5 and M3 fixings)

Ɣ Integrated cable management for a smart installation

Ɣ All mounting hardware & fixings included

Registered Design Nºs: 001713306-0004 / 002741256-0008

ß

360°

ß

25kg

BT899XL-FD

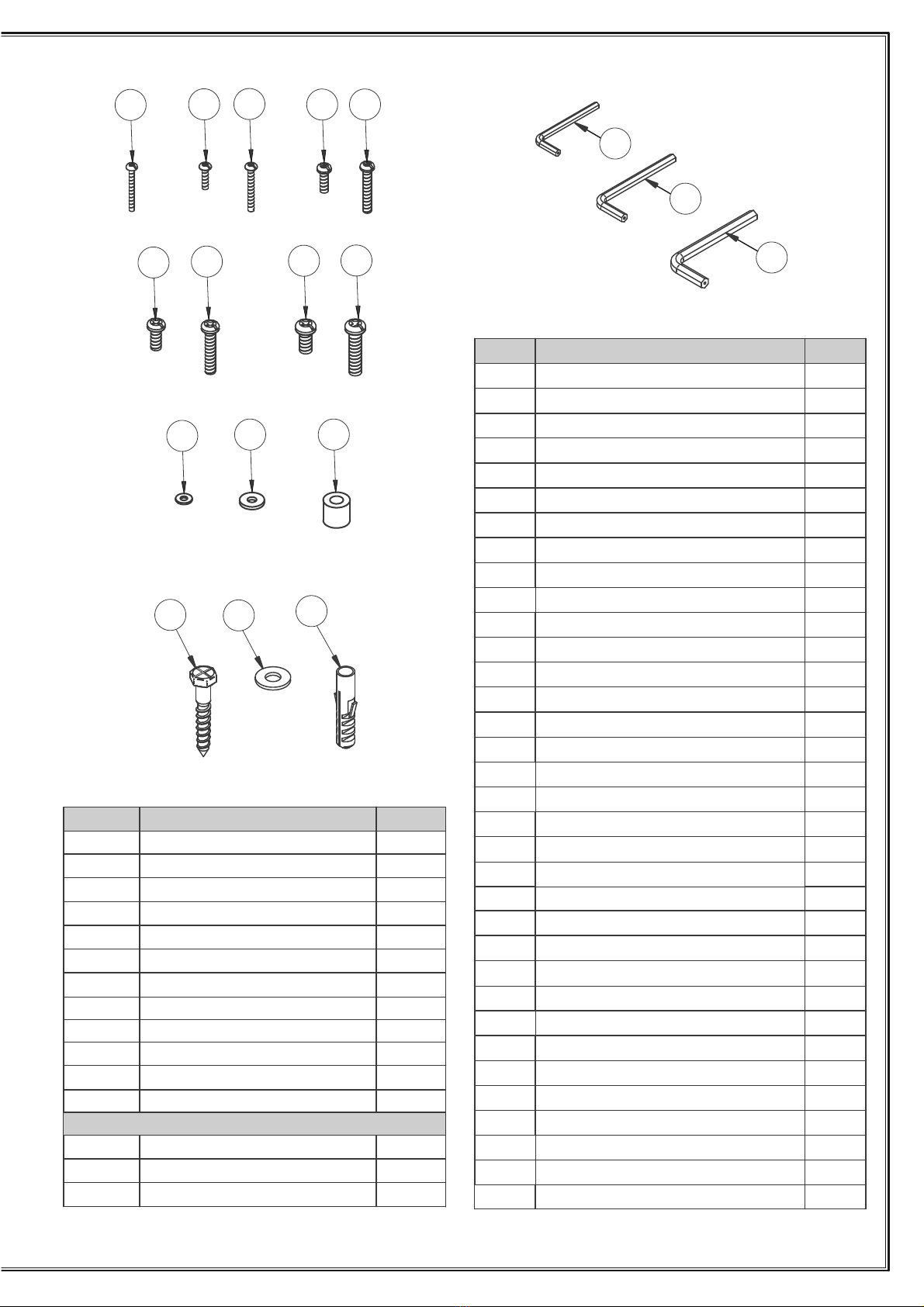

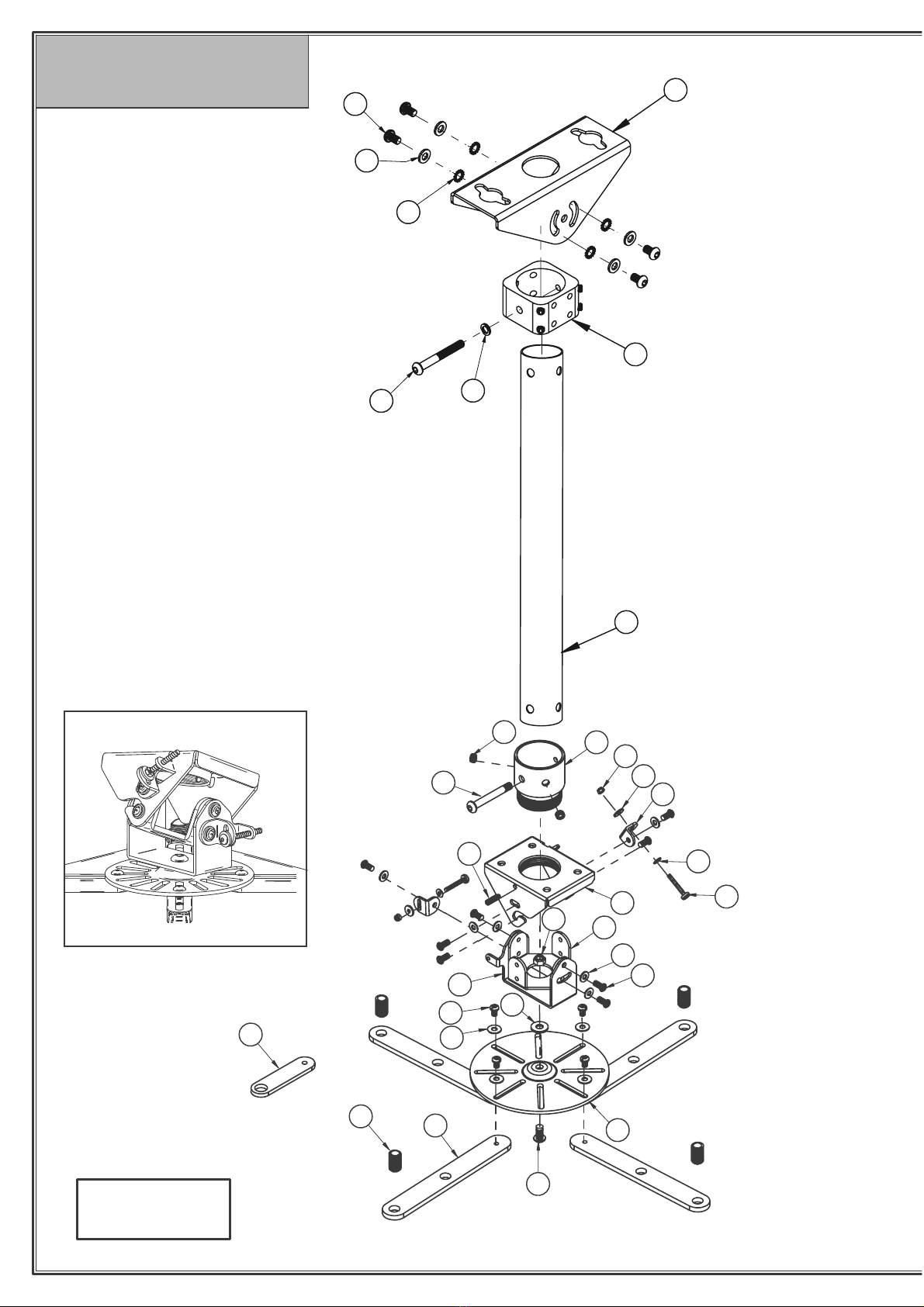

PARTS LIST

Suitable for loads

up to 25kg

19 11

Micro-adjustment assembled

PLEASE KEEP THIS FOR FUTURE REFERENCE

FG H I

M2.5 x 25mm SCREW

M3 x 12mm SCREW

M3 x 25mm SCREW

M4 x 12mm SCREW

M4 x 25mm SCREW

M5 x 12mm SCREW

M5 x 25mm SCEW

M6 x 12mm SCREW

M6 x 25mm SCREW

ID6.5 T12mm SPACER

M3 METAL WASHER

M4 METAL WASHER

M8 OD18 T1.5mm WASHER

M8 x 50mm COACH SCREW

Nº 10 x 50mm WALL PLUG

FIXING KIT

INTERFACE KIT

ITEM QTY

A1 A3

ITEM PART NAME QTY

LESUORAC

TUN COLYN 8M

WERCS YTIRUCES

mm21 x 6M

TEKCA

RB TNEMTSUJDA ORCIM

WER

CS YTIRUCES mm03 x 4M

TUN COLYN 4

MOUNTING PLATE

ETALP GNINIOJ

ETALP LEVIWS

3mm HEX KEY

4mm SECURITY KEY 1

5mm SECURITY KEY 2

M8 WASHER

Ø50mm COLLAR

CEILING PLATE

M8 x 12mm SCREW

EXTENSION POLE 1

M8 LOCK WASHER

M8 x 65mm SAFETY BOLT

M8 SPRING WASHER

POLE ADAPTOR 1

WERCS BURG mm6 x 01M

LOB YTEFAS mm06 x 8M

M6 x 20mm GRUB SCREW 1

MOUNTING SCREW

M6 T1mm METAL WASHER

M6 T1.2mm METAL WASHER

M8 x 16mm HEX SCREW

M6 x 8mm SCREW

M8 T2mm PLASTIC WASHER

SHORT LEG

LONG LEG

M4 T1mm METAL WASHER

M4 T1.6mm PLASTIC WASHER

INSTALLATION INSTRUCTIONS

Ø50mm POLE

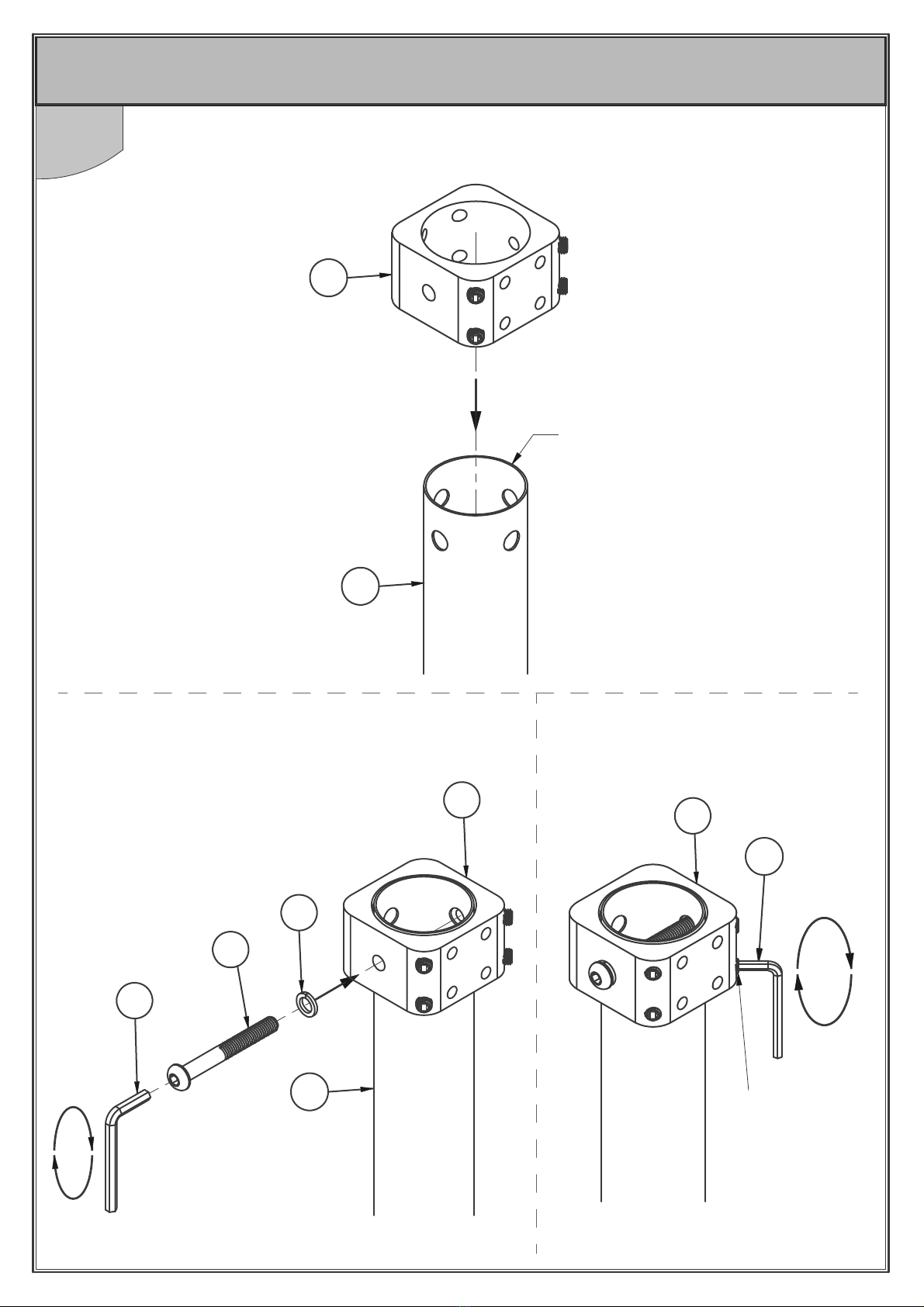

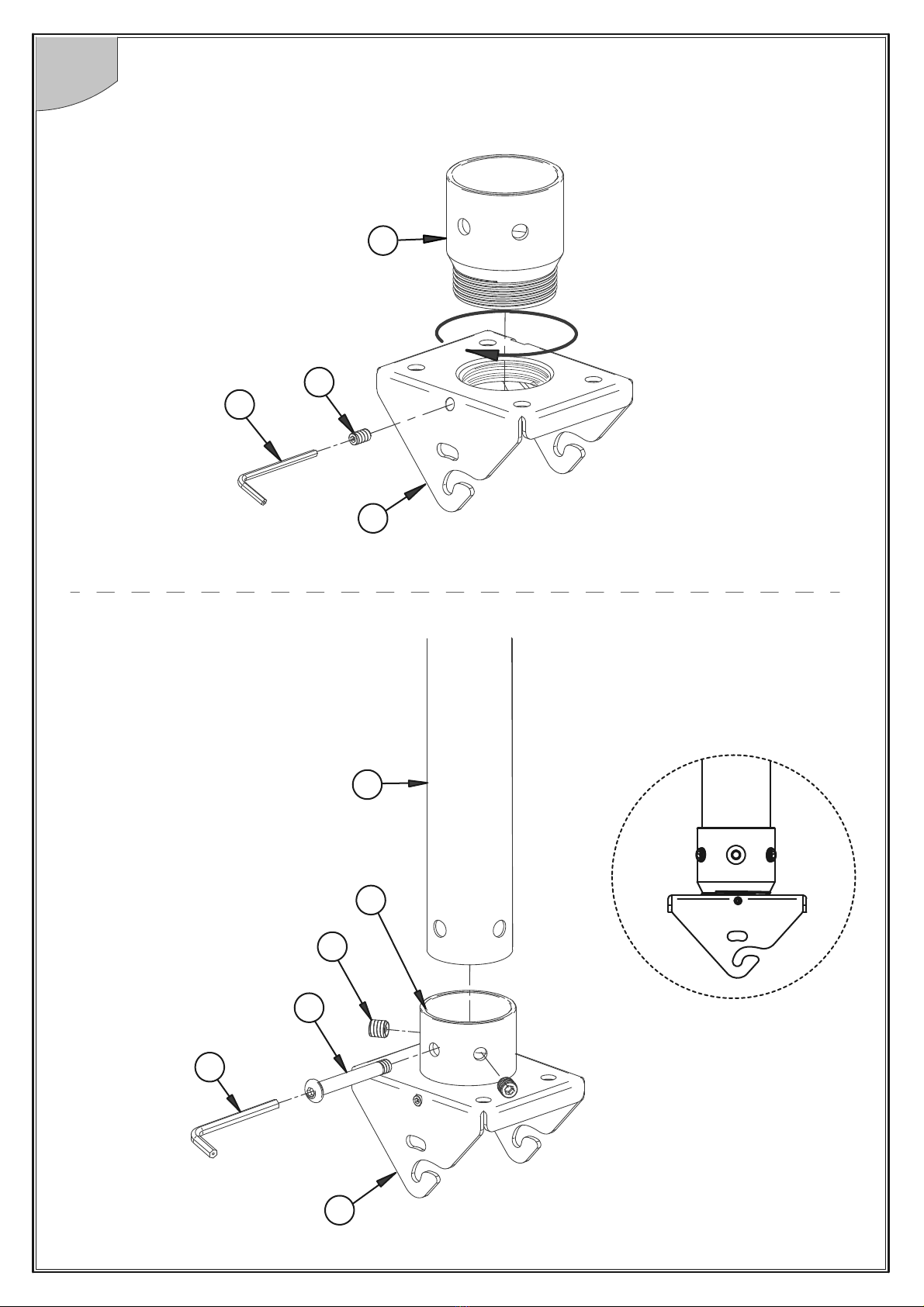

Assemble Pole to Collar

i. Slide item 2 onto item 8.

ii. Fix item 2 to item 8 using items 6 and 7.

iii. Tighten the grub screws evenly

on item 2 using item 33.

GRUB SCREW

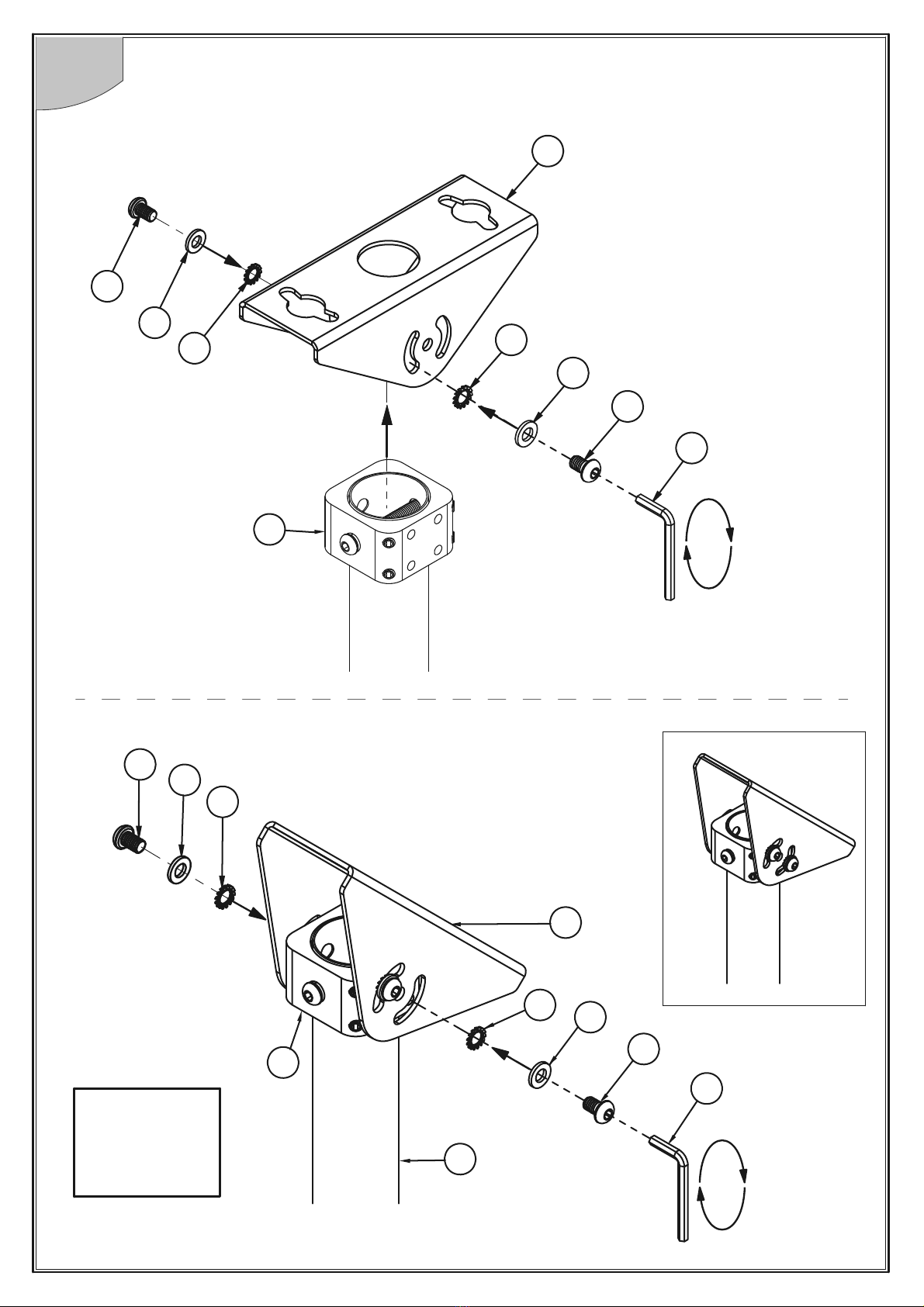

Mount Pole and Collar to Ceiling Plate

Set the required tilt angle when fitting item 2 to item 1,

using items 3, 4 & 5.

Tighten with item 34.

The tilt angle can

also be adjusted

once mounted to

the ceiling or wall

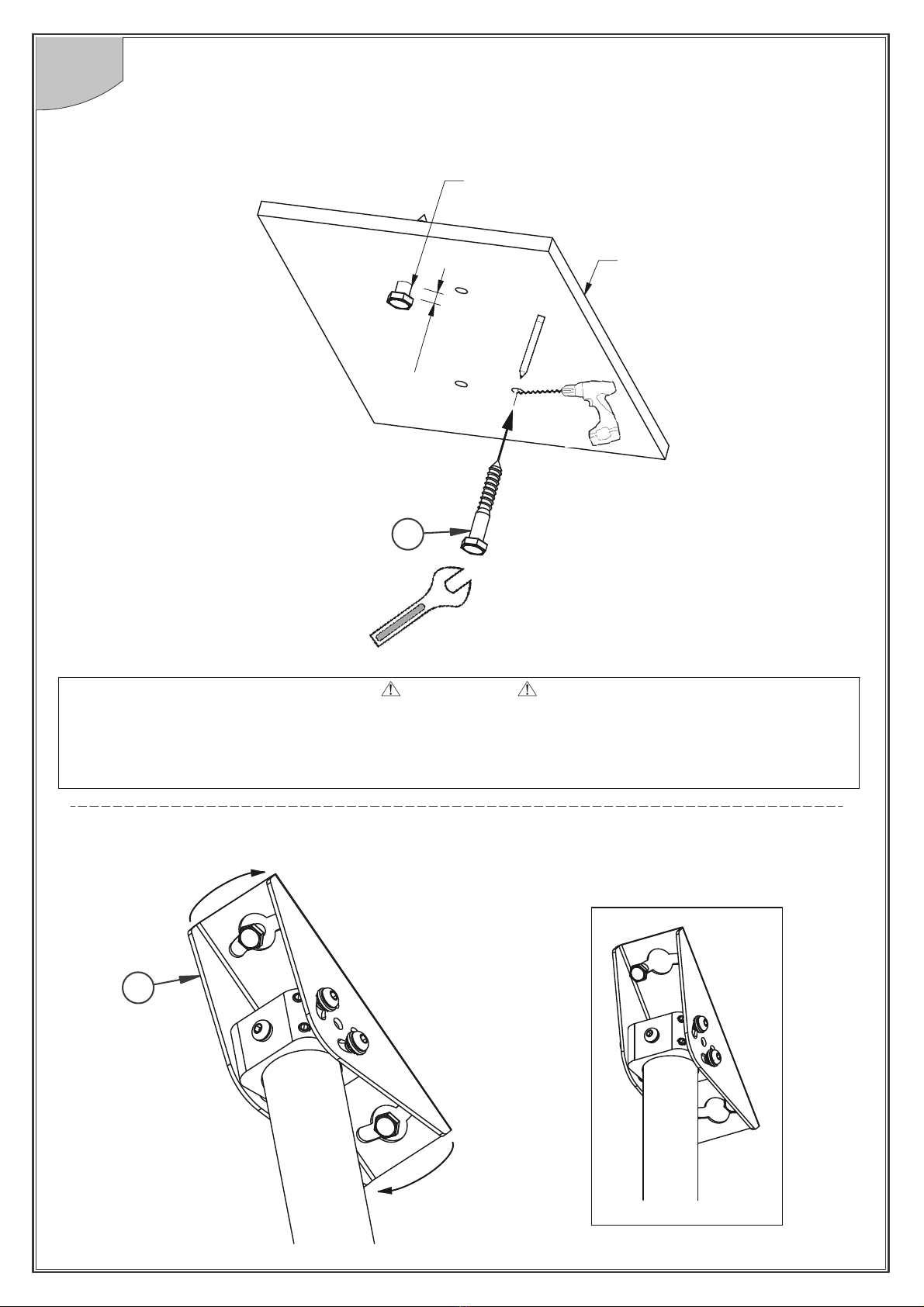

Mounting the Ceiling Plate to Ceiling / Wall

10mm

Leave 10mm gap

for next step

CEILING

Twist

i. Pre-drill holes for ceiling fixings.

ii. Assemble two fixing screws in place, corner to corner leaving a 10mm gap

between the screw head and ceiling.

iii. Hook item 1 onto the fixing screws and twist into position.

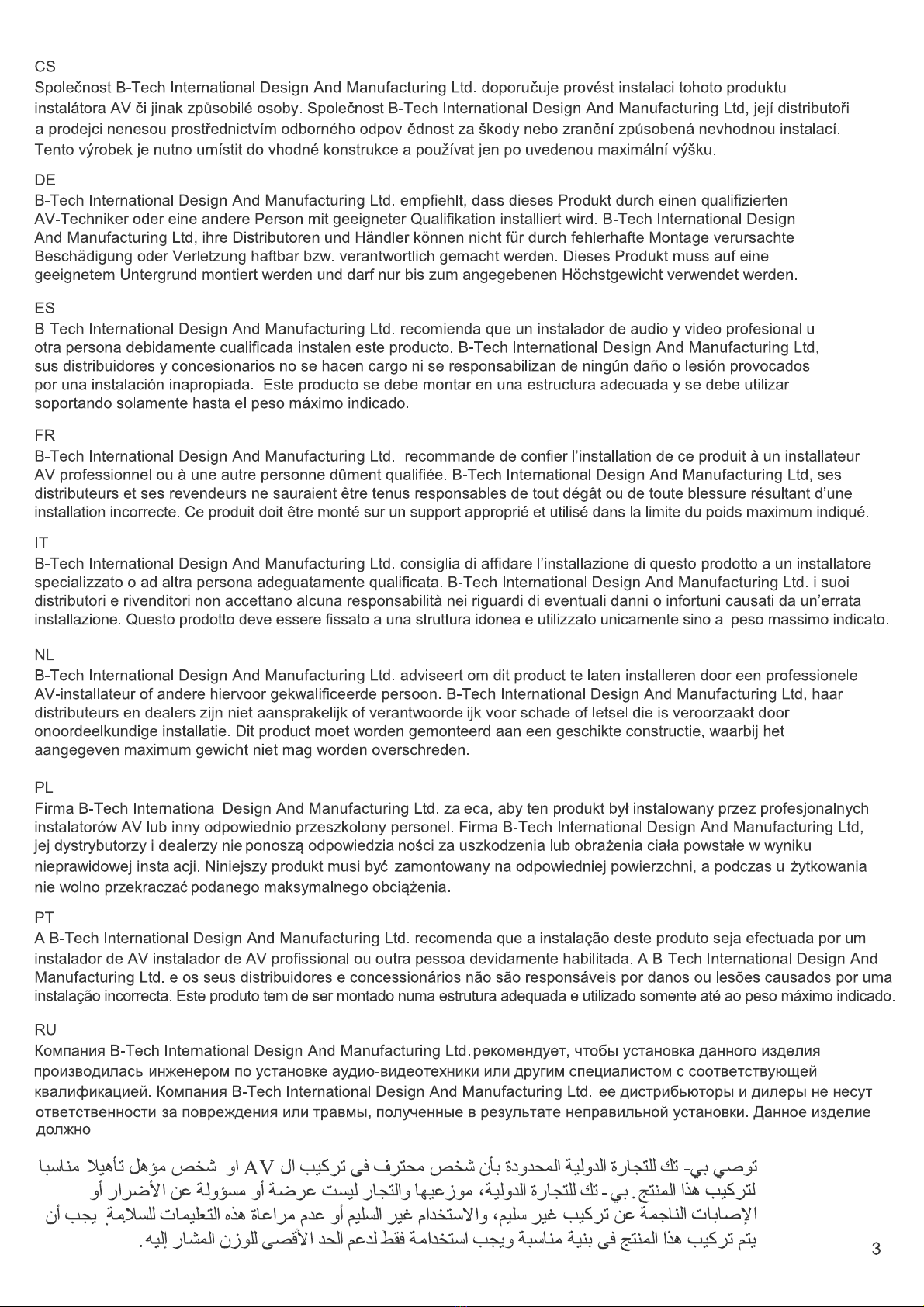

B-Tech highly recommends

this product be installed by a suitably qualified person.

The installer must be satisfied that the types of fixings used are suitable for the type of ceiling the product is to be mounted to.

Care must be taken as to where this product is located, as some ceilings and walls are not suitable for installation.

When drilling holes, knowledge must be obtained to avoid contact with any electrical cables and/or gas and water pipes contained

within the ceiling or walls.

IMPORTANT

Ceiling plate dimensions

are available on page 15

iv. Assemble the remaining two fixings to secure the ceiling plate.

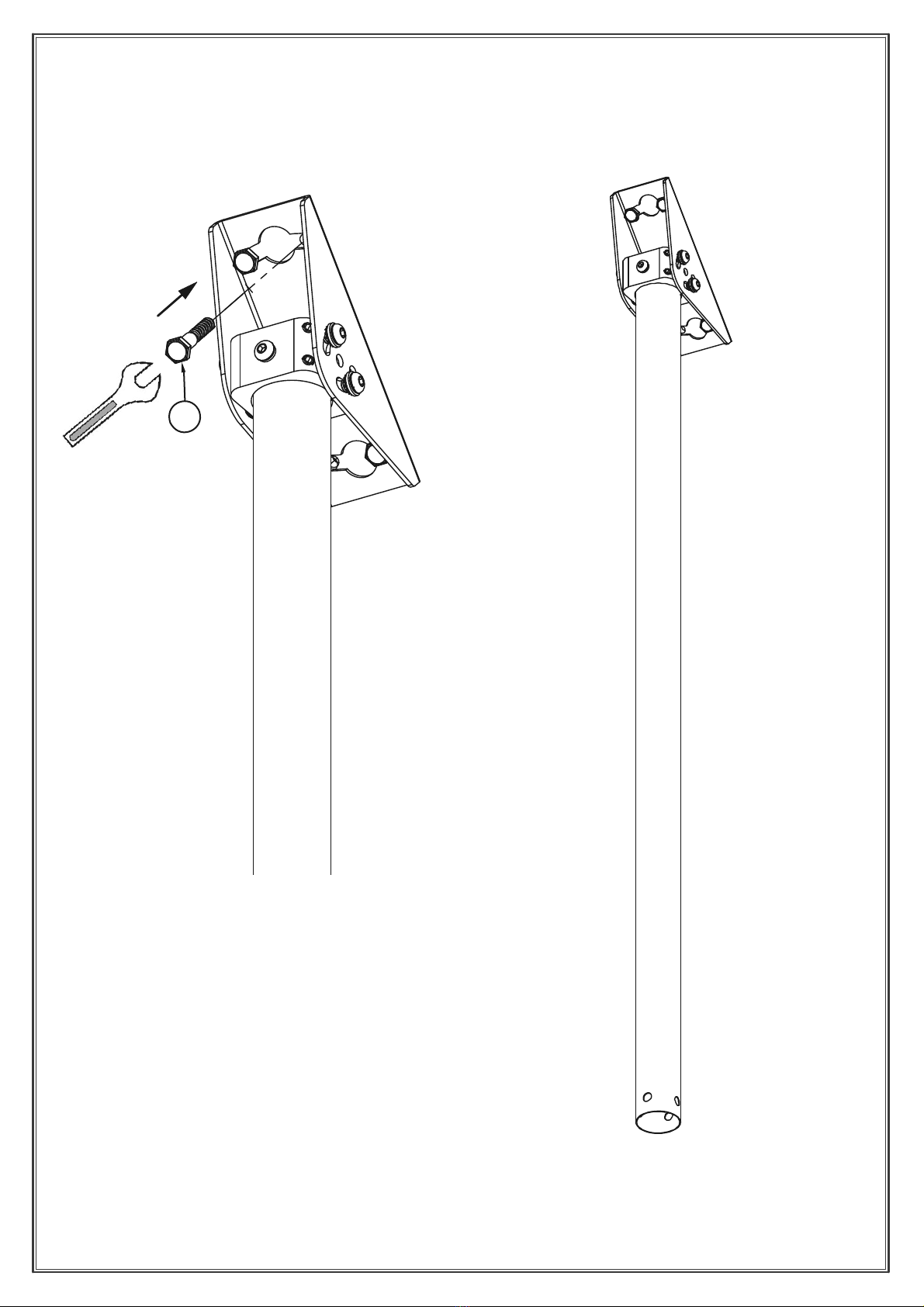

Connect item 8 to item 10 using item 9.

4Attach Mounting Plate to Pole
