Bajaj Pulsar N160 Manuale utente
Owner’s Manual
Doc. No. 71120183 REV. 01 JUNE 2022
Welcome to the Pulsar family! You are now the proud owner of the
next generation Pulsar N160 BS VI India's No.1 sports bike. By
No.1 we are talking about unparalleled performance, superior
technology and incredible market leadership that Pulsar today
enjoys. This makes the Pulsar you ride, unbeatable and
unchallenged both on and off the road. Before you ride out, please
read this Owner's Manual carefully and familiarize yourself with the
operating mechanism, controls and maintenance requirements of
your Pulsar. This will ensure you a safe and trouble free ownership

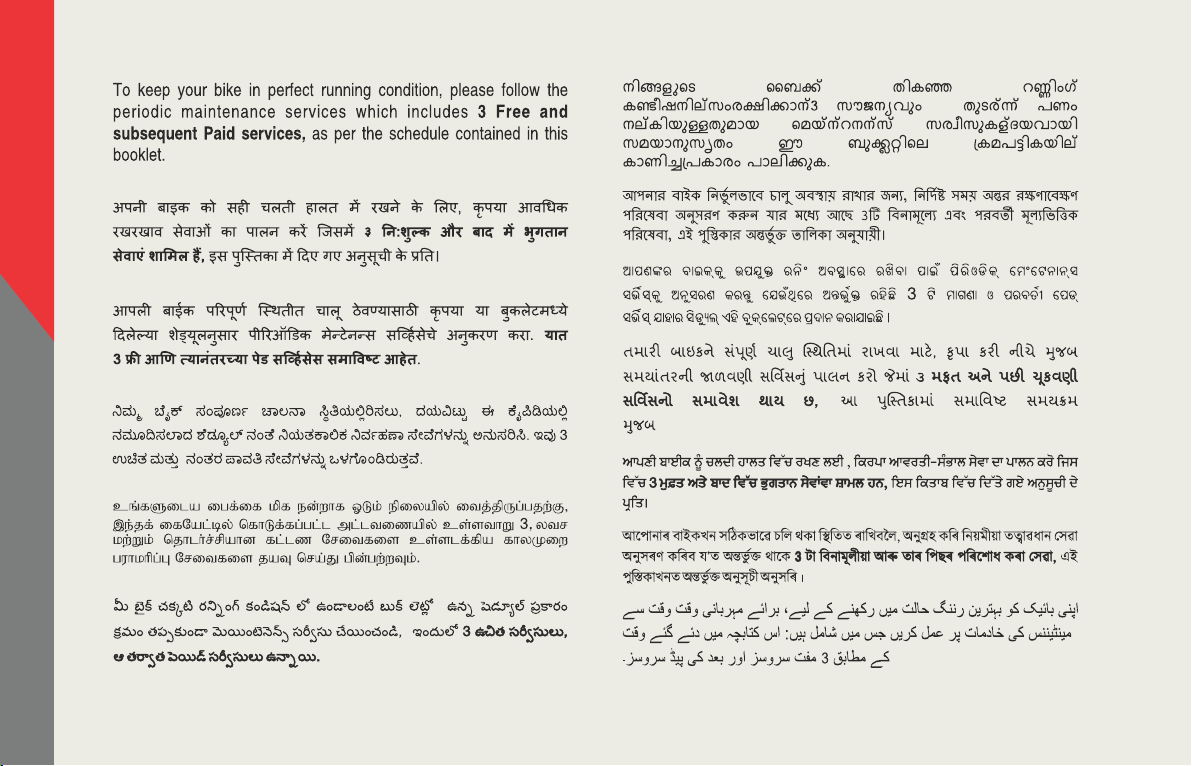

experience. To keep your bike in perfect running condition and
deliver consistent performance, we have specially programmed
the periodic maintenance services which includes 3 free services
and subsequent paid services, as per the schedule contained in
this booklet. We earnestly advise you to avail all these services at
any of our Bajaj Dealers, who are well equipped with all necessary
facilities / genuine parts / oil and trained manpower to ensure the
best care for your Pulsar. Your Pulsar N160 BS VI comes with a
warranty of 5 Years or 75 000 Kms, whichever occurs earlier
from the date of sale. For details please refer to "Warranty : Scope
and Limits" given in this manual.
Should you require any additional information feel free to contact
u s o n h e l p l i n e n u m b e r s o r e - m a i l u s a t :
customerservice@bajajauto.co.in or visit the Bajaj Auto
website www.bajajauto.com To be a part of the Pulsarmania,
visit www.mypulsar.com and join the Pulsar fanpage on facebook:
www.facebook.com/mypulsar
Rev up, shift gears and enjoy the Pulsar experience...
SERVICE DEPARTMENT
BAJAJ AUTO LIMITED
Description
1. Technical Specifications............................................... 1
2. Identification Data ..................................................... 4
3. Location of Parts ....................................................... 5
4. Steering cum Ignition lock .......................................... 6
5. Fuel Tank Cap ............................................................ 7
6. Speedometer Details ................................................. 8
7. Speedometer Setting ................................................. 14
8. Control Switches ....................................................... 16
9. Pillion Seat / Tool kit ................................................... 19
10. Rider Seat / Battery / Fitment Of Rider & Pillion Seat.... 20
11. Antilock Braking System (ABS)..................................... 21
12. Daily Safety Checks .................................................. 22
13. How to ride your Bike ............................................... 23
14. Safe Riding Tips ....................................................... 27
15. Engine Oil ................................................................ 28
16. Tubeless Tyre &. Tyre Pressure .................................. 29
17. Battery..................................................................... 30
18. Periodic Maintenance Information .............................. 31
19. Brake Fluid ............................................................... 33
20. Free Service Guidelines ............................................. 34
21. Periodic Maintenance & Lubrication Chart.................. 35
22. Non Use Maintenance ............................................... 43
23. Delivery Certificate ................................................... 44
24. Warranty : Scope & Limit ........................................... 45
25. Battery Warranty Card ............................................. 48
Engine 4 Stroke, Single Cylinder
Bore x Stroke 58 mm x 62.38 mm
Engine Displacement 164.82 cc
Compression Ratio 10.3 ± 0.3 :1
Idling Speed 1400 + 100 RPM
Max. Net Power 16 PS at 8750 RPM
Max. Net Torque 14.65 Nm at 6750 RPM
Ignition System DC
Fl System BOSCH
Spark Plug 2 Nos.
Spark Plug Gap 0.8 ~ 0.9 mm
Lubrication Wet sump forced Lubrication
Transmission 5 speed constant mesh
Gear Shifting Pattern 1 Down 4 Up
Engine Cooling Oil cooled
Starting Aid Electric
Front & Rear Brake Disc Brake
Specifications Parameter
1
Parameter Specifications
Fuel Tank Capacity
Full 14 Liters (No Reserve)
Dimensions
Length 1989 mm
Width 743 mm
Height 1050 mm
Wheel base 1358 mm
Ground Clearance 165 mm
Tyre & Tyre Pressure
Front Tyre 100/80-17,52P Tubeless
Rear Tyre 130/70-17,62P Tubeless
Front 1.75 Kgf/cm (25 PSI)
2
Rear (Solo) 2 Kgf/ (28 PSI)
2
cm
Rear (with pillion) 2.25 Kgf/cm (32 PSI)
2
Electrical System 12 Volts DC
Battery 12V 4Ah VRLA
Head Lamp LED
Tail / Stop Lamp LED
Side Indicator Bulb Amber (4 Nos.)
Parameter
Position Lamp LED
Turn Signal Indicator LED
Neutral Indicator LED-Green
Hi-Beam Indicator LED-Blue
Speedometer Illumination LCD-Blue
Fuel Level Indicator LCD Bars
Malfunction Indicator LED-Yellow
Low Oil Pressure Indicator LED-Red
Low Battery Indicator LED-Red
REV Indicator LED-Yellow
Service Reminder LCD
Side Stand Indicator LED-Red
ABS Indicator LED-Yellow
Rear No. Plate Lamp 12V, 5W Bulb
Horn 12V DC
Vehicle Kerb Weight 153 kg. Single Channel ABS, 154 kg. Dual Channel ABS
Vehicle Gross Weight 303 kg. Single Channel ABS, 304 kg. Dual Channel ABS
3
Specifications
Note : • All dimensions are under UNLADEN condition. • Above information is subject to change without any notice.
• This vehicle complies to BS VI standards. • AHO / DRL is government regulation.
Frame Number Location
On RH Side of Steering Tube
(Alpha-Numeric - 17 Digits)
The frame & Engine serial numbers are used to register the
motorcycle.They are the unique Alpha-Numeric codes to
identify your particular vehicle from others of the same
model & type.
Engine Number Location
On LH Side Crankcase Near Change lever
(Alpha-Numeric - 11 Digits)
LOCATION OF PARTS
5
Belly Pan
Reflex
Reflector
Mobile
Charging
Socket
LED Head
Lamp
Rear Disc
Front Disc
Front
Fork
Front Brake
Lever
Rider
Seat
Pillion
Seat
Grab
Handle
LED
Tail
Lamp
Rear
Shock
Absorber
Rear Brake
Pedal
Engine Oil Level
Inspection Window
6
“Cranking ON and OFF duration” control:
• During Engine crank cycle cranking is allowed only for
fixed duration and in between successive cranks (in
case engine does not start) here is a cooling off
period.
• Cranking on-off duration control feature to avoid
battery discharge-
- 1st Crank ON (5 sec) & Disable for 2 sec.
- 2nd Crank ON (5 sec) & Disable for 2 sec.
- 3rd Crank ON (5 sec) & Disable for 10 sec.
After a gap of 10 sec cranking cycle continues.
• Headlight control on rpm – Headlamp will be turned
ON only at Engine running condition.
Steering cum Ignition Lock :
It has three positions
Lock : Steering locked. Ignition OFF.
OFF : Steering unlock. Ignition OFF.
ON : Steering unlock. Ignition ON.
To lock the steering :
Turn the handle bar to the left side. Push & Rotate the
key to “LOCK” Position & Remove the key.
Steering locking on handle position left hand side only.
To Unlock the Steering: Insert the key in steering cum ignition
lock. Push & Rotate it clockwise to "OFF" or "ON" position.
Key: A common key is used for 'Steering cum Ignition lock', 'Fuel
tank cap' & 'Rear Seat'.
