Bakers Pride PX-14 Manuale utente

9/01 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 1 of 4

PX-14/16

Electric Countertop Oven

PARTS LIST

Serial Number: 115V 200V 208-240V

Model Number: Voltage (Single Phase Only)

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

PX-14 Beginning:

Serial #4633, 12/09/99 (120V)

Serial #6547,11/22/99 (208/240V)

PX-16 Beginning:

Serial #959, 11/11/99 (120V)

Serial #1783,12/01/99 (208/240V)

STYLE

NEW

PX-14

PX-16

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

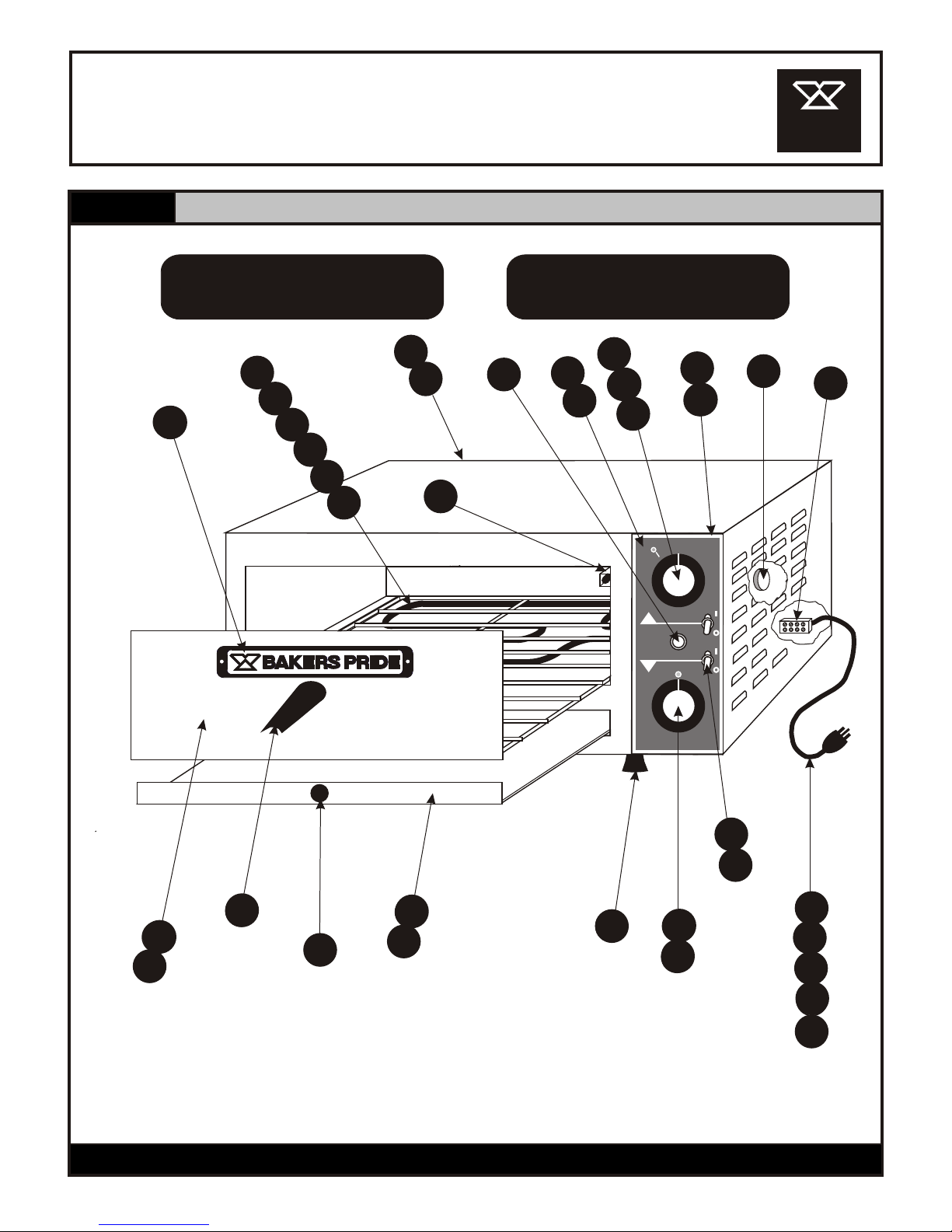

Figure A PX-14 / 16 (New Style)

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 9/01

PX-14 / PX-16

Electric Countertop Oven

0123

MINUTES

300

450

650

350

400

500

550

600

PX-14 Beginning:

Serial #4633, 12/09/99 (120V)

Serial #6547,11/22/99 (208/240V)

PX-16 Beginning:

Serial #959, 11/11/99 (120V)

Serial #1783,12/01/99 (208/240V)

302928

2625

18 16

745

20 12

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

PX-14 / 16 (New Style)

9/01 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 3 of 4

Item Part # Description Item Part # Description

PX-14 / PX-16

Electric Countertop Oven

1 D5023X Crumb Pan Assy w/Knob (PX-14) 19 D5043U Capillary Retainer Assy

2 D5123X Crumb Pan Assy w/Knob (PX-16) 20 S1151X Leg, each

3 S1153X Knob (Crumb Pan) 21 U1044X Bakers Pride Nameplate, 8"

4 M1335X Audio Alarm 22 D5037U Peel Tray Assy w/Wire Rack & Hdl (PX-14)

5 P1003X Terminal Block, 3 Pole 23 D5141U Peel Tray Assy w/Wire Rack & Hdl (PX-16)

6 D5027U Control Panel Assy, Front (PX-14) 24 S1031X Handle, w/Nut & Bolt

7 D5127X Control Panel Assy, Front (PX-16) 25 L1065X Element, PX-14, 120V/750W (2)

8 U1308A Control Panel Overlay, 60hz 26 L1148X Element, PX-16, 120V/900W (2)

9 U1309A Control Panel Overlay, 50hz 27 L1066X Element, PX-14, 220V/750W (2)

10 M1331X Timer, Rotary-Elec, 15 Minutes, 120V 28 L1149X Element, PX-16, 220V/900W (2)

11 M1345X Timer, Rotary-Elec, 15 Minutes, 220V 29 L1067X Element, PX-14, 100V/750W (2) Japan

12 M1119X Thermostat, EGO, 300-650 deg (No Knob) 30 L1156X Element, PX-16, 200V/900W (2) Japan

13 S1311X Knob (Thermostat & Timer) 31 P6004X Line Cord, 125V/15A

14 M1037X Switch, Toggle, On/Off 32 P6383A Line Cord, 125V/20A (Canada)

15 S1038X Rubber Boot, On/Off Switch (Export) 33 P6005X Line Cord, 250V/15A

16 P1127X Pilot Light, Amber 34 P6006X Line Cord, CEE7-VII (Europe)

17 D5038U Rear Panel Assy, (PX-14) 35 P6343X Line Cord w/Fuse, 13A/240V (U.K.)

18 D5138U Rear Panel Assy, (PX-16)

Figure B

PX-14 / 16 (Old Style)

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 9/01

Item Part # Description

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

PX-14 Before:

Serial #4633, 12/09/99 (120V)

Serial #6547,11/22/99 (208/240V)

PX-16 Before:

Serial #959, 11/11/99 (120V)

Serial #1783,12/01/99 (208/240V)

PX-14 / PX-16

Electric Countertop Oven

0123

MINUTES

300

450

650

350

400

500

550

600

0123

TURN POINTER TO STAR, THENSET FOR TIME

POINTER L’ETOILE, PUIS REGLER LE TEMPS

300

450

650 350

400

500

550

600

8910 11

15 16

2930

313233

1 D5023X Crumb Pan Assy w/Knob (PX-14) 18 S1151X Leg, each

2 D5123X Crumb Pan Assy w/Knob (PX-16) 19 U1044X Bakers Pride Nameplate, 8"

3 S1153X Knob (Crumb Pan) 20 D5037U Peel TrayAssy w/Wire Rack (PX-14)

4 P1003X Terminal Block, 3 Pole 21 D5141U Peel TrayAssy w/Wire Rack (PX-16)

5 M1017X Timer, Mech, 15 Minutes (w/Knob/Plate) 22 S1031X Handle, w/Nut & Bolt

6 S1052X Knob, Timer 23 L1065X Element, PX-14, 120V/750W (2)

7 S1025X Plate, Timer 24 L1148X Element, PX-16, 120V/900W (2)

8 M1120X Thermostat, EGO, 650F deg (w/Knob) 25 L1066X Element, PX-14, 220V/750W (2)

9 M1119X Thermostat, EGO, 370C deg (w/Knob) 26 L1149X Element, PX-16, 220V/900W (2)

10 S1155X Knob, Thermostat (650F) 27 L1067X Element, PX-14, 100V/750W (2) Japan

11 S1154X Knob, Thermostat (370C) 28 L1156X Element, PX-16, 200V/900W (2) Japan

12 M1037X Switch, Toggle, On/Off 29 P6004X Line Cord, 125V/15A

13 S1038X Rubber Boot, On/Off Switch (Export) 30 P6383A Line Cord, 125V/20A (Canada)

14 P1127X Pilot Light, Amber 31 P6005X Line Cord, 250V/15A

15 D5038U Rear Panel Assy, (PX-14) 32 P6006X Line Cord, CEE7-VII (Europe)

16 D5138U Rear Panel Assy, (PX-16) 33 P6343X Line Cord w/Fuse, 13A/240V (U.K.)

17 D5043U Capillary Retainer Assy

765

133

28 26 25 24 23
