BakerStone Original Series Manuale utente
Original Series
Outdoor Multi-function
Cooking Center
Product Guide
Model # BSO4501-EBK-OOO-000
Important, Retain for Future Reference: Read Carefully
WARNING: This product guide contains important information
necessary for the proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling
and using the appliance.
Follow all leak-check procedures in the Product Guide before
using the appliance.
This appliance is for outdoor use only.
If you smell gas:
Extinguish any open flame.
Open lid.
If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire department.
Do not store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
Failure to follow these instructions could result in fire or explosion
which could cause property damage, personal injury or death.
DANGER
WARNING
www.bakerstonebox.com - (855) 657 OVEN (6836)
WARNINGS
Failure to follow these instructions could result in fire or explosion which could cause
property damage, personal injury or death.
The installation must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural
Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling
Code,CSA B149.2, or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and
CSA Z240 RV Series, Recreational Vehicle Code, as applicable.
This appliance shall be used only outdoors, and shall not be used inside a building,
garage or any other enclosed area.
This appliance is not intended to be used in or on a recreational vehicle or boat.
While using this appliance maintain a minimum clearance from sides and back of at
least 36in (0.9m) between appliance and any combustible material or contruction. Do
Clean and inspect the supply hose and regulator before each use of the appliance.
If there is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior
to using the appliance. Only the included hose or a replacement supplied by the
manufacturer shall be used with the appliance.
The appliance is only to be fueled by a LP (liquid propane) gas cylinder measuring 12”
(30.5cm) diameter and 18” (45.7cm) high with a 20lb. (9.1kg) capacity. The gas cylinder
(tank) must incorperate a Type 1 cylinder valve and an over filling protection device
(OPD).
The LP gas cylinder must be constructed and marked in accordance with the
Specifications for LP gas Cylinders of the U.S. Department of Transportation (D.O.T.) or
the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods
and Commission, CAN/CSA-B339, as applicable.
Do not unhook or replace the LP Gas Cylinder while the appliance is in use.
connections and fittings. Do not use an open flame to check for leaks.
This appliance is not intended for commercial use.
The use of alcohol, prescription or non-prescription drugs may impair the consumer’s
ability to properly assemble or safely operate the appliance.
In the event of an oil or grease fire do not attempt to extinguish with water. Immediately
call the fire department. A Type BC or ABC fire extinguisher may, in some circumstances
contain and/or extinguish the fire.
Do not leave the appliance unattended. Keep children and pets away from the
appliance at all times.
Do not move the appliance when in use.
WARNINGS - continued
This appliance is not intended for and should never be used as a heater.
Use only appropriate bake-ware or utensils while baking and cleaning the appliance.
Do not use plastic, silicone or glass.
Do not allow food other than Pizza or Bread Dough to contact the stones. Any foods
that contain fat, oil or butter (meats, items coated with olive oil, cookies, biscuits, etc.)
should not contact the stones directly. These items should be baked in a metal baking
pan, on a metal baking sheet or in a cast-iron skillet as the stones will absorb the fat, oil
and butter which can cause smoking, odors, staining, and can impart rancid flavors to
items that you bake in the future.
Stones are fragile and can break if dropped. The appliance becomes extremely hot, do
not touch the stones or any other part of the appliance while it is in use.
any remaining residue. Do not use any cleaning agents or other liquids to clean the
stones.
Do not place gasoline, alcohol, wood products, charcoal or any other combustible
material (unless BakerStone approved) in the baking chamber.
Remove any appliance cover and place at least 10 feet (3 Meters) from appliance
before use.
Do not alter or change the gas valve orifices.
This appliace requires regular cleaning of major components and more detailed
Only use the presure regulator and hose included with this appliance.
Do not alter or install as a built in appliance.
The use of alcohol, prescription, or non-prescription drugs may impair the consumer’s
ability to properly assemble or safely operate the appliance.
Figure
Figure
Figure
What’s in the package
Assembly of the Grill
LP Gas Cylinder Requirements
LP Gas Cylinder Placement
LP Gas Cylinder Connection
LP Gas Leak Test
Pre-Use Safety Checks
Lighting Instructions
How to Use The Pizza Oven Box
Routine Care & Cleaning
Periodic Care & Cleaning of Burner System
Customer Service
Customer Service Parts Identifier
Warranty
Frequently Asked Questions
4
6
16
17
18
19
19
20
24
26
27
28
30
32
Table of Contents Page
21
22
25
Assembly of the Pizza Oven Box 14
4
What’s in the package
Before assembly, ensure that all parts below are included. Please note part numbers are not listed
in numerical order. For a complete parts diagram and part list for customer service needs such as
replacement parts please go to page 28.
22 - Cabinet
Base Panel
27 - Cabinet
Middle Panel
32 - Cabinet
Front Panel
29 - Cabinet Back
Panel
50 - Griddle
54.5 - Housing 54.1 - Back Panel 54.7 - Stone Support
53 - Griddle Cover Assembly
53.1 - Griddle Cover
53.2 - Griddle Cover Handle
Firebox Assembly
18 - Wheel Axle
19 - Wheel
(x2)
20 - Wheel
Cap (x2)
21 - Stopper
26 - Side Frame
Right
23 - Caster
(x2)
15 - Griddle Storage Rack
31 - Cabinet Top Panel1 2 - Front Brace
54.4 - Side Stone
(x2)
54.8 - Base Stone54.2 - Top Stone 54.3 - Rear Stone 54.9 - Vent Catch
(x2)
54.6 - Stone Cradle
(x2)
5
Tools required for assembly, not included:
Have a question? Please Do Not Return This Product To The Store.
Contact us first! 1-855-657-6836
or email support@bakerstonebox.com
11 - Drip Tray
Support
(x2)
36 - Rear Beam 30 - Firebox Support
(x2)
28 - Gas Cylinder
Hook
24 - Right Door
10 - Folding Table
(x2)
35 - Table
Support Right
(x2)
39 - Griddle
Grease Cup
37 - Grill
Grease Cup
33 - Drip Tray
6 - Control Knob
(x6)
55 - Warming Rack56 - Cooking Grate
(x3)
2 - Flame
Tamer (x4)
AA - M4x12 Pan
Head Screw
(x5)
BB - M4x20 Pan
Head Screw
(x1)
CC - M5x12 Pan
Head Screw
(x4)
DD - M6x12 Pan
Head Screw
(x46)
EE - M6x12 Flat
Head Screw
(x12)
FF - M5 Nut
(x4) GG - M10 Nut
KK- M4x8 Pan
Head Screw
(x20)
LL - M4 Flat Washer
(x12)
(x2) HH - M Nut
(x4) II - Battery JJ - M5x8mm
Shoulder Screw
6
Assembly of the Grill
STEP 1. Attach the CASTERS (23) to the RIGHT SIDE
FRAME (26).
STEP 2. Attach the WHEEL (19), WHEEL AXLE (18) to the LEFT
SIDE FRAME (16) using NUTS (GG). Next place the CAPS (20)
onto the wheels.
STEP 3. Assemble the CABINET BASE PANEL (22) to the SIDE
FRAMES (16 and 26) using SCREWS (DD).
STEP 4. Attach the STOPPER (21) to the BASE PANEL (22) with
SCREW (BB).
23
16
18
22
BB
21
22
DD DD
2616
19
20
GG
26
7
STEP 5. Attach the CABINET FRONT PANEL (32) to the BASE
PANEL (22) and SIDE FRAME (26) using SCREWS (DD).
STEP 6. Attach the CABINET MIDDLE PANEL (27) to the BASE
PANEL (22) and CABINET FRONT PANEL (32) using SCREWS
(DD).
STEP 7. Attach the CABINET BACK PANEL (29) to the BASE
PANEL (22), CABINET MIDDLE PANEL (27) and SIDE FRAME (16)
using SCREWS (DD).
26 DD
32
22
32
16 DD
92 DD
22 27
DD
27
DD 22
DD
8

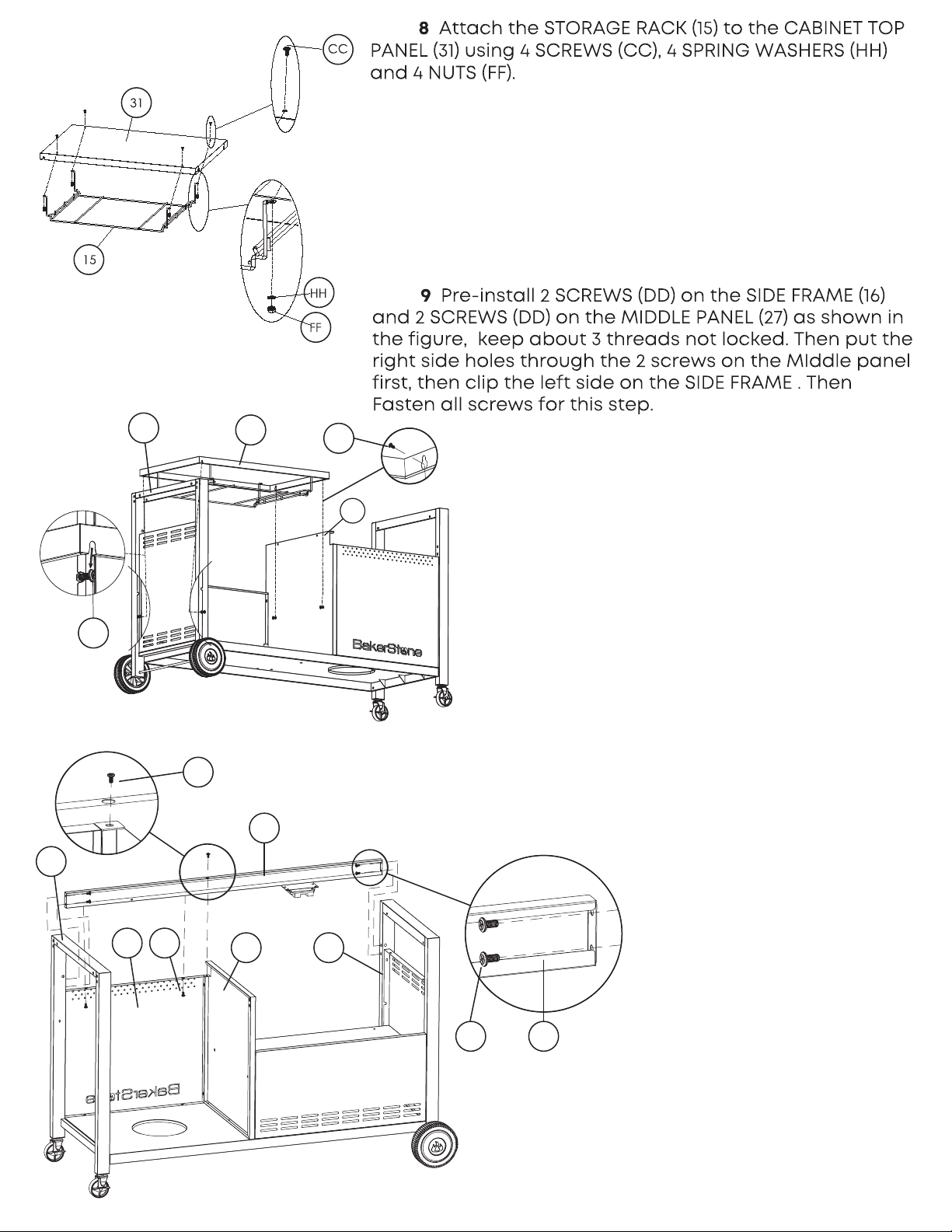

STEP 10. Attach the FRONT BRACE (12) to the SIDE FRAMES
(16 and 26), FRONT CABINET PANEL (32) and CABINET MIDDLE
PANEL (27) using fasteners (AA) and (DD) as shown.
AA
12
12DD
32
26
DD 27 16
16 31 DD
27
DD
STEP .
STEP .
