AboutBananapiBPI-R1
ThebananapiBPI-R1isa300MbpsWirelessNRouterwithbothwiredandwirelessnetworkconnectionsdesigned
specificallyforsmarthomenetworkinguse.With2T2RMIMOTechnologyandtwodetachableantennas.
theBPI-R1isthedualcoreAndroid4.4productwhichmorebetterthanLinuxproduct.ItcanrunwithAndroid4.4smoothly
andwith5Gigabitethernetport,SATASocket.alsosupportLinuxOS,andOpenwrtos.
itcaneasilyrunwiththegameandsupport1080Phighdefinitionvideooutput.
BananaPiRouter:NAS,routerortrash?//Review
https://www.youtube.com/watch?v=tvzXhbcgo2k
BananaPiR1SmartOpensourceWirelessRouter
https://www.youtube.com/watch?v=bDkn_UM8DwQ
forum:http://www.banana-pi.org
forum:http://www.bananapi.com
product:http://www.banana-pi.com
AboutbananapiBPI-R1
3
FirstChapter
GitBookallowsyoutoorganizeyourbookintochapters,eachchapterisstoredinaseparatefilelikethisone.
BPI-R1hardware
4
BPI-R1hardwareinterface

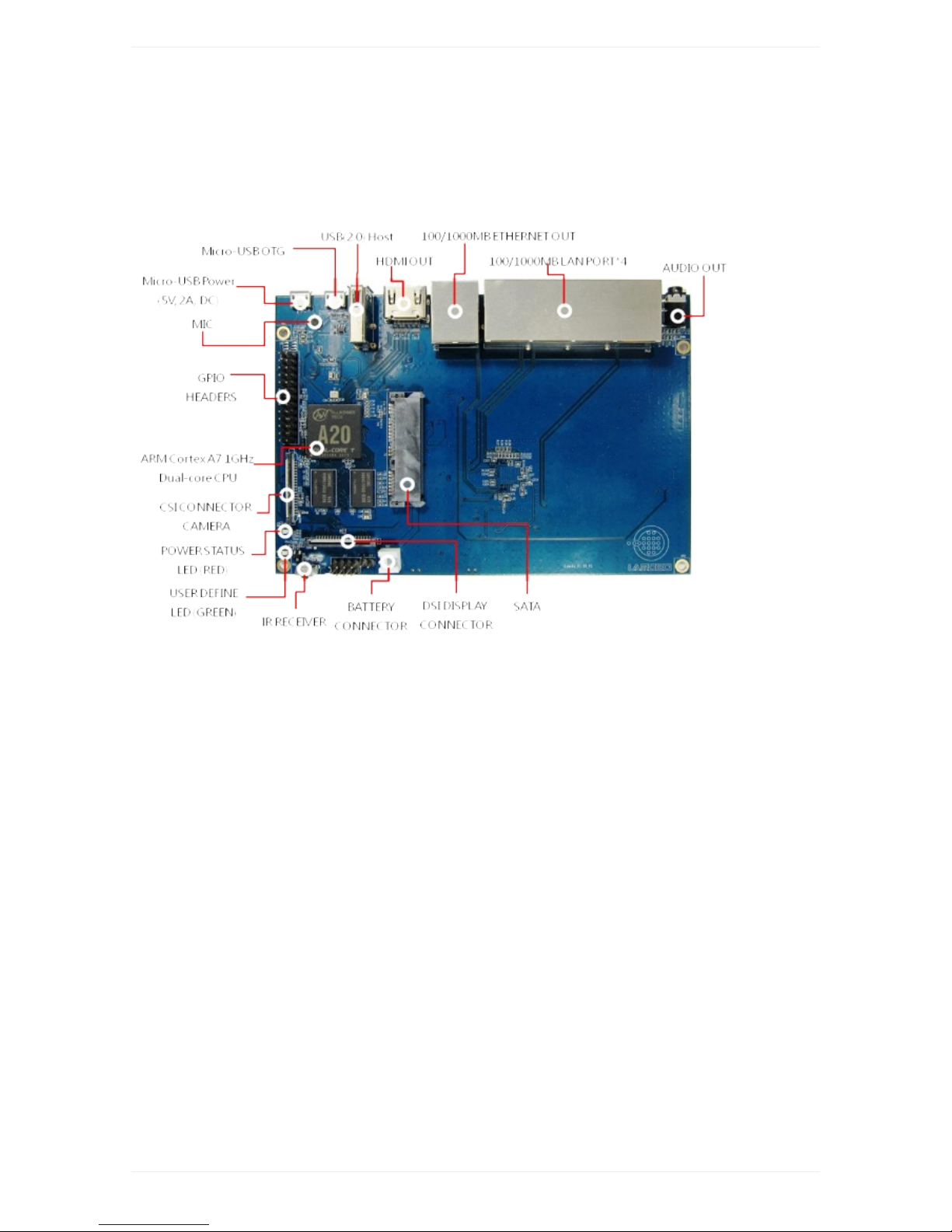

BPI-R1hardwareinterface
Front:
Back:

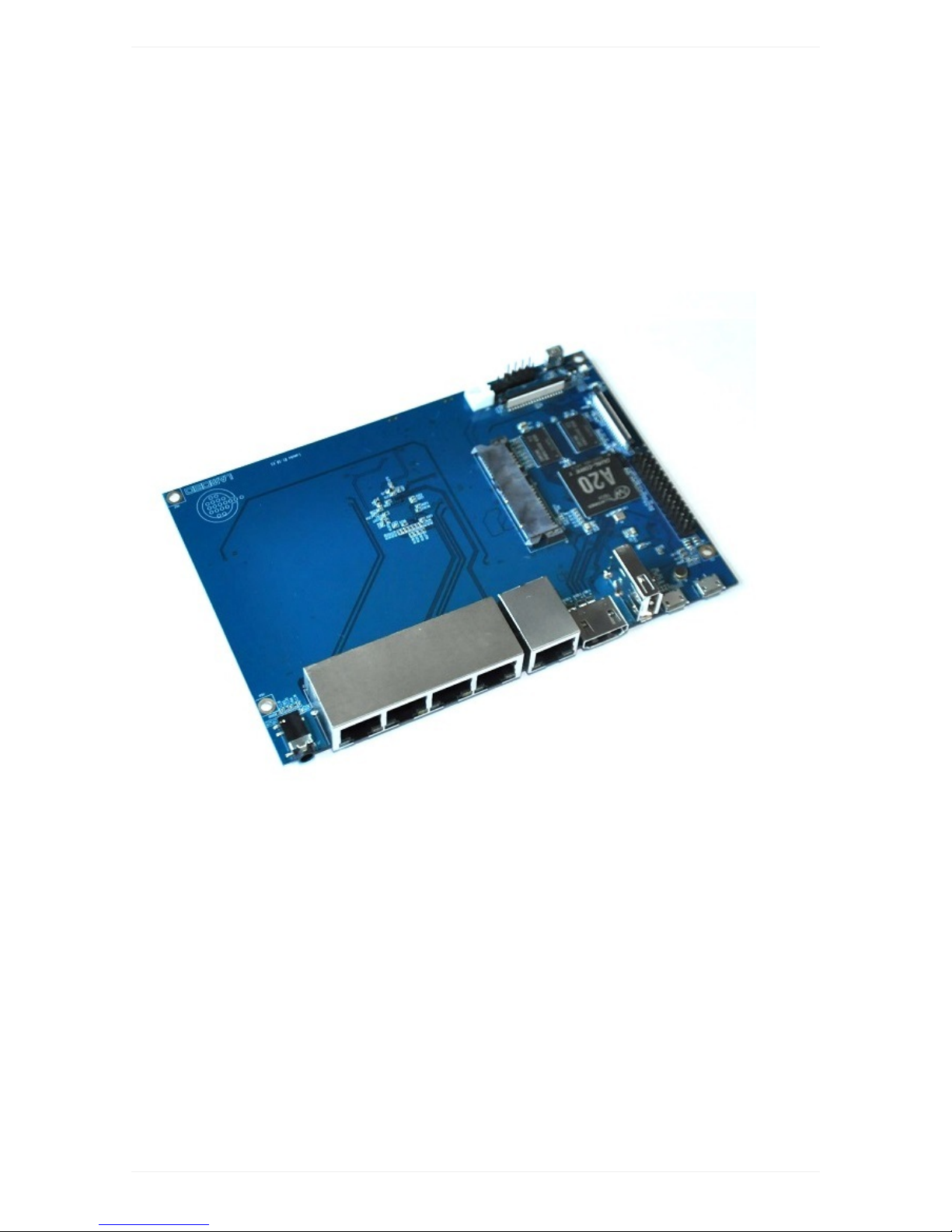

BPI-R1hardwareinterface
5

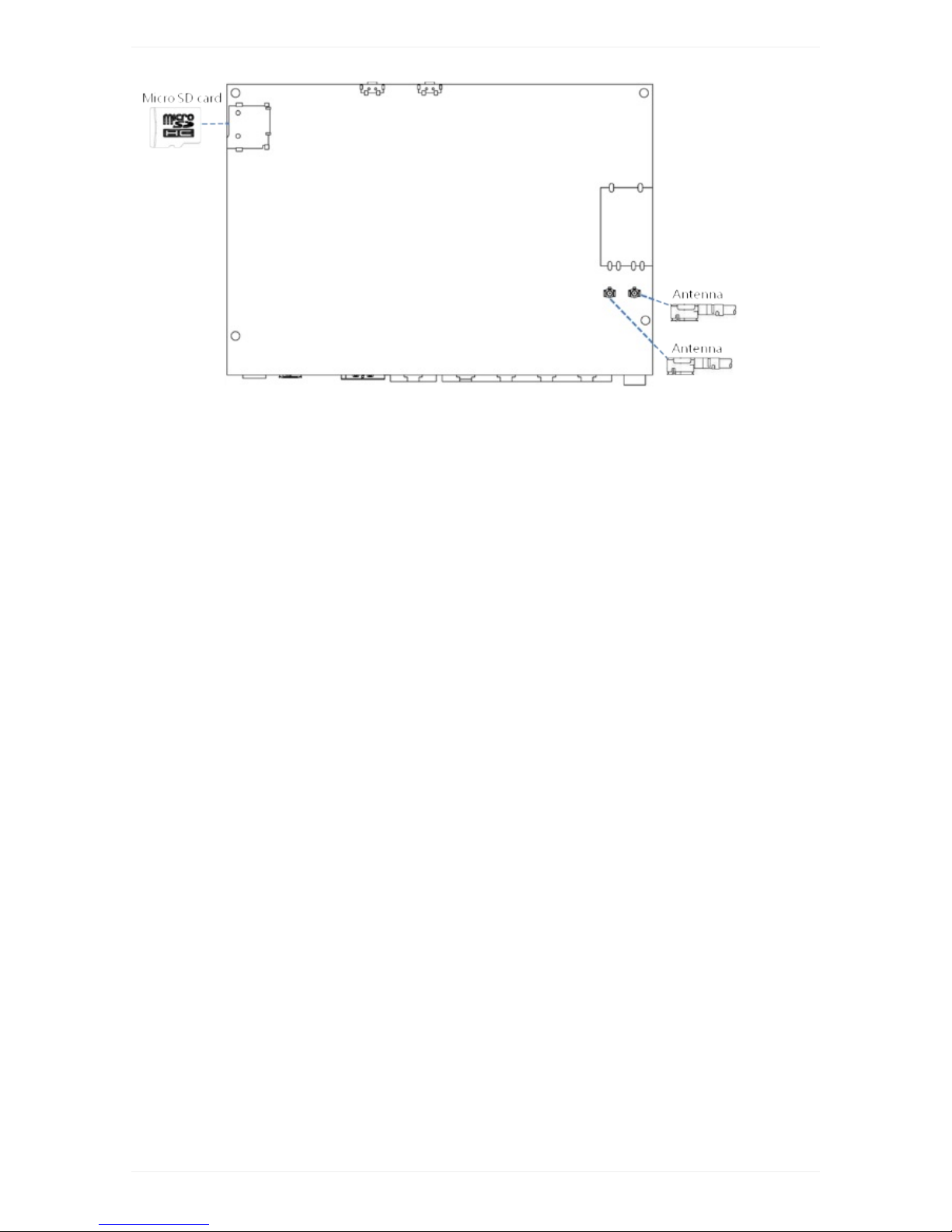

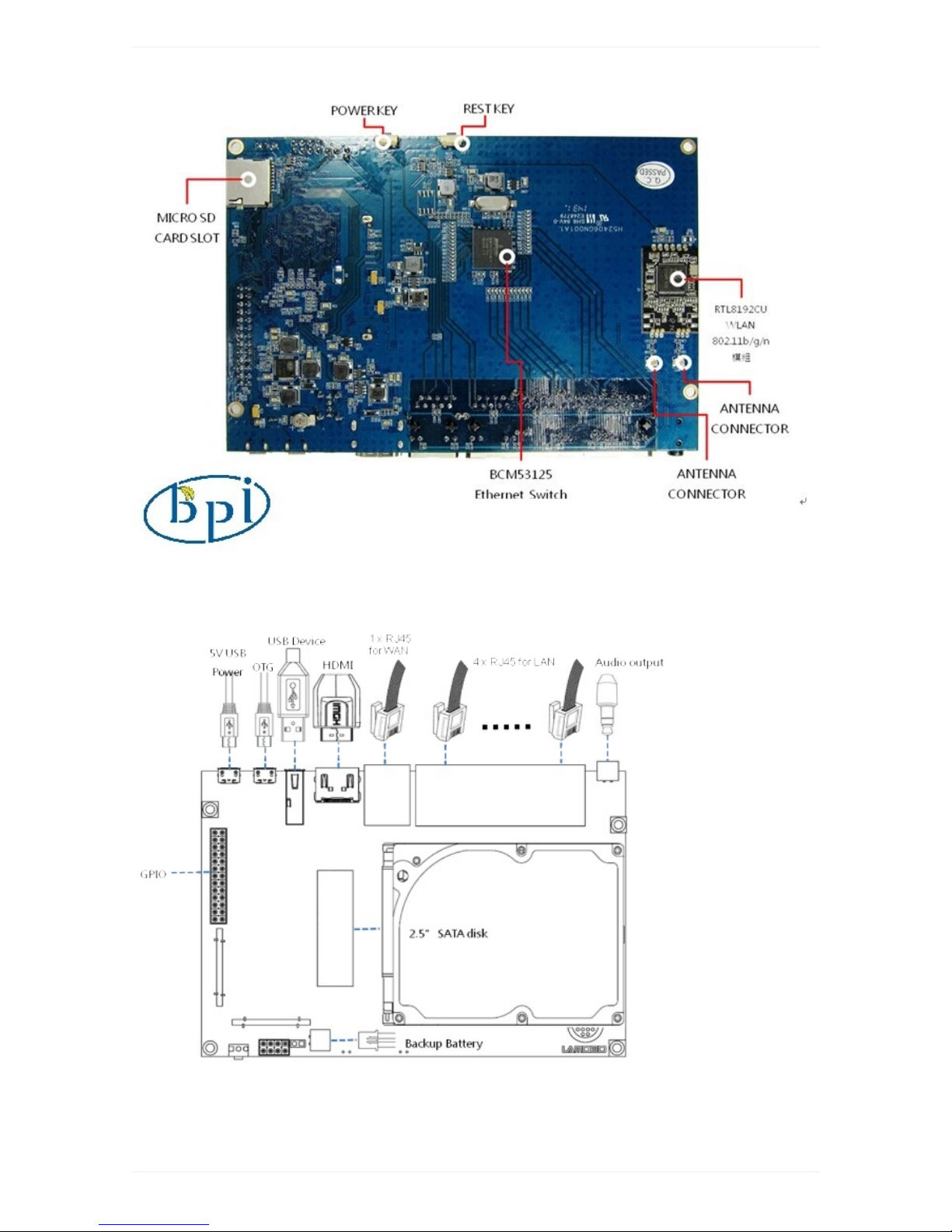

Hardwareconnectsketchmap：
Front:
Back:
BPI-R1hardwareinterface
6
BPI-R1hardwareinterface
7

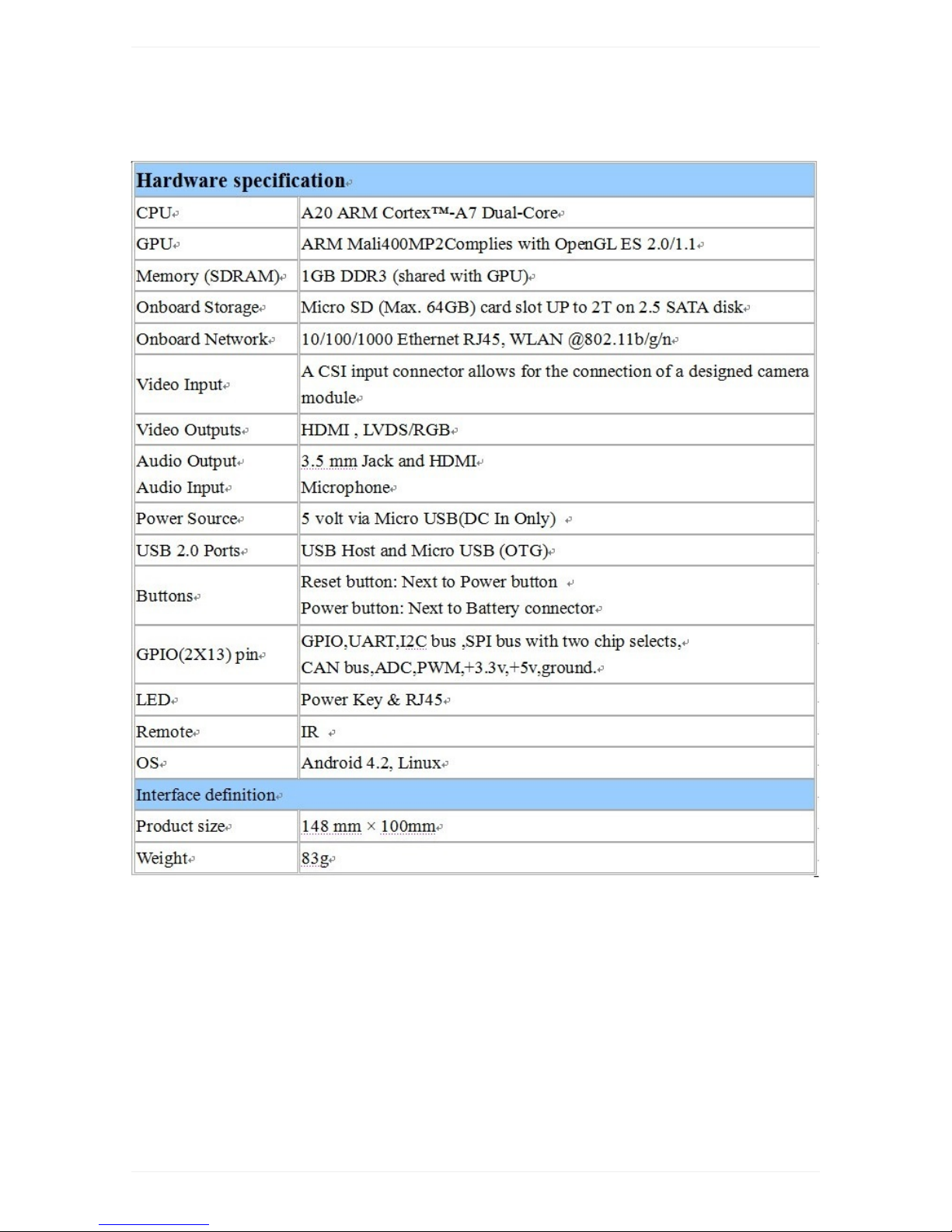

BPI-R1hardwarespec
BPI-R1hardwarespec
8
BPI-R1GPIOPindefine
GPIOdefine

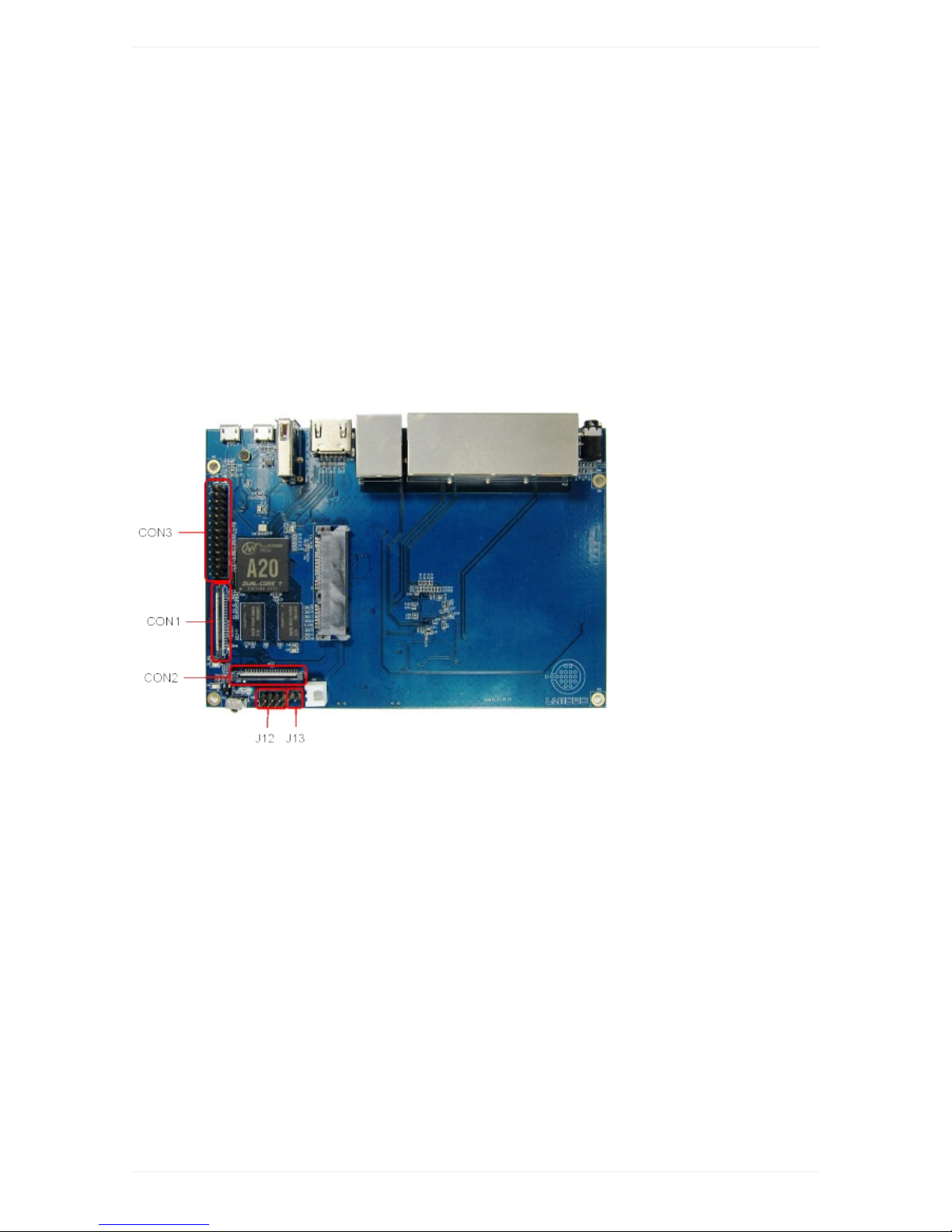

WecancheckR1PINdefinitioninthisthread,includingCON1,CON2,CON3,J12andJ13.
J13containsthedefaultserialportUART0(UART0-RX,UART0-TX).UATR0isconfiguredtobeusedforconsole
input/output.Whilstthisisusefulifyouwanttologinusingtheserialport.SoitisthemostcommonusedPIN.
J12alsocontainsserialport.CON3containsCANbus,SPIbus,PWM,serialportandetc.Itcanbeconfiguredtobeused
forkindsofperipherals.
CON1isaCSIcameraconnector.
CON2isaDSIdisplayconnector.
PicturesandtablesbelowshowthespecificlayoutanddefinitionofPIN.
BPI-R1GPIOPindefine
9
CSICameraConnectorPinspecification:
theCSICameraConnectorisa40-pinFPCconnectorwhichcanconnectexternalcameramodulewithpropersignalpin
mappings.ThepindefinitionsoftheCSIinterfaceareshownasbelow.
PIN PINdefine GPIO
CON1-P01 LINEINL
CON1-P02 LINEINR
CON1-P37 HPL
CON1-P36 HPR
CON1-P07 FMINL
CON1-P09 FMINR
CON1-P04 ADC_X1
CON1-P06 ADC_X2
CON1-P08 ADC_Y1
CON1-P10 ADC_Y2
CON1-P13 LRADC0
CON1-P15 LRADC1
CON1-P33 RESET#
CON1-P17 CSI0-D0 PE4
BPI-R1GPIOPindefine
10
