GP68 to Keypad

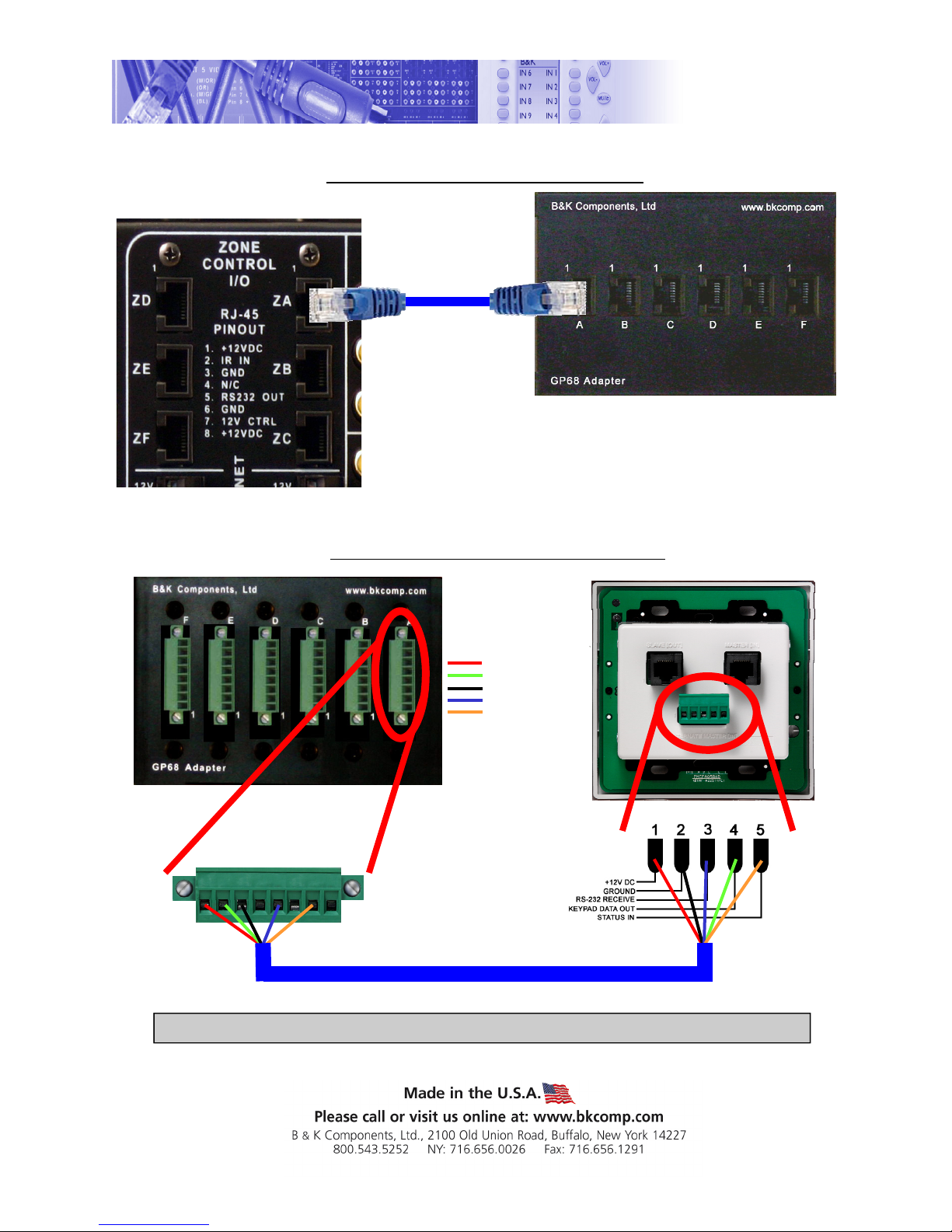

Connections
CT Receiver to Front Panel of GP68
Back Panel of GP68 to CK2.2 Keypad
Straight CAT-5 cable
(T-568B Recommended)
For use of up to 50 feet of CAT-5 cable, the GP68 is a passive device and does not need to be powered.
Back Panel of CT
1
+12V DC
GROUND
RS-232 RECEIVE
DATA
STATUS (12V CTRL)
