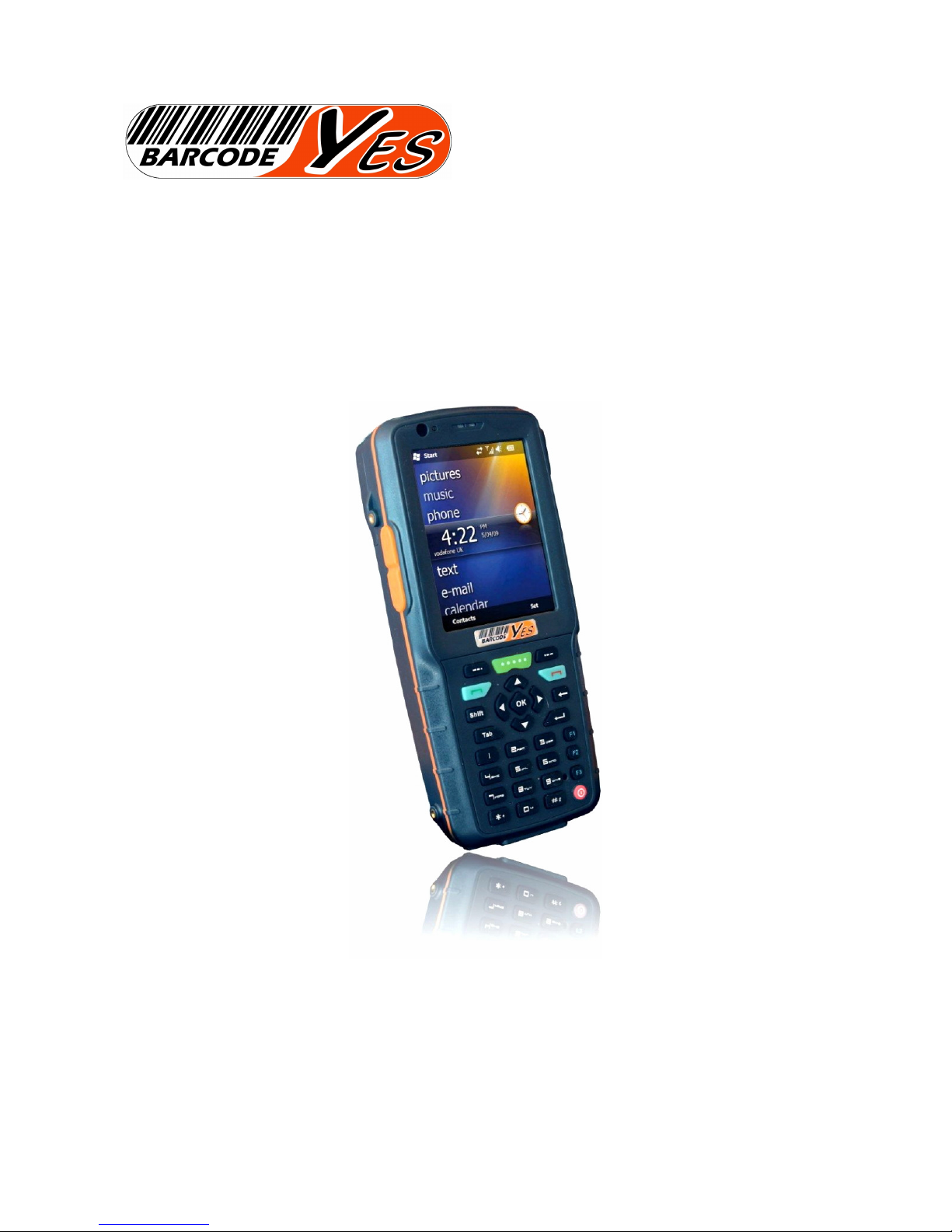

Rugged Smartphone & PDA
Quick Guide
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
P
D490
Include the following technologies
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
Thank you for purchasing a
P
D490
PD-490 is a powerful tool integrating computing power thanks to the remarkable
CPU and a huge memor , the latest communication technologies and the abilit to
read bar codes b the built in scanner.
Can be used as, PDA, Smartphone, GPS, Camera; it is a real pocket office to sta
connected an where via the fast 802.11g WiFi, Bluetooth or the Phone 4band
GSM / GPRS / EDGE / HSDPA
Ver strong, industrial grade IP54 and resistant to 1.8 m. falls, provides long
operating time b the 4500 mAh high capacit batter .
EIA PD-490 is certainl the most complete industrial PDA Smartphone at the
moment, designed for professional and high-level business.
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
Specifications:
Mobile 6.1/6.5
PU Marvell PXA310 806MHz
Flash
ROM 512 MB
RAM 256 MB
Memory
Extend
Slot 2 X Micro SD 16G (SDH ) up to 32 GB
Motherboard
Display 3.5” TFT L D (Transflective screen VGA) 480 x 640
Phone / Data GSM Quad-band 850/900/1800/1900MHz, GPRS, EDGE/W DMA 850/1900/2100MHz
HSDPA 3.6Mbps
GPS YES Ublox The 5th Generation
Bluetooth Bluetooth SIG version 2.0 compliant; Supported profiles: headset, hands-free, object push,
serial port, dial-up network
WiFi WiFi (802.11 b/g)
External Interface USB HOST/RS232
Protection class IP54
Drop resistance level 1.8m
amera 5.0 Mega MOS
amera Function
Video Support still image and video capture
Front
Keypad
Side
Mini-USB
connector USB2.0 connection
SIM card
slot Yes
PSAM card
slot Opzional( ISO 7816 lass A,B )
TF card slot Yes
power jack Yes
Interface
Audio Jack Yes
Type rechargeable Li-ion battery 4500mAh
Standby
Time Up to 500hours
alls Time Up to 6hours
Battery
harging
Time 4 hours
Dimension 182*82*36mm
Physical
haracteristics Weight >410g
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
Front:
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
Volume -
Volume+
all End all
Scan Key
amera
Key
OEM Key
USB
Reset
On / Off
Power
Audio
Phone
Speaker
harge
L
ed
Function
Keys
Barcode reader
Mic
Back:
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
Stylus
amera
Flash
Hand
strap
Hand
strap
Battery
cover
RFID
(optional)
Speaker
over
Lock
Components (batter slot):
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
PSAM 1
(optional)
PSAM 2
(optional)
MicroSD
2
(16 GB)
MicroSD
1
(16 GB)
SIM
Battery
pads
Battery
pads
Startup :
1) the batter of our PD490 ma be empt , so the PDA needs to be charged
for at least 6 hours before ou can start using.
2) Turn on our PDA with the power button (red) and wait for the first
operating s stem loading. This ma take several minutes.
3) At the end of loading, the s stem will prompt ou to calibrate the touch
screen, this is done b pressing the st lus on targets center that appear
alternatel to the 4 sides of the screen.
4) After calibration ou will be requested to initialize the clock / calendar, at
the end of this operation the PDA is read to work.
5) If ou want to connect then PDA to our computer, ou must install Active
S nc or Windows Mobile Device Center depending on whether ou use
Windows XP or Windows 7 (Vista). Both programs are provided in the support
CD.
6) For the use of all programs please refer to the online help or the Windows
Mobile PDA introduction that ou will find on board in the operating s stem.
Install SIM / Micro SD Card :
To use the PDA as a telephone ou must install a SIM card. The connector is
on the back under the batter slot.
To access the SIM connector, pull out the st lus, open the batter cover and
remove the batter .
The micro SD card connector is located under the batter as well.
After installing the card, close the compartment b inserting the batter and
pushing the cover until it hooked on the lateral
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
Reset :
There are several reset levels to be used depending on the severit of the
block that caused the need, or simpl to return the product to the factor
default.
1) For first reset level push the st lus into the reset hole (button next to "3")
under which it is located the button. Press for a while with the st lus, the PDA
will restart the application that resulted in ending the blockade, but without
removing data or installed programs.
2) To return the PDA to factor conditions ou use the "Master Clear" which is
located in the "Settings> S stem" folder and follow the instructions of the
program.
3) There is another wa to bring the PDA to factor settings when the s stem
OS is frozen. This method called "Hard Reset" is done b holding down a
long time and simultaneousl the two buttons "volume + / - " on the left side
+ Power (on/off) an pressing the reset (inside the hole).
The PDA will ask if ou want to switch off, pressing the "YES" and hold the 3
ke s above it proceed to the "Hard Reset".
The restart will take a few minutes and the initialization procedure previousl
described will be needed again.
WARNING: The reset procedure described in section 2 and 3 involve all data
loss (Pictures, Video, music, documents, etc ...) and the user installed
programs, while the operating s stem will be completel
restored.
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
In the box :
PDA
PD-490_QG_EN_2012 © opyright BAR ODEYES 2011-2012
