Baton PIR-10T Manuale operativo
Owner's Operating Manual
PIR-10T
20200408

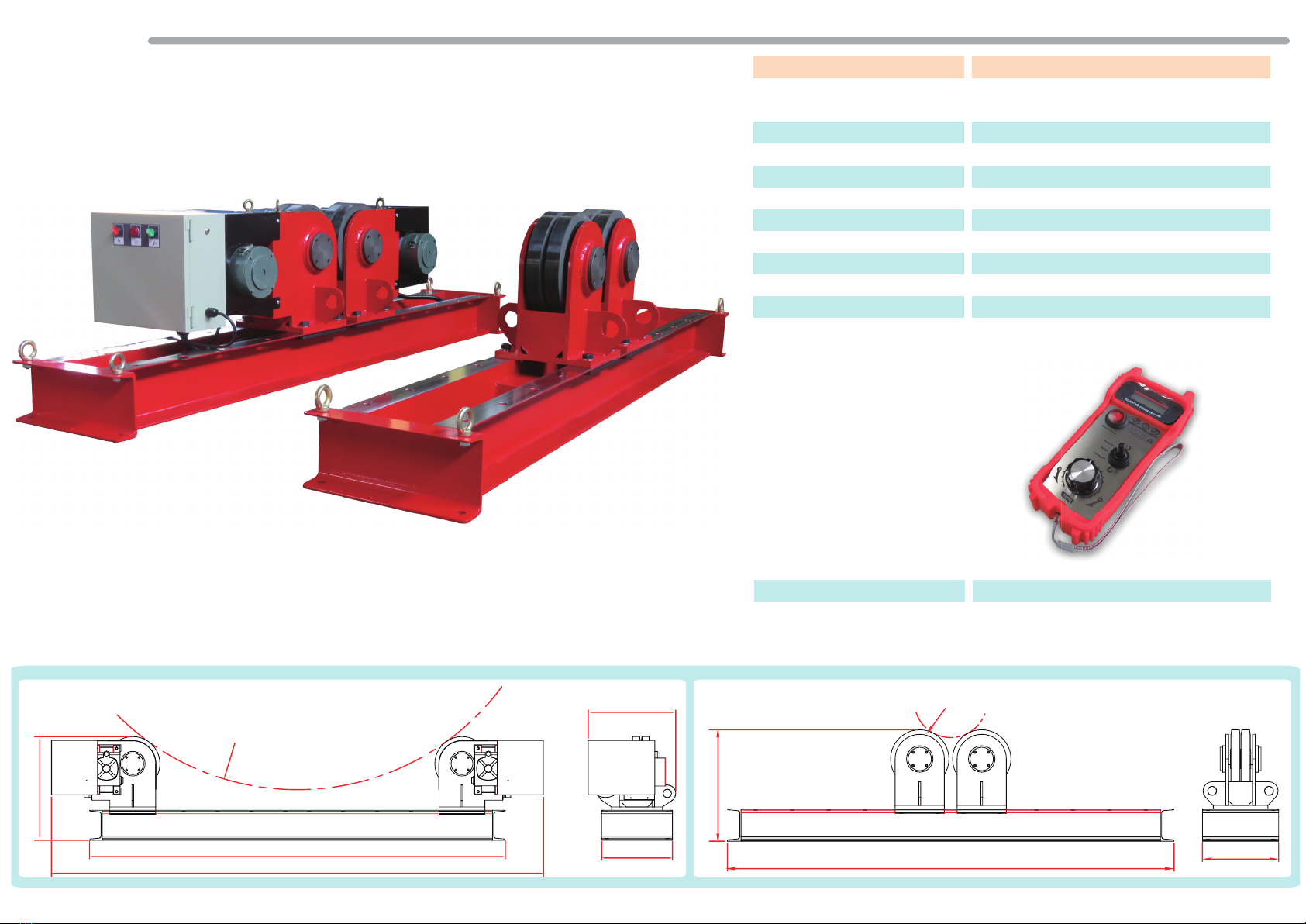

Chapter 1: Function
1.1 Function page1
Specification
Power
Load (W)
Workpiece Dia.
Roll speed
Roll size
Roller covering material
Driver motor
Skew Torque
Start control
Remote control
Wireless remote control
Welder start signal
PIR-10T
V1 : AC220V / 10A / 50;60Hz / 3Ø
V2 : AC380V / 6A / 50Hz / 3Ø
10,000Kg.
400 -3,000mm.
120 - 1,200 mm/min
D320mm x W100mm
Wear resistant PU (Polyurethane)
AC1/2HP * 2pcs
70 Kg.m
Pedal switch ( Cable 8M length )
Hand box ( Cable 8M length )
Forward/Stop/Reverse, Speed Adj.
2T / 2 Cycle
Ø3000
2450
2899
611
418
516
Ø400
2450 418
611
UNIT:mm
Chapter 2:Installation
2-1 Power Installation
AC 220V / 60Hz / 15A /1Ø
page2
2-2 Installation
remote control
foot switch
page 3
weld arc power source
Chapter 3:Operation
3-1 Inch
Roll and welder on
Roll and welder off
Power switch to on
Switch to inch mode
or
Rotate speed (RPMȑ
or
page 4
Turn on the welder switch
Switch to CW or CCW Press to start
Start foot switch on
Let go of the start
Start foot switch off
3-2 Hold page 5
Roll and welder onRoll and welder off
Power switch to on
Switch to hold mode
or
Rotate speed (RPMȑ
Turn on the welder switch
Switch to CW or CCW Press to start
Start foot switch on
Start foot switch off

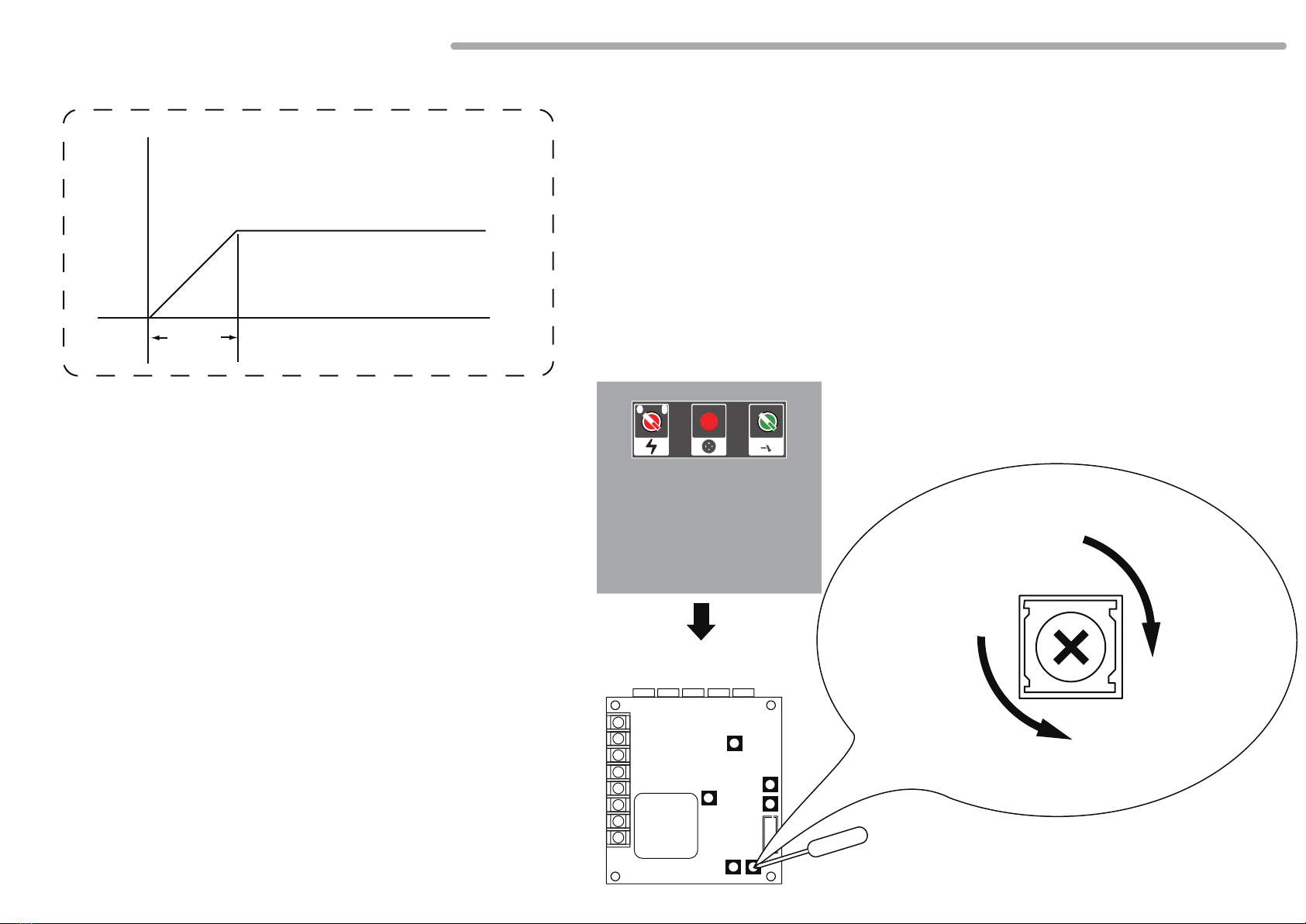

3-4 Table start and accelerate time to adjust
Open the control panel
DC motor driver
RPM
ACCEL
t(sec)
ACCDEC
CL
IR
MAX
MIN
ACCEL
Accelerate time to increase
Accelerate time to reduce
page 7
