Batribike Diamond Manuale utente

Owner

Manual

LCD Range

Diamond

Quartz

Granite

Diamond

Granite

Quartz

MODEL:-

SERIAL NUMBER:-

PURCHASE DATE:-

DAY MONTH YEAR

IMPORTANT PLEASE READ THIS MANUAL FULLY

PRIOR TO ASSEMBLY AND USE

For your safety and to ensure a long and trouble free life of your Batribike

bicycle, check the operation of brakes, lights, bell and gears,

and check tyre pressures are correct.

Also check all fasteners, including quick release mechanisms,

before every ride.

DEALERSTAMP

Thank you for purchasing a BATRIBIKE Electric Bicycle

With care and correct usage your bicycle

will give many years of service.

Important

PLEASE CHARGE THE BATTERY

BEFORE FIRST USING THE BICYCLE

Even though the battery indicator will show charge this cannot be

relied upon until the battery has had the initial full charge.

PACKAGE CONTENTS

1 ELECTRIC BICYCLE

1 BATTERY

1 BATTERY CHARGER with UK Mains Lead

1 MANUAL

Contents

Parts Identification ............................................ PAGE 4

Battery Charging ............................................... PAGE 6

Using the Power Assistance ............................. PAGE 8

Cycle Computer Functions ............................... PAGE 16

Standard Bicycle Functions .............................. PAGE 18

Maintenance Schedule ..................................... PAGE 23

Warranty ........................................................... PAGE 26

Specifications ................................................... PAGE 28

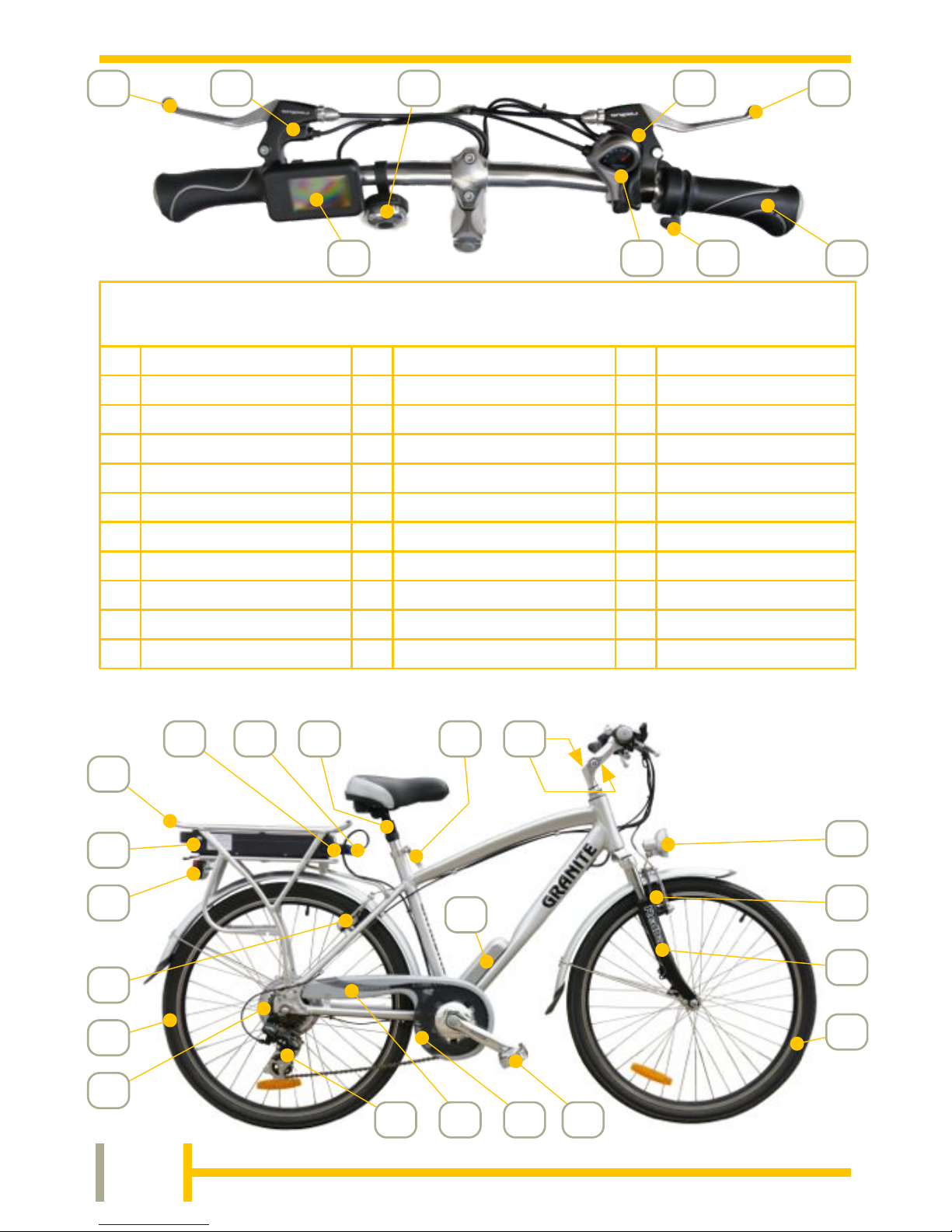

LCD

Twist Grip Throttle *

Rear Brake Lever

Front Brake Lever

Motor Cutout Switch

Gear Selector

Bell

Handlebar Adjustment

Handlebar Folding Lock

Frame Folding Clamp

Suspension Forks

Battery

Battery Power Plug

Charging Socket

Rear Hub Motor

Controller Box

Luggage Rack

7 Speed Shimano Gears

Front Tyre 26 x 1.75

Front Tyre 20 x 2.125

Rear Tyre 26 x 1.75

Rear Tyre 20 x 2.125

Chain Guard

Seat Height Adjuster

Suspension Seat Post

Front LED Light

Rear LED Light

Folding Pedals

Non-Folding Pedals

Rear Vee Brake

Front Vee Brake

Chainwheel

Thumb Throttle *

PARTS IDENTIFICATION

We continually strive to ensure that we provide you with the best possible products, therefore

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

*Only one type of throttle is fitted, either twist-grip or thumb.

Luggage Straps

NOT SUPPLIED

Detail view of

Battery Connections

WARNING

Ensure that charging socket

cover is CLOSED before

removing or inserting the battery.

Failure to do so will result in

breakage of the cover.

USE ONLY THE CHARGER SUPPLIED

Power

Charge

CHARGING THE BATTERY

The battery can be charged on or off the bike.

To remove the battery, unplug the battery from the

bike. (Blue Plug).

(To remove the Blue Plug slide the silver locking

tab backwards and rotate the plug anti-clockwise,

then pull out of the socket).

then unlock with one of the two keys provided. Hold down the plastic securing

tab and slide out the battery from the rear of the carrier. Insertion is the reverse

of the above procedure.

The charging lead is plugged into the charging socket located behind the slide

cover on the battery.

Unplug the

battery from

the bike

(Blue Plug)

before

charging,

then plug in

the charging lead

IMPORTANT

It is important to plug the charger into the

battery before switching on at the mains.

Similarly, switch off at the mains before

unplugging the charger from the battery.

Securing Tab

If your BATRIBIKE is not in use for an extended period it is

imperative that you charge the battery before storage and then

charge the battery once a month to prevent deterioration.

When not in use, store the battery in a warm, dry place.

If Lithium batteries are left flat for an

extended period then they may no

longer be functional and a new

replacement will be required.

With correct User Care as outlined above your battery should have a lifetime of

around 1000 charges.

FAILURE TO FOLLOW

THIS PROCEDURE WILL

INVALIDATE YOUR

BATTERY WARRANTY

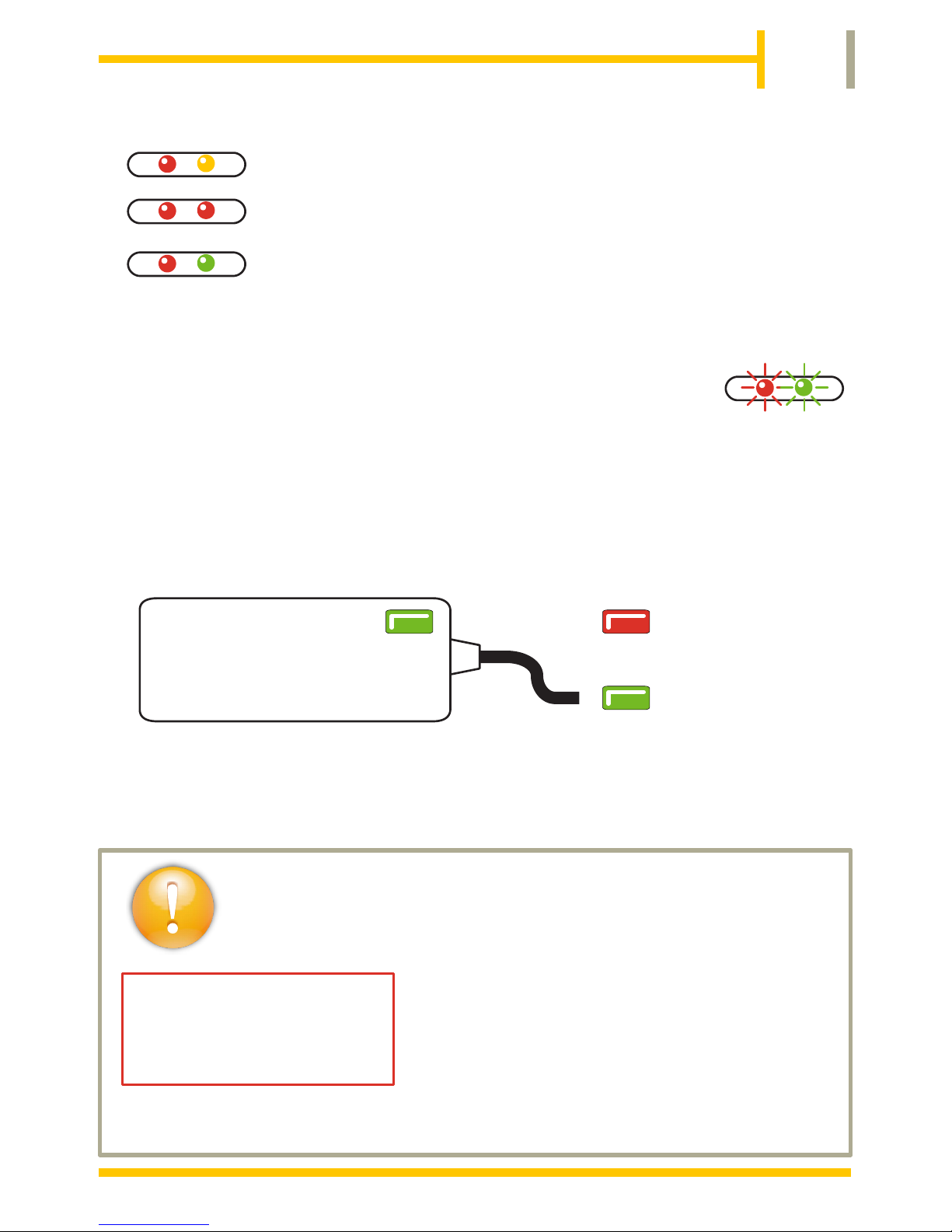

Plug the charger into the mains socket and switch on at the wall outlet.

The lights on the charger will illuminate after a few seconds.

The RED light indicates that mains power is applied. The

other light will show ORANGE/RED whilst charging is taking

place. This may take up to six hours for a flat battery.

When the battery is charged the ORANGE/RED light will

change to GREEN.

Once charged, switch off at the wall outlet and unplug. Unplug the charging lead

from the battery and slide the cover back over the charging socket.

NOTE: If the battery is charged and the charger left switched

on for an extended period the charger will enter a low power

state, indictaed by both the RED and ORANGE/GREEN LEDs

flashing slowly. Switch off and unplug as above.

Alternative Charger Type

An alternative type of charger may be supplied with one light instead of the two

described above. In this case the light is RED when Charging, and GREEN

when the charge cycle is complete.

The battery does not have to be completely discharged before it is recharged.

The Lithium battery has no "memory" and therefore can be charged at any time.

It is perfectly acceptable to recharge the battery after a short ride so that the

battery is fully charged before the next ride.

Power

Charge

Power

Charge

Power

Charge

CHARGE

CHARGING IN

PROGRESS

CHARGE

COMPLETE

Power

Charge

CHARGING

CHARGED

Your BATRIBIKE Electric

Bicycle can be used as a normal

pedal cycle by simply not

switching on the battery.

(or using in Assist

Level 0 - see below)

Usage

Buttons

Display Information Areas

POWER

DOWN

ASSISTANCE

LEVEL

BATTERY STATUS

CYCLE

COMPUTER

SPEED

Display Information Areas

To use under electric power, plug in the

battery with the blue plug located on the

end of the battery beneath the rear of the

seat. Then press the POWER button on the

handlebar LCD display.

Control Buttons

By means of the three buttons, UP, POWER and

DOWN, on the handlebar mounted display unit,

the various functions of the power controller and

Cycle Computer can be utilised.

See the following sections for details.

To turn off the LCD and the power to the

bike, press and hold the POWER button for

2 seconds.

If the power is left on for an extended period

and the bike is not used, then the power will

automatically be turned off.

Switching Off

Switching On

ELECTRIC BICYCLE FUNCTIONS

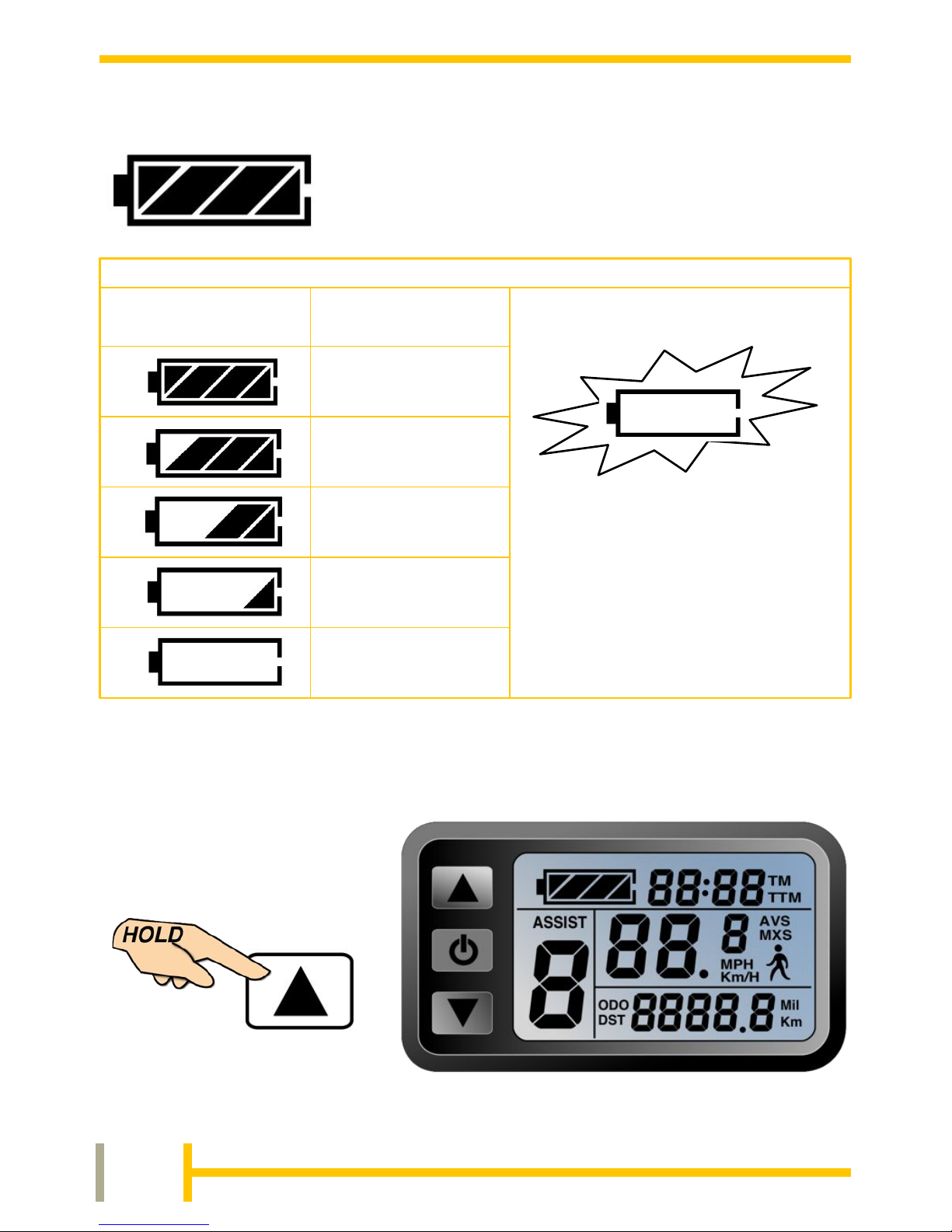

The LCD has a backlight

for night time use. This is

switched on by pressing

and holding the UP button.

To turn the backlight off,

again press and hold the

UP button.

The LCD shows the charge remaining in the

battery in the upper left of the display. The

indicators will gradually go out as the battery

power is used up. Refer to the table below

for details.

Battery Meter

Display Backlighting - Night Mode

70 - 100%

SYMBOL

DISPLAYED

CHARGE

REMAINING

BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY

BATTERY IS

EXHAUSTED AND

SHOULD BE

RECHARGED AS

SOON AS POSSIBLE

50 - 70%

30 - 50%

15 - 30%

0 - 15%

FLASHING
