Baumatic BDI450SS Manuale utente

wha

BDI450SS

60 cm drawer-line

dishwasher

USER MANUAL FOR YOUR BAUMATIC

BDI450SS

60 cm drawer-line dishwasher

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 18/03/13

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 – 11

Product and aperture dimensions 8

Product specifications 8 - 9

Electricaldetails 9

Descriptionoftheappliance 10

Controlpanel 11

Usingyourdishwasher 11 -23

Before first use 11

Filling with dishwasher salt 11-12

Fillingwithrinseaid 13

Settingtherinseaidlevel 14

Filling with dishwasher detergent 14 -15

Concentrateddetergent 15

Detergenttablets 15

Loadingthebasket 16-17

Thecutlerybasket 18

Loadingdishesandcutlery 19-20

Programtable 20-21

Setting a wash program 21 -22

Changingthewashprogram 22

Addingmoredishes 22-23

Settingadelaystart 23

At the end of a wash cycle 23

Saving energy using your dishwasher 24

Cleaning and maintenance 25 -28

Thefiltersystem 25

Cleaningthefilters 26

Cleaningthesprayarm 26-27

Cleaning the control panel 27

Cleaningthedoor 27

Cleaning the door gasket 27

Not using the appliance for prolonged periods? 27 -28

Reconnecting the appliance after a period of disuse 28

Installation 28 -37

Installing the dishwasher into a kitchen cabinet 29 -30

Positioningtheappliance 30

Installing the aesthetic panel 30 -32

Placingthedishwasher 33-34

Connecting to the mains water supply 34

Wateroutlet 35-36

Powersupply 36-37

Before first use 37

Troubleshooting 38 -40

Errorcodes 40

Baumaticconsumables 41

Technicaldata 42

Contact details 43

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorised service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your dishwasher.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe external surface of the appliance may become hot whilst

your dishwasher is in use.

oIt is possible for small animals to chew either mains cables or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, you should follow the

steps listed in the “Before first use” section of this

manual.

oCare should be taken not to trap the power supply cable

underneath the appliance whilst installing it.

oNo attempt should be made to alter or modify the specifications

of this appliance.

In daily use

oThis appliance is only designed to wash normal domestic wash

loads. If you use your dishwasher in any other way or it is

incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThe detergents, rinse aid and salt that you place in this appliance

should be suitable for automatic dishwashers. With regards to

dosage levels, the detergent manufacturer’s recommendations

should be followed.

oSharp knives or ones with long blades are a potential safety

hazard when placed in an upright position in the cutlery basket.

We would recommend that these items are placed horizontally in

the main basket.

oYou should not wash any items that have come into contact

with corrosive, acidic or alkaline chemicals, paint, petrol, iron or

steel debris.

oYou should not open the door whilst the appliance is set on a

wash program. Depending on which stage that the wash

program is at, hot water could escape the machine.

oYou should not leave the door of the appliance open, unless

you are loading or unloading the dishwasher.

oYou should not stand or sit on the door when it is open.

Child Safety

oYour dishwasher should only be used by adults. You should not

allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

dishwasher if the door is left open. Therefore please check the

inside of the appliance before setting it on a wash cycle.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of children’s reach in a safe

place.

oSome water will remain inside the dishwasher when it has

completed a wash cycle. This water is not suitable for drinking

and may contain residues from the detergents that are used in

the appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23 dated 19/02/1973 Low Voltage Directive and subsequent

modifications.

-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and

subsequent modifications.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your dishwasher is

located on the right hand side of the drop down door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Specifications

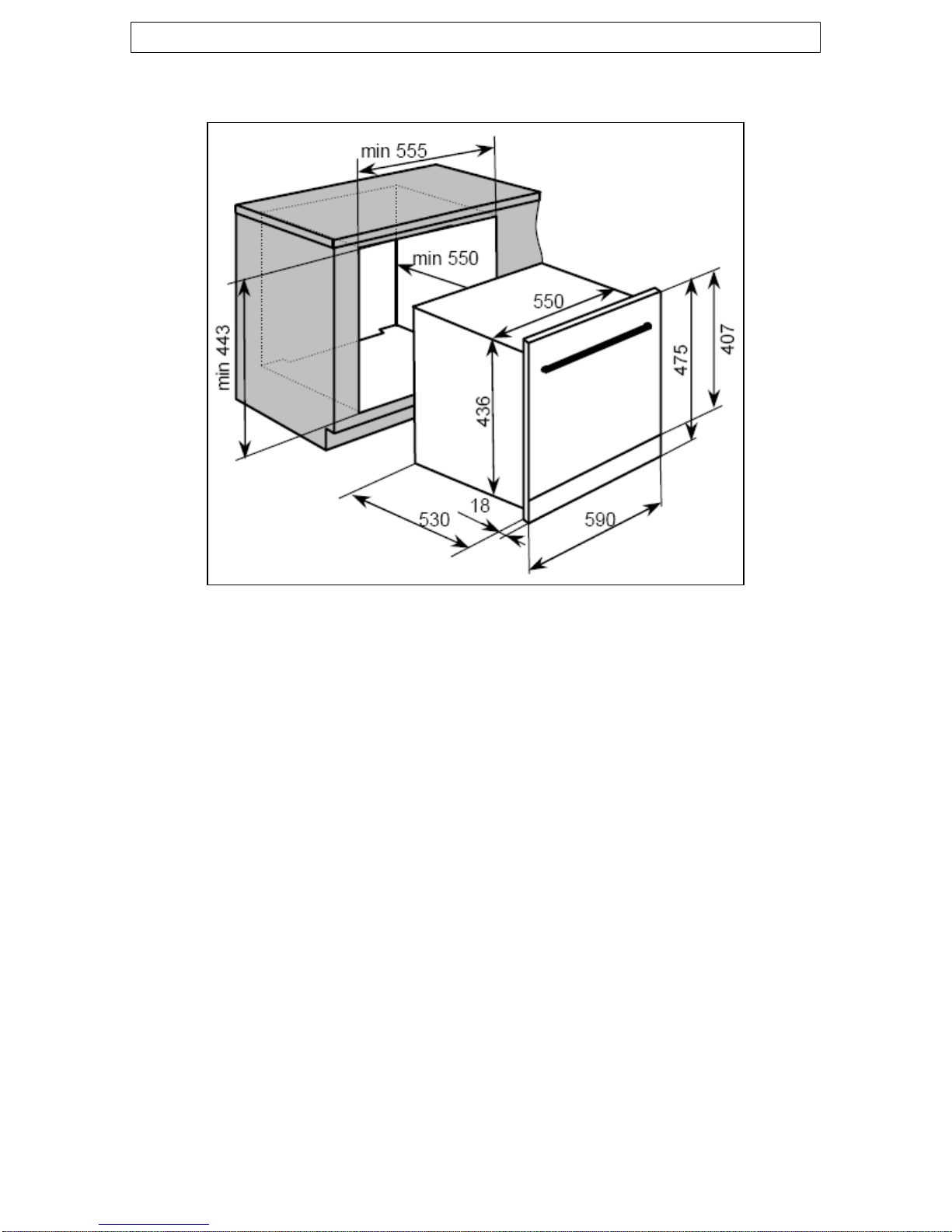

Product and aperture dimensions

Product dimensions Aperture dimensions*

Height: 475 mm Height: 443 mm

Width: 590 mm Width: 555 mm

Depth: 530 mm Depth: 550 mm

* Please refer to the installation instructions for more detailed

information on the aperture required.

Product specifications

o6 Place settings

6 functions: Normal

Intensive

Economy

Rapid

Glass

1 hour

o6 Wash temperatures: 40°C, 45°C, 55°C, 60°C, 65°C, 70°C

oDelay start

oAnti-leak device

oAnti-flood device

oSelf-cleaning stainless steel micro-filter

oConcealed heating element

oSalt light indicator

oRinse aid light indicator

oResidual drying

oLow water consumption (7 litres – Economy program)

oNoise level (53 dB)

Energy efficiency details

Energy efficiency class: A+

Washing performance class: A

Drying performance class: A

Power consumption

Off mode: 0.00 W

Left on mode: 0.40 W

Electrical details

Rated voltage: 220 - 240 Vac, 50 Hz

Maximum rated input: 1.28 kW

Supply connection: 3 A (double pole switched fused outlet

with 3 mm contact gap)

Description of the appliance

Dishwasher features

1) Salt container

2) Detergent dispenser

3) Cutlery basket

4) Filter assembly

5) Rinse aid dispenser

6) Spray arms

7) Cup shelf

8) Basket

9) Drain pipe connector

10) Inlet pipe connector
