Baumatic BR508 Manuale utente

BR508

Built under

freezer

USER MANUAL FOR YOUR BAUMATIC

BR508 Built under

freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference. for

you or any person not familiar with the operation of the appliance.

DD 08/12/11

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications of your freezer 7 – 8

Dimensions 7

Descriptionoftheappliance 8

Using your Baumatic freezer 9 -11

Beforeswitchingon 9

Duringfirstuse 9

Switching on the appliance and setting the thermostat 10

ControlPanel 11

The freezer compartment 11-14

Freezing fresh food 12

Tips on freezing 12-13

Makingicecubes 13

Freezing with fast freeze 13-14

Saving energy when using your freezer 14-15

Cleaning and maintenance 15-17

Defrosting the freezer compartment 16-17

Installation 17-25

Electrical connection 17-18

Positioning 18

Reversing the door of your appliance 18-20

Aperturedimensions 21

Adjusting the plinth/kickboard 21-22

Fitting the furniture door to the appliance 22-26

Troubleshooting 26-27

Baumatic consumables 28

Technicaldata 29

Contactdetails 30

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for freezing and storing frozen

food. If it is used for any other purpose or it is not

used correctly, then Baumatic Ltd. will accept no

liability for any damage that might be caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your supplier.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers and electric ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Customer Care Department.

Specifications of your freezer

Dimensions of appliance

Height: 818 - 868 mm

Width: 596 mm

Depth: 550 mm

Dimensions of aperture*

Height: 820 – 870 mm

Width: 600 mm

Depth: 560 mm (min)

oFreezer star rating ****

oManual defrost

oAdjustable thermostat

oLED controls

oTemperature rise warning indicator

oFast freeze switch

oFast freeze indicator light

o3 wire baskets

oReversible door

oDoor on door fittings

oAdjustable feet

Cubic capacities

oGross capacity: 108 litres

oNet capacity: 91 litres

Energy efficiency class

Energy class: A

* Please refer to the installation instructions for more specific

information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the inside of the fridge. You will need to open the door of your

appliance to be able to find it.

The rating plate will indicate the ambient temperature range that your

appliance will function correctly within.

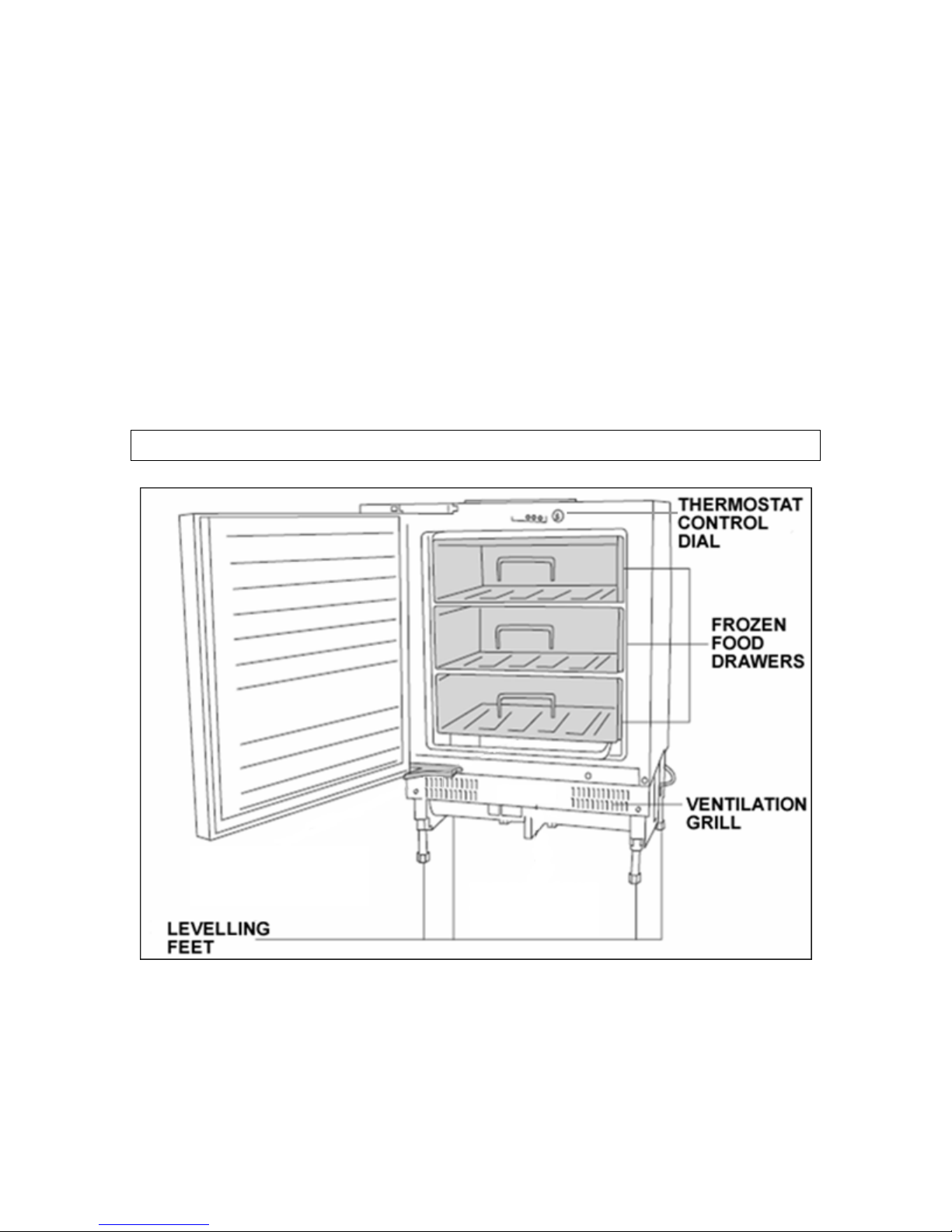

Description of the appliance

Using your Baumatic freezer

Before switching on

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oAfter delivery, wait for eight hours before connecting the

appliance to your mains supply. This will allow any refrigerant

gasses that may have been disturbed during the transportation

process to settle.

oThe outside of the appliance and the removable accessories

contained within it, should be cleaned with a solution of liquid

detergent and water.

oThe interior of the appliance should be cleaned

with a solution of sodium bicarbonate dissolved in

lukewarm water. The interior and accessories

should be thoroughly dried, after the cleaning

process has been completed.

oThere can be an odour when you first switch on the appliance. It

will lessen as the appliance starts to cool.

During first use

oYou should set the thermostat dial to its maximum setting for 24

hours after switching on the appliance for the first time.

oWhen you first switch on the appliance, the compressor will run

continuously for approximately 24 hours or until the freezer

reaches a cool enough temperature.

oDuring this period of time, you should try not to open the door

frequently or place a large amount of food within the appliance.

oYou should then adjust the thermostat dial down to its normal

operating position.

oIf the unit is switched off or unplugged, you must allow at least 5

minutes before restarting the appliance on the thermostat or

connecting it to your mains supply.

Switching on the appliance and setting the thermostat

You switch on your appliance by connecting it to your mains supply

and setting the thermostat. The thermostat control knob is located at

the top of the appliance.

oThe thermostat automatically regulates the temperature inside

the freezer, depending on what number you have turned the

thermostat control knob to:-

oPosition <0> means that the appliance will not cool. However

the light will still function.

oPosition <1> will give you a higher temperature inside the

freezer.

oPosition <4> will give you a lower temperature inside the

freezer.

oIdeally the thermostat should be set to a position between <2>

to <3>.

oThe freezer can cool down to -18 degrees centigrade and lower.

oIMPORTANT: The ambient temperature of the room,

the temperature of food and the amount of food that

has been placed in the appliance and how often the door

is opened, will all affect the temperature being

maintained by the appliance.

oOn the maximum setting (position <4>), your freezer will work

harder to maintain a lower temperature and will increase the

energy usage. There is no need to run your appliance on this

setting for prolonged periods. Unless you are freezing fresh food,

you should have the thermostat set to position <2> or <3>.
