Baumatic BTM24 Istruzioni operative

BTM24

USER AND INSTALLATION

INSTRUCTIONS

Before Use

Features of the Product............1

Names of the Parts...................2

Safety Precautions...................3

Installation Environment...........5

Open the Package Carton *

Installation................................5

Usage

Instructions of the Control Panel

Functions..................................6

Usage.......................................7

Selection of the Cooking

Dishware.................................12

Cooking Tips...........................13

Maintenance * Repair

Maintenance * Repair.............14

Answers to Questions............15

After-sales Service............16

Technical Parameters.............17

Household Microwave Oven

BTM24

* Please read this manual carefully

before use

* Please retain it for future use

User’s Manual

MIN 1

MIN 10

SEC

AUTO REHEAT

MILK

FISH

CHILCKE

VEGETABLE

MEAT

AUTO MENU

WEIGHT DEFORST

G1 G2

GRILL

G1 G2

COMBINATION

POWER

LEVEL

WEIGHT

PAUSE

CANCEL

START

Contents

Baumatic

Features of the Product

The door adopts unique anti-choke structure and integrated punch forming,

and thus effectively prevents the microwave from leaking.

It is controlled by two-step interlock switch. The power will be switched off

automatically when the door is open, therefore it is much safer to use.

It is produced with antiseptic materials, and can suppress the reproduction

of the bacteria effectively.

The special function of the microwave oven can eliminate the germ in the

food quickly and completely.

High-temperature roast

It has two-step roast function, and can roast food quickly and high-efficiently.

It has two-step “microwave + roast” combined roast function, and can

produce perfect roast food.

The door shell and operation panel frame shell adopt imported high-quality

stainless steel materials, and will never get rust and change color. It has

modern appearance and superior quality, and thus becomes the best

choice for the household microwave oven.

Safe to use

Shining appearance

Healthy and germicidal

MIN 1

MIN 10

SEC

AUTO REHEAT

MILK

FISH

CHILCKE

VEGETABLE

MEAT

AUTO MENU

WEIGHT DEFORST

G1 G2

GRILL

G1 G2

COMBINATION

POWER

LEVEL

WEIGHT

PAUSE

CANCEL

START

glass rotary

tray

shell

operation

board

tray support

diagrammtic sketch for

the accessory installation

baking

mesh

cavity

door hook

door seal

door

mesh board

(heating pipe on board)

useful volume of the

cavity is 16 l

cavity

Names of the Parts

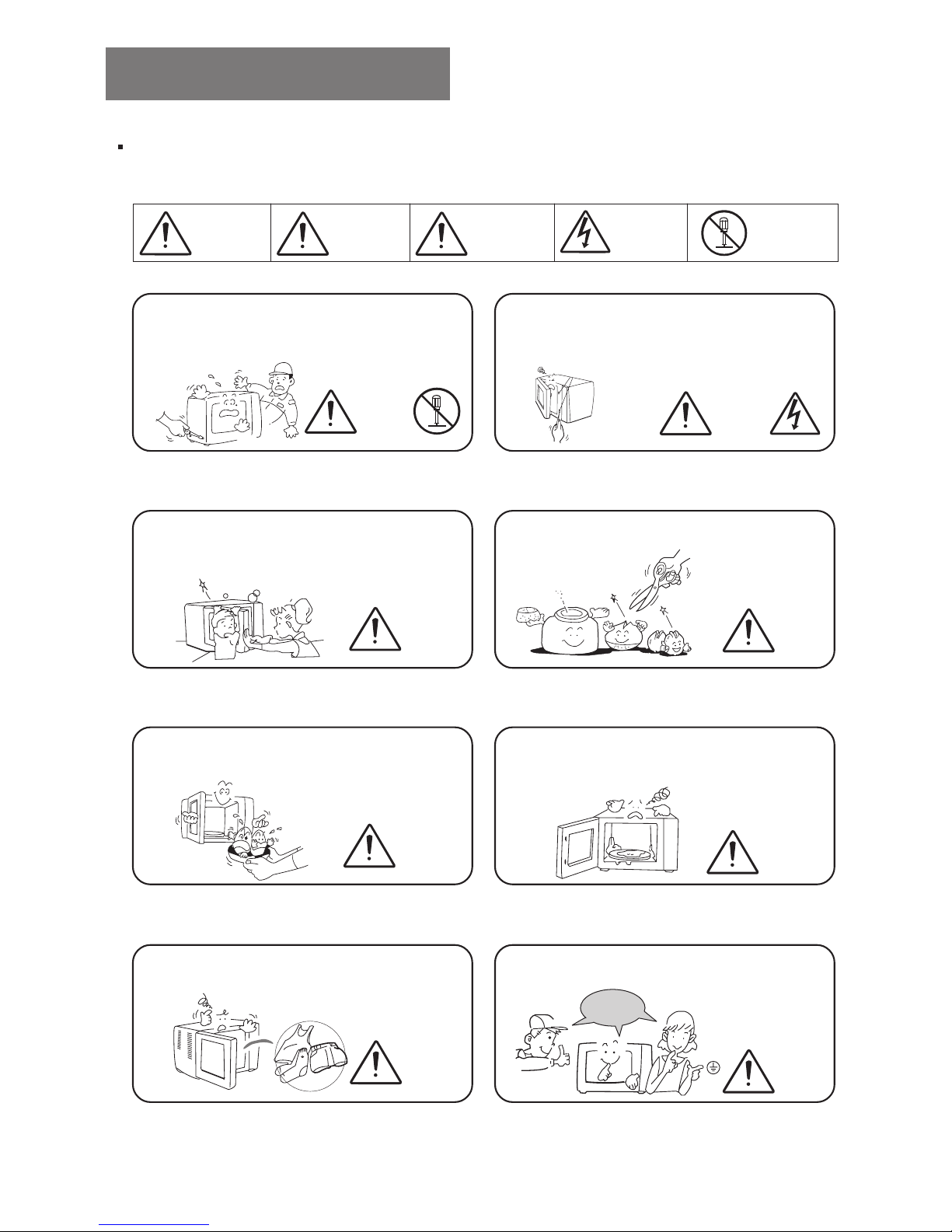

Please read the safety precautions carefully to guarantee safe and convenient

use of Baumatic microwave oven.

Danger Warning

No one except the professional technicians

are permitted to disassemble the microwave

oven, or it may result in electric shock.

Danger

Attention Electric

shock

hazard

Do not use metal rod to enter the interlock

switch hole on the front side of the cavity. It

may cause hazard.

interlock switch hole

dismantle

Danger

Do not use the microwave oven for purposes

other than for cooking food

This appliance must be earthed

Do not cook eggs in their shells to avoid

bursting

Remember to clear away excess grease

from the inside the cavity. Otherwise it may

cause smoke or fire during heating.

warning

Do not apply excess force to the door. It

may cause distortion of the door and result

in microwave leakage.

Do not use sealed containers. For those

foods with skin, please prick holes on the

skin.

warning

Safety Precautions

warning warning

safe and

reliable

1. If the door seal or the door body is damaged, please do not use the

appliance before it is repaired by professional technicians.

2. Before use, please check if the cooking containers are suitable for

microwave oven.

3. If you find smoke in the oven, leave the door in the closed position, and

switch off the power supply of the oven (remove the plugtop from the

supply socket).

4. We do not recommend the use of plastic, paper or other combustible

materials containers for cooking, please be sure to observe the operating

instructions for the microwave oven, in order to avoid accidents

5. When you heat liquid in the oven, please take care of the of the delayed

splashing of possible boiling liquid.

6. Do not use the microwave oven if there’s no food inside, so as to avoid

damaging the appliance by no-load running.

7. Children are not allowed to operate the microwave oven without the

instruction of adults.

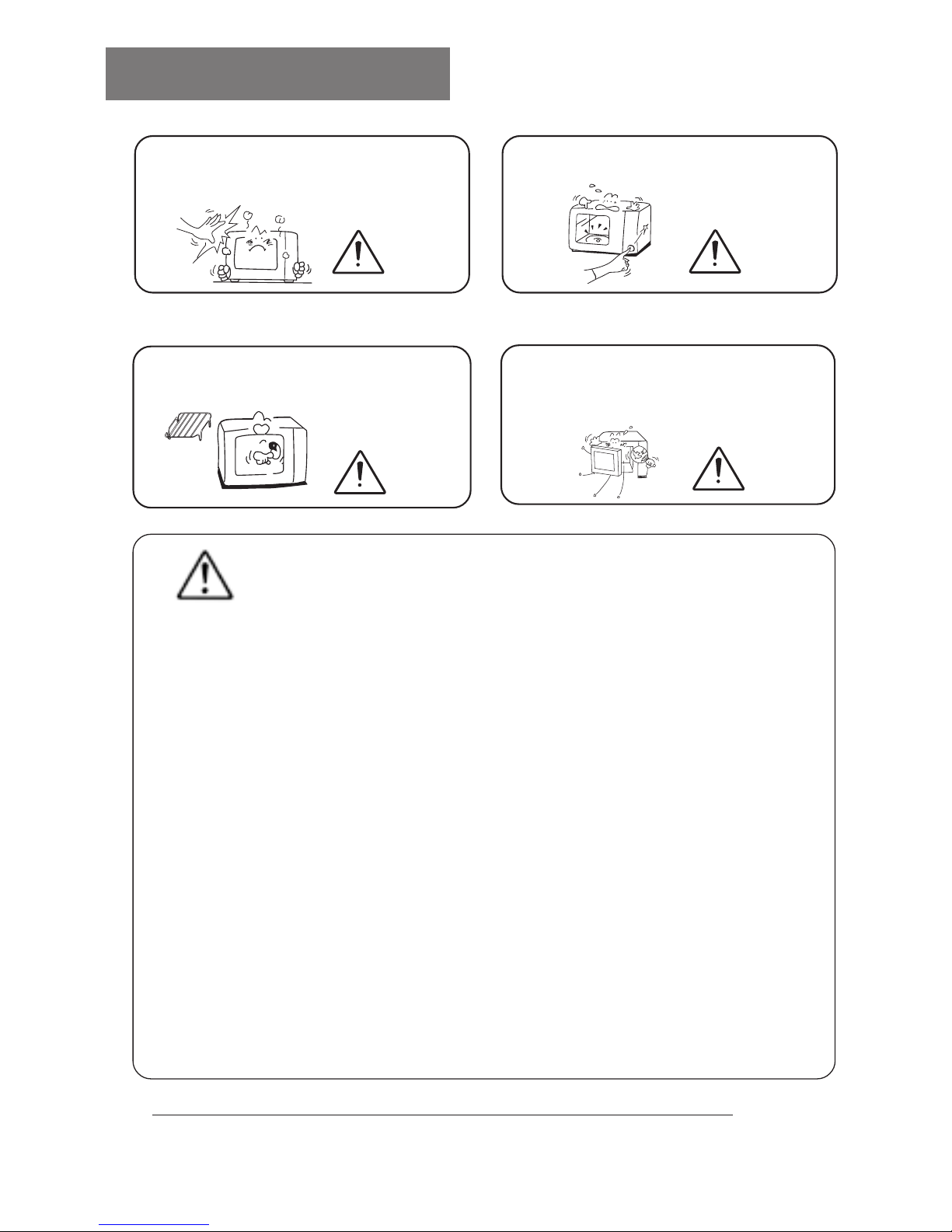

Safety Precautions

Warning

warning warning

When roasting , the face of the door and

the top of the cabinet may become hot to

touch.

Do not use it with the cavity empty. It will

damage the microwave oven.

Do not use the product for any industrial and commercial purpose.

Do not use metallic dishware to cook as it

will cause internal arcing.

Allow the cavity to cool after long cooking

processes (i.e. Roasting etc) before

starting another cook cycle.

warning warning

Installation Environment

glass rotary tray

rotary tray support

Open the

carton

user’s

manual

LEVEL

10•

10MIN

1•

1MIN

10ˆº

10SEC

¶ﬂ•›¨¨

… ¨¨¯£˜

¯º ˚ †¸

¯º ¨

¯º ª

¯º ˙

¶ﬂ¡¥

AUTOMENU

· ‰ ¶‡(kg)

WEIGHTDEFORST

G1 G2

`‰…¶ ¿

G1 G2

Ø”ˇ¯º

˛¢†¤» `ƒ ˚‡˘• `¿

POWER LEVEL WEIGHT

˝£/¨¡ˇß

PAUSE/CANCEL

˘¶ﬂ

START

Open the Package Carton Installation

Ventilation space is required in installation

of the microwave oven.

Do not install the microwave oven in

environment that is humid or with high

temperature.

attention

Install

Put the microwave oven levelly at the

position you choose. Keep good

ventilation.

Select independent special socket,

with current at least 10A. Be sure to

ground it reliable.

L>15cm

LEVEL

10•

10MIN

1•

1MIN

10ˆº

10SEC

¶ﬂ•›¨¨

… ¨¨¯£˜

¯º ˚ †¸

¯º ¨

¯º ª

¯º ˙

¶ﬂ¡¥

AUTO MENU

· ‰ ¶‡(kg)

WEIGHTDEFORST

G1 G2

`‰…¶ ¿

G1 G2

Ø”ˇ¯º

˛¢†¤» `ƒ ˚‡˘• `¿

POWER LEVEL WEIGHT

˝£/¨¡ˇß

PAUSE/CANCEL

˘¶ﬂ

START

accessory box

card

guarantee

certificate

baking mesh

Functions

MIN 1

MIN 10

SEC

AUTO REHEAT

MILK

FISH

CHICKEN

VEGETABLE

BEEF

AUTO MENU

WEIGHT

DEFROST

G1-G2

GRILL

C1-C2

COMBINATION

POWER

LEVEL

WEIGHT

PAUSE

CANCEL

START

Usage

1. Push the “POWER LEVEL” button three times.

1. Cooking function

For instance

The microwave oven has five power levels,

which are able to meet your requirements for

different cooking functions.

Remarks:

1. This model uses a circulating display for power level selection i.e with each push, the

power level changes in following manner: P100-P70-P50-P30-P10, then P10-P100.

2. When the cooking time expires (the counting down time is 0:00), the buzzer will sound

four times to indicate that the cooking is finished.

3. The largest cooking time of this model is 99 minutes and 50 seconds.

To cook for 12 minutes and 30 seconds with medium power level.

mNMM mTM mRM mPM mNM

High

¡æ

POWER LEVEL

10SEC

1MIN

START

Medium-high

Medium

Medium-low

Low

LED display

3. Push the “1MIN” button twice.

4. Push the “10SEC” button three times.

5. Push the “START” button.

LED display

¡æ

10MIN

2. Push the “10MIN” button once. LED display

AUTO MENU

cooking

With the AUTO MENU cooking function, you only need

set the type and weight of the food then start the oven

to do cooking, without setting the cooking time.

Menu types:

Cook

meat

1. Push the “AUTO MENU” button four times.

LED display

¡æ

Remarks:

1. The AUTO MENU uses a circulating display, i.e.with each push, it will change in

following manner: A1-A2-A3-A4-A5-A6, then A6-A1.

2. The weight grade for one certain menu, the display is also circulating.

3. The weight grade offered by the AUTO MENU is only for reference.

4. Reference for the food with AUTO MENU cooking.

Auto

reheat

Heat

milk

^P ^Q

Cook

fish

^R ^S

Cook

chicken

Cook

vegetable

Recipe Type Weight(g) reference

NQM

ONM

OUM

PRM

QOM

RMM

^N Auto

turnover

^O Heat

milk

NMM

OMM

PMM

NMM

OMM

PMM

QMM

RMM

SMM

Cook

meat

Cook

fish

Cook

chicken

NMM

OMM

PMM

PRM

QMM

QRM

NMM

OMM

PMM

PRM

QMM

QRM

NMM

OMM

QMM

RMM

SMM

UMM

AUTO MENU

WEIGHT

START

Usage

For instance

To cook 200g mutton with AUTO

MENU function.

2. Push the “WEIGHT” button twice.

3. Push the “START” button.

LED display

Recipe Type Weight(g) reference

Cook

vegetable
