Baumatic 720 series Istruzioni operative

THE 720 SERIES

USER AND INSTALLATION

INSTRUCTIONS

For future reference please record the following information

which be found on the Rating Plate and the date of purchase

which can be found in the invoice:

Model Number…………………….

Serial Number…………………….

Date of Purchase…………………….

CONTENTS

General information Pages 3-4

Warning and safety instructions Pages 5-6

Installation instructions Pages 7-11

Timer instructions Pages 12-14

Before the first use Page 15

Operating instructions Pages 16-18

Cooking guide Pages 19-21

Cleaning and maintenance Pages 21-24

Fault finding Page 24

Technical data Page 25

Conditions of guarantee Pages 27-28

GENERAL INFORMATION

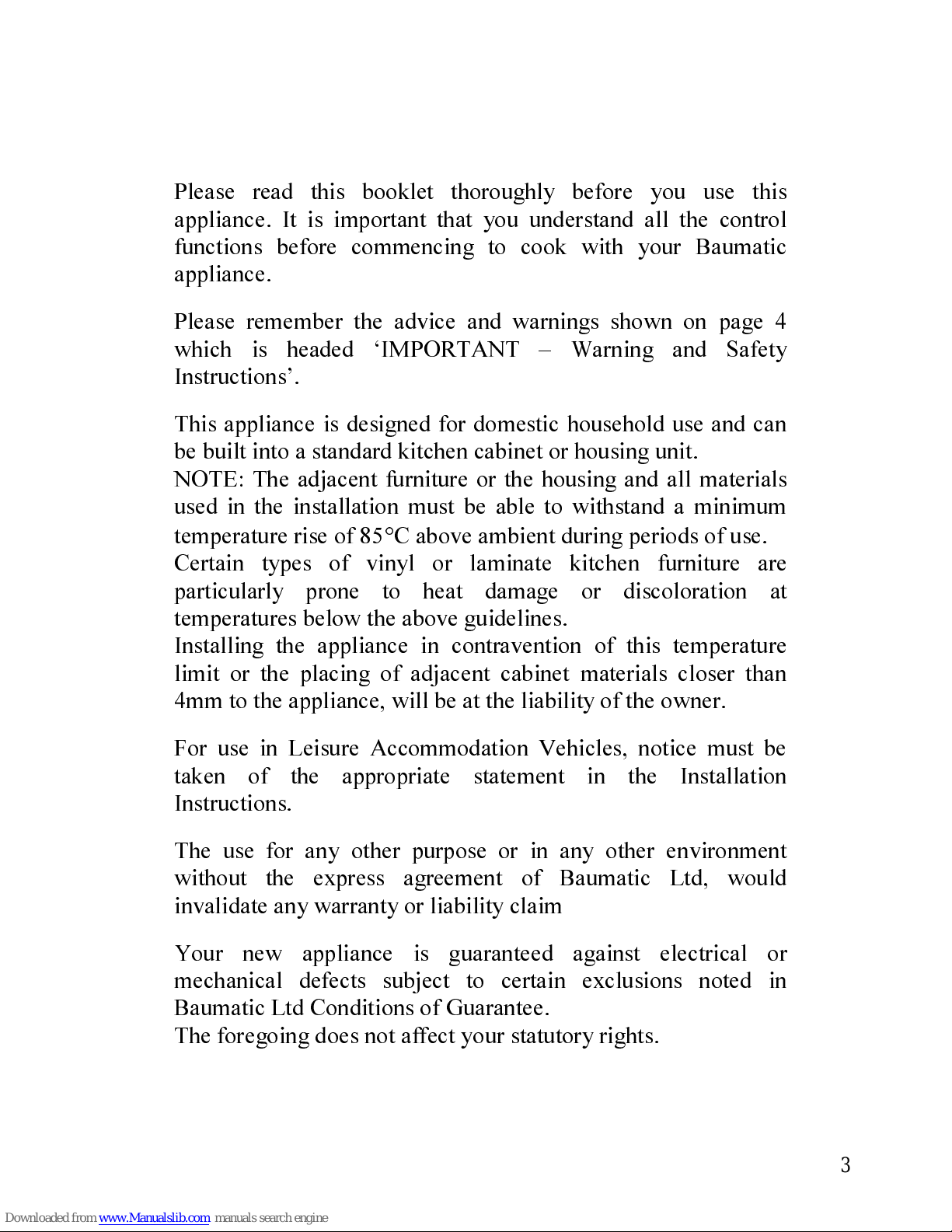

Please read this booklet thoroughly before you use this

appliance. It is important that you understand all the control

functions before commencing to cook with your Baumatic

appliance.

Please remember the advice and warnings shown on page 4

which is headed ‘IMPORTANT – Warning and Safety

Instructions’.

This appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

NOTE: The adjacent furniture or the housing and all materials

used in the installation must be able to withstand a minimum

temperature rise of 85

C above ambient during periods of use.

Certain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discoloration at

temperatures below the above guidelines.

Installing the appliance in contravention of this temperature

limit or the placing of adjacent cabinet materials closer than

4mm to the appliance, will be at the liability of the owner.

For use in Leisure Accommodation Vehicles, notice must be

taken of the appropriate statement in the Installation

Instructions.

The use for any other purpose or in any other environment

without the express agreement of Baumatic Ltd, would

invalidate any warranty or liability claim

Your new appliance is guaranteed against electrical or

mechanical defects subject to certain exclusions noted in

Baumatic Ltd Conditions of Guarantee.

The foregoing does not affect your statutory rights.

The Warranty applies to Great Britain and Northern Ireland

only.

In the event that you require any After Sales Service or advice,

please contact the Baumatic Service Department on telephone

number – 0118 933 6911.

Before using this appliance ensure that any protective

packaging or coatings have been removed. To aid the protection

of the environment, please sort the packing materials into

different types and dispose of them in accordance with the local

waste disposal laws.

Any further information on waste disposal can be obtained from

your local Environmental Agency office.

When first used, an odour may be emitted by any residual

protective finish or moisture, which will cease after a short

period of time.

This Appliance has been Constructed and Distributed in

compliance with the essential requirements of the following

EEC DIRECTIVES and EUROPEAN NORMS:-

CE Marking – 93/68 Low Voltage – 73/23 EMC – 89/336

Safety Standards – EN 60 335-1, EN 60 335 – 2 – 6.

As Baumatic have a policy of continued product improvement,

the right is reserved to adjust and make any modifications

deemed necessary without notification.

IMPORTANT NOTE – WARNING and SAFETY

INSTRUCTIONS

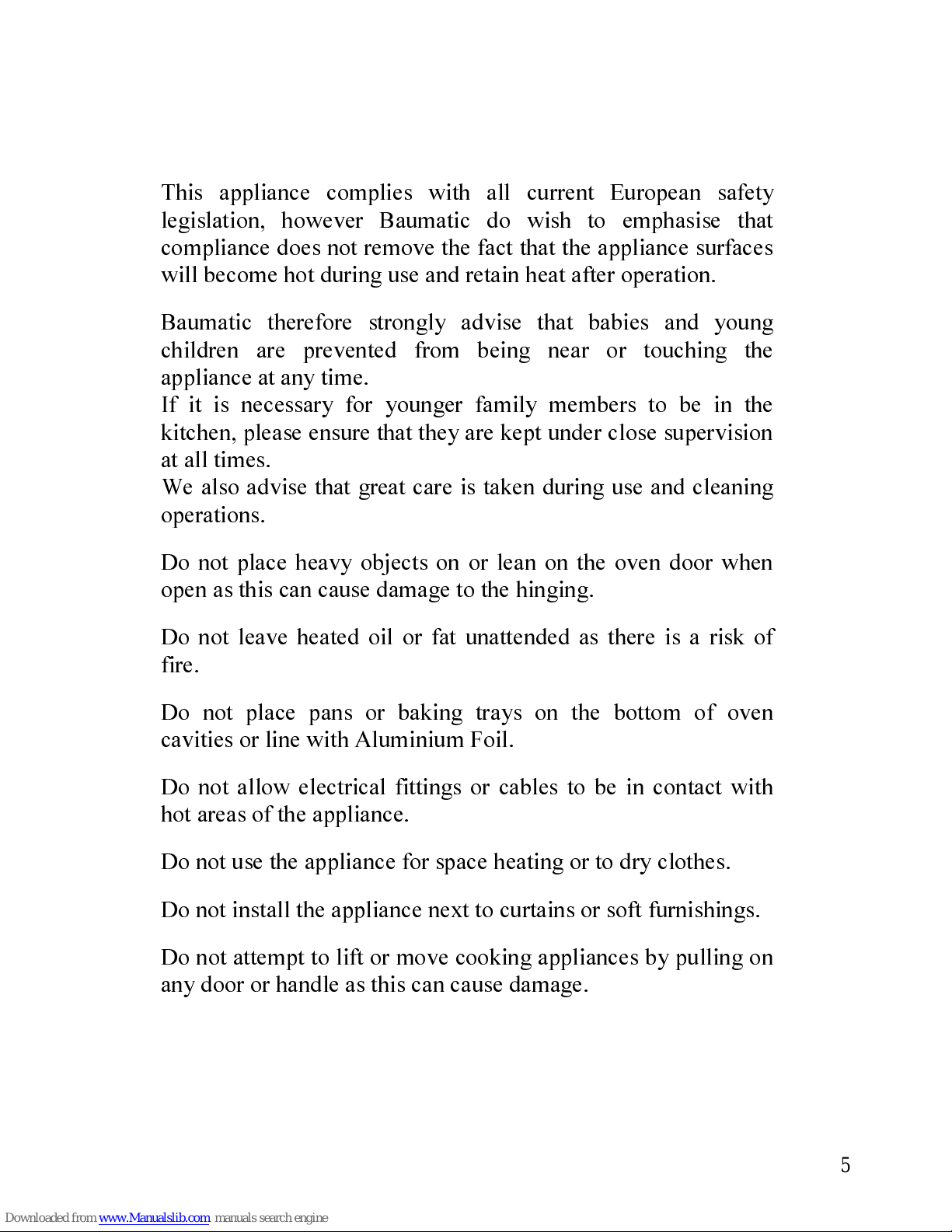

This appliance complies with all current European safety

legislation, however Baumatic do wish to emphasise that

compliance does not remove the fact that the appliance surfaces

will become hot during use and retain heat after operation.

Baumatic therefore strongly advise that babies and young

children are prevented from being near or touching the

appliance at any time.

If it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

We also advise that great care is taken during use and cleaning

operations.

Do not place heavy objects on or lean on the oven door when

open as this can cause damage to the hinging.

Do not leave heated oil or fat unattended as there is a risk of

fire.

Do not place pans or baking trays on the bottom of oven

cavities or line with Aluminium Foil.

Do not allow electrical fittings or cables to be in contact with

hot areas of the appliance.

Do not use the appliance for space heating or to dry clothes.

Do not install the appliance next to curtains or soft furnishings.

Do not attempt to lift or move cooking appliances by pulling on

any door or handle as this can cause damage.

NOTE: This appliance must be correctly installed by a

suitably qualified person, strictly in accordance with the

manufacturer’s instructions.

For electrical installations, NICEIC registration is

recommended.

Baumatic Ltd declines any responsibility for injury or

damage to persons or property as a result of improper use

or installation of this appliance.

Heat, steam and moisture will be created during use, take

care to avoid injury and ensure that the room is adequately

ventilated. If prolonged use occurs, additional ventilation

may be required – please consult your Qualified Installer if

you are in any doubt about the amount required.

INSTALLATION INSTRUCTIONS

This appliance must be correctly installed by a suitable

qualified person strictly in accordance with the manufacturer's

instructions.

The manufacturer declines any responsibility for injury or

damage to persons or property as a result of improper

installation of this appliance.

The housing, adjacent furniture and all materials used in

installation must be able to withstand a minimum temperature

of 85°C plus ambient during periods of operation. In addition,

adjacent furniture cabinet doors must be at least 3mm from the

appliance at all points. Certain types of vinyl or laminate

kitchen furniture cabinetry are particularly prone to heat

damage and discoloration of materials which occurs below

85°C plus ambient or where materials are less than 3mm from

the appliance will be the liability of the owner.

This range of ovens has been designed to be located under a

worktop surface.

Two systems can be used to fit your appliance to a chosen

furniture layout:

Between two side panels of two distinct cabinet units

without the aid of a support shelf, by fitting four support steel

brackets provided with the product.

(See Sys A, fig. 1, page 9).

Between two side panels each fixed to the side of a

cabinet unit without the aid of a support shelf. In this case only

the two lower support brackets will be necessary.

(See Sys B,

fig. 2, page 10).

Note

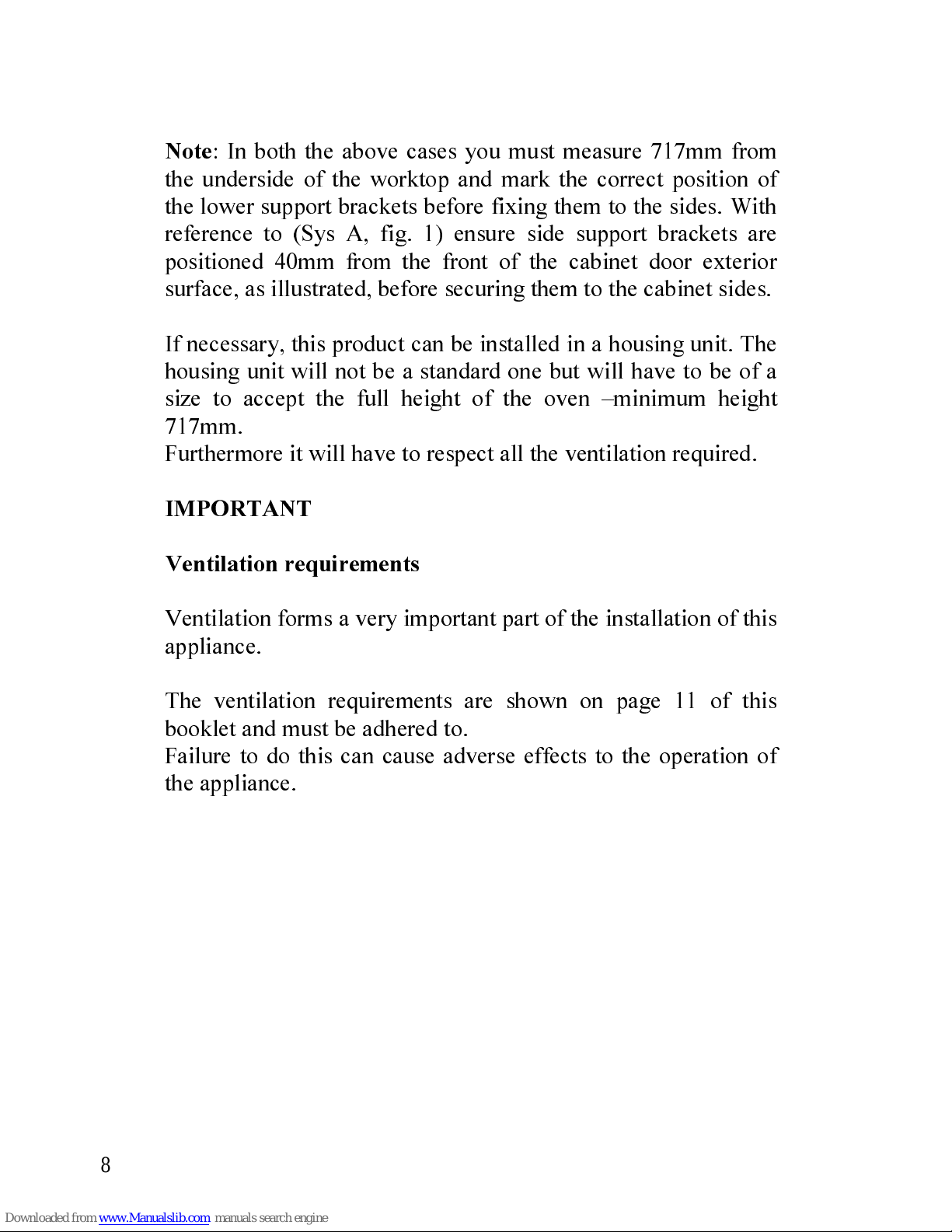

: In both the above cases you must measure 717mm from

the underside of the worktop and mark the correct position of

the lower support brackets before fixing them to the sides. With

reference to (Sys A, fig. 1) ensure side support brackets are

positioned 40mm from the front of the cabinet door exterior

surface, as illustrated, before securing them to the cabinet sides.

If necessary, this product can be installed in a housing unit. The

housing unit will not be a standard one but will have to be of a

size to accept the full height of the oven –minimum height

717mm.

Furthermore it will have to respect all the ventilation required.

IMPORTANT

Ventilation requirements

Ventilation forms a very important part of the installation of this

appliance.

The ventilation requirements are shown on page 11 of this

booklet and must be adhered to.

Failure to do this can cause adverse effects to the operation of

the appliance.
