Baumatic BO670SS Manuale utente

BO670SS 60 cm

Multifunction built in

oven with joystick

control

User Manual for your Baumatic

BO670SS 60 cm Multifunction

pyrolytic built in oven with

joystick control

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 22/02/12

Contents

Environmentalnote 4

Important safety information 5 – 7

Specifications 8 - 12

Product and aperture dimensions 8

Productspecifications 8

Standardaccessories 8

Electricaldetails 9

Coolingfan 9

Controlpanel 10-11

The joystick control knob 11 - 12

Before first use 12-13

Setting the time of day 12

Ovenburn-off 13

Selecting a cooking function and temperature 13 - 18

Switchingtheovenon 13

Switching the oven off 13 - 14

Selectinganovenfunction 14

Adjusting the oven temperature 14 - 15

Ovenfunctions 15-17

PRH (Rapid pre-heating) function 17 - 18

Normal defrost function 18

Rapiddefrostfunction 18

Timer functions 19-23

Setting the minute minder function 19

Setting the duration function 20 - 21

Setting the end cook function 21 - 22

Cancelling a countdown period 22

Adjusting the volume of the audible signal 22 – 23

Theovenlight 23

Recipe function 23-28

How to select a preset recipe 23 - 24

Recipetable 24-25

How to add a personal recipe to the preset recipes 25 - 26

Restoring the factory preset recipes 26

Cooking guidelines 26 - 27

Warnings 27-28

Cleaning and maintenance 28 – 33

Pyrolytic cleaning function 28 – 29

General cleaning information 29 - 30

Replacing the oven bulb 30

Removing the oven door for cleaning 31

Removing the inner door glass for cleaning 32 - 33

Installation 33 - 36

Electrical connection 33 - 34

Installing the oven into the kitchen cabinet 34

Positioning the appliance 34

Ventilation requirements 35 - 36

My appliance isn’t working correctly 36 – 38

Errorcodes 36

Baumatic consumables 39

Contact details 40

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Customer Care

Department.

General Information

oThis appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oFor use in leisure accommodation vehicles,please refer to

the appropriate information given in the installation instructions

for this appliance.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/EC regarding “low voltage”

-2004/108/EC regarding “electromagnetic disturbances”

-Regulation (EC) N° 1935/2004 regarding “materials in contact

with food”

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

Product Dimensions

Height: 600 mm

Width: 598 mm

Depth: 565.5 mm

Aperture dimensions

Height: 583 - 585 mm

Width: 560 mm

Depth: 560 mm

Product specifications

o12 Oven functions

oEnergy efficiency class: A

oOven capacity (net): 61 litres

oOven capacity (gross): 68 litres

oJoystick operation

oPyrolytic cleaning function

o20 Preset recipes

o16 Personal recipes

oLED full programmer with temperature and function display

oElectronically controllable thermostat

oThermostatically controlled grill

oCooling fan

oCatalytic exhaust

oQuadruple-glazed removable door

oRemovable door glass

oPyro enamel

oMoulded side racks

oAutomatic safety door-lock when in pyrolytic mode

Standard accessories

o2 x safety shelves

oTrivet

oWipe clean enamelled baking tray with handle

oPizza stone

Electrical details

Rated Voltage: 220 - 240 Vac

Supply Connection: 20 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 3.30 kW

Frequency: 50 – 60 Hz

Mains Supply Lead: 3 x 1.5 mm²

Oven Light Bulb: 25 W/500°C screw type pygmy

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the oven door and looking on the right hand side of

the oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Cooling fan

oA tangential cooling fan is fitted inside of this appliance, to make

the internal temperature of the oven stable and the external

surface temperature lower.

oAfter you have finished cooking and switched off the oven, the

cooling fan will continue to run for a period of time afterwards.

The length of time will depend on how long the oven has been

switched on for and at how high a temperature.

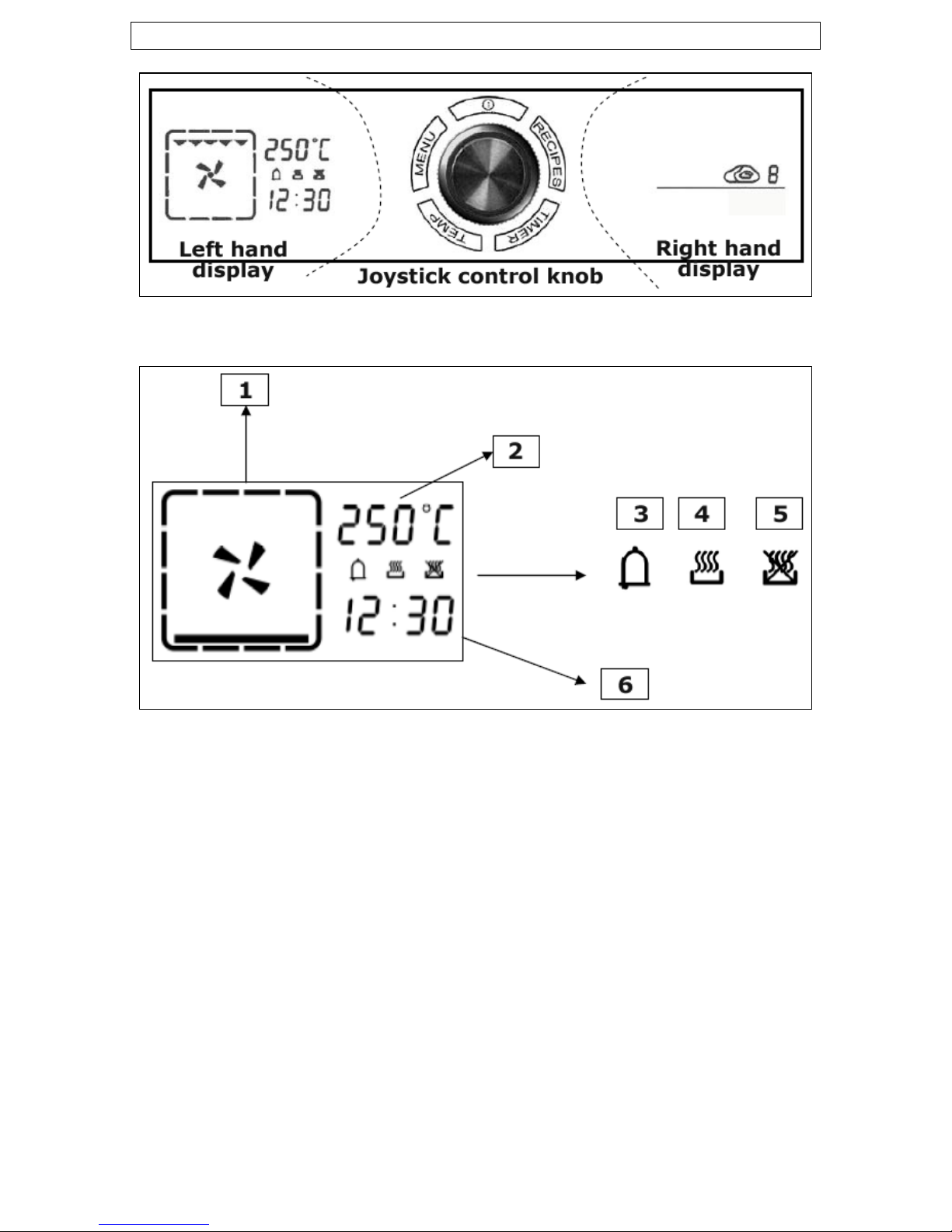

Control Panel

Left hand display

1) Oven function display

2) Oven temperature display

3) Minute minder symbol

4) Duration symbol

5) End cook symbol

6) Timer display
