Baumatic BWDI1206 Manuale utente
d
wan
BWDI1206
Fully integrated
washer dryer
2
USER MANUA FOR YOUR BAUMATIC
BWDI1206
Fully integrated washer
dryer
NOTE
:
This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance Please keep it
in a safe place so that it is easily available for future reference
GS 03/04/12
3
Contents
Environmental note 4
Important safety information 5 - 7
Specifications 7 – 13
Product and aperture dimensions 7
Product specifications 7 – 8
Baumatic consuma les 8
Control panel 9 - 12
Detergent drawer 12 - 13
Preparing the wash cycle 13 - 20
Preparing your garments for washing 13 - 14
A selection of wash care sym ols 14 - 15
Detergents and conditioners 15
Program ta le 16 – 17
Program description 17 – 19
Wash program guidance 20
Selecting a wash program 20 - 22
Cancelling or pausing a wash program 21
Delay start feature 21 – 22
Time remaining indicator 22
Selecting a drying program 22 – 24
Ta le of drying times (in minutes) 24
Selecting an automatic washing / drying program 24 – 25
The washer dryer door 25
Saving energy when using your washer dryer 26
Automatic consumption reduction 26
Removing stains 26
Stain removal rules 27
Stain removal guide 27 - 28
Maintenance and cleaning 29 - 31
In daily use 29
Control panel and washer dryer ca inet 29
Detergent drawer 29 - 30
The washer dryer drum 30
Door 30
90 degree maintenance wash 30
Cleaning the filter 31
Long periods of not in use 31
General troubleshooting 32 - 33
Poor wash results 33 - 34
Installation 34 - 41
Unpacking and removing the transit olts 34 - 35
Positioning and levelling the appliance 36 - 37
Fitting the décor door 37 - 38
Connecting to the mains water supply 39
Water outlet 39 - 40
Power supply 40
Before first use maintenance wash 41
Baumatic consumables 42
Contact details 43
4
Environmental note
Note
: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
5
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction ooklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Baumatic Customer Care
Department.
General Safety
oRepairs to your appliance must only e carried out y a
Baumatic engineer or one of its authorised service agents. Any
attempt y an inexperienced person to repair the appliance,
could result in injury or damage to your washing machine.
oIf you notice that the mains ca le is damaged. The appliance
must not be used The same applies if you notice that the
worktop, control panel or ase area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should e switched off and isolated from the
mains supply, efore either cleaning or maintenance work is
attempted.
oThe mains ca le must not e used to pull the plug out of the
electrical socket.
oThe machine should not e sprayed with water.
oThe glass of the porthole door may ecome hot during the higher
temperature wash programs.
oThe machine should e allowed to cool efore carrying out an
emergency drain or cleaning the drain filter.
oIt is possi le for small animals to chew either mains ca les or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should e followed.
oIt is o ligatory for the completed installation to comply with all
relevant uilding regulations and local water authority
requirements.
6
oBefore the first use of the appliance, we advise that a
90°C cotton wash is completed No garments should be
placed inside the machine; however a small amount of
detergent must be used
During Use
oIt is recommended that the appliance is unplugged and the
water supply is switched off after the machine is used.
oThis appliance is only designed to wash and dry normal domestic
washloads. If you use your washer dryer in any other way or it is
incorrectly used, then Baumatic accepts no lia ility for any
damage that might e caused and any guarantee will e void.
oNo attempt should e made to alter or modify the specifications
of this appliance.
oThe detergents that you place in this appliance should e
suita le for automatic washer dryers. With regards to dosage
levels, the detergent manufacturer’s recommendations should e
followed.
oYou should not wash garments that have een in contact with
flamma le materials.
oYour washer dryer should not e used for dry cleaning.
oIf you use either dyes or leaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suita le for use in your washer dryer.
Baumatic cannot e held responsi le for any damage that may
result.
oItems such as foam ru er, shower caps, waterproof textiles,
ru er acked articles and clothes or pillows fitted with foam
ru er pads should not e dried in the washer dryer.
oNever stop the washer dryer efore the end of the drying cycle
unless all items are quickly removed and spread out so that the
heat is dissipated.
Child Safety
oYour washer dryer should only e used y adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
7
oIt could e possi le for a child or pet to gain access to the
washer dryer through the porthole door. Therefore please check
the drum efore using the appliance.
oAny packaging that is removed from the machine should e kept
away from children.
oAll detergents should e kept out of children’s reach in a safe
place.
Specifications

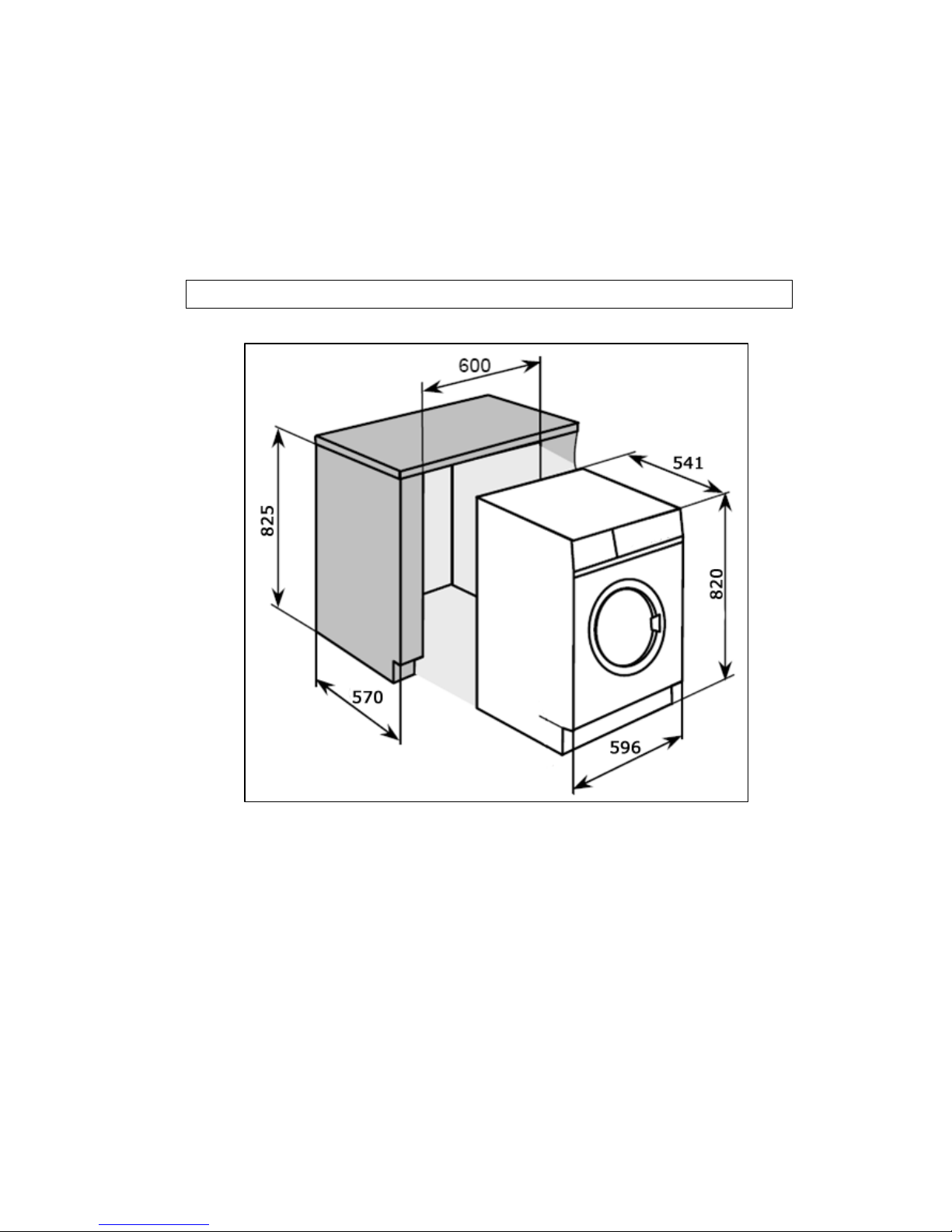

Product dimensions Aperture dimensions
Height: 820 mm Height: 825 mm
Width: 596 mm Width: 600 mm
Depth: 541 mm Depth: 570 mm
oWash load capacity: 6 kg
oDry load capacity: 4 kg
oMaximum spin speed: 1200 rpm
oVaria le spin speed with no spin option
oSeparate temperature control
oDrum size: 56 litres
oPorthole diameter: 30 mm
8
o180° door opening
oLED display
oDigital countdown indicator
oDoor closed indicator
oDelay start
oAutomatic consumption reduction
oSelf adjusting water level to load
oIm alance control system
oOverflow protection
oFoam protection
oSafety lock
oFuzzy logic
oAdjusta le feet
4 Option buttons: Stain remover
Extra rinse
Cold wash
Anti-crease
Energy efficiency:
Energy efficiency class (wash only) A
Energy efficiency class (wash and dry) B
Washing performance class A
Water extraction performance class B
9

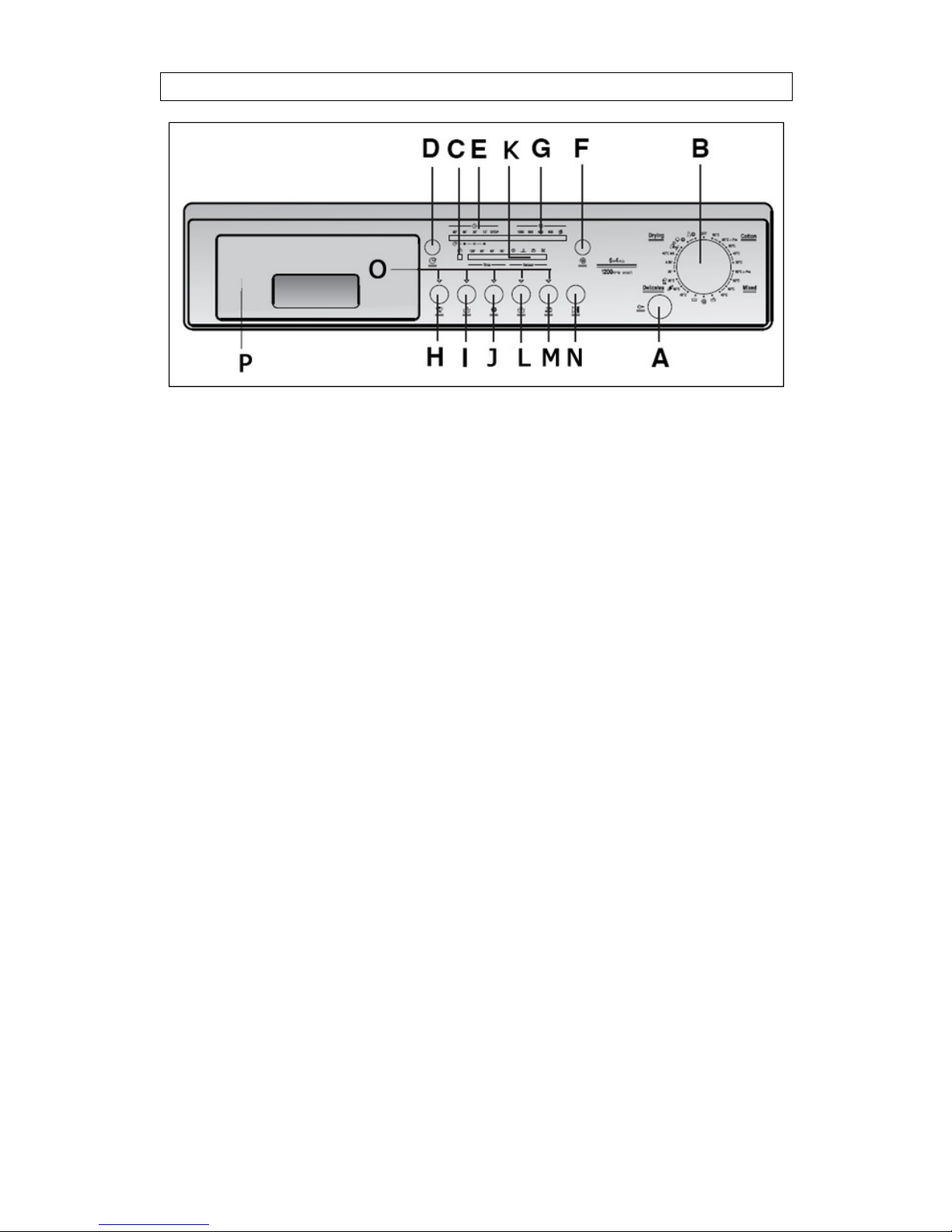

Control panel
A) Door open utton
B) Program selection kno
C) Door lock indicator light
D) Delay start utton
E) Delay start indicator light
F) Spin speed selection utton
G) Spin speed indicator light
H) Stain remover utton
I) Extra rinse utton
J) Drying program selection utton
K) Drying program indicators
) Cold wash utton
M) Anti-crease utton
N) Start / Pause utton
O) Button indicator lights
P) Detergent drawer
10
Door open button
A safety device prevents the door from eing
opened immediately after the end of the cycle. You
should wait for 2 minutes after the program has
finished and ensure the door security light on the
cycle progress indicator has gone out efore
opening the door. If the door is not closed, the indicator
will continue to flash
Program selection knob
This control kno allows you to select the washing or drying program
of your choice. You can rotate the kno in oth directions.
Delay start button
This utton can e used to program a delay start of 3, 6 or 9
hours. The relevant indicator will light to show your selection.
See the section “Delay start feature” on pages 21-22 for
instructions.
Spin speed selection button
The spin cycle is important to remove as much water as
possi le from the laundry without damaging the fa rics. You
can adjust the spin speed of the machine to reduce the
maximum speed. The relevant indicator will light to show your
selection.
You can use the utton to light this sym ol to select “No Spin”.
