Baumatic BFWE1470W Manuale utente

BFWE1470W

Washing Machine

USER MANUAL FOR YOUR BAUMATIC

BFWE1470W

60 cm 7 kg

Washing machine

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 08/05/07

Contents

Environmental note 4

Important safety information 5 – 6

Specifications 7

Description of the appliance 8

Controlpanel 9-10

LCDdisplay 11

Detergentdrawer 12

Preparing the wash cycle 13

Preparing your garments for washing 13

A selection of wash care symbols 14

Detergents and conditioners 15

Wash program table 16

Wash program guidance 17

Selecting a wash program 18

Descriptions of the wash programs 18 – 25

Endofcycle 25

Pausing a wash program 26

Changing a wash program 26

Delaystartfeature 26

Spin reduction button 27

Rinsehold 27

Childlock 27-28

Maintenance and cleaning 28

Indailyuse 28

Control panel and washing machine cabinet 28

Detergentdrawer 29

The washing machine drum 29

Door 29

Cleaning the drain pump filter 30

Winterstorage 31

Removingstains 31

Stainremovalrules 31

Stainremovalguide 32

Poorwashresults 33

Installation 34

Removing the transit bolts 34

Locating your washing machine 35

Connecting to the mains water supply 36

Connecting to the water outlet 37

Levelling the appliance 38

Powersupply 39

Before first use maintenance wash 39

Error code failure system 40 – 41

General troubleshooting 41 – 42

Baumatic Ltd. conditions of guarantee 43

Contact details 44

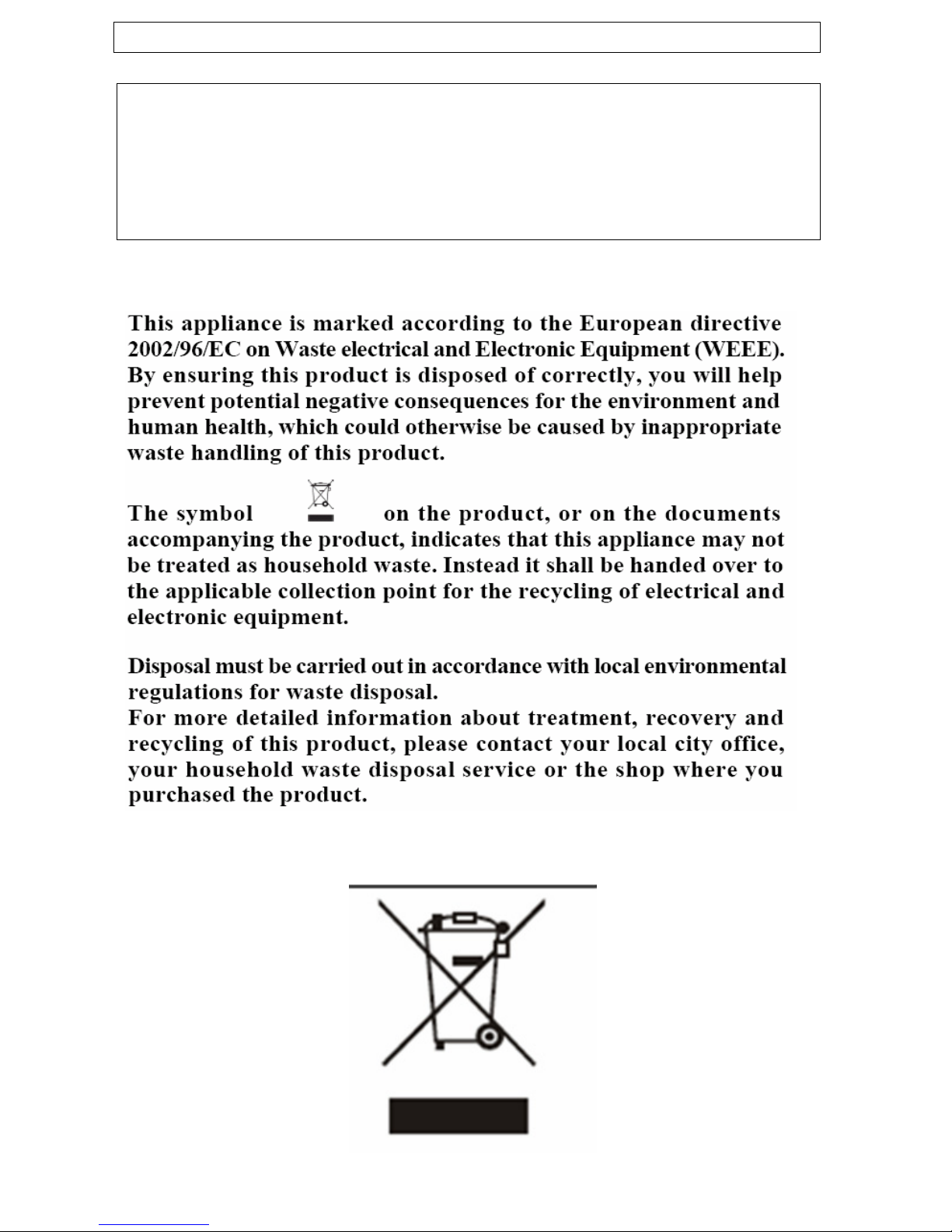

Environmental note

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorised service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your washing machine.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe glass of the porthole door may become hot during the higher

temperature wash programs.

oThe machine should be allowed to cool before carrying out an

emergency drain or cleaning the drain filter.

oIt is possible for small animals to chew either the mains cable or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, we advise that a 95

degree cotton wash is completed. No garments should be

placed inside the machine; however a small amount of

detergent must be used.

During Use

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThis appliance is only designed to wash normal domestic

washloads. If you use your washing machine in any other way or

it is incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oNo attempt should be made to alter or modify the specifications

of this appliance.

oThe detergents that you place in this appliance should be

suitable for automatic washing machines. With regards to dosage

levels, the detergent manufacturer’s recommendations should be

followed.

oYou should not wash garments that have been in contact with

flammable materials.

oYour washing machine should not be used for dry cleaning.

oIf you use either dyes or bleaching agents inside this machine,

then you should consult with the manufacturer of these products

to make sure they are suitable for use in your washing machine.

Baumatic cannot be held responsible for any damage that may

result.

Child Safety

oYour washing machine should only be used by adults. You should

not allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

washing machine through the porthole door. Therefore please

check the drum before using the appliance.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of a child’s reach and in a safe

place.

Specifications

o9 wash programs

o7 kg wash load

o1400 rpm maximum spin speed

o7 option buttons:

Power

Start/Pause

Temperature

Spin

Option

Time save

Time delay

oLCD display

oDelay start

oFuzzy logic

oSmooth spin speed and temperature regulation

oUnbalance control system

oNANO-silver technology

oAir bubble washing system

o30 cm porthole and 180° opening

oSafety door lock

Appliance dimensions

Height: 850 mm

Width: 600 mm

Depth: 540 mm

Ratings

Energyefficiencyclass A+

Wash performance class A

Water extraction performance class A

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your washing machine

will either be located on the right hand side of the cabinet or behind

the porthole door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Description of the appliance

Accessories

Control panel

Power button

Press this button to switch the machine on and off.

Wash program selection knob

Turn this control knob to select the wash program of your choice. To

activate it you should press the power button to switch the appliance

on and then turn the selection knob until it reaches the wash program

that you want.

Start/Pause button

Press this button to start the wash program that you have selected or

to pause a wash cycle when it is in progress.

Option button

Press this button to select 3 wash cycle options:-

Crease care- This will help to prevent garments from creasing when

the wash cycle has completed.

Rinse+- This will add an extra rinse and increase the rinse time during

a wash cycle.

Pre-wash- This will add a wash and spin before the main wash cycle

commences.

Time delay button

Press this button to delay the start of a wash cycle until a later time.

Time save button

Press this button to decrease the time that a wash cycle takes to

complete by 10 minutes.

Spin button

The washing machine will automatically select a spin speed for each

wash program. However it is possible to alter the spin speed that it

automatically selects, by pressing the Spin button.

Temp button

The washing machine will automatically select a temperature for each

wash program. However it is possible to alter the wash temperature

that it automatically selects, by pressing the Temp button.

These buttons need to be pressed after a wash program has

been selected, but before the wash program has been started.

If you select a different wash cycle after pressing a program

option, it will need to be reselected.
