Baxall DTL-960E Manuale utente

Please read this manual before installing your equipment

DTL-960e User Manual

Single Channel Colour Digital Video Recorder

All manuals and user guides at all-guides.com

all-guides.com

Page 2

DTL-960e Single Channel Colour Digital Video Recorder User Manual

IMPORTANT

The first few pages of these instructions contain important information on safety and product

conformity. Please read, and ensure that you understand this information before continuing.

All manuals and user guides at all-guides.com

Page 3

User Manual DTL-960e Single Colour Channel Digital Video Recorder

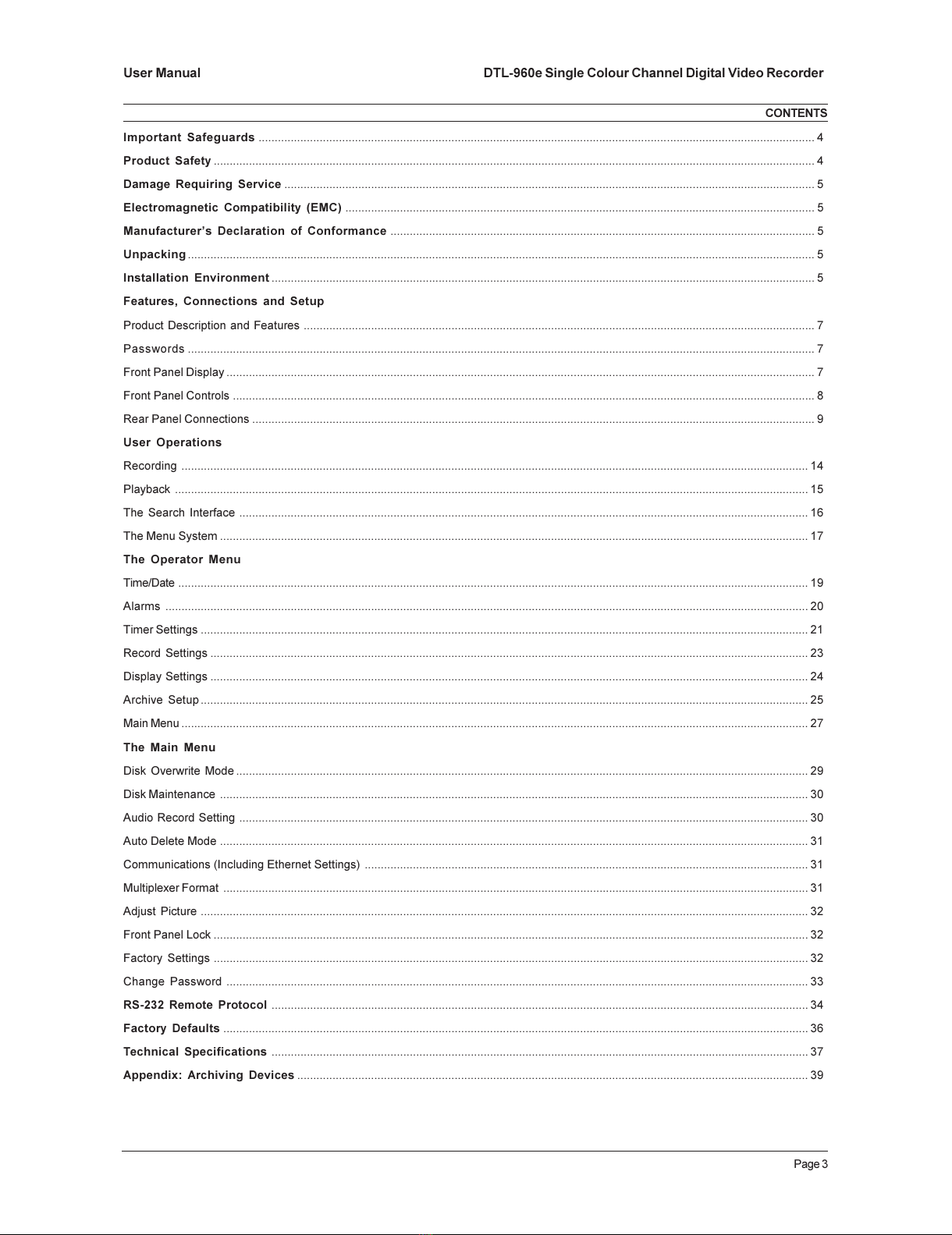

CONTENTS

Important Safeguards ............................................................................................................................................................................. 4

Product Safety ........................................................................................................................................................................................... 4

Damage Requiring Ser ice ..................................................................................................................................................................... 5

Electromagnetic Compatibility (EMC) .................................................................................................................................................. 5

Manufacturers Declaration of Conformance .................................................................................................................................... 5

Unpacking ................................................................................................................................................................................................... 5

Installation En ironment ......................................................................................................................................................................... 5

Features, Connections and Setup

Product Description and Features ............................................................................................................................................................... 7

Passwords ................................................................................................................................................................................................... 7

Front Panel Display ....................................................................................................................................................................................... 7

Front Panel Controls ..................................................................................................................................................................................... 8

Rear Panel Connections ............................................................................................................................................................................... 9

User Operations

Recording ................................................................................................................................................................................................... 14

Play ack ..................................................................................................................................................................................................... 15

The Search Interface ................................................................................................................................................................................. 16

The Menu System ....................................................................................................................................................................................... 17

The Operator Menu

Time/Date .................................................................................................................................................................................................... 19

Alarms ........................................................................................................................................................................................................ 20

Timer Settings ............................................................................................................................................................................................. 21

Record Settings .......................................................................................................................................................................................... 23

Display Settings .......................................................................................................................................................................................... 24

Archive Setup ............................................................................................................................................................................................. 25

Main Menu ................................................................................................................................................................................................... 27

The Main Menu

Disk Overwrite Mode .................................................................................................................................................................................. 29

Disk Maintenance ....................................................................................................................................................................................... 30

Audio Record Setting ................................................................................................................................................................................. 30

Auto Delete Mode ....................................................................................................................................................................................... 31

Communications (Including Ethernet Settings) .......................................................................................................................................... 31

Multiplexer Format ...................................................................................................................................................................................... 31

Adjust Picture ............................................................................................................................................................................................. 32

Front Panel Lock ......................................................................................................................................................................................... 32

Factory Settings ......................................................................................................................................................................................... 32

Change Password ..................................................................................................................................................................................... 33

RS-232 Remote Protocol ....................................................................................................................................................................... 34

Factory Defaults ...................................................................................................................................................................................... 36

Technical Specifications ....................................................................................................................................................................... 37

Appendix: Archi ing De ices ............................................................................................................................................................... 39

All manuals and user guides at all-guides.com

Page 4

DTL-960e Single Channel Colour Digital Video Recorder User Manual

IMPORTANT SAFEGUARDS

This product is exclusively for use in CCTV applications and has no other purpose.

Read and Retain these instructions - All the safety and operating instructions should be read before the unit is operated

and should be retained for future reference.

Cleaning - Unplug the unit from the supply outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or

aerosol cleaners.

Attachments - Do not use attachments that have not been recommended by the product manufacturer as they may

cause ha ards.

Water and Moisture - Do not use this unit near water. For example, near a bathtub, wash bowl, kitchen sink, or laundry

tub, in a wet basement, near a swimming pool, in an unprotected outdoor installation, or any area that is classified as a

wet location.

Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious

injury to a person and serious damage to the unit. Any mounting of the unit should follow the manufacturers instructions,

and should use a mounting accessory recommended by the manufacturer.

Ventilation - Openings in the enclosure are provided for ventilation to ensure reliable operation of the unit and to protect

it from overheating. These openings must not be blocked or covered, and therefore this unit should not be placed in a

built-in installation unless proper ventilation is provided. Do not place directly on other hot equipment, because this may

increase its operating temperature.

ower Sources - This unit should be operated only from the class 2 isolated power supply provided.

ower-cord rotection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to cords at plugs, and the point where they exit from the

appliance.

Overloading - Do not overload outlets and extension cords as this can result in a risk of fire or electric shock.

Object and Liquid Entry - This equipment must be protected from the ingress of foreign materials. Never push objects of

any kind into this unit through openings as they may touch dangerous voltage points or short-out parts that could result

in a fire or electric shock. Never spill liquid of any kind on the unit.

Servicing - There are no user-serviceable parts. Do not remove the covers as this may expose you to dangerous voltages

or other ha ards. Refer all servicing to qualified service personnel.

Replacement arts - When replacement parts are required, be sure the service technician has used the replacement

parts specified by the manufacturer. The use of unauthorised substitute components may result in fire, electric shock or

other ha ards.

Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks

to determine that the unit is in proper operating condition.

Coax Grounding - If an outside cable system is connected to the unit, be sure the cable system is grounded.

Lightning - For added protection of this unit during a lightning storm, or when it is left unattended and unused for long

periods, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the unit due to

lightning and power-line surges.

PRODUCT SAFETY

 Installation is only to be carried out by competent, qualified and experienced personnel in accordance with the

country of installations National Wiring Regulations.

 Your Digital Recorder contains no user-serviceable parts.

 This unit contains a lithium battery whose expected life is in excess of five years. If your Digital Recorder loses its

settings each time it is switched off then the battery needs replacing. In this instance return your Digital Recorder

to Baxall Limited and we will replace the battery.

 There is a danger of explosion if the lithium battery is incorrectly replaced. Replace only with the same or an

equivalent type recommended by the manufacturer. Dispose of unused batteries according to the manufacturers

instructions.

 Your Digital Recorder must not be used in a medical and/or intrinsically safe application.

 Do not exceed the voltage and temperature limits given in the specification. Only operate your Digital Recorder in

a clean, dry, dust-free environment.

All manuals and user guides at all-guides.com

Page 5

User Manual DTL-960e Single Colour Channel Digital Video Recorder

DAMAGE REQUIRING SERVICE

Unplug the unit from the outlet and refer servicing to qualified service personnel under the following conditions:

 When the power-supply cord or plug is damaged.

 If liquid has been spilled, or objects have fallen into the unit.

 If the unit has been exposed to rain or water.

 If the unit does not operate normally by following the operating instructions.

 If the unit has been dropped or the cabinet has been damaged.

 When the unit exhibits a distinct change in performance.

 If the unit has no power even when the power supply appears to operate correctly. If this is the case then ask a

service engineer to test the internal fuse.

ELECTROMAGNETIC COMPATIBILITY (EMC)

This is a Class A product. In a domestic environment this product may cause radio interference, in which case, the user

may be required to take adequate measures.

MANUFACTURERS DECLARATION OF CONFORMANCE

A Declaration of Conformity in accordance with the above EU standards has been made and is on file at Baxall Limited,

Stockport, SK6 2SU, England.

The manufacturer declares that the product supplied with this document is compliant with the provisions of the EMC

Directive 89/336 EEC, the Low Voltage Directive LVD 73/23 EEC, the CE Marking Directive 93/68 EEC and all associated

amendments.

The product is also Y2K compliant in accordance with British Standards Institution, DISC PD2000-1.

UNPACKING

Check the package and contents for visible damage. The packaging should contain:

 The Baxall DTL-960e unit.

 Accessories PCB.

 A 12-volt power supply with power cable.

 The DTL-960e user manual.

 WaveReader software with instruction manual.

If any components are missing or damaged, contact the supplier immediately. Do not attempt to use the unit. If, for any

reason they must be returned, the contents must be shipped in the original packaging.

INSTALLATION ENVIRONMENT

ower:

Ensure that the sites AC power is stable and within the rated voltage of the external power supply. If the sites AC power

is likely to have spikes or power dips, use power line conditioning or an Uninterruptable Power Supply (UPS).

Ventilation:

Install the unit in a well-ventilated area. Take note of the locations of the cooling vents in the units enclosure, and ensure

that they are not obstructed.

Temperature:

Observe the units ambient temperature specifications when choosing a location space. Extremes of heat or cold beyond

the specified operating temperature limits may cause the unit to fail. Do not install the unit on top of other hot equipment.

Moisture:

Do not expose the unit to rain or moisture. Moisture can damage the internal components. Do not install this unit near

sources of water.

Chassis:

You can place other equipment on top of the unit if it weighs less than 35 pounds.

All manuals and user guides at all-guides.com

Page 6

DTL-960e Single Channel Colour Digital Video Recorder User Manual

FEATURES CONNECTIONS

AND SETUP

All manuals and user guides at all-guides.com

all-guides.com

Page 7

User Manual DTL-960e Single Colour Channel Digital Video Recorder

PRODUCT DESCRIPTION AND FEATURES

The DTL-960e is a Digital Video Recorder designed to be a direct replacement for a Time Lapse VCR. Digital video

recording allows the user to have continuous recording on a hard disk, without the need for replacing or rewinding of

videotapes. The DTL-960e provides menu based search capabilities for recorded events, as well as access to live or

recorded data via the Ethernet.

Features of the DTL-960e include:

 Single channel VHS or SVHS Input/Output connection.

 Accepts single camera input or a multiplexed input from most popular multiplexers.

 Compatible with color or monochrome cameras.

 Records up to 50 pictures per second (PAL).

 Continuous recording in Disk Overwrite mode.

 LCD on front panel indicates Time, Date, Mode, and Record Speed in pps.

 Video archiving via the units SCSI port.

 Access to live or recorded video via the Ethernet.

 Continues recording while archiving or transmitting via the Ethernet.

 A simple on-screen menu system.

 Includes WaveReader software for viewing live or recorded images on a PC.

 Facility to program time-recorded events.

PASSWORDS

A password is provided to limit access to the Main menu. It is recommended that the default password be changed after

installation is complete. As a security measure, store the password in the administrators secured files or in a limited

access area. For instructions on entering the Main menu with the password, see page 27.

A password is also provided to return the unit to the factory defaults. For instructions on returning the unit to the factory

defaults, see page 32.

FRONT PANEL DISPLAY

Time - Displays the current time in Record and Stop mode. Displays the time the event was recorded in Play and

Pause modes.

Date - Displays the current date in Record and Stop mode. Displays the date the event was recorded in Play and

Pause modes.

Mode - Displays the mode (Record, Play, Pause, Stop, Etc.) the unit is in.

Record Speed - Displays the normal record or playback speed in pps.

assword Name Function Changeable by user? assword

Main Menu Password Provides access to the Main Yes: See page 33. 3 4 7

menu for the installer.

Factory Password Restores the unit to the No 8 1 1

factory defaults.

All manuals and user guides at all-guides.com

Page 8

DTL-960e Single Channel Colour Digital Video Recorder User Manual

FRONT PANEL CONTROLS

RECORD REVERSE PLAY STOP PLAY PAUSE

REC/PLAY

SPEED

ALARM

POWER

LOSS

POWER

ENTER

REW

10 11 12 13 14

1 2 3 4 5 6 7

Figure 2 - Front Panel Controls

Infrared ort - This feature is not yet available.

Record button - Press this button to begin recording.

Reverse play button - Press this button to playback video in reverse at the normal record speed.

Stop button - Press this button to stop recording or playback.

lay Forward button - Press this button to playback video at the normal record speed.

ause button - Press this button to pause playback.

Search button - Press this button to enter the Search Filters menu.

Combination Menu and Enter button - Press the lower half of the button (the Menu button) to enter the menu

system. This half of the button is also used to exit without saving while in the menu system. Press the upper half of

the button (the Enter button) to make or confirm a selection in the menu system.

Jog / Shuttle - The Jog (the inner of the two dials) is used for single frame advance while in Pause mode, and is also

used to change the value of a parameter while in the menu system. The Shuttle (the outer of the two dials) is used

to fast forward and rewind while in the Play mode, and is also used to navigate while in the menu system.

LCD - Displays the time, date, mode, and record or playback speed in pictures per second (pps).

Increase and Decrease Record Speed buttons - Press these buttons to increase or decrease the record or

playback speed.

Alarm Indicator - Indicates an alarm condition when the LED is lit.

ower Loss Indicator - Indicates power loss when LED is lit.

ower On Indicator - Indicates power is on when LED is lit.

All manuals and user guides at all-guides.com

Page 9

User Manual DTL-960e Single Colour Channel Digital Video Recorder

REAR PANEL CONNECTIONS

Ethernet ort

The Ethernet Port is used to view live or recorded images on a PC via the Ethernet.

The cable connection configuration depends on your network configuration:

 For a DTL-960e that connects directly to a Hub, use a Straight Through connection.

 For a DTL-960e that connects directly to a PC, use a Cross Over connection.

Consult with your Network Administrator for the specific type of configuration. See page 31 for information about configuring

the ethernet settings in the menu system.

ower Connector

The unit is furnished with a 12V DC power supply.

Do not use any other power supply with the unit. The manufacturer accepts no responsibility for damage caused by the

use of any other power supply.

Wire Type Cat 5

Connector Type RJ-45

Max Cable Length 100 feet / 30.5 meters

Minimum Cable Length 6 feet / 1.8 meters

Hub Wiring Configuration Straight Through

C Wiring Configuration Cross Over

ower Supply Input:

Voltage 120 to 240 Volt AC

Tolerance ±10%

Frequency 50 to 60 H

ower Supply Output:

Voltage 12 Volt DC

ower 62 Watts

Connector 2.1mm barrel, Centre Positive

Figure 4 - RJ-45 in Configuration

For Ethernet ort

12345678

Pin Use

1 TX+

2 TX-

3 RX+

4 Not connected

5 Not connected

6 RX-

7 Not connected

8 Not connected

All manuals and user guides at all-guides.com

Page 10

DTL-960e Single Channel Colour Digital Video Recorder User Manual

REAR PANEL CONNECTIONS

SCSI ort

The unit is equipped with a SCSI port for connecting external archive devices. The unit only supports a single SCSI device.

The SCSI ID must be set to 0 and the SCSI bus must be terminated, otherwise the system will not operate correctly.

Audio In/Out

The unit is equipped with a mono audio input and output for the recording and playback of sound.

, Video Input and Output

The unit is equipped with both SVHS (Y/C separated video signal) and Composite inputs and outputs. The video inputs

are auto-terminating.

The SVHS input is Active Looping, and will only loop while the unit is on.

Do not connect both video inputs at the same time.

RS-232 Serial ort

The RS-232 Serial Port is provided for software upgrades, and for external control of the unit. Use a Null Modem cable

when connecting to a PC.

When connecting to a multiplexer, it may be necessary to construct a cable using the pin-out documentation of the MUX

as a guide. See the pin-out configuration for the DTL-960e below.

Connector 50 Pin, High Density SCSI-2

Gender (on unit) Female

Compatible devices DAT, AIT, CD-R, CD-RW

Autoloader Support? Yes

SCSI ID 0

Connector Type DB9

Gender (on unit) Male

Cable Required (Connected to C) Null Modem

Cable Required (Connected to Multiplexer) Variable, depending on pin-out configuration of MUX

Pin Use

1 DCD

2RX

3TX

4 Not connected

5 Ground

6 Not connected

7 RTS

8 CTS

9 Not connected

Figure 5 - DB-9 in Configuration

For RS-232 Serial ort

SVHS Input 4-pin Mini-DIN connector

SVHS Output 4-pin Mini-DIN connector

SVHS Looping Only while unit is On

Composite Input 75 Ohm BNC connector

Composite Output 75 Ohm BNC connector

Composite Looping Yes, while unit is On or Off

All manuals and user guides at all-guides.com

Altri manuali per DTL-960E

Indice

Altri manuali Baxall Registratore digitale

Baxall

Baxall Vivid Manuale utente

Baxall

Baxall DTL-960E Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
