ENENUSER'S MANUAL T-TOUCH SERIES

1. QUICK GUIDE 6

1.1 REQUIREMENTS 6

1.2 INTERFACES 6

1.3 TYPE OF POWER SOURCE 7

1.4 PAPER ROLL CHANGE - S70 / M80 8

1.5 SWITCHING ON AND OFF 9

2. GENERAL INFORMATION 10

2.1 SALES SCREEN 10

2.2 REAR SCREEN 12

2.3 ON-SCREEN KEYBOARD 13

3. OPERATION 14

3.1 FUNCTIONS 14

3.2 SALES OPERATION MODE 15

3.3 MANUAL ENTRY PRICE / QUANTITY 16

3.4 AUTO-ACCUMULATION MODE 17

3.5 REMOVE ACCUMULATED PRODUCTS 18

3.6 COLLECTION OPERATION 20

3.7 SALES RETURN 22

3.8 EDIT PLU 22

4. MAIN MENU SETTINGS 24

4.1 LOG IN/LOG OUT 25

4.2 SALES 26

4.3 ID SETTING 26

4.4 SETTINGS 30

4.4.1 BASIC INFORMATION 31

4.4.2 SYSTEM 34

4.4.3 WEIGHT 37

4.4.4 OPERATION 37

4.4.5 CALIBRATION 41

4.4.6 COMUNICATION 41

4.4.7 PREVIOUS SCREEN 42

4.5 USER INTERFACE 49

4.6 DATA 57

4.7 REPORTS 61

4.8 PRICE TYPE 62

4.9 PRINT FORMAT 62

ENENUSER'S MANUAL T-TOUCH SERIES

WARNING!

1. Check the voltage before connecting the scale. Use only the correct voltage

assigned to avoid damage.

2. Avoid using the scale in hazardous environments.

3. Avoid suddenly or strongly impacting the scale.

4. Avoid submerging the scale in water and in highly humid environments.

5. Do not turn on the scale when it has just undergone large temperature changes

to avoid possible damage.

ENENUSER'S MANUAL T-TOUCH SERIES

INTRODUCTION

The touch screen scales S70 and M80 are specially designed for shops, supermarkets, etc. They use a Linux-based operating system with touch

screens.

Characteristics

• Resistive touch screen system.

• 8" (S70), 10'' (M80) TFT LCD screen.

• 7'' (S70), 10'' (M80) customer HD screen.

• The customer's screen is able to play images and videos.

• Selectable weighing units.

• Built-in real time clock.

• 1 GB RAM and 1 GB FLASH memory.

• Unlimited data storage capacity*.

• 99999 PLU storage capacity.

• Multiple, customizable print formats.

• Connectivity with PC keyboard, mouse, barcode scanner and cash box.

• RS232x2: The serial communication port can be connected to a PC,

mini printer, ticket printer, label printer, etc.

• Report management.

Note: * Data storage depends on the availability of free memory

ENENUSER'S MANUAL T-TOUCH SERIES

1. QUICK GUIDE

1.1 REQUIREMENTS

Check that the power supply has the correct voltage required before use. The mounting location must be a stable surface free of heat, water and

moisture.

1.2 INTERFACES

M80 Series:

RJ-11 USB2 RJ-45 RS-232: COM1 MINI USB

S70 Series:

RS-232 X 2 RJ-11 RJ-45 MINI USB

USBPort x 2

JACK ADAPTER

RS-232 COM2

ENENUSER'S MANUAL T-TOUCH SERIES

INTERFACE QUANTITY DESCRIPTION

RJ11 1 Cash draw

USB 2For mouse, keyboard, barcode scanner

RJ45 1 Ethernet

RS232 2For printers or other supported equipment

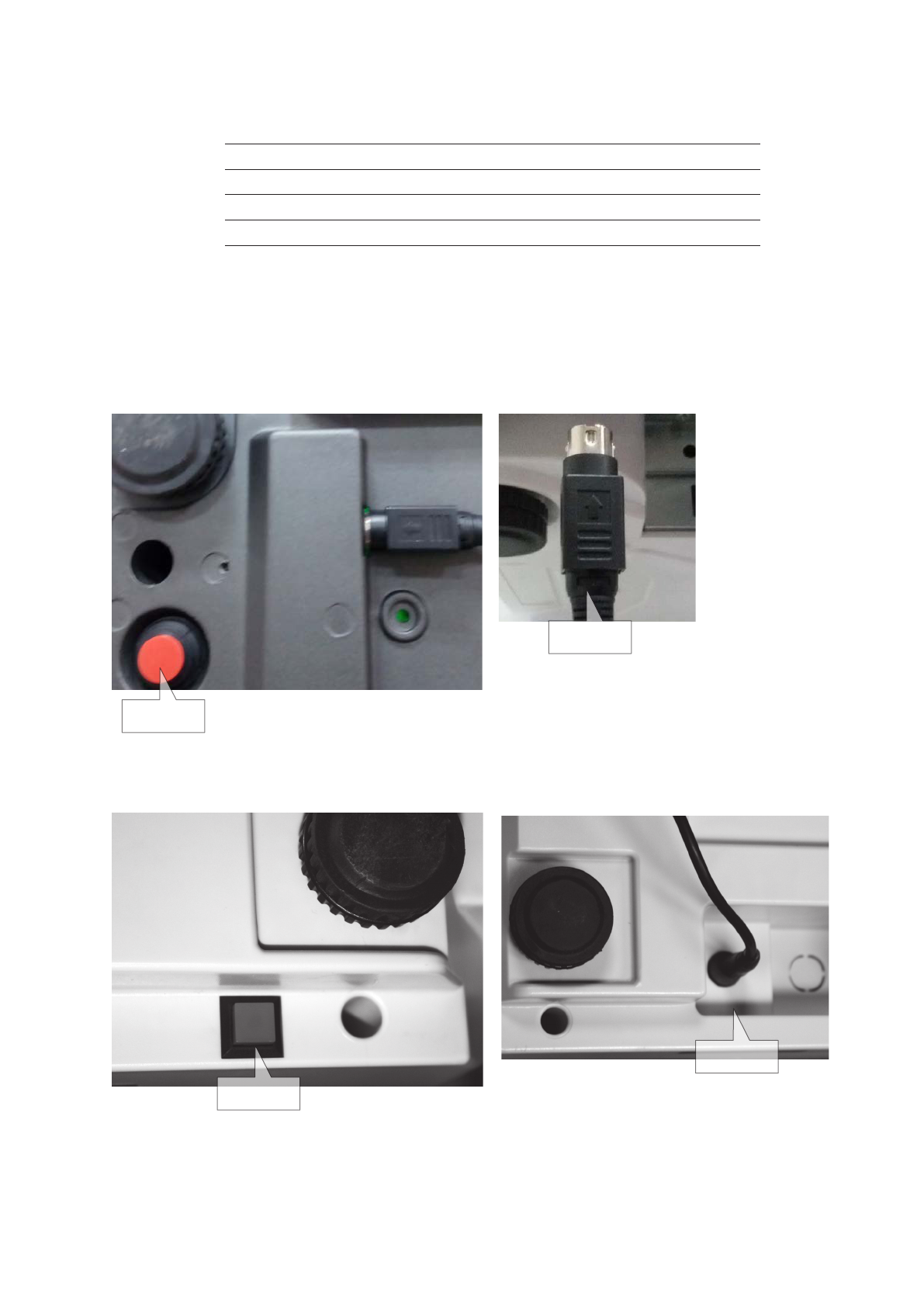

1.3 TYPE OF POWER SOURCE

M80 Series

SWITCHING ON

CONNECTOR

S70 Series

SWITCHING ON

CONNECTOR

ENENUSER'S MANUAL T-TOUCH SERIES

1.4 PAPER ROLL CHANGE - S70 / M80

Push button to open Lift to open the lid Replace the paper roll

Peel off the paper Close Pull out the paper

ENENUSER'S MANUAL T-TOUCH SERIES

1.5 SWITCHING ON AND OFF

SWITCHING ON

Press and hold down the Power key until you hear a "beep", then

the scale will start the power up process.

SWITCH

SHUTTING DOWN

Press the key on the main menu, and press "confirm" on

the pop-up screen to turn off the equipment

SWITCH OFF KEY

Note: If you press and hold the "On" switch for a long period, the scale will turn off.

1- It is necessary to enter the user name and password to access the scale’s operations.

To access the scale’s operations, select the user name on the list and enter the password.

Default user name: admin

Default password: admin

2- It is necessary to press the "access" key to display the sales screen where, by pressing the "Menu" key, we access the main menu,

from which we can move through the scale’s different sections.

ENENUSER'S MANUAL T-TOUCH SERIES

2. GENERAL INFORMATION

2.1 SALES SCREEN

DISPLAY/

INDICATOR

DESCRIPTION

1 Zero

Tare

Stable

Displays the current weighing status

2 Range Displays the weighing range

4 Operator Displays who the active operator is

5 Capacity Displays the capacity, the minimum weight, and the division.

6 Version Displays the software version

7 Power supply Displays that it is connected to the electricity

8 Date and time Displays the date and time

9Tare Displays the tare value

10 Weight Displays the weight
