Bay Networks 5380 Istruzioni operative originali

Part No. 112771-A

May 1996

Quick Installation

for the Model 5380

and Model 5580

Memory Upgrade Kit

112771-A QI SIMMs Page 1 Tuesday, December 17, 1996 6:45 AM

Introduction

The Model 5380 Ethernet Router and the Model 5580 Token

Ring Router can be conﬁgured with 8 MB, 16 MB, or 32 MB

dynamic random access memory (DRAM) in the form of single

in-line memory modules (SIMMs) that reside on the printed

circuit board. This guide describes how to install and replace the

SIMMs on the router modules. The part numbers for the Ethernet

and token ring router SIMMs are:

• 8 MB SIMMs order number AD0011005

• 16 MB SIMMs order number AD0011006

• 32 MB SIMMs order number AD0011007

CAUTION:

Only qualiﬁed technicians should install

this equipment.

Place all printed circuit boards on an antistatic mat

until you are ready to install them. If you do not have

an antistatic mat, wear a discharge leash to free

yourself of static before touching any of the printed

circuit boards or free yourself of static by touching a

grounded metal object before handling a printed circuit

board.

112771-A QI SIMMs Page 2 Tuesday, December 17, 1996 6:45 AM

Removing the SIMMs

1. Locate the SIMM sockets on the router module.

2. Push gently outward on the spring latch at each end of

the SIMM.

SIMM sockets

6697

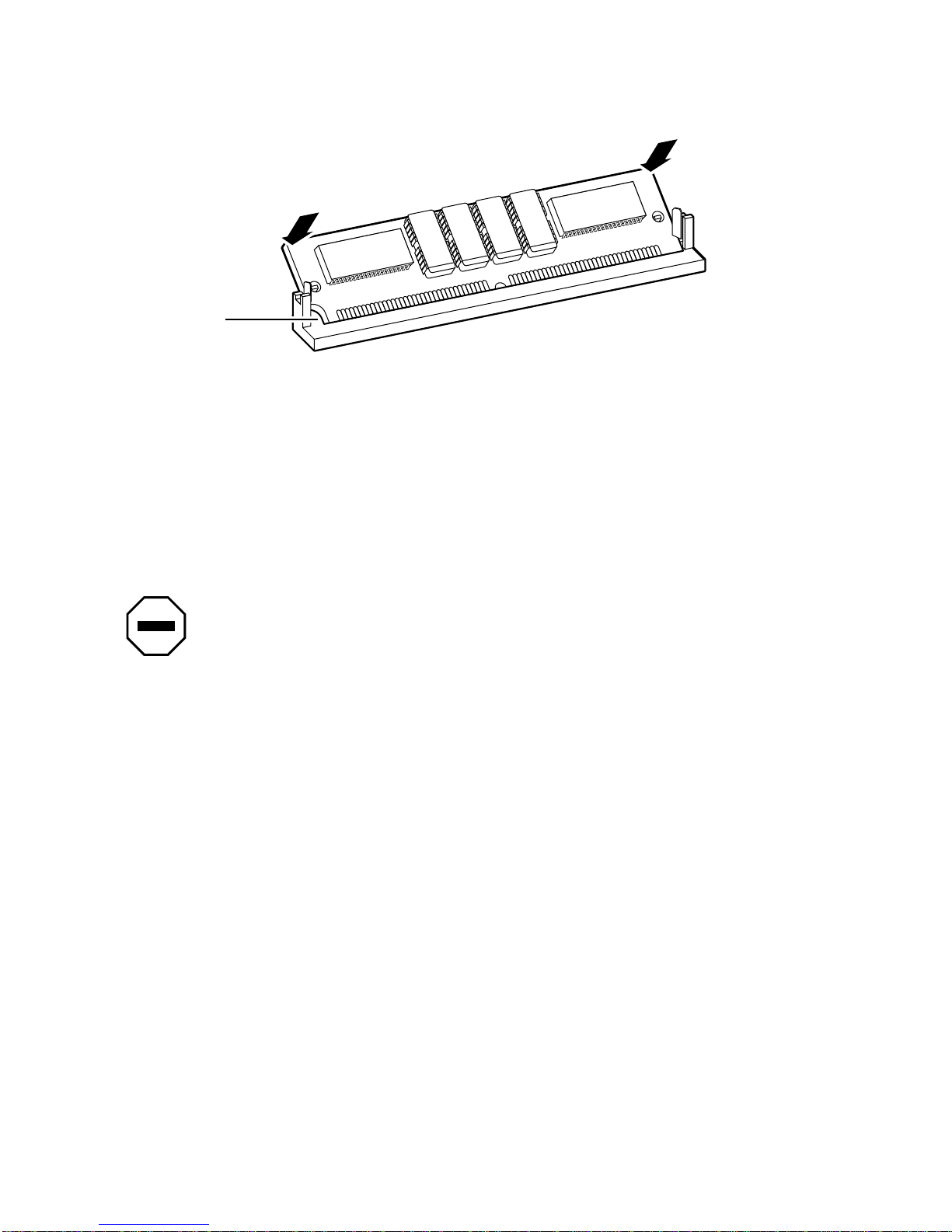

Guide

notch

6733

112771-A QI SIMMs Page 3 Tuesday, December 17, 1996 6:45 AM

3. Lift the SIMM out of the socket.

When you release the SIMM from the spring latches, the

SIMM ejects from the locking studs and can be easily

removed.

4. Place the SIMM in an antistatic bag, or set it on an

antistatic mat.

6734

112771-A QI SIMMs Page 4 Tuesday, December 17, 1996 6:45 AM

Replacing the SIMMs

1. Note the location of the guides in the socket.

2. Hold the SIMM you are installing by its top corners, and

align the SIMM with the socket. Slide the SIMM gently

into the socket.

6735

112771-A QI SIMMs Page 5 Tuesday, December 17, 1996 6:45 AM

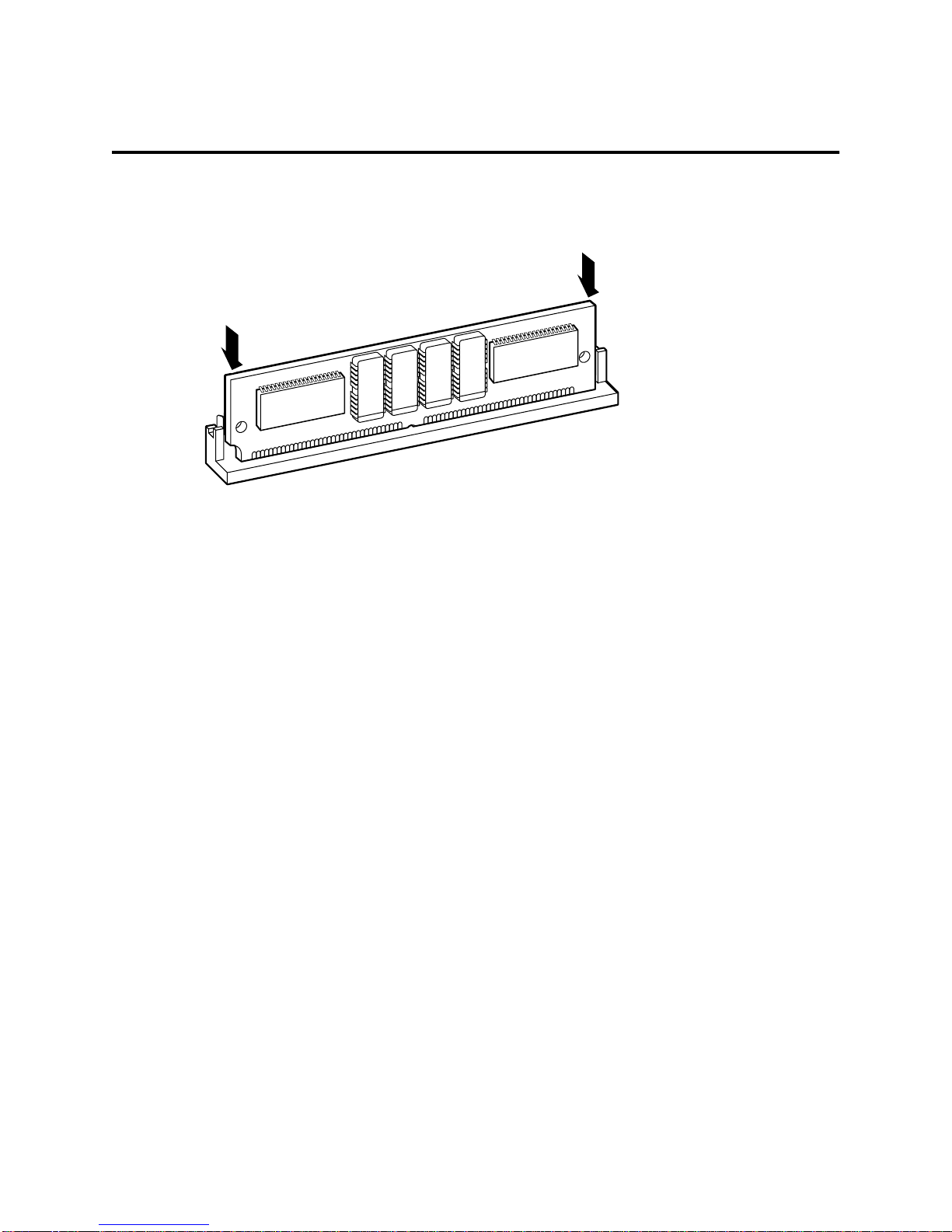

3. Press down on the SIMM gently to seat it ﬁrmly in the

socket, bringing the SIMM to its locked position.

You may hear a “click” as the spring latches engage the ends

of the SIMM.

CAUTION:

You may feel a slight resistance as the

SIMM locks into position. If the SIMM does not lock,

do not force it. It is very easy to damage the SIMM

socket. Remove the SIMM, reinsert it, wiggle it gently

as you press it into the socket.

Guide

notch

6736

112771-A QI SIMMs Page 6 Tuesday, December 17, 1996 6:45 AM

4. Place the DRAM size identiﬁcation label on the PPX

connector (P1).

The connector is labeled P1 on the baseboard.

The label indicates one of the following DRAM sizes:

8 Meg DRAM

16 Meg DRAM

32 Meg DRAM

SIMM sockets

Place label

on connector

6697.1

8 Meg DRAM

112771-A QI SIMMs Page 7 Tuesday, December 17, 1996 6:45 AM
