Bay Tek Games SQUIGGLE Manuale utente

FACTORY CONTACT INFORMATION

BAY TEK GAMES INC.

Pulaski Industrial Park

1077 East. Glenbrook Drive

Pulaski, WI 54162 USA

PARTS

P: 920.822.3951 X 1101

F: 920.822.1496

E: parts@baytekgames.com

MON - FRI

8 AM - 5 PM C.S.T.

SERVICE

P: 920.822.3951 X 1102

F: 920.822.1496

E: service@baytekgames.com

SALES

P: 920.822.3951

F: 920.822.8936

E: sales@baytekgames.com

All games are proudly manufactured at our factory in Pulaski, Wisconsin, USA

JOIN OUR SERVICE FIRST NETWORK!

This free service is intended to keep you up to date on the latest game

information, early notication of parts specials, pertinent technical bulle-

tins, updates on retro t parts, software upgrades, and much more.

Log on to: www.baytekgames.com/parts

then click on the Parts N’ Service tab!

TABLE OF CONTENTS

FACTORY CONTACT INFORMATION ..............................2

WELCOME TO: SQUIGGLE ......................................4

HOW TO PLAY ................................................5

SPECIFICATIONS..............................................6

SOFTWARE VERSION ..........................................6

SAFETY PRECAUTIONS ........................................6

DIP SWITCH SETTINGS ........................................7

SETUP GUIDE .............................................8-13

MAIN MENU FUNCTIONS ......................................14

VOLUME AND ATTRACT ..................................15

GAME SETTINGS ........................................16

PAYOUT MENU ..........................................17

TICKET PATTERNS ......................................18

DATE/LOCATION ........................................19

STATISTICS ............................................20

DIAGNOSTICS ..........................................21

WIRING DIAGRAMS .......................................22-30

TROUBLESHOOTING ......................................31-39

DIAGNOSTICS ............................................40-41

HOW TO: ................................................42-48

TUBE DIAGRAMS .........................................49-50

PARTS LIST ..............................................51-55

DECAL DIAGRAM ............................................56

MAINTENANCE LOG ..........................................57

TECHNICAL SUPPORT ........................................58

WARRANTY .................................................59

WELCOME TO: Squiggle

Congratulations on your purchase!

Squiggle’s skill-based game play will entice repeat play, fueled by that oh-so-close

feeling! With its glowing, irresistibly oversized button, animated lighting and engaging

sound package, Squiggle will keep players dropping by for more!

Please take a moment to read through this manual and be sure to contact our factory if

you have any questions, or would like some more information.

Thank you for your purchase! Your business is important to us and we hope you enjoy

this game as much as we do!

Your Friends at Bay Tek Games

GAME INSPECTION

Inspect the game for any damaged, loose, or missing parts.

If damage is found, please contact your freight carrier rst.

Then, contact Bay Tek Games’ Service Department at 920.822.3951

or e-mail them at [email protected] for further assistance.

HOW TO PLAY

Try to time the yellow ball drop where the bonus spot

Wait for the red balls to drop.

Hit the button when you want the yellow ball to drop.

Earn tickets based on where the yellow ball landed!

GAME SPECIFICATIONS

SAFETY PRECAUTIONS

WEIGHT

NET WEIGHT 775 LBS.

SHIP WEIGHT 925 LBS.

DIMENSIONS

WIDTH 47”

DEPTH 57”

HEIGHT 143”

OPERATING TEMPERATURE

FAHRENHEIT 80-100

CELSIUS 26.7-37.8

POWER REQUIREMENTS

INPUT VOLTAGE

RANGE

100 to 120

VAC /220 to 240

VAC

INPUT FREQUENCY

RANGE 50 HZ / 60 HZ

MAX OPERATING

CURRENT

5.8 AMPS @ 120V

3.1 AMPS @ 240V

DANGER

DO NOT perform repairs or maintenance on this game with the power ON.

Unplug the unit from the wall outlet or shut off the power strip located inside the cabinet.

NOTICE

Modications to the mechanical, electrical and structural components of this game

may void its compliance certications.

WARNING

Use of ammable subtances can cause sever burns or serious injury.

Always use NON-FLAMMABLE solvents for cleaning. DO NOT use gasoline kerosene or thinners.

CAUTION

Lifting heavy objects can cause back, neck or other injuries. Be sure adequate lifting and moving

devices are available when unloading, unpacking and moving this game.

ATTENTION

Be sure the electrical power matches the game requirements. See the serial number located on the

back of the game cabinet. Always plug into a grounded circuit. If the supply cord is damaged, it must

be replaced by an approved cord or assembly provided by the manufacturer.

A shielded power cable must be used for the game to retain EU/EMC compliance.

IN CASE OF EMERGENCY

UNPLUG THE POWER CORD.

The power cord must be accessible at all times in case of an emergency.

This appliance is suitable for INDOOR, DRY locations only.

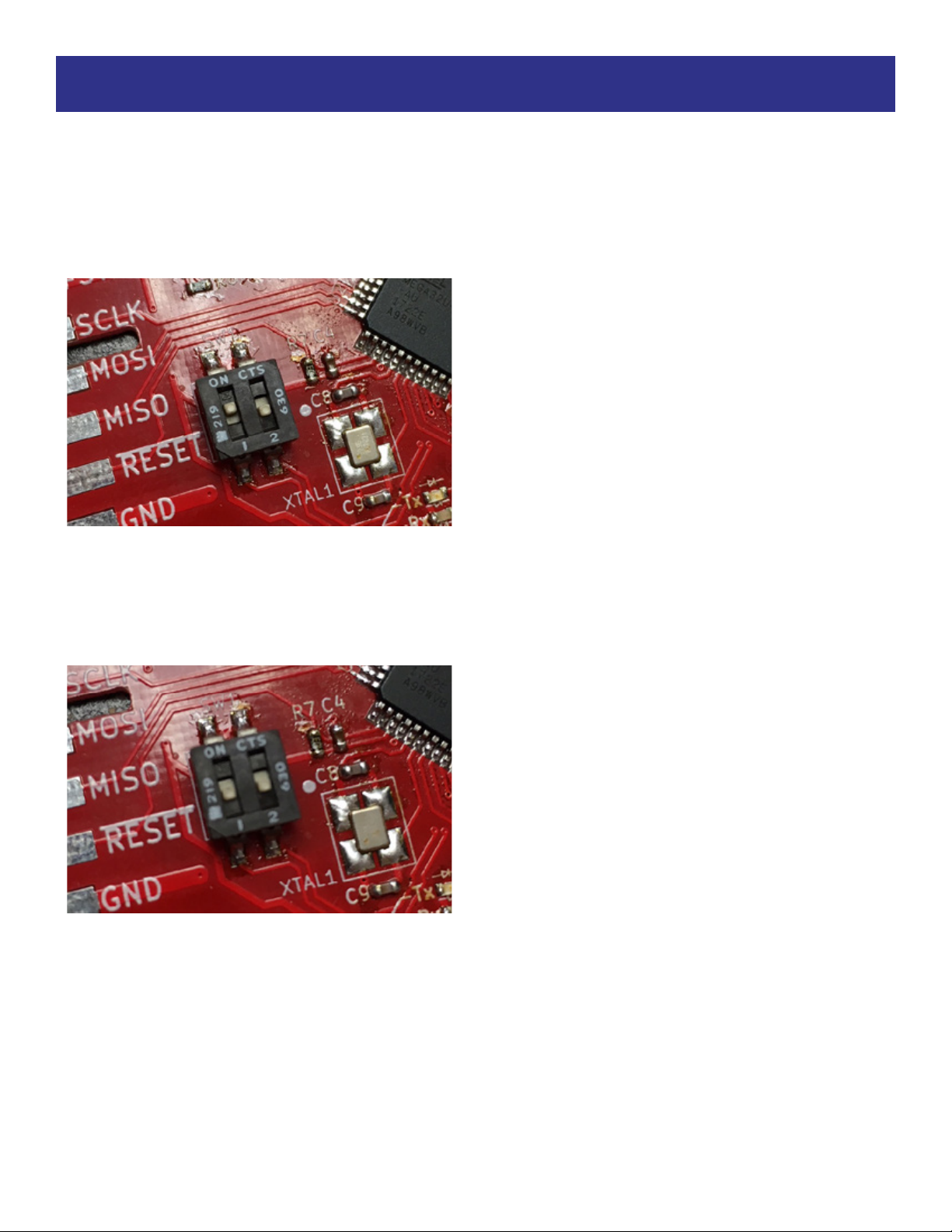

DIP SWITCH SETTINGS

The dip switch bank is located on 2 small sensor control

boards behind the lower service panel in the back of the

game.

Bottom sensor settings

Top sensor settings

SETUP GUIDE

Lay the top playeld on the ground.

Lay the contol panel portion of the game

down.

Match bars with the tting hole on each

side and slide the Playeld to the control

panel.

SETUP GUIDE CONT.

Stand the game up vertically

Install 1/4 bolts in top piece by the

middle tube.

Hammer 3 bolts into each side and

tighten to secure the top half of game to

the bottom half.

SETUP GUIDE CONT.

All cords will be color coded except the

next two cords addressed.

Link the green and yellow cord 6535 to

6536

Place 18 red balls in the left tube.
