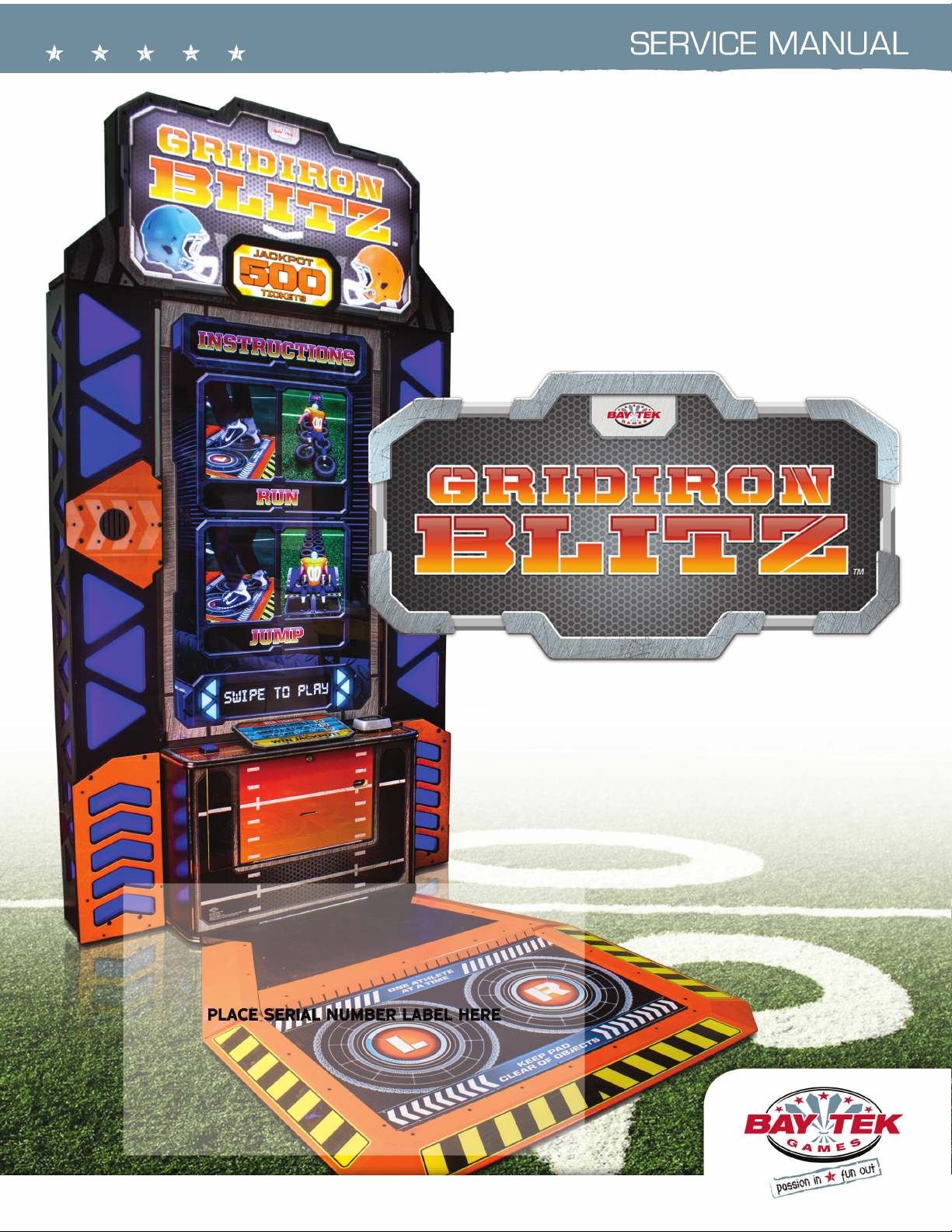

Bay Tek Games GRIDIRON BLITZ Manuale utente
1
2
FACTORY CONTACT INFORMATION
BAY TEK GAMES INC.
Pulaski Industrial Park
1077 East. Glenbrook Drive
Pulaski, WI 54162 USA
PARTS
P: 920.822.3951 X 1101
F: 920.822.1496
E: parts@baytekgames.com
MON - FRI
8 AM - 5 PM C.S.T.
SERVICE
P: 920.822.3951 X 1102
F: 920.822.1496
E: service@baytekgames.com
SALES
P: 920.822.3951
F: 920.822.8936
E: sales@baytekgames.com
All games are proudly manufactured at our factory in Pulaski, Wisconsin, USA
JOIN OUR SERVICE FIRST NETWORK!
This free service is intended to keep you up to date on the latest game
information, early notication of parts specials, pertinent technical
bulletins, updates on retro t parts, software upgrades, and much more.
Log on to: www.baytekgames.com/parts
then click on the Parts N’ Service tab, or scan the QR code below with
your Smartphone to jump straight to this game’s parts page!
Scan here!
3
TABLE OF CONTENTS
FACTORY CONTACT INFORMATION ..............................2
WELCOME TO: Gridiron Blitz .....................................4
HOW TO PLAY ................................................5
SPECIFICATIONS..............................................6
SAFETY PRECAUTIONS ........................................6
QUICK SET UP GUIDE........................................7-8
MAIN MENU FUNCTIONS .......................................9
GAME SETTINGS.............................................10
PAY IN/OUT MENU ............................................11
STATISTICS .................................................12
DIAGNOSTICS ...............................................13
PROMOTIONAL MODE ........................................14
WIRING DIAGRAMS........................................15-19
SENSOR PAD DIAGNOSTICS ................................20-22
TROUBLESHOOTING GUIDE ................................23-28
ERROR MESSAGES ..........................................29
POWER SUPPLY DIAGNOSTICS ................................30
HOW TO: ACCESS/REMOVE MONITOR...........................31
DEBIT CARD SYSTEM INSTALLATION .........................32-33
CIRCUIT BOARD PINOUT ......................................34
MAINTENANCE LOG ..........................................35
TECHNICAL SUPPORT ........................................36
WARRANTY .................................................37
4
WELCOME TO: GRIDIRON BLITZ
Get your knees up!
Gridiron Blitz is a fast-paced, high-energy game that gets your players moving! With its
interactive gameplay, great football theme and some slapstick humor thrown in, Grid-
iron Blitz is sure to pump up the excitement at your location!
Please take a moment to read through this manual and be sure to contact our factory if
you have any questions, or would like some more information.
Thank you for your purchase! Your business is important to us and we hope you enjoy
this game as much as we do!
Your Friends at Bay Tek Games
GAME INSPECTION
Inspect the game for any damaged, loose, or missing parts.
If damage is found, please contact your freight carrier rst.
Then, contact Bay Tek Games’ Service Department at 920.822.3951
5

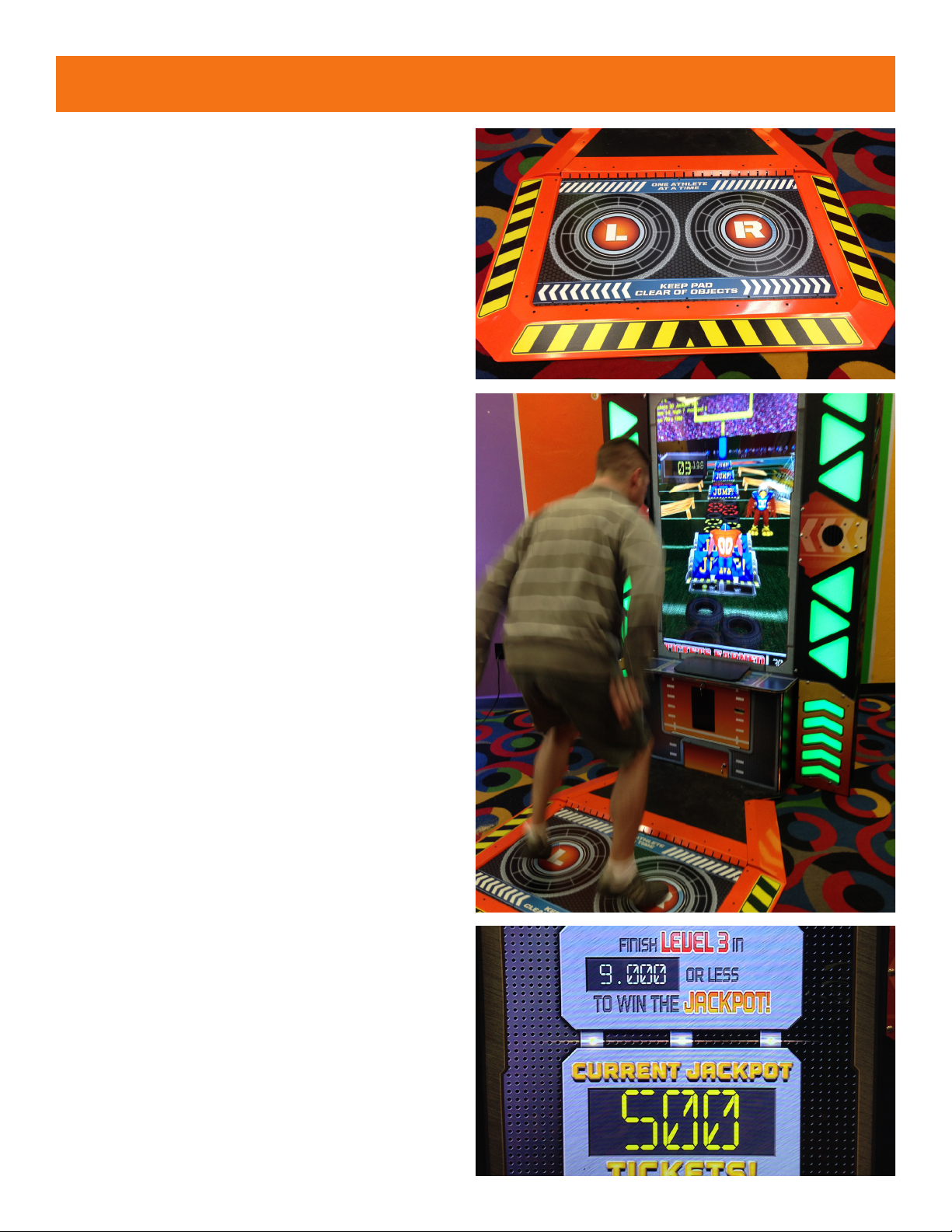

HOW TO PLAY
Step onto the pad and coin up.
Run through the tires, jump the hurdles and avoid
mascots and flying golf carts!
Get through all three levels before time runs out
to win tickets and get your time on the high score
screen!
Finish the third level in record time to win the
jackpot!
6
GAME SPECIFICATIONS
SAFETY PRECAUTIONS
WEIGHT
NET WEIGHT 540 lbs.
SHIP WEIGHT 600 lbs.
DIMENSIONS
WIDTH 57”
DEPTH 84”
HEIGHT 104”
OPERATING TEMPERATURE
FAHRENHEIT 80-100
CELSIUS 26.7-37.8
POWER REQUIREMENTS
INPUT VOLTAGE
RANGE
100 to 120
VAC /220 to 240
VAC
INPUT FREQUENCY
RANGE 50 HZ / 60 HZ
MAX START UP
CURRENT
OPERATING
CURRENT
2.2 AMPS @ 115 VAC 3.6 AMPS @ 115 VAC
1.1 AMPS @ 230 VAC 2.2 AMPS @ 230 VAC
DANGER
DO NOT perform repairs or maintenance on this game with the power ON.
Unplug the unit from the wall outlet or shut off the power strip located inside the cabinet.
!!
NOTICE
Modications to the mechanical, electrical and structural components of this game
may void its compliance certications.
!!
WARNING
Use of ammable subtances can cause sever burns or serious injury.
Always use NON-FLAMMABLE solvents for cleaning. DO NOT use gasoline kerosene or thinners.
!!
CAUTION
Lifting heavy objects can cause back, neck or other injuries. Be sure adequate lifting and moving
devices are available when unloading, unpacking and moving this game.
!!
ATTENTION
Be sure the electrical power matches the game requirements. See the serial number located on the
back of the game cabinet. Always plug into a grounded circuit. If the supply cord is damaged, it must
be replaced by an approved cord or assembly provided by the manufacturer.
A shielded power cable must be used for the game to retain EU/EMC compliance.
!!
IN CASE OF EMERGENCY
UNPLUG THE POWER CORD.
The power cord must be accessible at all times in case of an emergency.
!!
This appliance is suitable for INDOOR, DRY locations only.
7
QUICK SET UP
Place the UNPLUGGED game near its final location.
Cut the banding holding up the sensor pad and
CAREFULLY lower it down to the floor.
Buddy lift the marquee into place, plugging in the
cable shown.
Secure the marquee with 6 included silver panhead
bolts and washers (hardware packet is in the cash-
box).
Plug the game into a standard electrical outlet and
switch the power strip to ON.
8
Move the game to desired promotional location;
consider the game’s size and trip potential when
choosing a location. Use the included straps
to secure the pad in the upright position, and
always use the buddy system when moving heavy
objects.
Plug in the game and switch the power on. Load
prize cards if desired, and switch the free play
toggle inside the cabinet to the on position.
Enter the game menu and enable promo play in the
Promo Mode menu. See page 13 for menu details.
Close up the game and let the fun begin!
Enabled
PROMO PLAY SETUP
*NOT AVAILABLE ON ALL MACHINES*
9
MAIN MENU
To access the menu, press the MENU button
inside the front door of the cabinet.
Scroll through the menus with the MENU button.
Make your selections with the MENU SELECT
button.
MAIN MENU OPTIONS
GAME VOLUME 0 1 2 3 4 5 6 7 8 9 10
ATTRACT VOLUME 0 1 2 3 4 5 6 7 8 9 10
JACKPOT VOLUME 012345678910
CLEAR TIX/CRED Press the menu button 3 times to clear tickets and credits owed
RESET HIGH
SCORES Press the menu button 3 times to clear the high scores screen
MUTE Mute to turn off all sound
10
GAME SETTINGS
GAME SETTINGS OPTIONS
AVATAR/STADIUM COLORATION
JERSEY COLOR GREEN BLUE AQUA PURPLE BLACK WHITE G RAY RED ORANGE YELLOW
HELMET/PANTS
COLOR GREEN BLUE AQUA PURPLE BLACK WHITE G RAY RED ORANGE YELLOW
GAME LEVEL TIME LIMITS*
LEVEL 1 MAX TIME 1 SEC -30 SEC DEFAULT: 20
LEVEL 2 MAX TIME 1 SEC -30 SEC DEFAULT: 20
LEVEL 3 MAX TIME 1 SEC -30 SEC DEFAULT: 10
*Each level must be completed within the set time to continue on to the next level
GAMEPLAY OPTIONS
ENTERTAINMENT
O N LY DISABLED ENABLED**
**Call Bay Tek Games’ Service Department to order entertainment only art.
Entertainment Only: Disabled
