Bayliner 185 Manuale utente

Engine Serial Number: _____________________________________

Hull Identification Number:__________________________________

Hull Identification Number

•The Hull Identification Number (HIN) is

located on the starboard hullside just for-

ward of the transom.

•Record the HIN (and the engine serial

numbers) in the space provided above.

•Include the HIN with any correspondence

or orders.

No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical,

photocopying, recording or otherwise, without prior written permission of Bayliner.

Printed in the United States of America.

General Notes

The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the

preparation of this document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from

the use of information contained herein.

Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equip-

ment at any time without notice or obligation. Illustrations and/or photos may show optional equipment.

All Bayliner products meet or exceed USCG (United States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) con-

struction standards. Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufactur-

ing process by destroying ozone in the upper atmosphere.

Proprietary Rights

This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated

by and are the property of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the

document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or

written agreement with Bayliner. This document is to be returned upon request to Bayliner.

Part Number

1911152

CONTENTS

Chapter 1: Welcome Aboard!

185 Dimensions & Tank Capacities 1

195 Dimensions & Tank Capacities 1

205 Dimensions & Tank Capacities 1

225 Dimensions & Tank Capacities 1

Dealer Service 2

Warranty Information 2

Boating Experience 2

Engine & Accessory Guidelines & Literature 3

Propeller 3

Structural Limitations 4

Qualified Maintenance 4

Special Care for Moored Boats 4

Safety Standards 5

Carbon Monoxide (CO) 6

CO Facts 6

Factors that Increase the Effects of CO Poisoning 6

Where & How CO Can Accumulate 7

How to Protect Yourself & Others From CO 7

CO Checklists 8

More Information 8

185 Warning Labels 9

195 Warning Labels 11

205 Warning Labels 13

225 Warning Labels 15

Chapter 2: Locations

Exterior Views 17

185 & 195 Hull Views 17

205 & 225 Hull Views 18

185 Deck Views 19

195 Deck Views 20

205 Deck Views 21

225 Deck View 22

185, 195 & 225 Helm 23

205 Helm 24

Component Locations 25

Chapter 3: Propulsion & Related Systems

Engine 37

Bilge Blower System 38

Fuel System 39

Fuel Fill & Vent 41

Fuel Filters 41

Anti-siphon Valve (Gas Engine Only) 41

Fuel Filter/Water Separator (Diesel Engine Only) 42

Quick Oil Drain System 43

Chapter 4: Controls & Gauges

Steering 44

Shift/Throttle Control 44

Power Trim & Tilt 44

Gauges 45

Cleaning the Gauges 45

Gauge Fogging 45

Radio Transmission Interference 45

Fuel Gauge 45

Chapter 5: Navigation Equipment

Depth Finder (If Equipped) 46

Chapter 6: Plumbing

Bilge Pump 47

Bilge Pump Testing 48

Autofloat Switch 49

Seawater Systems 50

Seacocks 50

Seawater Strainers 50

Livewell System (185, 195 & 205 Only) (If Equipped) 51

Freshwater System (225 Only) (If Equipped) 52

Transom Shower (225 Only) (If Equipped) 52

Freshwater System Winterization 53

Drain Systems 53

Deck Drains 53

Chapter 7: Deck Equipment

Cleats & Bow/Stern Eyes 54

Bow Mount Trolling Motor (185, 195 & 205 Only)

(If Equipped) 54

Ski-Tow Ring 54

Ski-Tow Tower (If Equipped) 55

Attaching the Ski-tow Rope 55

Folding the Ski-tow Tower (If Equipped) 56

Canvas 57

185 Bimini Top (If Equipped) 57

205 & 225 Bimini Top (If Equipped) 58

Convertible Top (If Equipped) 59

Side Curtains (205 & 225 Only) (If Equipped) 60

Bow Cover (If Equipped) 61

Canvas Care 62

Clear Vinyl Care 63

Chapter 8: Entertainment Systems

Audio Equipment 64

Chapter 9: Convertible Seats, Beds, & Tables

Sleeper Seats (185, 195 & 205 Only) (If Equipped) 65

Operating Positions 65

Lounge Positions 65

Jump Seat to Sunlounge Conversion 66

Passenger Seat to Sunlounge Conversion

(225 Only) 67

Installing & Removing Table Leg (225 Only) 68

Removable Fishing Seats (185, 195 & 205 Only)

(If Equipped) 69

Chapter 10: Lights

Care & Maintenance 70

Interior & Exterior Lights 70

Navigation Lights 70

Chapter 11: Electrical System

12-Volt DC System 72

Battery 72

Fuses 72

12-Volt DC Accessory Outlet(s) 73

Alternator 73

Electrical Routings 74

12-Volt DC Hull Harness 74

185 & 195 12-Volt DC Deck Harness 75

205 12-Volt DC Deck Harness 75

225 12-Volt DC Deck Harness 76

185, 195 & 205 Trolling Motor Harness (If Equipped) 76

Battery Cable Routings 77

Important Records 78

Float Plan 79

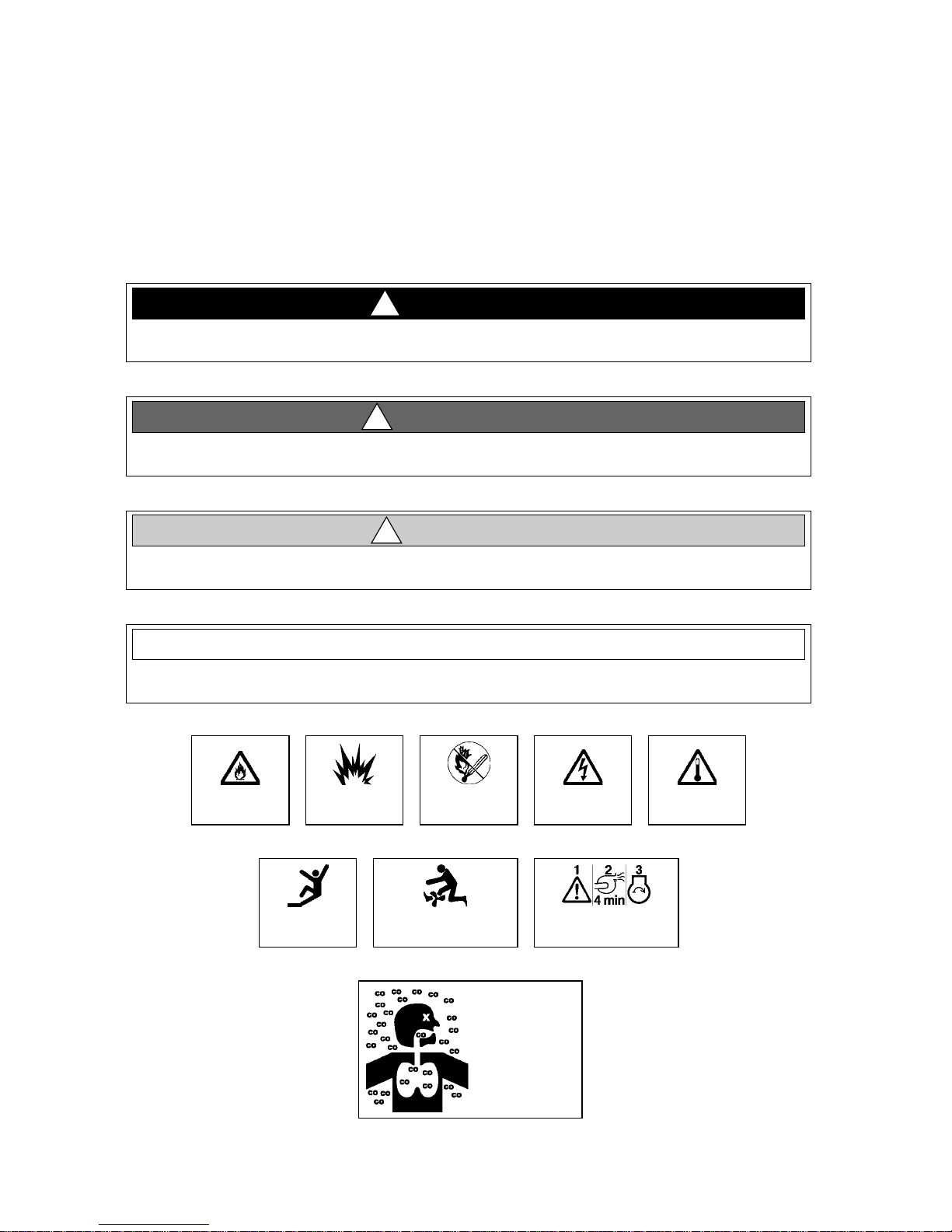

Hazard Boxes & Symbols

The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan-

gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol-

low all safety instructions.

This box alerts you to immediate hazards which WILL cause severe personal injury or death if

the warning is ignored.

DANGER!

This box alerts you to hazards or unsafe practices which COULD result in severe personal

injury or death if the warning is ignored.

WARNING!

This box alerts you to hazards or unsafe practices which COULD result in minor personal

injury or cause product or property damage if the warning is ignored.

CAUTION

This box calls attention to installation, operation or maintenance information, which is impor-

tant to proper operation but is not hazard related.

NOTICE

CO POISONING

HAZARD!

EXPLOSION

HAZARD! NO OPEN

FLAME! HOT

HAZARD!

ROTATING

PROPELLER HAZARD!

FALLING

HAZARD!

ELECTRICAL

HAZARD!

FIRE

HAZARD!

RUN BILGE BLOWERS

FOR 4 MINUTES!

185, 195, 205, & 225 •Owner’s Manual

Supplement

Chapter 1: Welcome Aboard!

•This Owner’s Manual Supplement provides specific information about your boat that is not covered in the Sport

Boat Owner’s Manual.

•The Sport Boat Owner’s Manual contains general information about safe operating practices, general boating reg-

ulations, and general maintenance techniques. Information that is more specific to your particular boat is found in

this Owner’s Manual Supplement.

•Before using your boat, study this Owner’s Manual Supplement, the Sport Boat Owner’s Manual, and all engine

and accessory literature carefully. If similar instructions are found in more than one manual, always refer to the

specific manufacturer’s manual (such as the engine manual) for the most complete and accurate information.

•Keep this Owner’s Manual Supplement and the Sport Boat Owner’s Manual on your boat in a secure, yet readily

available place.

185 Dimensions & Tank Capacities

195 Dimensions & Tank Capacities

205 Dimensions & Tank Capacities

225 Dimensions & Tank Capacities

Overall

Length Length

Rigged Bridge

Clearance Beam Draft

(Hull) Draft

(Maximum) Fuel

Tank

18' 0" 19' 1" 6' 0" 7' 7" 1' 8" 3' 0" 28 Gallons

Overall

Length Length

Rigged Bridge

Clearance Beam Draft

(Hull) Draft

(Maximum) Fuel

Tank

19' 0" 21' 0" 7' 1" 7' 11" 1' 10" 3' 3" 35 Gallons

Overall

Length Length

Rigged Bridge

Clearance Beam Draft

(Hull) Draft

(Maximum) Fuel

Tank

20' 5" 21' 2" 7' 1" 8' 2" 1' 8" 3' 1" 37 Gallons

Overall

Length Length

Rigged Bridge

Clearance Beam Draft

(Hull) Draft

(Maximum) Fuel

Tank Freshwater

Tank

22' 1" 23' 11" 7' 4" 8' 6" 1' 6" 2' 9" 50 Gallons 10 Gallons

Chapter 1: Welcome Aboard! 185, 195, 205, & 225 •Owner’s Manual

Supplement

Dealer Service

•Your dealer is your key to service.

•Ask your dealer to explain all systems before taking delivery of your boat.

•Contact your dealer if you have any problems with your new boat.

•If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.

•Buy replacement parts from any authorized Bayliner dealer.

•You can access on-line parts catalogs, links to vendor websites, and other helpful features by logging on

to http://www.baylinercustomercare.com.

Warranty Information

•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.

•A copy of the Limited Warranty was included in your owner’s packet.

•If you did not get a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957 for

a copy.

Boating Experience

If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and

safety, get handling and operating experience before assuming command of your boat.

Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For

more course information, including dates and locations of upcoming classes, contact the organizations directly:

•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org

•In Canada, for the CPS courses call 1-888-CPS-BOAT.

•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org

Outside the United States, your selling dealer, national sailing federation, or local boat club can advise you of local

sea schools or competent instructors.

CONTROL HAZARD!

An experienced operator MUST be in control of your boat at ALL times. Do NOT operate your

boat while under the influence of alcohol or drugs.

WARNING!

185, 195, 205, & 225 •Owner’s Manual

Supplement

Chapter 1: Welcome Aboard!

Engine & Accessory Guidelines & Literature

•Your boat’s engine and accessories were selected to provide optimum performance and service.

•Installing a different engine or adding accessories may affect your boat’s running trim.

•If you choose to install a different engine or add accessories that may affect your boat’s running trim, have a

trained marine technician perform a safety inspection and handling test before using your boat again.

•The engine and accessories on your boat have their own manuals. Read these manuals before using the engines

and accessories.

Unless noted otherwise, all engine and accessory literature referred to in this supplement is included in your owner’s

packet.

While the topics listed below may be included in this supplement and in the Sport Boat Owner’s Manual, always

refer to the engine manual first for specific information on these important subjects:

Propeller

•Keep the propeller in good repair and at the correct pitch for your particular situation.

•A slightly bent or nicked propeller will adversely affect the performance of your boat.

BEFORE starting or working on your engine(s), read the engine manual.

NOTICE

BEFORE using the accessories on your boat, read the accessory manuals.

NOTICE

BEFORE storing your boat, refer to your engine and accessory manuals for storage/winteriza-

tion instructions.

NOTICE

Certain modifications to your boat WILL result in cancellation of your warranty protection.

ALWAYS check with your dealer BEFORE making any modifications to your boat.

NOTICE

•Engine Break-in Procedure

•Engine Starting and Stopping

•Gear Shifting

•Fuel and Oil Recommendations

•Engine Maintenance

•Engine Storage/Winterization

ENGINE DAMAGE HAZARD!

The factory standard propeller may not be the best for your particular boat and load condi-

tions. Refer to the engine manual for engine RPM ratings. The engine should reach, but not

exceed its full rated RPM when full-throttle is applied.

Immediately contact your local Bayliner dealer if:

•The engine cannot reach its full rated RPM when full-throttle is applied, or;

•The engine exceeds its full rated RPM when full-throttle is applied.

CAUTION

Chapter 1: Welcome Aboard! 185, 195, 205, & 225 •Owner’s Manual

Supplement

Structural Limitations

The transom platform extension is designed to be lightweight for proper boat balance. The load limit for the transom

platform extension is 30 pounds per square foot, evenly distributed.

Qualified Maintenance

Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your juris-

diction and could expose yourself and others to the danger of bodily injury or accidental death.

Follow the maintenance instructions in:

•this Owner’s Manual Supplement

•the Sport Boat Owner’s Manual

•the engine owner’s manual, and;

•all accessory literature.

Special Care for Moored Boats

•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.

•This will detract from your boat’s beauty, greatly affect its performance, and may damage the gel coat.

•Periodically haul your boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap

and water.

To maintain the safety of your boat, allow ONLY trained personnel to work on, or change, in

any way, the:

•Steering system

•Propulsion system

•Engine control system

•Fuel system

•Environmental control system

•Electrical system

•Navigation system

WARNING!

•To help seal the hull bottom and reduce the chance of gel coat blistering while your boat is

moored, apply an epoxy barrier coating.

•The barrier coating should be covered with several coats of anti-fouling paint.

•Many states regulate the chemical content of bottom paints in order to meet environmental

standards. Check with your local dealer about recommended bottom paints, and about the

laws in effect in your area.

NOTICE

Altri manuali per 185

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Bayliner Barca

Bayliner

Bayliner Classic Runabouts Manuale utente

Bayliner

Bayliner 160 Bowrider Guida alla configurazione

Bayliner

Bayliner 237 Deckboat Manuale utente

Bayliner

Bayliner 2452 Classic Cruiser Manuale utente

Bayliner

Bayliner 185 Manuale utente

Bayliner

Bayliner 185 Manuale utente

Bayliner

Bayliner Capri 1950 Bowrider Manuale utente

Bayliner

Bayliner 3388 Guida alla configurazione

Bayliner

Bayliner Ciera 2455 Sunbridge Manuale utente

Bayliner

Bayliner 288 Classic Manuale utente

Bayliner

Bayliner DX2000 Manuale utente

Bayliner

Bayliner 3288 Motoryacht 1994 Manuale utente

Bayliner

Bayliner Rendezvous Guida alla configurazione

Bayliner

Bayliner 2855 Sunbridge Manuale utente

Bayliner

Bayliner 4788 Manuale utente

Bayliner

Bayliner 265 Manuale utente

Bayliner

Bayliner 2302 DXILX Guida alla configurazione

Bayliner

Bayliner 16 Element Guida alla configurazione

Bayliner

Bayliner 246 Discovery Guida alla configurazione

Bayliner

Bayliner Capri 16' Guida alla configurazione

Bayliner

Bayliner 2150 Ciera Sunbridge Manuale utente

Bayliner

Bayliner 300 CRUISER Guida alla configurazione

Bayliner

Bayliner 212 Runabout Guida alla configurazione

Bayliner

Bayliner 305 Guida alla configurazione

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
