Beck IPC@CHIP DB240 Manuale utente

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

Hardware Manual

IPC@CHIP Development Board

DB240

High Performance IPC@CHIP SC243

Embedded Webcontroller

Order No.

Development Board DB240:

563964

Development Kit DK241:

563965

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

IPC@CHIP® is a registered trademark of Beck IPC. Ethernet is a

registered trademark of Xerox Corporation. All other product names,

company names, logos or other designations mentioned herein are

trademarks of their respective owners.

Freescale™is a trademark of Freescale Semiconductor,

Inc.

Ethernet is a registered trademark of Xerox Corporation.

SPI is a trademark of Motorola, Inc.

No part of this guide may be reproduced or transmitted in any form for

any purpose other than the purchaser's personal use, without the express

written permission of Beck IPC.

Beck IPC GmbH

Grüninger Weg 24

35415 Pohlheim-Garbenteich / Germany

Phone: +49 6404 695-0

Fax: +49 6404 695-500

Technical Support

Phone: +49 6404 695-200

Fax: +49 6404 695-515

Online: www.beck-ipc.com

E-mail: [email protected]

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

Table of Contents

1Overview .................................................................................................................... 4

1.1 Introduction................................................................................................................................... 4

1.2 Accessories................................................................................................................................... 4

1.3 Getting Started.............................................................................................................................. 4

2Block Diagram............................................................................................................ 5

3Assembly Top............................................................................................................. 6

4Assembly Bottom........................................................................................................ 7

5Electrical Functions / Interfaces.................................................................................. 8

5.1 Power supply ................................................................................................................................ 8

5.2 X11, X28 –Power supply connectors........................................................................................... 8

5.3 SW4 –24V Switch........................................................................................................................ 8

5.4 SW2 –Reset Button ..................................................................................................................... 8

5.5 X30 –Pin header with power supplies ......................................................................................... 8

5.6 SC2x3........................................................................................................................................... 9

5.7 X18, X19 –RS232 COM Ports..................................................................................................... 9

5.8 X4, X16 –USB Host................................................................................................................... 10

5.9 X2, X6, X7, X8 –Extension Port................................................................................................. 10

5.10 X9,X10 –ATA/IDE Interface....................................................................................................... 13

5.11 X5 –Fast Ethernet 10/100Mbit Interface.................................................................................... 14

5.12 X12 –Backup Battery................................................................................................................. 15

5.13 X13 –JTAG Interface ................................................................................................................. 15

5.14 X24 –JTAG/COP Interface ........................................................................................................ 15

5.15 X17 –SD/MMC-Card Socket...................................................................................................... 16

5.16 X20, X22 –CAN Interface .......................................................................................................... 16

5.17 X21 –WLAN AddOn................................................................................................................... 16

5.18 X23 –Bluetooth AddOn.............................................................................................................. 16

5.19 Real Time Clock ......................................................................................................................... 17

5.20 CPLD .......................................................................................................................................... 17

5.21 SW2 - LEDs and DIP switch....................................................................................................... 17

6Technical data.......................................................................................................... 18

6.1 Climatic data............................................................................................................................... 18

6.2 Mechanical data.......................................................................................................................... 18

6.3 Electromagnetic Compatibility .................................................................................................... 18

6.4 Electrical data ............................................................................................................................. 18

7General conditions of use......................................................................................... 19

8Exclusion of warranty and liability............................................................................. 20

9History...................................................................................................................... 21

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

1 Overview

1.1 Introduction

The IPC@CHIP® SC2x3 family is a combination of hardware and software including the preinstalled real time

operating system, TCP/IP stack, Web server, FTP server, Telnet server, enable designers to reduce the size,

power consumption, and cost of embedded systems, while increasing reliability, functionality, performance and

time to market.

The IPC@CHIP® SC2x3 family of Computer on Modules are embedded processors built on Power

Architecture™ technology and are specially designed for demanding control, communication and HMI tasks.

The Freescale power processor offers 760 MIPS processing performance and a high-speed Floating Point Unit

–ideal for fast data communication or complex control tasks for example in the field of motion control.

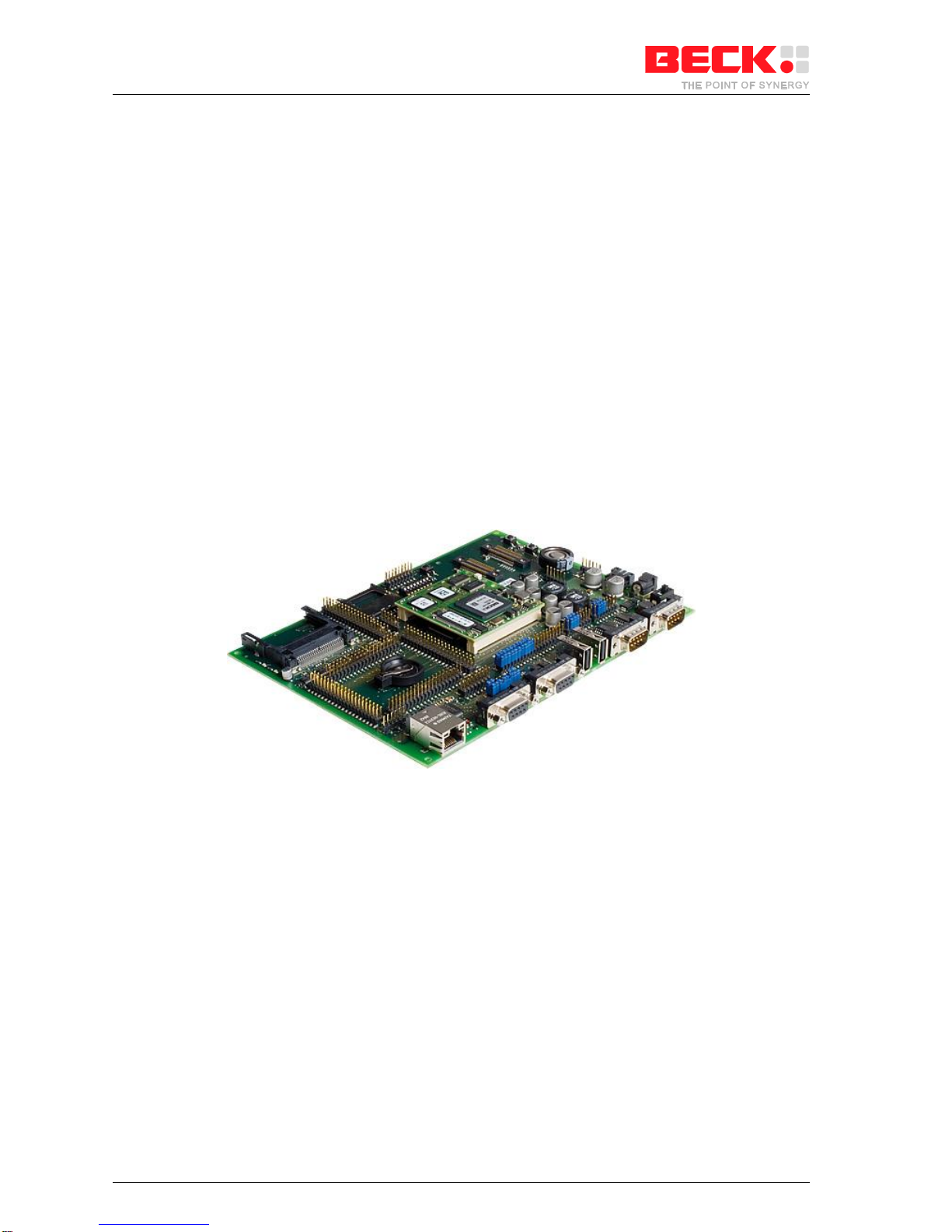

The DB240 development board is designed to provide an easy introduction to the SC223/SC243 technology for

software development in C/C++. It also provides a hardware basis for quickly developing a functional prototype

for your product. The DB240 can also be expanded easily using a AddOn.

1.2 Accessories

The following accessories are not supplied with the Development Board DB240, but can be ordered separately:

Order number: Accessories:

195837 ZK14 serial programming cable

538934 PSE10 power supply for DB240

566784 ONE Workbench for SC2x3

563966 ZT200 pulling off device for SC2x3

1.3 Getting Started

The initial commissioning of the DB240, the software and the tools which are required, are described in the

document IPC@CHIP® SC2x3 ―Getting Started‖. It is available at:

http://www.beck-ipc.com/ipc/gettingstarted

On this page you get also links to the required tools, as well as other useful documentation (SC2x3 Hardware

Manual; RTOS API documentation).

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

2 Block Diagram

Figure 2-1: Block Diagram

Computer On Module SC243

9..30V power supply input,

protected against reverse polarity

3.3V and 5V power supply

Power LEDs

Reset button

Six serial interfaces (two with

RS232 level)

Two CAN interfaces including

transceiver

Real Time Clock with power

buffering

SPI interface

Two I²C interfaces

10/100 Base-T Ethernet interface

Two USB 1.1 host interfaces

SD/MMC socket, CF-Socket and

IDE/ATA connector

8-bit LEDs port

8-bit DIP switch

Extension pin header

PIO pins

CPLD for demultiplexing Local Plus

Bus

WLAN/Bluetooth-AddOn connectors

Power

Supply

24V

Round Socket

3,5mm Pin Socket

3,3V

5,0V

SUB-D

RS232:UART1

SUB-D

CAN1+UART2

Transceiver

SUB-D

CAN2+UART2

Transceiver

USB-A

USB1 / UART4+5

Transceiver

Reset

LEDs

RJ45 + Transformator

MII

PHY

CF-Card

IDE/ATA

Level Shifter

IDE

8 LEDs

8 DIP-Schalter

UART6

Bluetooth

SPI

WLAN

SD-Card

Ethernet

Local Plus Bus

Multiplexed A/D-Bus

Extension

Port

UART4+5 / USB1

CPLD

I²C

IRQs

PIOs

IRQ1

Transceiver

UART1_TXD, RXD, RTS, CTS, DCD

RS232:UART3

Jumper

USB-A

USB2 / SPI + UART3

Transceiver

Jumper

UART1

UART2

Jumper

PIO39

SC2x3

Battery

RTC

I²C

GoldCap

UART3_TXD, RXD, RTS, CTS, DCD

UART1_TXD, RXD (RS232)

UART3_TXD, RXD (RS232)

UART3

Non-muxed A0..19

D0..31

RW, CS3

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

3 Assembly Top

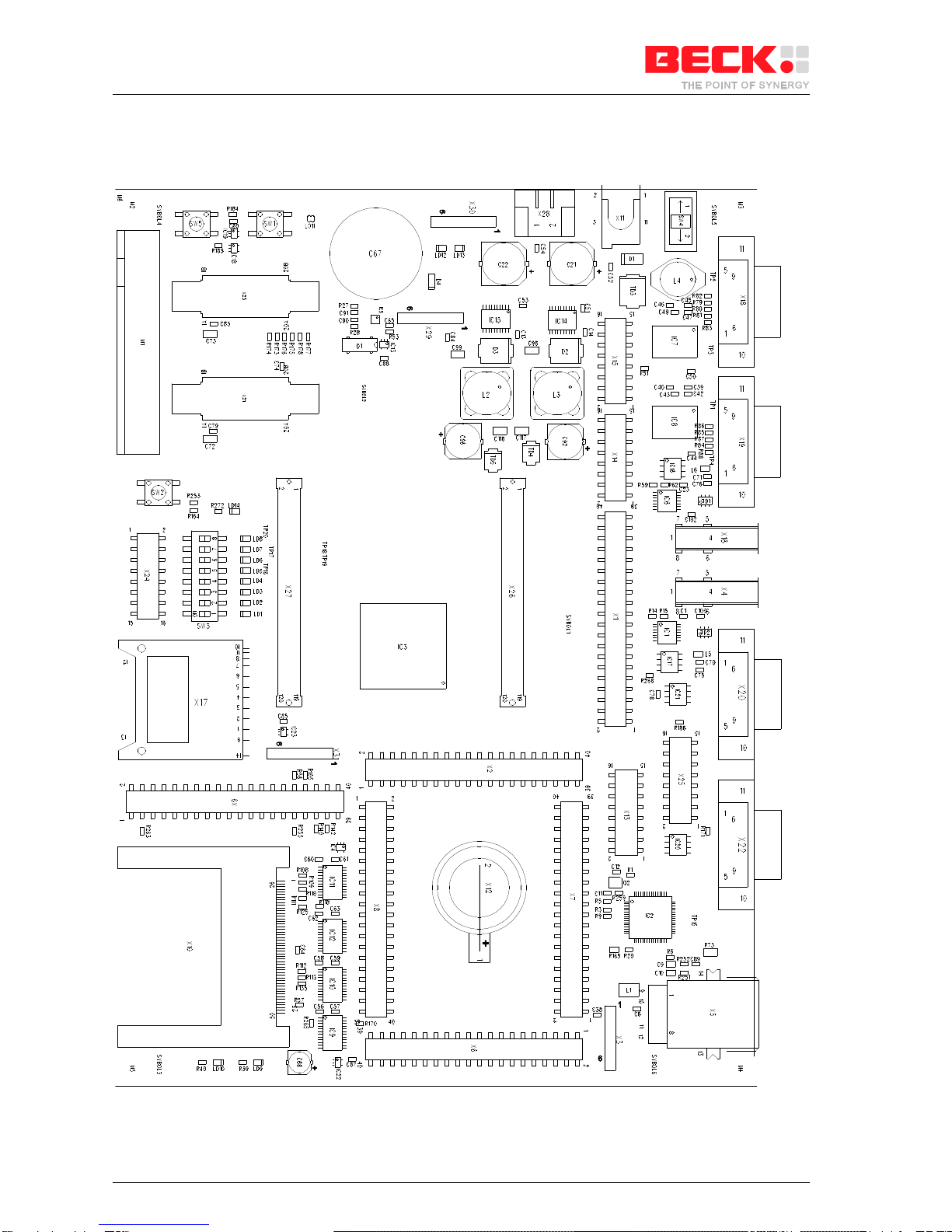

Figure 3-1: Assembly Drawing Top

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

4 Assembly Bottom

Figure 4-1: Assembly Drawing Bottom

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

5 Electrical Functions / Interfaces

5.1 Power supply

The 24V power supply input of the DB240 is protected against reverse polarity and transient over-voltages. An

operating voltage indication for the 3.3V and 5V power is located near the power supply socket.

A switching regulator is used to provide the internal 3.3V and 5V power supply. This voltages are also provided

at several pin headers for external extensions. Both switching regulators can supply up to 3A for the whole

board.

In the basic configuration, the maximum internal load of the 3.3V power supply is approx. 1A and for the 5V

power supply approx. 0A (without any USB connection).

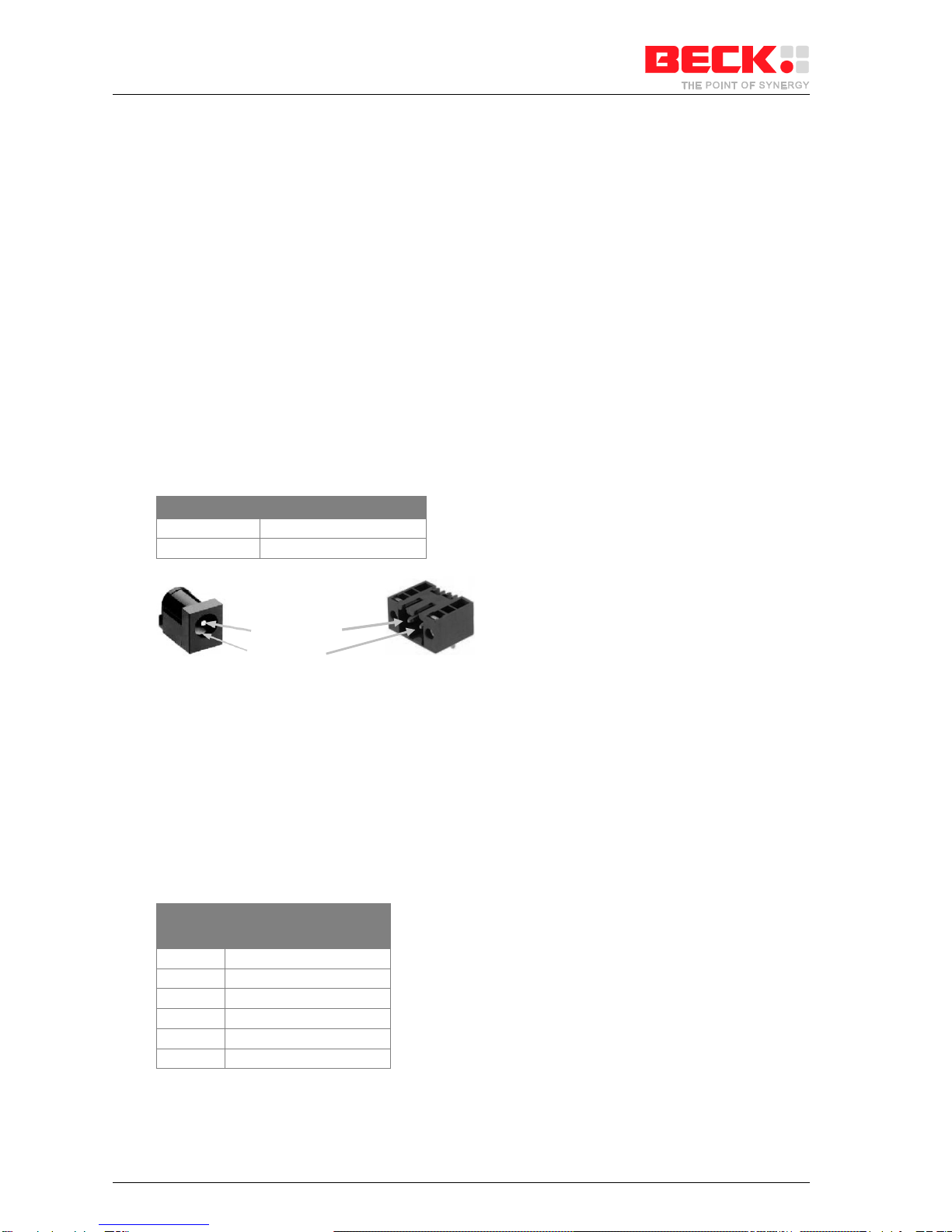

5.2 X11, X28 –Power supply connectors

Power supply connectors for the DB240

Pin assignment:

Pin No.

Designation

1 (pin)

24V DC (9..30V DC)

2 (shield)

GND

5.3 SW4 –24V Switch

Switch for the supply voltage of the DB240.

5.4 SW2 –Reset Button

The reset button (SW2) generates a low active reset pulse for the SC243 processor.

5.5 X30 –Pin header with power supplies

X30

Pin No.

Designation

24V

GND

3.3V

GND

9..30V DC (pin)

GND (shield)

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

5.6 SC2x3

By default a SC243 is placed on its socket X26 and X27. Ensure that the SC243 is plugged correctly into the

socket. In order to avoid damages due to mechanical stress, the SC2x3 should be only removed from the

DB240 with the use of the pulling off device ZT200 (Order Nr. 563966).

Figure 2: ZT200

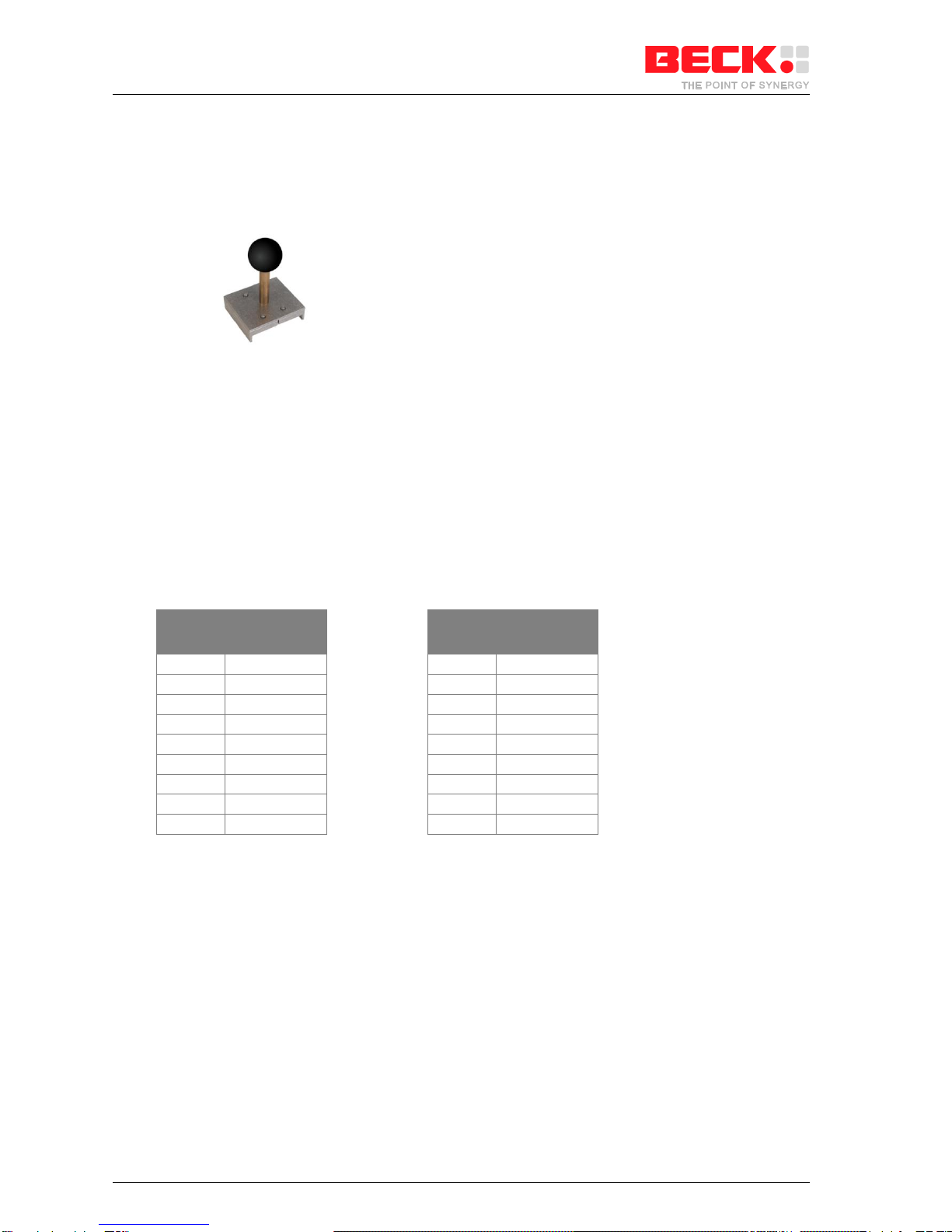

5.7 X18, X19 –RS232 COM Ports

The DB240 provides two RS232 COM ports (through UART1 and UART3) on SUB-D male connectors. For

both interfaces TxD and RxD comes directly from the SC2x3 with RS232 levels. To support the hardware

handshake with RTS, CTS and DCD, additional transcivers are used. DSR and DTR from the SUB-D connector

can be shortend by placing a jumper on X14/X15.

To use the pins of UART1 and UART3 for other functions, the handshake signals can be cut off through the

jumpers at X14 and X15. The signals TxD and RxD don‘t have to be unconnected, because they are connected

by a high impedant resistor on the SC2x3 Module. For more details, see SC2x3 Hardware Manual.

X18

X19

Pin No.

Designation

Pin No.

Designation

DCD1

DCD3

RXD1

RXD3

TXD1

TXD3

DSR1

DSR3

GND

DTR1

DTR3

RTS1

RTS3

CTS1

CTS3

RI1

RI3

IPC@CHIP DB240

Hardware Manual V1.00 [08.05.09]

5.8 X4, X16 –USB Host

The DB240 provides two USB host interfaces. The USB1 pins of the SC243 are shared with the pins of UART4,

UART5 and some PIO pins. If these pins are not used for the function USB1, the connection to the USB

transceiver (IC1, USB1T11A) and the 5V switch (IC17, MIC2025) can be cut off through the jumpers at X1 to

use the pins at the Extension Port.

The USB2 pins of the SC243 are shared with UART3 and some PIOs. If these pins are not used for the function

USB2, the connection to the USB transceiver (IC6, USB1T11A) and the 5V switch (IC 16, MIC2025) can be cut

off through the jumpers at X1 to use the pins at the extension port or other interfaces (UART3 or for SPI by

default).

X16

Pin No.

Designation

Pin No.

Designation

USB1 –5V

USB2 –5V

D-

D+

GND

5.9 X2, X6, X7, X8 –Extension Port

The Extension Port provides many signals directly from the CPU and additional non-muxed address signals

from the Local Plus Bus. Requirements for correct non-muxed signals are the following settings for the Local

Plus Bus:

CsSettings: LP_CS_settings.mux = TRUE;

csSetMode(3, &LP_CS_settings);

csEnable(3, TRUE);

The CPLD (IC3) latches the address signals including TSIZ[0:2] and hold them at the respective pins of the

Extension Port. See chapter 5.20 CPLD for more details.
