Beef Eater DISCOVERY 1100E Manuale utente

1100

Outdoor Kitchen

Assembly and Operating I nstructions

FOR OUTDOOR USE ONLY

To suit models:

1100s

1100e

1100

3, 4 or 5 Burners For

ALL MODULES

Content*:

Bolt Pack Content**

Mrk Qty description Car

ton

1 1 1100 Series BBQ with Hood 1

2 2 Standard Cabinet 2

3 2 Heat Shield spacer 1

4 1 Base Shelf

5 1 Front Guard

Main Parts

Mrk Qty description

A 4 M6 x 30 screw

B 4 M6 x 12 screw

C 4 M4 x 10 screw

D 8 Fiber washer

E 4 M6 Nut

F 1 Rubber grommet

G 12 Medium plastic plug

H 4 Small plastic plug

I 2 Large plastic cover

J 1 Allan Key

Woodland Home Products

3-5 Birmingham Av, Chester-

Hill, NSW, Australia, 2162

Phone: 1800 356 660

Facsimile: 02 9724 8899

E-mail: mail@beefeaterbbq.com

Website:

www.beefeaterbbq.com

* The image and assembly procedure refers to

Basic Outdoor Kitchen configuration.

If you have purchased additional modules,

continue to page 6 of this manual for

instructions on how to put them together

and assemble to this Outdoor Kitchen.

** Bolt Pack can be found inside the Base Shelf

carton.

Keep these instructions in a safe place for reference and

for further use.

1100Series Outdoor Kitchen Assembly Procedure

Important Note: It is easier to do all assembly work while components are lying on their back, so that they do not need

to be supported in the air. Once completed, the assembly can be brought back upright, leveled and completed.

If choosing to work this way, ensure to remove all loose items from the different parts, and lay back on a padded, flat

and level surface, not too far from where you wish the Outdoor Kitchen to stand.

Step 1

4 x ‘B’, 4 x ‘E’, 8 x ‘D’

Step 2

4 x ‘A’, 4 x ‘E’, 8 x ‘D’

Remove the Hood and all other loose items from inside BBQ, and place it on its back.

Attached the Heat Shield spacer with 2 short screws to each side using nuts.

Position the 2 cabinets on the sides of the BBQ, and attach to the BBQ with 2 screws

through the 2 remaining free holes in Heat Shield spacer on each side. Fasten with nuts

Step 3

4 x ‘D’, 4 x ‘B’, 1 x ‘F’

Step 4

4 x ‘C’,

Attach the Front Guard.

You may reassemble the Hood, burners, Vaporizers, Grills and Plates.

Connect the base shelf to place.

Once done, stand the whole assembly upright. Fit rubber grommet.

For Barbecue set up, and Gas connections, refer to Barbecue instruction book.

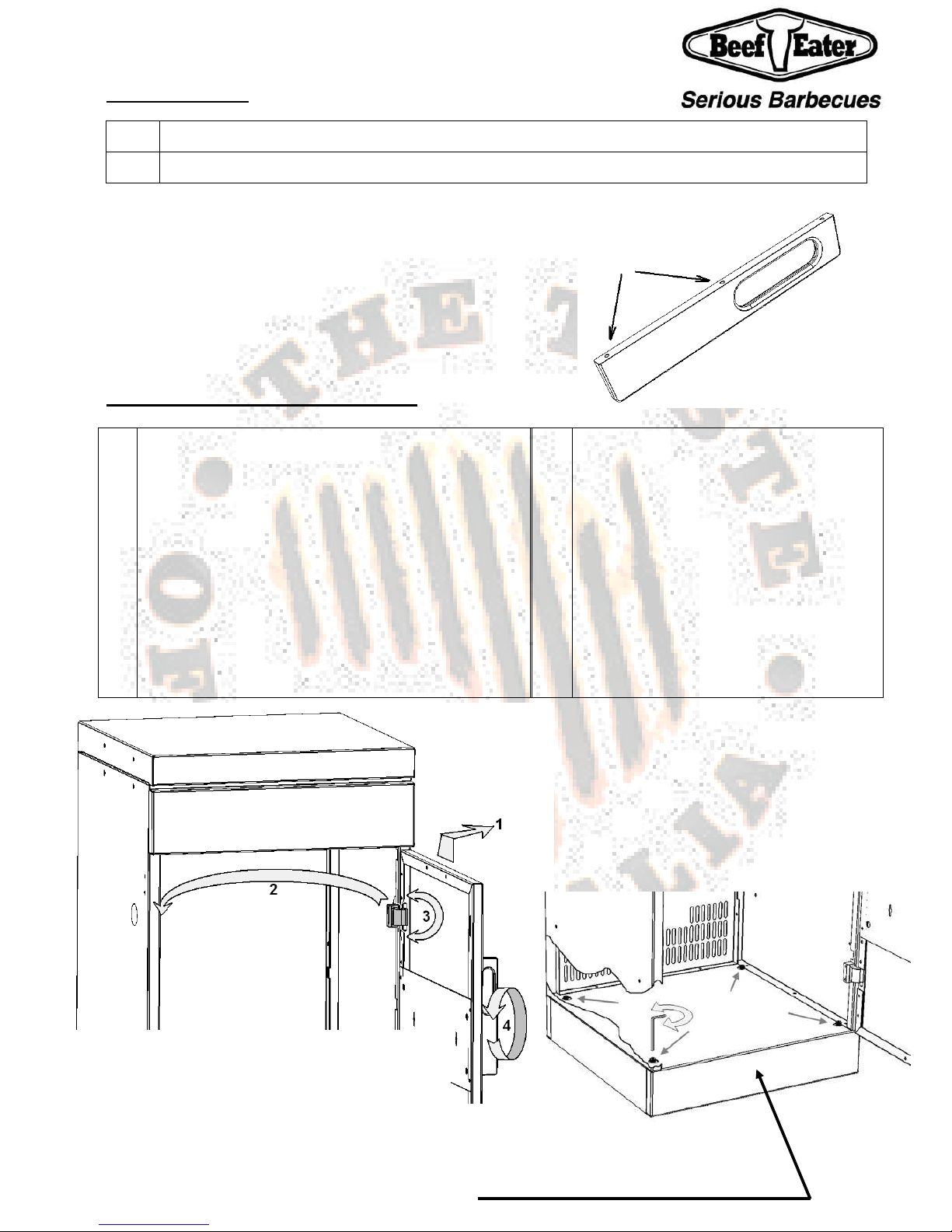

Door Handle

To reverse a door direction

Cabinet handles should be mounted using the bottom and middle holes.

Doors are fully reversible, and can be Right or Left

hand opening.

To reverse a door, follow these steps:

1. Remove the door by lifting up off the hinge pin,

and taking out.

2. Remove the hinge blocks from the side panel,

turn upside down, and reattach to opposite

panel.

3. In the door, remove 2 hinge brackets and

reattach upside down, on other side of

opening.

4. Release the handle, turn upside down, and re-

attach.

5. Turn door upside down, and insert to place to

re-engage over hinges.

•Holes on the very end panels can be hidden using plugs ‘G’, ‘H’ and ‘I’ supplied.

•Each cabinet is fitted with 4 adjustable feet. The Outdoor Kitchen can be leveled by

adjusting these feet up or down, turning with the Allen key supplied from inside the

cabinet, through the holes in the corners.

Other Modules and accessories

If you have purchased other, optional modules to be part of your Outdoor Kitchen,

here are a few hints on assembly and function.

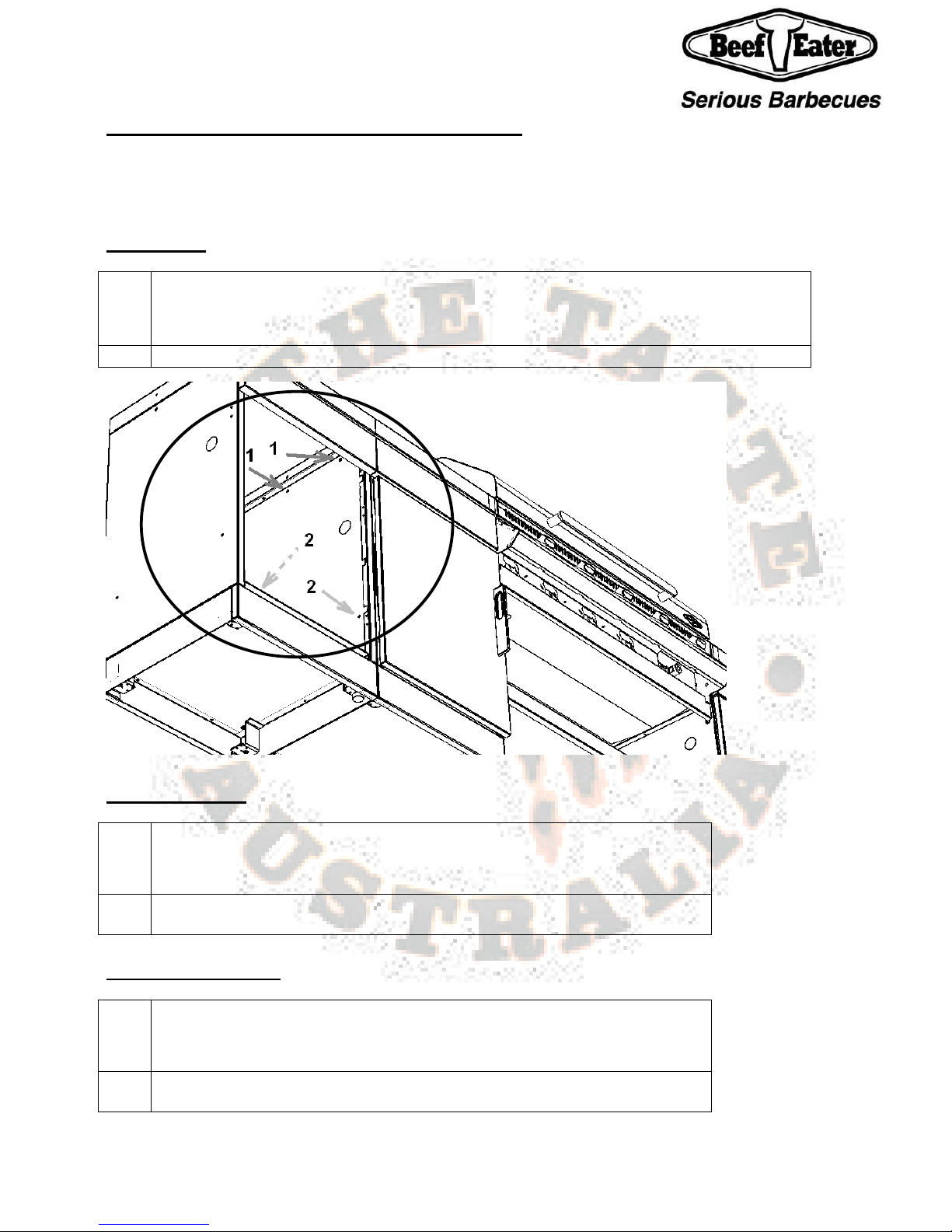

Cabinets

Position each cabinet to be added in its correct position, level it with the Outdoor

Kitchen, and then fasten to the near cabinet with the 4 screws included.

In position 1(below), 2 x screw, washers and nuts. In position 2 (below), 2 x special

screw – thread through both cabinets and tighten.

Sink Module

The sink module is supplied with a tap, and a drainage hose for sink

outlet. The tap is to be positioned in the hole in the bench top, and

tightened.

All water fittings and connections are the responsibility of the customer.

Draw er Module

To attach the drawer module to the rest of the Outdoor Kitchen, it will be

required to remove the drawer altogether, in order to gain access to the

holes through which the screws are inserted (see above).

To remove the drawer, simply pull out towards you completely.

Side Burner Module

The side burner is to be connected to the Gas supply.

BeefEater recommends positioning the side burner as close as possible to the

BBQ, and never using a rubber hose to connect longer than 1.5m.

Regulator is connected to entry ‘A’ (see below) in the Barbecue. Side Burner

connected to entry ‘B’ (see below) - remove cap and connect Side-Burner hose.

Ensure to conduct Leak-Test after making gas connections.

Refer also to Barbecue book P. 4 for Leak-Test procedure.

Ensure every place the hose is crossing the metal, is protected with a rubber

grommet. This is very important!

Connection to Side BurnerConnect to outlet ‘B’ in Barbecue

Shelves

If you wish to add shelves to the sides of your Outdoor Kitchen, they are

attached with 4 screws each from the inside of the end cabinets. No nuts

are required.

Regulator

Special castors to replace

the feet, and make your

Outdoor Kitchen mobile,

may be available from

your BeefEater stockiest,

or by calling BeefEater.

Warranty

Warranty terms and condition as listed in Barbecue Instructions book P. 11 apply to this Outdoor

Kitchen as well. All parts and workmanship of this Outdoor Kitchen are covered for a period of 1 year

from date of purchase.

Technical I nformation

Note: Do not modify this appliance or any of its parts. Any deviation from factory

settings could result in a safety hazard.

Side Burner manifold inlet thread is 3/8 SAE male flare fitting.

Input Energy (Side Burner): 15Mj.

Nozzle sizes: LPG – 1.05mm, NG – 1.7mm

For your records:

Model Number: __________________________________________________________

Date of Purchase: __________________________________________________________

Place where purchased:

__________________________________________________________

Serial Number:

__________________________________________________________

Spare Parts ( Basic Cabinet) :

1100_ODK_Inst_AU_V0

I mages in this manual are for

illustrative purposes only.

Due to constant improvement,

BeefEater advises that changes to the

design, material, specifications and

product configuration may occur at

any tim e w ithout notice.
