Beghelli BBX-SE Manuale utente

BBX-SE

BBX-SE-HO

Beghelli U.S.A., 3810 Executive Way, Miramar, Florida, Tel: (954) 442-6600

9/16/22

One blink ON/pause (4 seconds) Battery is not connected

Two blinks ON/pause (4 seconds) Battery is shorted or battery voltage drops below acceptable level

Three blinks ON/pause (4 seconds) Charger board circuit fault

Four blinks ON/pause (4 seconds) Transfer circuit fault

Five blinks ON/pause (4 seconds) Emergency lamp fault

Six blinks ON/pause (4 seconds) Remote head’s emergency lamp fault (if installed)

3. For manual test, press test button as follows:

Press test button once (within 2 seconds) 30 seconds test

Press test button twice (within 2 seconds) 3 minutes test

Press test button 3 times (within 2 seconds) 30 minutes test

Press test button 4 times (within 2 seconds) 90 minutes test

1.Install the BBX/ BBX-HO according to the installation instructions.

2. When AC power is supplied to fixture, the unit will automatically initiate a self-test with self-

diagnostics that will do the following:

(1) Monitor for faults with battery, charger board, lamps and transfer circuit every 5 seconds.

(2) Perform a three-minute self-test every month.

(3) Perform a 90-minute self-test every 12 months starting in the 12th month after installation.

Note: ALL functions are factory pre-set (does not need field adjustment).

3. Dual color LED lamp indicator shows the following status:

(1) Green color: ON/ Ready

Blinking: Testing

(2) Red color: Service Alert

Blinking: Sequence below determines service required

TO RESET:

After resolving the fault of emergency equipment, press test button for 2seconds without releasing

to reset. LED indicator will show green.

Page 1 of 2

BBX-SE

BBX-SE-HO

Page 2of 2

Beghelli U.S.A., 3810 Executive Way, Miramar, Florida, Tel: (954) 442-6600

04/21/22

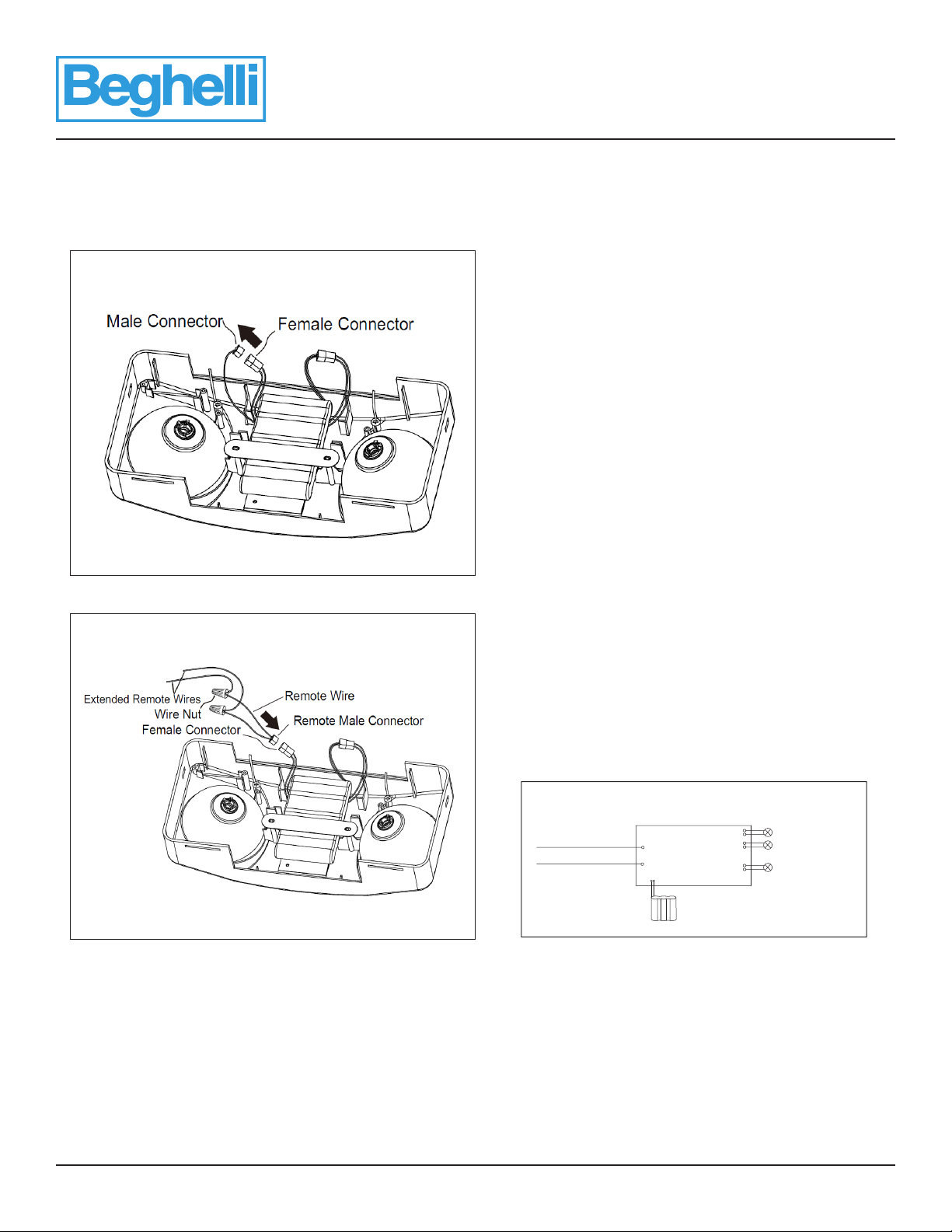

4. Autotest of Remote Lamps (when applicable):

In order to connect remote lamp heads to Autotest circuit, follow these instructions.

(1) Remove ground male connector from the

female connector.

(2) Plug the remote male connector into the

female connector.

(3) Connect extended remote head wires to

the remote wires using wire nuts. Yellow

is positive(+) and Purple is negative(-).

WARNING

1) Make sure that power is off before making any electrical connections!!

2) Unused wires must be capped using wire nuts.

AC INPUT

White Neutral

Black 120-277VAC

Integral

LED Head

Remote Heads

(Option)

Battery

Ground
