Behringer DUAL DIAPHRAGM CONDENSER MICROPHONE B-2 PRO Manuale utente

Technical Specifications

The information contained in this sheet is subject to change without notice. No part of this sheet may be reproduced or transmitted in

any form or by any means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the

express written permission of BEH INGE Spezielle Studiotechnik GmbH.

BEH INGE is a registered trademark. ALL IGHTS ESE VED.

BEH INGE Spezielle Studiotechnik GmbH, Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Münchheide II, Germany

Tel. +49 (0) 21 54 / 92 06-0, Fax +49 (0) 21 54 / 92 06-30

Transducer type: condenser, 1" dual-diaphragm

Operating principle: pressure gradient

Polar pattern: cardioid, omnidirectional or figure eight

Connection: gold-plated balanced XL connector

Open circuit sensitivity (at 1 kHz): cardioid: -36 dBV (0 dBV = 1 V/Pa), 16 mV/Pa

omnidir.: -37 dBV (0 dBV = 1 V/Pa), 14 mV/Pa

figure eight: -35 dBV (0 dBV = 1 V/Pa), 18 mV/Pa

Frequency response: 20 Hz - 20 kHz

Level attenuation: -10 dB (switchable)

Low-Cut filter: 6 dB/oct. at 150 Hz (switchable)

Max. SPL (1% THD @ 1 kHz): cardioid: 138 dB (0 dB), 148 dB (-10 dB)

omnidir.: 139 dB (0 dB), 149 dB (-10 dB)

figure eight: 137 dB (0 dB), 147 dB (-10 dB)

Equivalent SPL (IEC 651): 17 dB-A (cardioid)

18 dB-A (omnidirectional)

16 dB-A (figure eight)

Signal-to-noise ratio: 77 dB, A-weighted (cardioid)

76 dB, A-weighted (omnidirectional)

78 dB, A-weighted (figure eight)

Nominal impedance: <100 Ω

Load impedance: >1 kΩ

Supply voltage: +48 V

Supply current: 3 mA

Dimensions: ∅ head: 56 mm, ∅ shaft: 50 mm, length: 210 mm

Weight: approx. 0.55 kg

STUDIO CONDENSER MICROPHONE B-2 PRO

ENGLISH

Version 1.0 September 2002

www.behringer.com

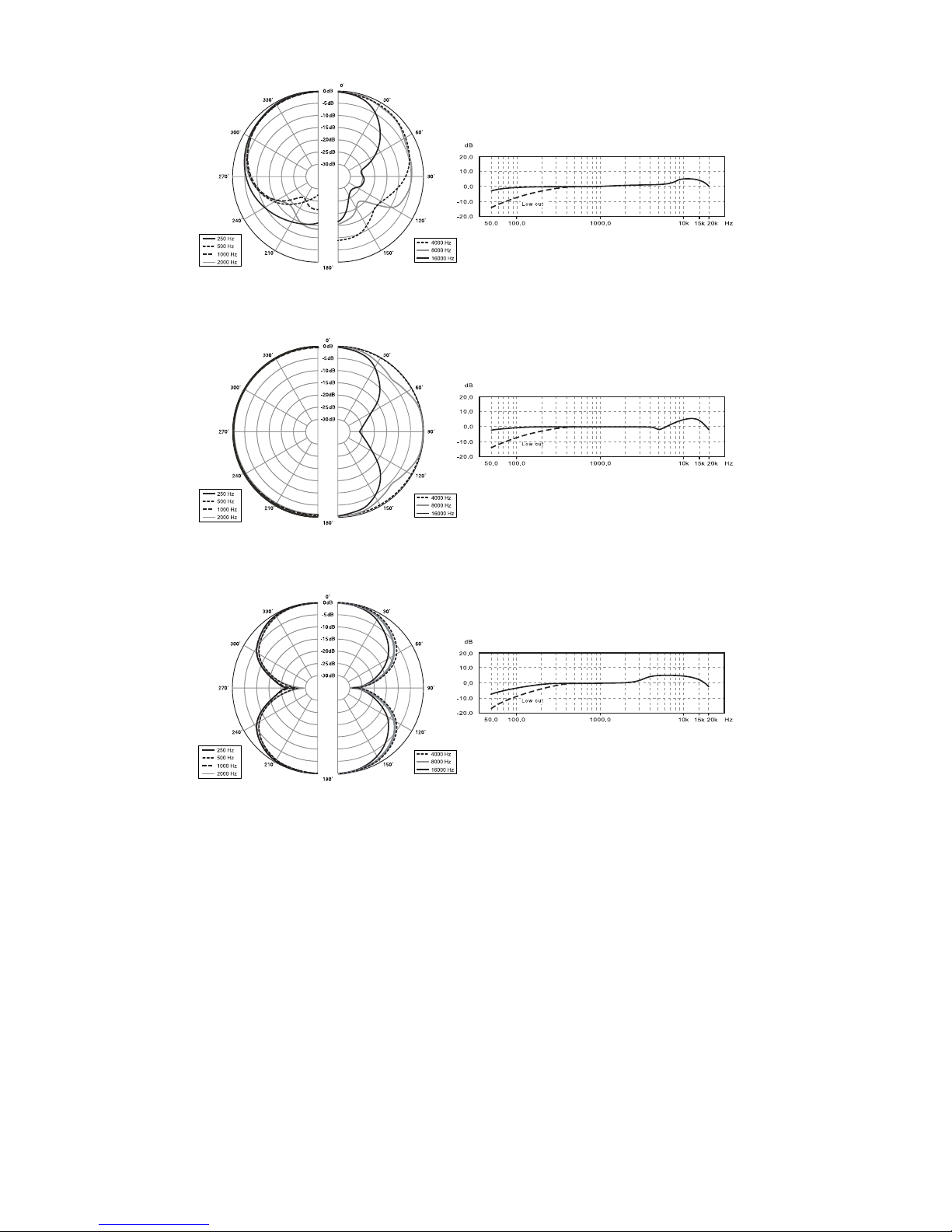

Polar pattern (cardioid) Frequency response (cardioid)

Polar pattern (omnidirectional) Frequency response (omnidirectional)

Polar pattern (figure eight) Frequency response (figure eight)

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be

made from time to time to e isting products without prior notice. Specifications and appearance may differ from those listed or

illustrated.
