Behringer U-CONTROL UCA222 Manuale utente

User Manual

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

Downloaded from ManualsNet.com search engine

2U-CONTROL UCA222 User Manual

Thank you

Thank you for choosing the UCA222 U-CONTROL audio

interface. The UCA222 is a high-performance interface that

includes a USB connector, making it an ideal sound card for

your laptop computer or an essential recording/playback

component for studio environments that involve desktop

computers. TheUCA222 is PC and Mac-compatible, thereforeno

separate installation procedure is required. Thanks to its robust

construction and compact dimensions, theUCA222 is also

ideal for traveling. The separate headphones output allows

you to play back your recordings at any time, even if you don’t

happen to have any loudspeakers available. Two inputs and

outputs as well as the S/PDIF output give you total connecting

exibility to mixing consoles, loudspeakers or headphones.

Power is supplied to the unit via the USB interface and the LED

gives you a quick check that the UCA222 is properly connected.

TheUCA222 is the ideal extra for every computer musician.

Table of Contents

Thank you ......................................................2

Important Safety Instructions .....................3

Legal Disclaimer............................................4

Limited Warranty ..........................................4

1. Before You Get Started ............................5

2. System Requirements..............................6

3. Controls and Connectors ........................6

4. Software Installation ...............................7

5. Basic Operation ........................................7

6. Application Diagrams..............................8

7. Audio Connections .................................10

8. Specications .........................................10

Downloaded from ManualsNet.com search engine

3U-CONTROL UCA222 User Manual

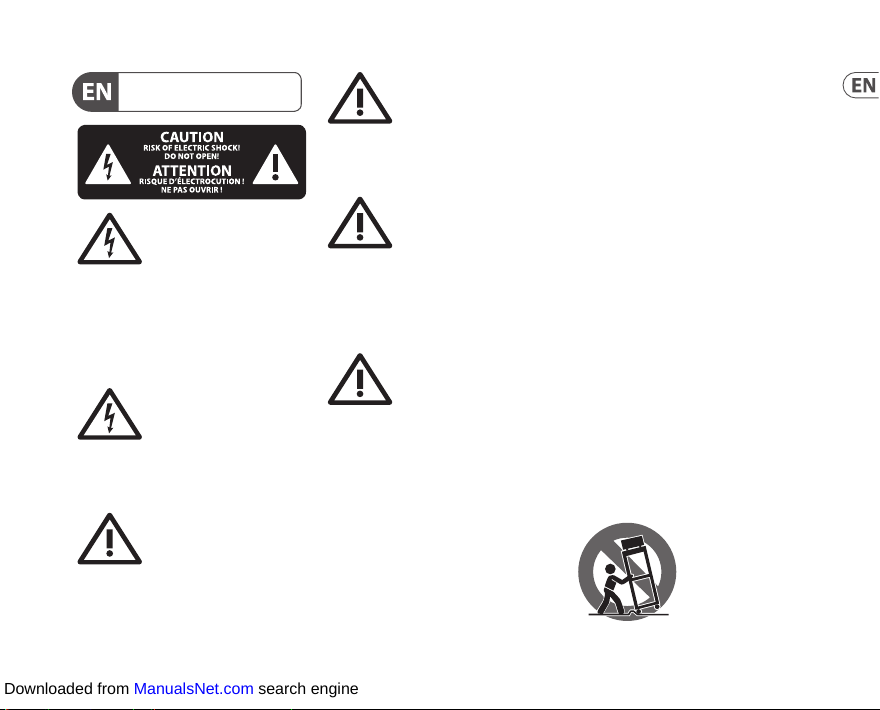

Terminals marked with this

symbol carry electrical

current of sucient

magnitude to constitute risk of electric

shock. Use only high-quality professional

speaker cables with ¼" TS or twist-locking

plugs pre-installed. Allother installation

or modication should be performed only

by qualiedpersonnel.

This symbol, wherever it

appears, alerts you to the

presence of uninsulated

dangerous voltage inside the enclosure -

voltage that may be sucient to

constitute a risk ofshock.

This symbol, wherever it

appears, alerts you to

important operating and

maintenance instructions in the

accompanying literature. Please read

themanual.

Caution

To reduce the risk of electric

shock, do not remove the

top cover (or the rear section). No user

serviceable parts inside. Refer servicing to

qualiedpersonnel.

Caution

To reduce the risk of re or

electric shock, do not expose

this appliance to rain and moisture.

Theapparatus shall not be exposed to

dripping or splashing liquids and no

objects lled with liquids, such as vases,

shall be placed on the apparatus.

Caution

These service instructions

are for use by qualied

service personnel only. Toreduce the

risk of electric shock do not perform any

servicing other than that contained in the

operation instructions. Repairshave to be

performed by qualied servicepersonnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves,

or other apparatus (including ampliers)

that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A

polarized plug has two blades with one

wider than the other. A grounding-type

plug has two blades and a third grounding

prong. The wide blade or the third

prong are provided for your safety. Ifthe

provided plug does not t into your outlet,

consult an electrician for replacement of

the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at

plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Use only attachments/accessories

specied by themanufacturer.

12. Use only with

the cart, stand, tripod,

bracket, or table

specied by the

manufacturer, orsold

with the apparatus.

Important Safety

Instructions

Downloaded from ManualsNet.com search engine

4U-CONTROL UCA222 User Manual

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during

lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualied service

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus,

the apparatus has been exposed to rain or

moisture, does not operate normally, or has

beendropped.

15. The apparatus shall be connected to

a MAINS socket outlet with a protective

earthing connection.

16. Where the MAINS plug or an

appliance coupler is used as the

disconnect device, the disconnect device

shall remain readily operable.

17. Correct disposal of

this product: This symbol

indicates that this product

must not be disposed of

with household waste,

according to the WEEE

Directive (2012/19/EU) and your national

law. This product should be taken to a

collection center licensed for the recycling

of waste electrical and electronic

equipment (EEE). The mishandling of this

type of waste could have a possible

negative impact on the environment and

human health due to potentially

hazardous substances that are generally

associated with EEE. At the same time,

your cooperation in the correct disposal of

this product will contribute to the

ecient use of natural resources.

For more information about where you

can take your waste equipment for

recycling, please contact your local city

oce, or your household waste

collection service.

18. Do not install in a conned space,

such as a book case or similar unit.

19. Do not place naked ame sources,

such as lighted candles, on the apparatus.

20. Please keep the environmental

aspects of battery disposal in mind.

Batteries must be disposed-of at a battery

collection point.

21. Use this apparatus in tropical and/or

moderate climates.

MUSIC Tribe accepts no liability for

any loss which may be suered by

any person who relies either wholly

or in part upon any description,

photograph, or statement contained

herein. Technical specications,

appearances and other information

are subject to change without notice.

All trademarks are the property of

their respective owners. MIDAS,

KLARK TEKNIK, LAB GRUPPEN, LAKE,

TANNOY, TURBOSOUND, TC ELECTRONIC,

TC HELICON, BEHRINGER, BUGERA and

COOLAUDIO are trademarks or registered

trademarks of MUSIC Tribe Global Brands

Ltd. © MUSIC Tribe Global Brands Ltd.

For the applicable warranty terms and

conditions and additional information

regarding MUSIC Tribe’s Limited

Warranty, please see complete details

online at musictri.be/warranty.

LEGAL DISCLAIMER

LIMITED WARRANTY

Downloaded from ManualsNet.com search engine

5U-CONTROL UCA222 User Manual

1. Before You Get Started

1.1 Shipment

◊ Your UCA222 was carefully packed at the assembly

plant to assure secure transport. Should the condition

of the cardboard box suggest that damage may have

taken place, please inspect the unit immediately and

look for physical indications of damage.

◊ Damaged equipment should NEVER be sent directly

to us. Please inform the dealer from whom you

acquired the unit immediately as well as the

transportation company from which you took

delivery. Otherwise, all claims for replacement/repair

may be rendered invalid.

◊ Please always use the original packaging to avoid

damage due to storage or shipping.

◊ Never let unsupervised children play with the

equipment or with its packaging.

◊ Please dispose of all packaging materials in an

environmentally friendly fashion.

1.2 Initial operation

Please make sure the unit is provided with sucient

ventilation, and never place the UCA222 on top of an amplier

or in the vicinity of a heater to avoid the risk ofoverheating.

The current supply is made via the USB connecting cable,

sothat there is no external power supply unit required.

Pleaseadhere to all required safetyprecautions.

1.3 Online registration

Please register your new BEHRINGER equipment right after

your purchase by visiting http://behringer.com and read the

terms and conditions of our warrantycarefully.

Should your BEHRINGER product malfunction, it is our intention

to have it repaired as quickly as possible. To arrange for

warranty service, please contact the BEHRINGER retailer from

whom the equipment was purchased. Shouldyour BEHRINGER

dealer not be located in your vicinity, you may directly contact

one of our subsidiaries. Corresponding contact information is

included in the original equipment packaging (Global Contact

Information/European Contact Information). Should your

country not be listed, please contact the distributor nearest

you. A list of distributors can be found in the support area of

our website (http://behringer.com).

Downloaded from ManualsNet.com search engine

6U-CONTROL UCA222 User Manual

Registering your purchase and equipment with us helps us

process your repair claims more quickly and eciently.

Thank you for your cooperation!

2. System Requirements

The UCA222 is PC and Mac-compatible. Therefore, noinstallation

procedure or drivers are required for the correctfunctioning of

theUCA222.

To work with the UCA222, your computer must fulll the

following minimumrequirements:

2.1 Hardware connection

Use the USB connecting cable to connect the unit to your

computer. The USB connection also supplies the UCA222 with

current. You can connect a variety of devices and equipment to

the inputs and outputs.

3. Controls and Connectors

(1) POWER LED – Indicates the status of the USB

powersupply.

(2) OPTICAL OUTPUT – The Toslink jack carries an S/PDIF

signal which can be connected via a ber optic cable.

(3) PHONES – Connect a standard pair of headphones

equipped with a ⁄"miniplug.

(4) VOLUME – Adjusts the volume level of the headphones

output. Turn the control fully to the left before you

connect the headphones to avoid hearing damage caused

by high volume settings. Turn the control to the right to

increase the volume.

PC Mac

Intel or AMD CPU, 400 MHz or higher G3, 300 MHz or higher

Minimum 128 MB RAM Minimum 128 MB RAM

USB 1.1 interface USB 1.1 interface

Windows XP, 2000 Mac OS 9.0.4 or higher,

10.X or higher

(7) (6) (5)

(8) (4)

(3)(2)

(1)

Downloaded from ManualsNet.com search engine

7U-CONTROL UCA222 User Manual

(5) OUTPUT – Connect to a speaker system using stereo RCA

cables to monitor the audio output from the computer.

(6) INPUT – Connect desired recording signal using audio

cables with RCAconnectors.

(7) OFF/ON MONITOR – With the MONITOR switch OFF,

theheadphone output receives the signal from the

computer over the USB port (same as the RCA output

jacks). With the MONITOR switch ON, the headphones

receive the signal connected to the RCA INPUT jacks.

(8) USB CABLE – Sends information to and from your computer

and the UCA222. It also provides power to thedevice.

4. Software Installation

• This device requires no special setup or drivers, just plug it

into a free USB port on a PC or Mac.

• The UCA222 comes with a free version of Audacity editing

software. Thiswill help make the transfer process quick

and simple. Simply insert the CD into your CD-ROM

drive and install the software. The CD also contains VST

plug-ins, ASIO drivers and various freeware.

◊ Note – When the UCA222 is bundled with other

BEHRINGER products, the included software may

vary. In the instance that the ASIO drivers are not

included, you may download these from our website

at behringer.com.

5. Basic Operation

The UCA222 provides an easy interface between your

computer, mixer and monitoring system. Follow these steps for

basic operation:

1) Connect the UCA222 to the computer by plugging the

USB cable into a free USB port. The power LED will light

automatically.

2) Connect the audio source that is to be recorded, such as a

mixer, preamp, etc.to the INPUT stereo RCAjacks.

3) Plug a pair of headphones into the ⁄" PHONES jack and

adjust the volume with the adjacent control. Youmay

also monitor the output by plugging a pairof powered

speakers into the OUTPUT stereo RCA jacks.

4) You may also send the stereo signal in digital audio format

(S/PDIF) to an external recording device via the OPTICAL

OUTPUT using a Toslink ber opticcable.

Downloaded from ManualsNet.com search engine

8U-CONTROL UCA222 User Manual

6. Application Diagrams

Using a mixer to record in a

studioenvironment:

The most common application for the UCA222 is doing studio

recording with a mixer. This will allow you to record several

sources at once, listen to the playback, and record more tracks

in sync with the original take(s).

• Connect the mixer’s TAPE OUT to the INPUT RCA jacks on

the UCA222. Thiswill allow you to capture the overall mix.

• Plug the USB cable into a free USB port on your computer.

The POWER LED will light up.

• Connect a pair of powered monitor speakers to the

UCA222 OUTPUT RCA jacks. Depending on what type of

inputs your speakers accept, you may need an adapter.

• You may also monitor the input signal with a pair of

headphones instead of or in addition to the monitor

speakers. Turn the OFF/ON MONITOR switch to the ‘ON’

position. Plug a pair of headphones into the PHONES jack

and adjust the volume with the adjacent control. This will

be preferable if the mixer and computer are in the same

room as the instruments being recorded.

• Take some time to adjust each channel level and EQ to

ensure a good balance between the instruments/sources.

Once the mix has been recorded you will be unable to

make adjustments to just one channel.

• Set the recording program to record input from the UCA222.

• Press record and let the music rip!

RCA OutputsRCA Input

Computer USB

B3031A

Active Monitor Speakers

XENYX 2222FX

HPM1000

Downloaded from ManualsNet.com search engine

9U-CONTROL UCA222 User Manual

Recording device

Fiber optic cable

RCA OutputsRCA Input

Computer USB

B3031A

Active Monitor Speakers

HPM1000

V-AMP 3

Recording with a preamp such as the

V-AMP 3:

Preamps such as the V-AMP 3 provide a great way to record a

wide selection of high-quality guitar sounds without the hassle

of placing a mic in front of a conventional amp. They also allow

you to record late at night without tempting your roommates

or neighbors to strangle you with your own guitar cable.

• Plug a guitar into the instrument input of the V-AMP 3

using a standard ¼"instrument cable.

• Connect the stereo ¼" outputs on the V-AMP 3 to the

stereo RCA inputs on the UCA222. This will likely require

adaptors. You may also use the stereo RCA to ¼" TRS cable

that is included in the V-AMP 3/UCA222 package bundle

to connect from the V-AMP 3 headphone output to the

UCA222 RCA inputs.

• Plug the USB cable into a free USB port on your computer.

The POWER LED will light up.

• Adjust the output signal level on the V-AMP 3.

• Set the recording program to record input from the UCA222.

• Press record and wail!

Downloaded from ManualsNet.com search engine

10 U-CONTROL UCA222 User Manual

7. Audio Connections

Although there are various ways to integrate the UCA222 into

your studio or live set-up, the audio connections to be made

will basically be the same in all cases:

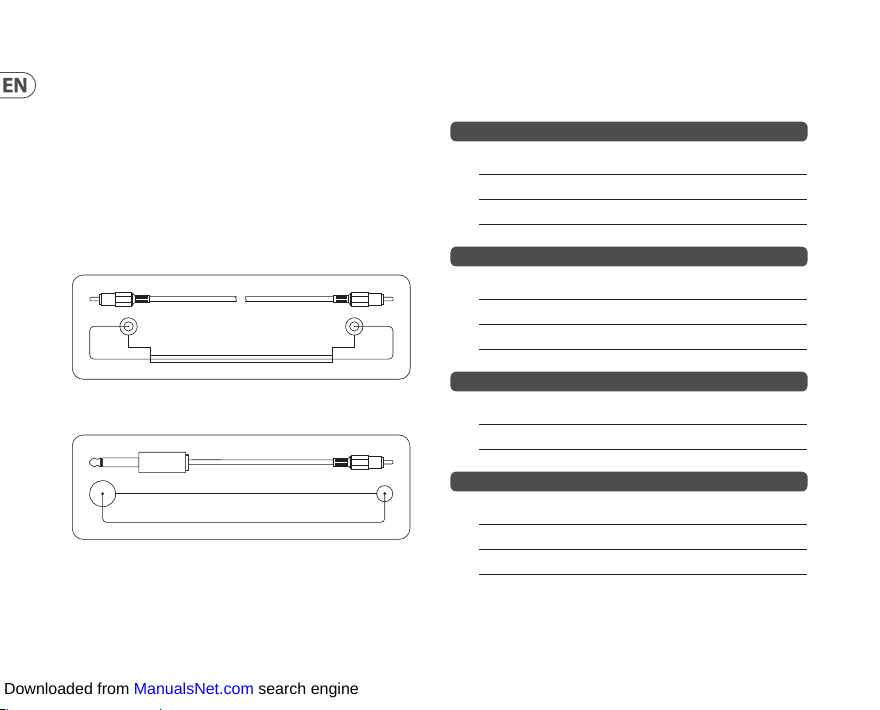

7.1 Wiring

Please use standard RCA cables to connect the UCA222

tootherequipment:

You can also use a ¼" adapter cable:

8. Specications

Line In

Connectors RCA, unbalanced

Input impedance approx. 27 k

Max. input level 2 dBV

Line Out

Connectors RCA, unbalanced

Output impedance approx. 400 

Max. output level 2 dBV

Digital Output

Socket Toslink, optical cable

Output format S/PDIF

Phones Out

Socket ⁄" TRS stereo jack

Output impedance approx. 50 

Max. output pegel -2 dBu, 2 x 3.7 mW @ 100 

shield sleevesleeve

tip tip

sleevesleeve

tiptip

Downloaded from ManualsNet.com search engine

Altri manuali per U-CONTROL UCA222

Indice

Altri manuali Behringer Apparecchiature di registrazione

Behringer

Behringer BASS OVERDRIVE BOD400 Manuale utente

Behringer

Behringer F-Control Audio FCA202 Manuale utente

Behringer

Behringer AES8024 Manuale utente

Behringer

Behringer PRO-1 Manuale utente

Behringer

Behringer XENYX CONTROL1USB Manuale utente

Behringer

Behringer V-Verb Pro REV2496 Manuale utente

Behringer

Behringer GRAPHIC EQUALIZER EQ700 Manuale utente

Behringer

Behringer Modulizer PRO DSP1200P Manuale utente

Behringer

Behringer GUITAR LINK UCG102 Manuale utente

Behringer

Behringer ULTRAPATCH PX1000 Manuale utente

Behringer

Behringer XENYX 302USB Manuale utente

Behringer

Behringer Europower PMH660M Manuale utente

Behringer

Behringer MAGICIAN T1950 Manuale utente

Behringer

Behringer VIRTUALIZER DSP1000 Manuale utente

Behringer

Behringer Ultra-Voice VX2000 Manuale utente

Behringer

Behringer VIRTUALIZER 3D FX2000 Manuale utente

Behringer

Behringer U-CONTRO LUMX25 Manuale utente

Behringer

Behringer FEEDBACK DESTROYER PRO DSP1124P Manuale utente

Behringer

Behringer VIRTUALIZER DSP1000 Manuale utente

Behringer

Behringer POWERLIGHT PL2000 Manuale utente

Behringer

Behringer X V-AMP Manuale utente

Behringer

Behringer B-Control NANO BCN44 Manuale utente

Behringer

Behringer B-CONTROL Istruzioni operative

Behringer

Behringer Virtualizer Pro DSP2024P Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
