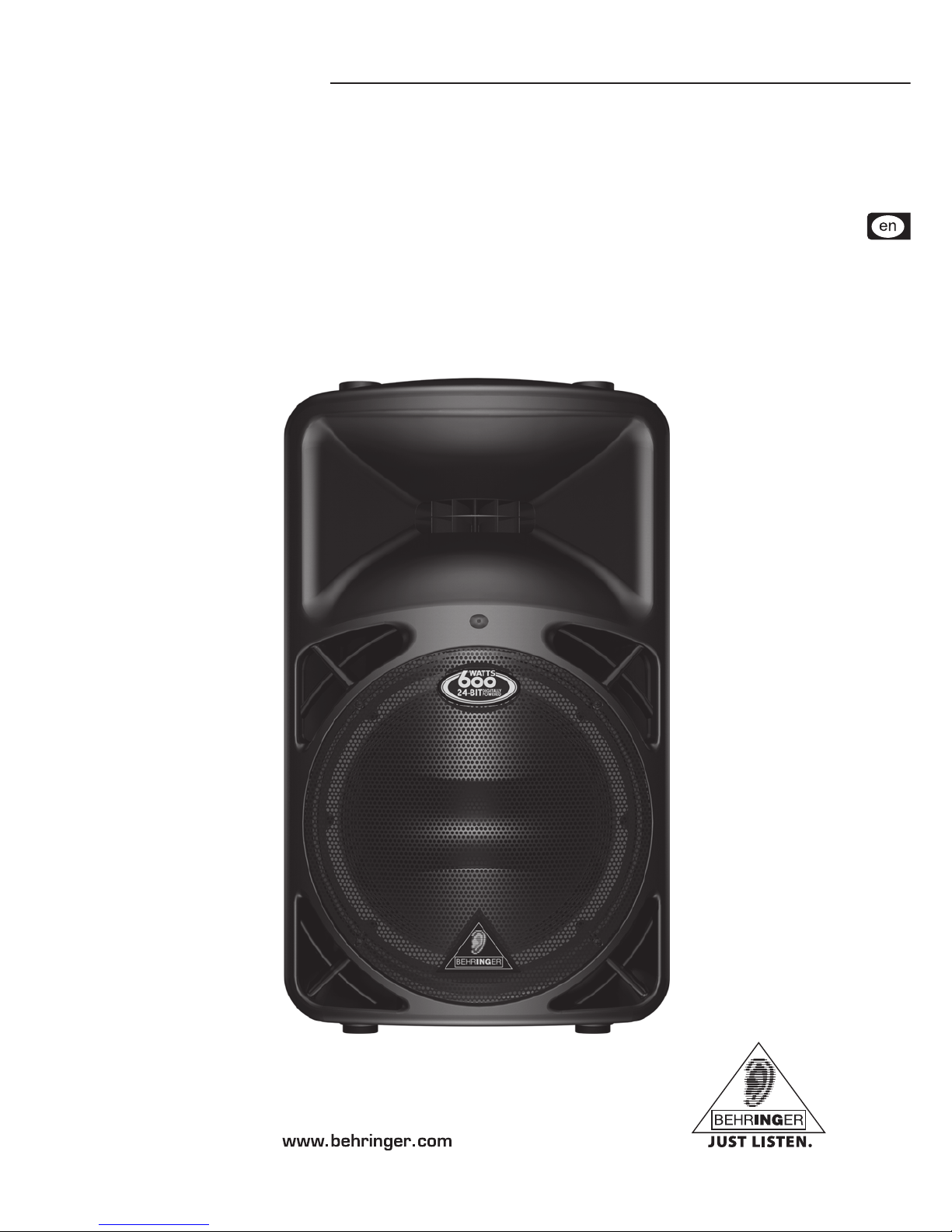

Behringer Eurolive B415DSP Manuale utente

EUROLIVE B415DSP

Technical Specifications

EUROLIVE B415DSP

B415DSP

EUROLIVE

Digital Processor-Controlled 6 -Watt 15" PA Speaker System with Integrated Mixer

sHigh-power 600-Watt 2-way PA sound reinforcement speaker system with integrated mixer for li e and

playback applications

sState-of-the-art 24-bit digital signal processor for ultimate system control:

- Digital crosso er, phase and time correction for perfect dri er alignment plus dual compressor/limiter for

total system protection

- Digital Noise gate, Low-cut filter, 2-band EQ, dynamic Contour filter for ultimate sound reproduction

s2 ULN Mic/Line inputs with indi idual olume controls and peak LEDs

sExtremely powerful 15" long-excursion dri er pro ides incredibly deep bass and acoustic power

sState-of-the-art 1.75" titanium-diaphragm compression dri er for exceptional high-frequency reproduction

sUltra-wide dispersion and large format exponential/conical horn with multi-cell aperture throat

sAdditional Line output enables linking of additional speaker systems

sVersatile trapezoidal enclosure design allows different positioning:

- Stand mounting with 35-mm pole socket

- Tilts on its side for use as a floor monitor

sErgonomically shaped handles for easy carrying and setup

sHigh-quality components and exceptionally rugged construction ensure long life

sConcei ed and designed by BEHRINGER Germany

EUROLIVE B415DSP

Specifications

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may e made from time

to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

Specifications

AUDIO INPUTS

MIC/LINE (2) XLR (balanced)

Input impedance 27 kOhm

Sen itivity -40 to +10 dBu

AUDIO OUTPUTS

LINE OUT XLR (balanced)

Output impedance 120 Ohm

PROCESSING

DSP 24-bit fixed-point Motorola

AD/DA converter 24-bit / 48 kHz

Limiter dual protection for woofer and driver

Dynamic EQ dual parametric EQ

NOISE GATE variable (off to -30 dB)

TIMED TURNOFF witchable (3 min < -45 dBr)

CONTOUR witchable peech / mu ic contour

EQ HIGH +/- 15 dB (12 kHz)

EQ LOW +/- 15 dB (100 Hz)

LOW CUT 40 - 160 Hz (24 dB/Oct.)

SYSTEM DATA

Frequency range 40 Hz to 20 kHz

Cro over 1.5 kHz, Butterworth, 24 dB/Oct.

Max. ound pre ure level 128 dB @ 1 m

Di per ion angle 90° x 45°

OUTPUT POWER

Low-frequency ran e

RMS @ 1% THD 320 W @ 8 Ohm

Peak Power 460 W @ 8 Ohm

Hi h-frequency ran e

RMS @ 1% THD 80 W @ 8 Ohm

Peak Power 140 W @ 8 Ohm

POWER SUPPLY

Main Voltage/Fu e

100 V~, 50/60 Hz T 6,3 A H 250 V

120 V~, 60 Hz T 6,3 A H 250 V

220 V~, 50 Hz T 4,0 A H 250 V

230 V~, 50 Hz T 4,0 A H 250 V

Power con umption max. 650 W

Main connector Standard IEC receptacle

DIMENSIONS/WEIGHT

Dimen ion (H x W x D) 29" x 18 ½" x 17"

735 mm x 470 mm x 430 mm

Weight approx. 74 lb .

approx. 34 kg

Technical specifications and appearance are su ject to change without notice. The information contained herein is correct at the time of printing. All

trademarks (except BEHRINGER, the BEHRINGER logo, JUST LISTEN and EUROLIVE) mentioned elong to their respective owners and are not

affiliated with BEHRINGER. BEHRINGER accepts no lia ility for any loss which may e suffered y any person who relies either wholly or in part

upon any description, photograph or statement contained herein. Colors and specifications may vary slightly from product. Products are sold

through our authorized dealers only. Distri utors and dealers are not agents of BEHRINGER and have a solutely no authority to ind BEHRINGER

y any express or implied undertaking or representation. No part of this manual may e reproduced or transmitted in any form or y any means,

electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of BEHRINGER

International Gm H.

Tel. +49 2154 9206 0, Fax +49 2154 9206 4903
