Behringer POLY D Manuale utente

page 1 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

Analog 4-Voice Polyphonic Synthesizer with

37 Full-Size Keys, 4 VCOs, Classic Ladder Filter,

LFO, BBD Stereo Chorus, Distortion, 32-Step

Sequencer and Arpeggiator

Synthesizers and Samplers

POLY D

User Support Bulletin

Calibration Procedure

Summary:

POWER LEDRegion B LEDsRegion A LEDs

CALIBRATION CHANNELS:

CHANNEL 1 — PITCH WHEEL MAX/MIN

CHANNEL 2 — PITCH WHEEL dead zone

CHANNEL 3 — MOD WHEEL MAX/MIN

CHANNEL 4 — AFTERTOUCH MIN

CHANNEL 5 — AFTERTOUCH MAX

Introduction

The unit is carefully calibrated at the factory. The performance may change over time or due to environmental changes,

and the following recalibration procedures can be used to bring it back to its factory settings.

page 2 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 2 of 10

Synthesizers and Samplers

POLY D

Operation:

Start Calibration Routine

1. Press and hold button ”KYBD + STEP”, then power on POLY D.

2. When all the LEDs are running (during the rst 3 seconds after power on), press button“3” to start the

calibration routine.

3. Power LED will blink RED.

Follow all steps in the order in which they are presented.

Start PITCH WHEEL Calibration

1. Press button “1” to calibrate PITCH WHEEL.

2. Button “1” LED will light and region A LEDs will indicate current PITCH WHEEL position.

page 3 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 3 of 10

Synthesizers and Samplers

POLY D

Calibrate PITCH WHEEL Maximum Position

Move the PITCH WHEEL to its maximum position. Region A LEDs will show maximum position of PITCH WHEEL.

page 4 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 4 of 10

Synthesizers and Samplers

POLY D

Calibrate PITCH WHEEL Minimum Position

Move the PITCH WHEEL to its minimum position. Region A LEDs will show maximum position of PITCH WHEEL.

page 5 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 5 of 10

Synthesizers and Samplers

POLY D

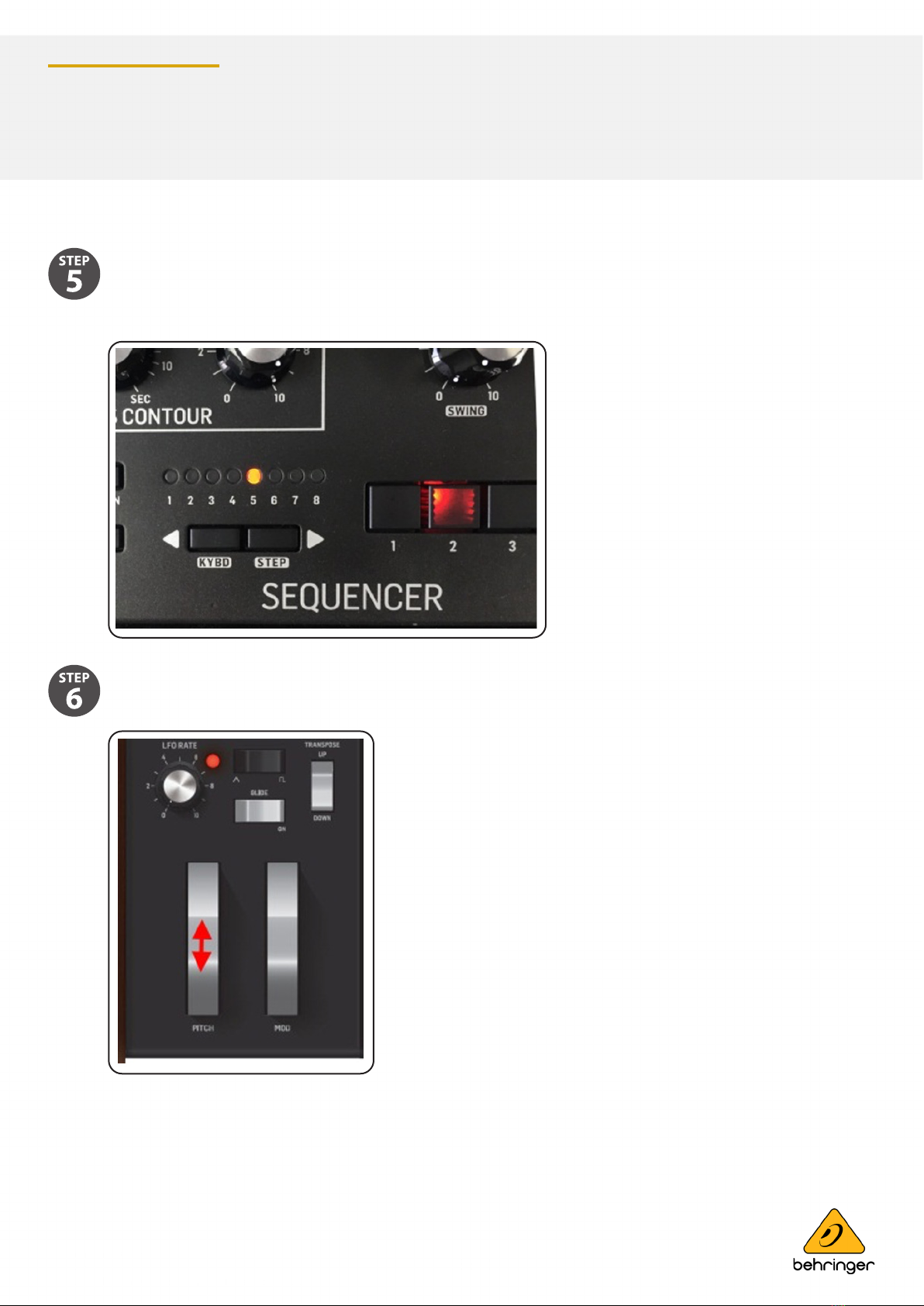

Start PITCH WHEEL Dead Zone Calibration

1. First release PITCH WHEEL.

2. Press button “2” to calibrate PITCH WHEEL dead zone.

3. Button “2” LED will light on and region A LEDs will indicate current PITCH WHEEL position.

Calibrate PITCH WHEEL dead zone

Move the PITCH WHEEL within the dead zone where you don't feel the tension of the spring. This will ensure that no

pitch information is sent while pitch wheel is not being touched.

page 6 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 6 of 10

Synthesizers and Samplers

POLY D

Start MOD WHEEL Calibration

1. First move MOD WHEEL to its minimum position.

2. Press button “3” to calibrate MOD WHEEL.

3. Button “3” LED will light and Region A LEDs will indicate current MOD WHEEL position.

page 7 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 7 of 10

Synthesizers and Samplers

POLY D

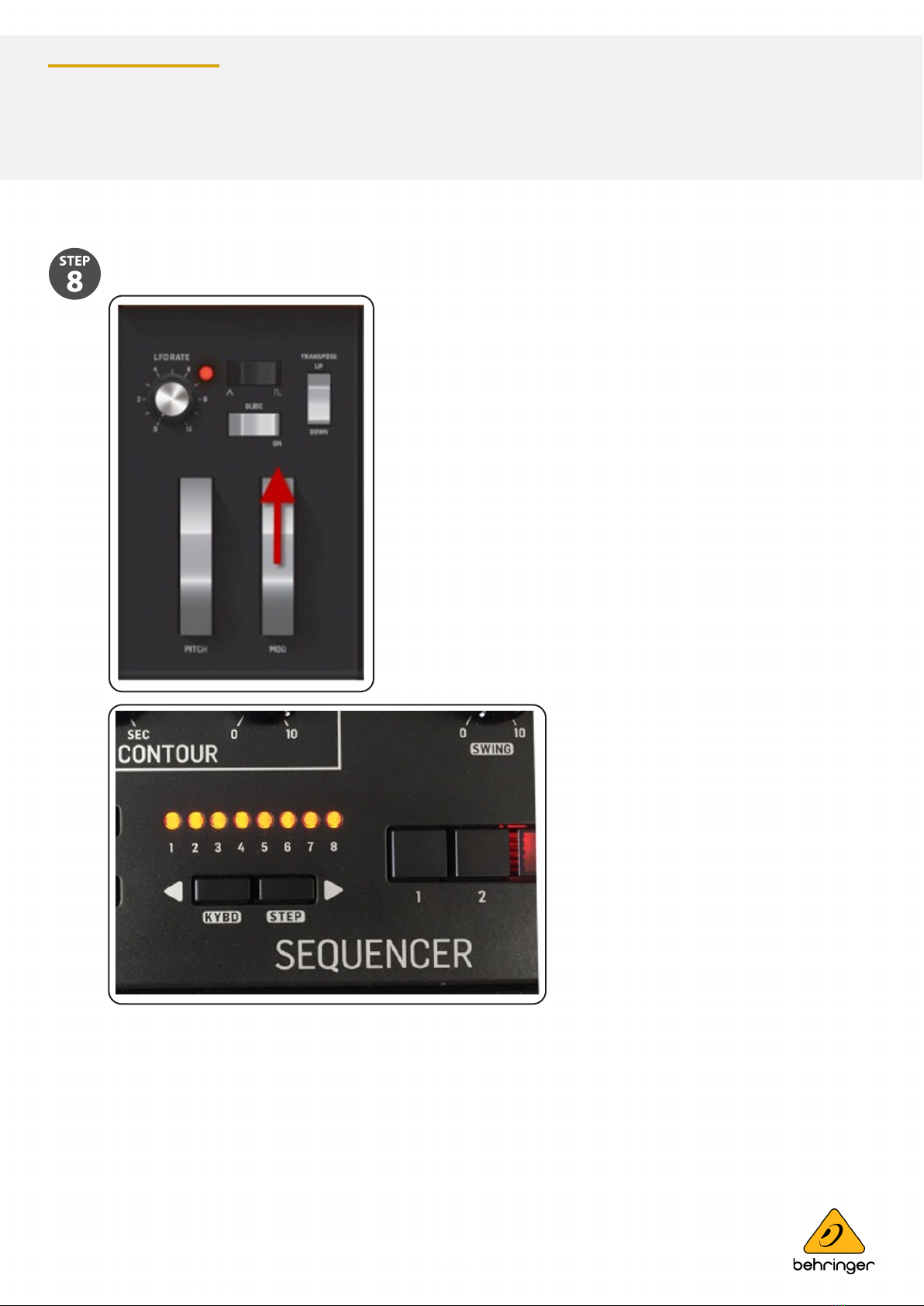

Calibrate MOD WHEEL Maximum Position

Move the MOD WHEEL to its maximum position. Region A LEDs will show maximum position of MOD WHEEL.

page 8 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 8 of 10

Synthesizers and Samplers

POLY D

Calibrate MOD WHEEL Minimum Position

Move the MOD WHEEL to its minimum position. Region A LEDs will show minimum position of MOD WHEEL.

Start AFTER TOUCH Minimum Position Calibration

1. Press button“4” to calibrate AFTER TOUCH minimum position.

2. Button “4” LED will light on and region A LEDs will indicate current AFTER TOUCH value.

page 9 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 9 of 10

Synthesizers and Samplers

POLY D

Calibrate AFTER TOUCH Minimum Position

Apply a small pressure to any one of the keys (or multiple keys) or do not apply any pressure.

This will ensure that no after touch information is sent while keys are not being pressed.

Start AFTER TOUCH Maximum Position Calibration

1. Press button “5” to calibrate AFTER TOUCH maximum position.

2. Button “5” LED will light on and Region A LEDs will indicate current AFTER TOUCH value.

page 10 of 10

985-40000-01084 Rev.A

2021-02-03

Condential, for internal use only. Not to be reproduced.

page 10 of 10

Condential, for internal use only. Not to be reproduced.

Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein.

Technical specications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik,

Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global

Synthesizers and Samplers

POLY D

Calibrate AFTER TOUCH Maximum Position

Apply pressure to any one of the keys (or multiple keys) until AFTER TOUCH value stops increasing (Region A LEDs will

indicate current AFTER TOUCH value).

Calibration Complete.

Press SHIFT + STEP to conrm and save all calibration results. Region B LED will show calibration results. Relative LED

will light to indicate corresponding channel is calibrated. Otherwise it may be a failed calibration.

NOTE: Press SHIFT + KYBD will cancel all calibration and return to normal mode.

TIPS:

A. You can calibrate only one of the channels (1-3) at a time.

B. For channel 4 and 5, you have to calibrate both of them simultaneously.

End of Procedure
