Installation and Operation Manual
MAEN834A 2007-11 English
Foreword
Beijer Electronics, MAEN834A
H-T100 Installation and Operation Manual
Foreword
H-T100 is a Human Machine Interface (HMI) with a 10.4” TFT Liquid
Crystal Display, and is water- and dust-resistant according to IP65/NEMA4.
H-T100 is CE-marked and meets your need to be highly transient-resistant
while in operation.
Also, its compact design makes connections with other machinery more flexi-
ble, thus achieving the optimal performance of your machines.
H-Designer is used to design applications of H-T100; it is reliable, user-friend-
ly and compatible with many models.
© Beijer Electronics AB, MAEN834A, 2007-11
Please read the entire installation manual prior to installing and using this equipment. Only qualified per-
sonnel may install, operate or repair this equipment. Beijer Electronics AB is not responsible for modified,
altered or renovated equipment. Because the equipment has a wide range of applications, users must
acquire the appropriate knowledge to use the equipment properly in their specific applications. Persons
responsible for the application and the equipment must themselves ensure that each application is in
compliance with all relevant requirements, standards and legislation in respect to configuration and safety.
Only parts and accessories manufactured according to specifications set by Beijer Electronics AB may be
used.
BEIJER ELECTRONICS AB SHALL NOT BE LIABLE TO ANYONE FOR ANY DIRECT,
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE INSTALLATION, USE OR REPAIR OF THIS EQUIPMENT, WHETHER ARISING IN
TORT, CONTRACT, OR OTHERWISE. BUYER'S SOLE REMEDY SHALL BE THE REPAIR,
REPLACEMENT, OR REFUND OF PURCHASE PRICE, AND THE CHOICE OF THE APPLICA-
BLE REMEDY SHALL BE AT THE SOLE DISCRETION OF BEIJER ELECTRONICS AB.
Contents
Beijer Electronics, MAEN834A
Contents
1 Safety Precautions................................................................................... 5
2 Installation.............................................................................................. 7
2.1 Package Contents.........................................................................7
3 Product Specifications............................................................................. 8
3.1 Description of Parts ...................................................................10
3.2 External and Cut-out Dimensions..............................................11
3.3 Mounting Procedure .................................................................. 11
3.4 Grounding .................................................................................12
3.5 Power Supply and Wiring ..........................................................13
4 Dip Switches......................................................................................... 14
5 Communication Ports........................................................................... 16
6 Touch Screen Calibration...................................................................... 18
7 Operation ............................................................................................. 19
7.1 Self Test .....................................................................................19
7.2 System Menu .............................................................................20
7.3 Key Pad......................................................................................21
7.4 Bench and Function Tests ..........................................................22
7.5 Setting Communication Parameters...........................................22
7.6 Downloading an Application .....................................................23
7.7 Uploading an Application ..........................................................24
7.8 Uploading/Downloading a Recipe .............................................25
7.9 Copying an Application .............................................................26
7.10 Passwords...................................................................................27
Contents
Beijer Electronics, MAEN834A
Safety Precautions
Beijer Electronics, MAEN834A 5
1 Safety Precautions
Both the installer and the owner and/or operator of the operator terminal must
read and understand this installation manual.
General
– Only qualified personnel may install or operate the operator terminal.
– The operator terminal must be installed according to the installation instruc-
tions.
– The operator terminal is designed for stationary installation on a plane surface,
where the following conditions are fulfilled:
• no high explosive risks
• no strong magnetic fields
• no direct sunlight
• no large, sudden temperature changes
– Never allow fluids, metal filings or wiring debris to enter any openings in the
operator terminal. This may cause fire or electrical shock.
– The operator terminal fulfills the requirements of article 4 of EMC directive
89/336/EEC.
– Storing the operator terminal where the temperature is lower/higher than
recommended in this manual can cause the LCD display liquid to congeal/
become isotopic.
– The LCD display liquid contains a powerful irritant. In case of skin contact,
wash immediately with plenty of water. In case of eye contact, hold the eye
open, flush with plenty of water and get medical attention.
– The supplier is not responsible for modified, altered or reconstructed equip-
ment.
– Use only parts and accessories manufactured according to specifications of the
supplier.
– Peripheral equipment must be appropriate for the application and location.
– The figures in this manual serves an illustrative purpose. Because of the many
variables associated with any particular installation, the supplier cannot as-
sume responsibility for actual use based on the figures.
– The supplier neither guarantees that the operator terminal is suitable for your
particular application, nor assumes responsibility for your product design, in-
stallation or operation.
Safety Precautions
6Beijer Electronics, MAEN834A
Power source
– The operator terminal is equipped with a 24 V DC input. Supply power other
than 24 V DC ± 15% will severely damage the operator terminal. Thus, check
the power supply supporting the DC power regularly.
Grounding
– Without grounding, the operator terminal may be severely affected by excess
noise. Make sure that the grounding is done properly from the power connec-
tor at the rear side of the operator terminal. When power is connected, make
sure that the wire is grounded.
– Use a cable of at least 2 mm2(AWG 14) to ground the operator terminal.
Ground resistance must be less than 100 Ω (class3). Note that the ground
cable must not be connected to the same ground point as the power circuit.
Installation
– Communication cables must be separated from power cables for operational
circuits. Only use shielded cables to avoid unpredictable problems.
During Use
– Emergency stop and other safety functions may not be controlled from the
operator terminal.
– Do not use too much force or sharp objects when touching the keys, display
etc.
Service and Maintenance
– Only qualified personnel should carry out repairs.
– The agreed warranty applies.
– Before carrying out any cleaning or maintenance operations, disconnect the
equipment from the electrical supply.
– Clean the display and surrounding front cover with a soft cloth and mild
detergent.
– Replacing the battery incorrectly may result in explosion. Only use batteries
recommended by the supplier.
Dismantling and Scrapping
– The operator terminal or parts thereof shall be recycled according to local
regulations.
– The following components contain substances that might be hazardous to
health and the environment: lithium battery, electrolytic capacitor and
display.
Installation
Beijer Electronics, MAEN834A 7
2Installation
2.1 Package Contents
The following parts are found in the box:
– Operator terminal H-T100
– 8 installation fasteners
– Power connector (connected to the 24 V DC power outlet)
– This installation and operation manual (MAEN834A)
Product Specifications
8Beijer Electronics, MAEN834A
3Product Specifications
Parameter H-T100
Front panel, W x H x D 297.0 x 222.0 x 8.0 mm
Mounting depth 44.3 mm
Cut-out dimensions 286.0 x 211.0 mm
Front panel seal IP 65/NEMA 4
Weight 1.9 kg
COM1 9-pin female connector: RS232/RS485
COM2 25-pin female connector: RS232/RS422/RS485
COM3 9-pin female connector: RS422/RS485
Ethernet Yes
USB Host 2 ports
USB Device 1 port
Flash ROM 8 MB
RAM 512 KB
CPU 32-bit RISC
Battery backed memory 512 KB
Data/Recipe 512 KB
Data storage
(Compact Flash card)
Yes
Real time clock Yes (rechargeable Lithium battery)
Display Color TFT LCD, 256 colors, 640 x 480 pixels,
CCFT backlight lifetime: approximately 50,000 h at 25 °C
Active area of display,
W x H
213.2 x 160.4 mm
80 x 60 characters of 8 x 8 size can be displayed
Display adjustment Via touch screen.
Touch screen Analog
Power supply 24 V DC ± 15%. Less than 30 W.
Operating temperature 0 ° to +50 °C
Storage temperature -10 °to +60 °C
Ambient humidity 20 - 90% RH non-condensed
Vibration endurance 0.5 mm displacement, 10-55 Hz, 2 hours per X-, Y- and
Z-axis directions
Shock endurance 10 G, 11 ms 3 times in each direction of X-, Y- and Z-axes
Product Specifications
Beijer Electronics, MAEN834A 9
RF emissions CISPR 22, Class A
Electrostatic Discharge IEC61000-4-2
RF susceptibility IEC61000-4-3
High frequency transients IEC61000-4-4
Cooling Natural cooling
Parameter H-T100
Product Specifications
10 Beijer Electronics, MAEN834A

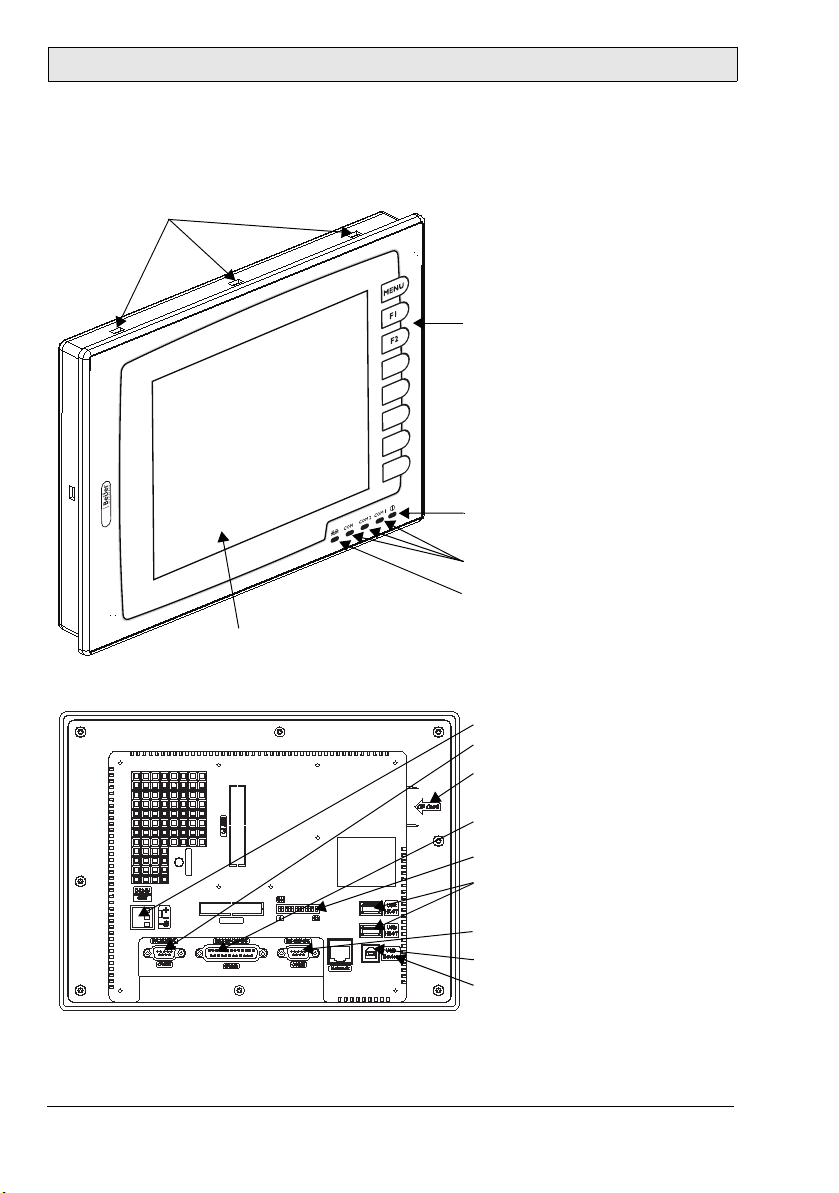

3.1 Description of Parts
Front
Back
F3
F4
F5
F6
F7
3
Fixture mounting holes
Power lamp
Communication lamps
Display
Function keys
Network lamp
DIP switches (1-12)
COM2: RS232/RS422/RS485
DC power outlet
COM1: RS232/RS485
COM3: RS422/RS485
Compact Flash card
USB connector for
USB connector for
printer/memory stick
Network connection
transmission
connection
